NSP151R-CEMDKT (2016)
Toyota Yaris/Vios/Limo
ILLUST NO. 5 OF 8(1710- )LHD..GEN..A ; (1801- )GCC,TAIW..A,C,F ; (1807- )D,E,H
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-0K040 |
NSP150..D,E,I;NSP150..CVT..A;NSP151,152..A,D,E,I;NSP150..5F..GCC..R..A;NSP150..LHD..5F..GEN..A |
1 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-0D060 |
NSP151,152..A,D,E;NSP150..CVT..G..A;NSP150..5F..GCC..R..A;NSP150..CVT..GCC..(D,R)..A;NSP150..(GEN,PH,VN)..(D,R)..(A,D,E) |
1 | ||
| Linked diagrams | ||||
| 8417 | ||||
| 8435 | ||||
ILLUST NO. 6 OF 8(1708- )GEN,PKN,TH..A,I ; (1801- )GCC,IDN,IND,TAIW..A,C,F,G ; (1807- )D,E,

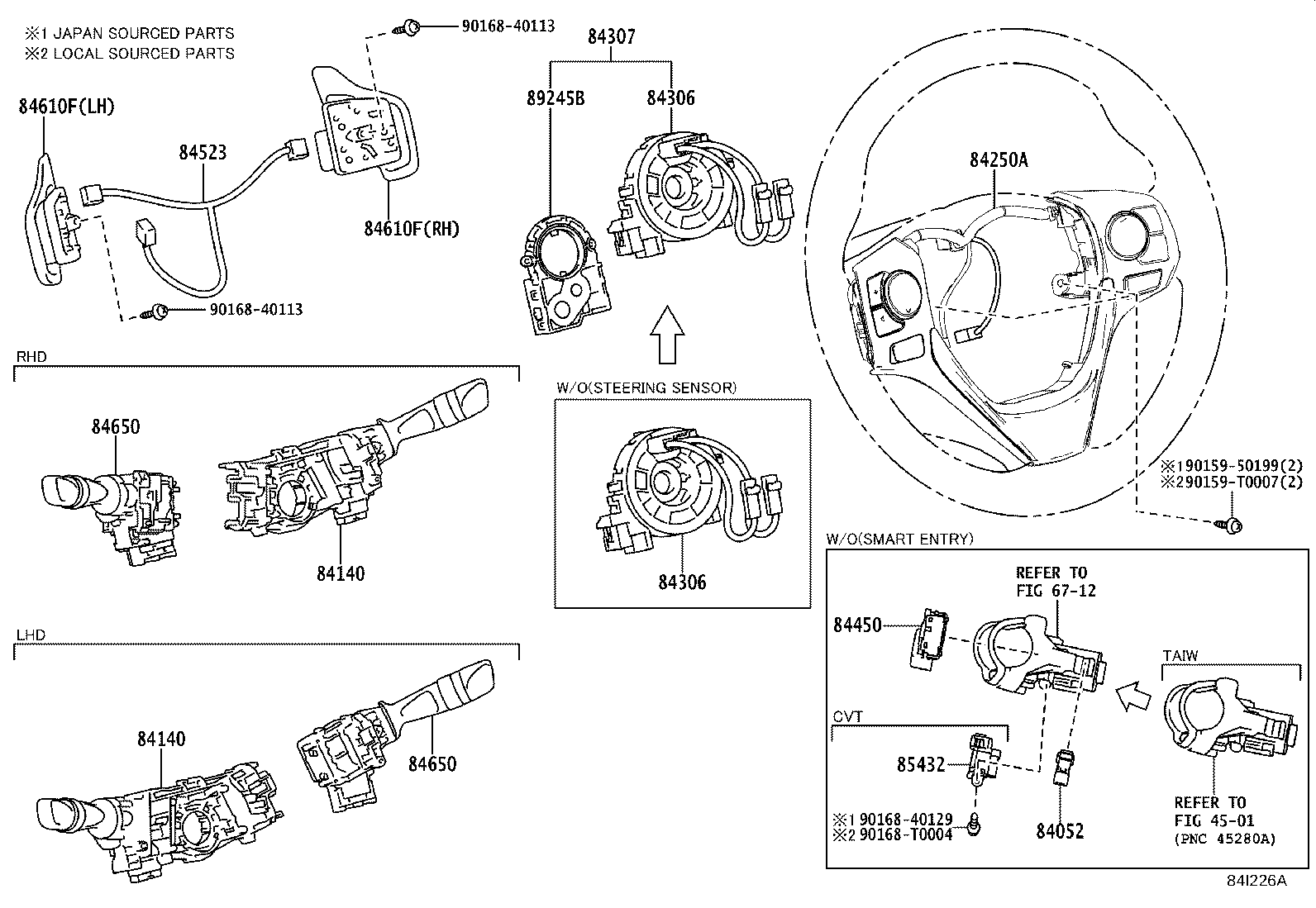

STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-0K020 |
NSP150..GCC;NSP151..GCC..G;NSP151..(D,R)..C;NSP151..GCC..R..B |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-02780 |
NSP151..RHD..(D,R)..C |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-02780 |
NSP151..RHD..(D,R)..C |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84308-0K020 |
NSP151..5F..E;NSP150..D..(D,E,I) |
1 | ||
| 84308-0K010 |
NSP151..V..G;NSP152..HTWC;NSP151..D,H,I;NSP151..CVT..E;NSP150..(G,R)..(D,I) |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84308-0K020 |
NSP151..5F..E;NSP150..D..(D,E,I) |
1 | ||
| 84308-0K010 |
NSP151..V..G;NSP152..HTWC;NSP151..D,H,I;NSP151..CVT..E;NSP150..(G,R)..(D,I) |
1 | ||
| 84307 - CABLE SUB-ASSY, SPIRAL W/SENSOR | ||||
| 84307-0D180 |
NSP152..HTWC;NSP151..D,H,I;NSP151..CVT..E;NSP150..(G,R)..(D,I) |
1 | ||
| 84307-0D170 |
NSP151..5F..E;NSP150..D..(D,E,I) |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-06030 |
NSP150..GCC;NSP151..GCC..G;NSP151..(D,R)..C;NSP151..GCC..R..B |
1 | ||
| 89245B - SENSOR, STEERING | ||||
| 8924B-0D010 |
NSP151..CVT..GEN..D..H;NSP150..CVT..GCC..(A,C);NSP150..5F..GCC..R..(A,C);NSP151..MTM..(GEN,IDN)..(C,H);NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I);NSP151..CVT..(GCC,GEN,IDN)..(G,R)..(C,H);NSP151..(AGT,BZ,GCC,PH,PKN,TH,VN)..(A,D,E,H,I) |
1 | ||
| Common parts | ||||
| 90159-50199 | ||||
| 90159-T0007 | ||||
| 90168-40113 | ||||
| 90168-40129 | ||||
| 90168-T0004 | ||||
| Linked diagrams | ||||
| 4501 | ||||
| 6712 | ||||
ILLUST NO. 4 OF 8(1708- )RHD..A,I ; (1801- )RHD..C,G ; (1901- )MA

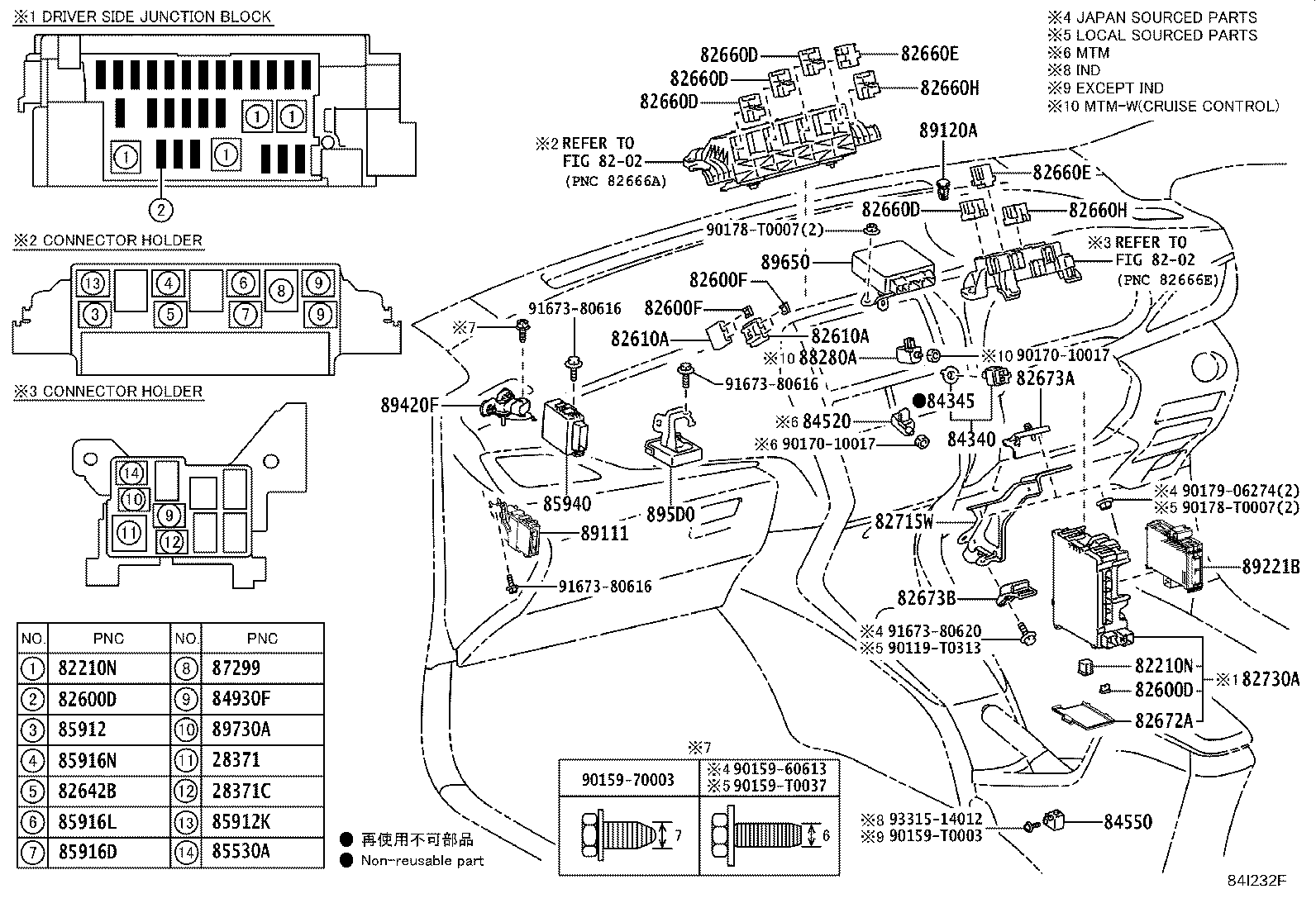

COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08294 |
NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08295 |
NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08295 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) 30A,TERM.:FEMALE,PNK |
1 | ||
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08294 |
NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08295 |
NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08295 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) 30A,TERM.:FEMALE,PNK |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09019 |
NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G 5A,MINI FUSE,TAN |
1 | ||
| 90982-09020 |
NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09021 |
NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G 10A,MINI FUSE,RED |
1 | ||
| 90982-09023 |
NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09024 |
NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G 25A,MINI FUSE |
1 | ||
| 90982-09022 |
NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09023 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09021 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) 10A,MINI FUSE,RED |
1 | ||
| 90982-09020 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09019 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) 5A,MINI FUSE,TAN |
1 | ||
| 90982-09024 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) 25A,MINI FUSE |
1 | ||
| 90982-09022 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) 15A,MINI FUSE,BLUE |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09019 |
NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G 5A,MINI FUSE,TAN |
1 | ||
| 90982-09020 |
NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09021 |
NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G 10A,MINI FUSE,RED |
1 | ||
| 90982-09023 |
NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09024 |
NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G 25A,MINI FUSE |
1 | ||
| 90982-09022 |
NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09023 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09021 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) 10A,MINI FUSE,RED |
1 | ||
| 90982-09020 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09019 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) 5A,MINI FUSE,TAN |
1 | ||
| 90982-09024 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) 25A,MINI FUSE |
1 | ||
| 90982-09022 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) 15A,MINI FUSE,BLUE |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09020 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09019 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) 5A,MINI FUSE,TAN |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09020 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09019 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) 5A,MINI FUSE,TAN |
1 | ||
| 82610A - BLOCK ASSY, FUSE | ||||
| 82610-52010 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) |
1 | ||
| 82610A - BLOCK ASSY, FUSE | ||||
| 82610-52010 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) |
1 | ||
| 82660D - BLOCK ASSY, RELAY | ||||
| 82660-74010 |
NCP15#,NSP150,151..B,C |
1 | ||
| 82660-48020 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) |
1 | ||
| 82660D - BLOCK ASSY, RELAY | ||||
| 82660-74010 |
NCP15#,NSP150,151..B,C |
1 | ||
| 82660-48020 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) |
1 | ||
| 82660D - BLOCK ASSY, RELAY | ||||
| 82660-74010 |
NCP15#,NSP150,151..B,C |
1 | ||
| 82660-48020 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) |
1 | ||
| 82660D - BLOCK ASSY, RELAY | ||||
| 82660-74010 |
NCP15#,NSP150,151..B,C |
1 | ||
| 82660-48020 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) |
1 | ||
| 82660E - BLOCK ASSY, RELAY | ||||
| 82660-48030 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) |
1 | ||
| 82660E - BLOCK ASSY, RELAY | ||||
| 82660-48030 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) |
1 | ||
| 82660H - BLOCK ASSY, RELAY | ||||
| 82660-48040 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) |
1 | ||
| 82660H - BLOCK ASSY, RELAY | ||||
| 82660-48040 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-0D030 |
NSP152..HTWC;NSP150..D,E,I;NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C |
1 | ||
| 82673A - BRACKET, JUNCTION BLOCK | ||||
| 82673-0D050 |
NSP151..IDN..G;NSP151..RHD..(D,R)..C |
1 | ||
| 82673B - BRACKET, JUNCTION BLOCK | ||||
| 82673-0D040 |
NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G |
1 | ||
| 82673-0K020 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) |
1 | ||
| 82730A - BLOCK ASSY, DRIVER SIDE JUNCTION | ||||
| 82730-0D510 |
NSP151..IDN..G;NSP151..TH..D..C;NSP151..RHD..R..C |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-09040 |
NSP15# |
1 | ||
| 84340-09041 |
NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G |
1 | ||
| 84340-09041 |
NSP151..GEN..G..H;NSP151..CVT..IDN..R;NSP151..5F..IDN..(D,R);NSP150..CVT..GCC..(A,C);NSP150..5F..GCC..R..(A,C);NSP151..(BZ,GCC)..(D,G,R)..(A,C,H);NSP150,151..(AGT,GEN,IND,PH,TH,VN)..(D,R)..(A,D,E,G,H) |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-0K010 |
NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G |
1 | ||
| 84345-0K010 |
NSP151..5F..IDN;NSP151..A,D,E,H,I;NSP150..CVT..(A,C);NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) |
1 | ||
| 84520 - SWITCH ASSY, CLUTCH START | ||||
| 84520-42010 |
NSP150,151..5F..(GCC,IDN,TH) |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-02030 |
NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G |
1 | ||
| 84550-02030 |
NSP150..D,E,I;NSP150..CVT..A;NSP151,152..A,D,E,H,I;NSP150..5F..GCC..R..A;NSP150..LHD..5F..GEN..A |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02027 |
NSP150..GCC;NSP151..GCC..G;NSP151..(D,R)..C;NSP151..GCC..R..B (J) |
1 | ||
| 90987-T2001 |
NSP150..GCC;NSP151..GCC..G;NSP151..(D,R)..C;NSP151..GCC..R..B (L) |
1 | ||
| 90987-02027 |
NSP150..D,E,I;NSP152..HTWCB;NSP150..RHD..CVT..A;NSP151..(D,R)..(A,E);NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..GEN..G..H;NSP151..5F..IDN..(D,R);NSP150..CVT..GCC..(A,C);NSP151..MTM..GEN..G..(A,H);NSP151..CVT..(GCC,IDN)..R..C;NSP150..LHD..CVT..GEN..(D,R)..A;NSP151..(AGT,BZ,GCC,PKN)..(G,V)..(A,C,H,I) (J) |
1 | ||
| 90987-T2001 |
NSP150..D,E,I;NSP152..HTWCB;NSP150..RHD..CVT..A;NSP151..(D,R)..(A,E);NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..GEN..G..H;NSP151..5F..IDN..(D,R);NSP150..CVT..GCC..(A,C);NSP151..MTM..GEN..G..(A,H);NSP151..CVT..(GCC,IDN)..R..C;NSP150..LHD..CVT..GEN..(D,R)..A;NSP151..(AGT,BZ,GCC,PKN)..(G,V)..(A,C,H,I) (L) |
1 | ||
| 85916N - RELAY, TAIL LAMP | ||||
| 90987-T2001 |
NSP151..IDN..G;NSP151..RHD..(D,R)..C |
1 | ||
| 90987-T2001 |
NSP151..A,D,E,I;NSP151..5F..IDN;NSP150..CVT..(A,C);NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) |
1 | ||
| 87299 - RELAY, HEATER | ||||
| 90987-02025 |
NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G (J) |
1 | ||
| 90987-T2002 |
NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G (L) |
1 | ||
| 90987-T2002 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) (L) |
1 | ||
| 90987-02025 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) (J) |
1 | ||
| 89120A - SENSOR, AUTOMATIC LIGHT CONTROL | ||||
| 89121-30020 |
NSP151..(G,R,V)..(D,H);NSP151..(IDN,IND,TH,VN)..(G,V)..(A,C,E,G) |
1 | ||
| 89221B - COMPUTER, BODY | ||||
| 89221-0D371 |
NSP151..TH..D..C;NSP150,151..GCC..(G,R)..C |
1 | ||
| 89221-0D352 |
NSP151..RHD..R..C |
1 | ||
| 89420F - SENSOR ASSY, VACUUM | ||||
| 89420-52100 |
NSP150..D,E,I;NSP151..5F..IDN;NSP151..A,D,E,G,I;NSP150..CVT..(A,C);NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C |
1 | ||
| 89730A - RELAY(FOR SECURITY WARNING) | ||||
| 90987-T2001 |
NSP151..IDN..G;NSP151..RHD..R..C |
1 | ||
| 90987-T2001 |
NSP151..IDN..(G,R);NSP150,152..(PH,PKN,TH)..(G,R)..(A,D,I);NSP151..(AGT,BZ,PH,PKN,TH,VN)..(A,D,E,H,I) |
1 | ||
| Common parts | ||||
| 90119-T0313 | ||||
| 90159-60613 | ||||
| 90159-70003 | ||||
| 90159-T0003 | ||||
| 90159-T0037 | ||||
| 90170-10017 | ||||
| 90178-T0007 | ||||
| 90179-06274 | ||||
| 91673-80616 | ||||
| 91673-80620 | ||||
| 93315-14012 | ||||
| Linked diagrams | ||||
| 8202 | ||||
ILLUST NO. 4 OF 8(1710- )LHD..GEN..A ; (1801- )GCC,TAIW..A,C,F ; (1807- )D,E,H
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08294 |
NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08295 |
NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08295 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) 30A,TERM.:FEMALE,PNK |
1 | ||
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08294 |
NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08295 |
NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08295 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) 30A,TERM.:FEMALE,PNK |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09019 |
NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G 5A,MINI FUSE,TAN |
1 | ||
| 90982-09020 |
NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09021 |
NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G 10A,MINI FUSE,RED |
1 | ||
| 90982-09023 |
NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09024 |
NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G 25A,MINI FUSE |
1 | ||
| 90982-09022 |
NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09023 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09021 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) 10A,MINI FUSE,RED |
1 | ||
| 90982-09020 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09019 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) 5A,MINI FUSE,TAN |
1 | ||
| 90982-09024 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) 25A,MINI FUSE |
1 | ||
| 90982-09022 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) 15A,MINI FUSE,BLUE |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09019 |
NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G 5A,MINI FUSE,TAN |
1 | ||
| 90982-09020 |
NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09021 |
NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G 10A,MINI FUSE,RED |
1 | ||
| 90982-09023 |
NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09024 |
NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G 25A,MINI FUSE |
1 | ||
| 90982-09022 |
NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09023 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09021 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) 10A,MINI FUSE,RED |
1 | ||
| 90982-09020 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09019 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) 5A,MINI FUSE,TAN |
1 | ||
| 90982-09024 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) 25A,MINI FUSE |
1 | ||
| 90982-09022 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) 15A,MINI FUSE,BLUE |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09020 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09019 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) 5A,MINI FUSE,TAN |
1 | ||
| 82610A - BLOCK ASSY, FUSE | ||||
| 82610-52010 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) |
1 | ||
| 82660D - BLOCK ASSY, RELAY | ||||
| 82660-74010 |
NCP15#,NSP150,151..B,C |
1 | ||
| 82660-48020 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) |
1 | ||
| 82660D - BLOCK ASSY, RELAY | ||||
| 82660-74010 |
NCP15#,NSP150,151..B,C |
1 | ||
| 82660-48020 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) |
1 | ||
| 82660D - BLOCK ASSY, RELAY | ||||
| 82660-74010 |
NCP15#,NSP150,151..B,C |
1 | ||
| 82660-48020 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) |
1 | ||
| 82660D - BLOCK ASSY, RELAY | ||||
| 82660-74010 |
NCP15#,NSP150,151..B,C |
1 | ||
| 82660-48020 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) |
1 | ||
| 82660E - BLOCK ASSY, RELAY | ||||
| 82660-48030 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) |
1 | ||
| 82660E - BLOCK ASSY, RELAY | ||||
| 82660-48030 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) |
1 | ||
| 82660H - BLOCK ASSY, RELAY | ||||
| 82660-48040 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) |
1 | ||
| 82660H - BLOCK ASSY, RELAY | ||||
| 82660-48040 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-0D030 |
NSP152..HTWC;NSP150..D,E,I;NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C |
1 | ||
| 82673A - BRACKET, JUNCTION BLOCK | ||||
| 82673-0D050 |
NSP151..IDN..G;NSP151..RHD..(D,R)..C |
1 | ||
| 82673B - BRACKET, JUNCTION BLOCK | ||||
| 82673-0D040 |
NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G |
1 | ||
| 82673-0K020 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) |
1 | ||
| 82730A - BLOCK ASSY, DRIVER SIDE JUNCTION | ||||
| 82730-0D510 |
NSP151..IDN..G;NSP151..TH..D..C;NSP151..RHD..R..C |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-09040 |
NSP15# |
1 | ||
| 84340-09041 |
NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G |
1 | ||
| 84340-09041 |
NSP151..GEN..G..H;NSP151..CVT..IDN..R;NSP151..5F..IDN..(D,R);NSP150..CVT..GCC..(A,C);NSP150..5F..GCC..R..(A,C);NSP151..(BZ,GCC)..(D,G,R)..(A,C,H);NSP150,151..(AGT,GEN,IND,PH,TH,VN)..(D,R)..(A,D,E,G,H) |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-0K010 |
NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G |
1 | ||
| 84345-0K010 |
NSP151..5F..IDN;NSP151..A,D,E,H,I;NSP150..CVT..(A,C);NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) |
1 | ||
| 84520 - SWITCH ASSY, CLUTCH START | ||||
| 84520-42010 |
NSP150,151..5F..(GCC,IDN,TH) |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-02030 |
NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G |
1 | ||
| 84550-02030 |
NSP150..D,E,I;NSP150..CVT..A;NSP151,152..A,D,E,H,I;NSP150..5F..GCC..R..A;NSP150..LHD..5F..GEN..A |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02027 |
NSP150..GCC;NSP151..GCC..G;NSP151..(D,R)..C;NSP151..GCC..R..B (J) |
1 | ||
| 90987-T2001 |
NSP150..GCC;NSP151..GCC..G;NSP151..(D,R)..C;NSP151..GCC..R..B (L) |
1 | ||
| 90987-02027 |
NSP150..D,E,I;NSP152..HTWCB;NSP150..RHD..CVT..A;NSP151..(D,R)..(A,E);NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..GEN..G..H;NSP151..5F..IDN..(D,R);NSP150..CVT..GCC..(A,C);NSP151..MTM..GEN..G..(A,H);NSP151..CVT..(GCC,IDN)..R..C;NSP150..LHD..CVT..GEN..(D,R)..A;NSP151..(AGT,BZ,GCC,PKN)..(G,V)..(A,C,H,I) (J) |
1 | ||
| 90987-T2001 |
NSP150..D,E,I;NSP152..HTWCB;NSP150..RHD..CVT..A;NSP151..(D,R)..(A,E);NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..GEN..G..H;NSP151..5F..IDN..(D,R);NSP150..CVT..GCC..(A,C);NSP151..MTM..GEN..G..(A,H);NSP151..CVT..(GCC,IDN)..R..C;NSP150..LHD..CVT..GEN..(D,R)..A;NSP151..(AGT,BZ,GCC,PKN)..(G,V)..(A,C,H,I) (L) |
1 | ||
| 85916N - RELAY, TAIL LAMP | ||||
| 90987-T2001 |
NSP151..IDN..G;NSP151..RHD..(D,R)..C |
1 | ||
| 90987-T2001 |
NSP151..A,D,E,I;NSP151..5F..IDN;NSP150..CVT..(A,C);NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-T2002 |
NSP151..IDN..G;NSP151..RHD..(D,R)..C |
1 | ||
| 90987-T2002 |
NSP151..A,D,E,I;NSP151..5F..IDN;NSP150..CVT..(A,C);NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) |
1 | ||
| 87299 - RELAY, HEATER | ||||
| 90987-02025 |
NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G (J) |
1 | ||
| 90987-T2002 |
NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G (L) |
1 | ||
| 90987-T2002 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) (L) |
1 | ||
| 90987-02025 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) (J) |
1 | ||
| 89120A - SENSOR, AUTOMATIC LIGHT CONTROL | ||||
| 89121-30020 |
NSP151..(G,R,V)..(D,H);NSP151..(IDN,IND,TH,VN)..(G,V)..(A,C,E,G) |
1 | ||
| 89221B - COMPUTER, BODY | ||||
| 89221-0D371 |
NSP151..TH..D..C;NSP150,151..GCC..(G,R)..C |
1 | ||
| 89221-0D352 |
NSP151..RHD..R..C |
1 | ||
| 89420F - SENSOR ASSY, VACUUM | ||||
| 89420-52100 |
NSP150..D,E,I;NSP151..5F..IDN;NSP151..A,D,E,G,I;NSP150..CVT..(A,C);NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C |
1 | ||
| 89420F - SENSOR ASSY, VACUUM | ||||
| 89420-52100 |
NSP150..D,E,I;NSP151..5F..IDN;NSP151..A,D,E,G,I;NSP150..CVT..(A,C);NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C |
1 | ||
| 89730A - RELAY(FOR SECURITY WARNING) | ||||
| 90987-T2001 |
NSP151..IDN..G;NSP151..RHD..R..C |
1 | ||
| 90987-T2001 |
NSP151..IDN..(G,R);NSP150,152..(PH,PKN,TH)..(G,R)..(A,D,I);NSP151..(AGT,BZ,PH,PKN,TH,VN)..(A,D,E,H,I) |
1 | ||
| Common parts | ||||
| 90119-T0313 | ||||
| 90159-70003 | ||||
| 90159-T0003 | ||||
| 90159-T0037 | ||||
| 90170-10017 | ||||
| 90178-T0007 | ||||
| 90179-06274 | ||||
| 91673-80616 | ||||
| 91673-80620 | ||||
| 93315-14012 | ||||
| 94120-41000 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8202 | ||||

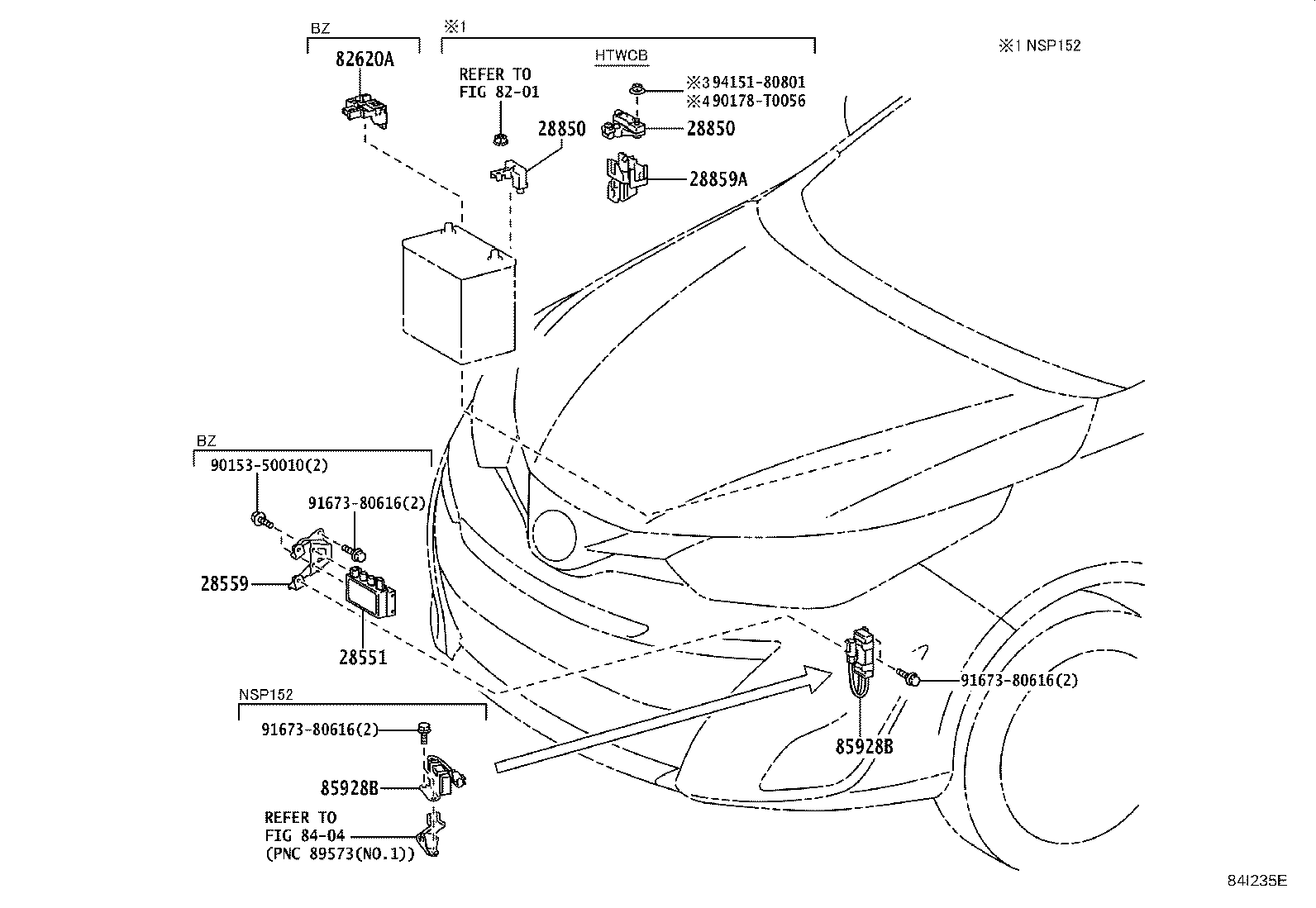

ILLUST NO. 2 OF 8(1708- )GEN,PKN,TH..A,I ; (1801- )GCC,IDN,IND,TAIW..A,C,F,G ; (1807- )D,E,
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90153-50010 | ||||
| 90178-T0056 | ||||
| 91673-80616 | ||||
| 94151-80801 | ||||
| Linked diagrams | ||||
| 8201 | ||||
| 8404 | ||||

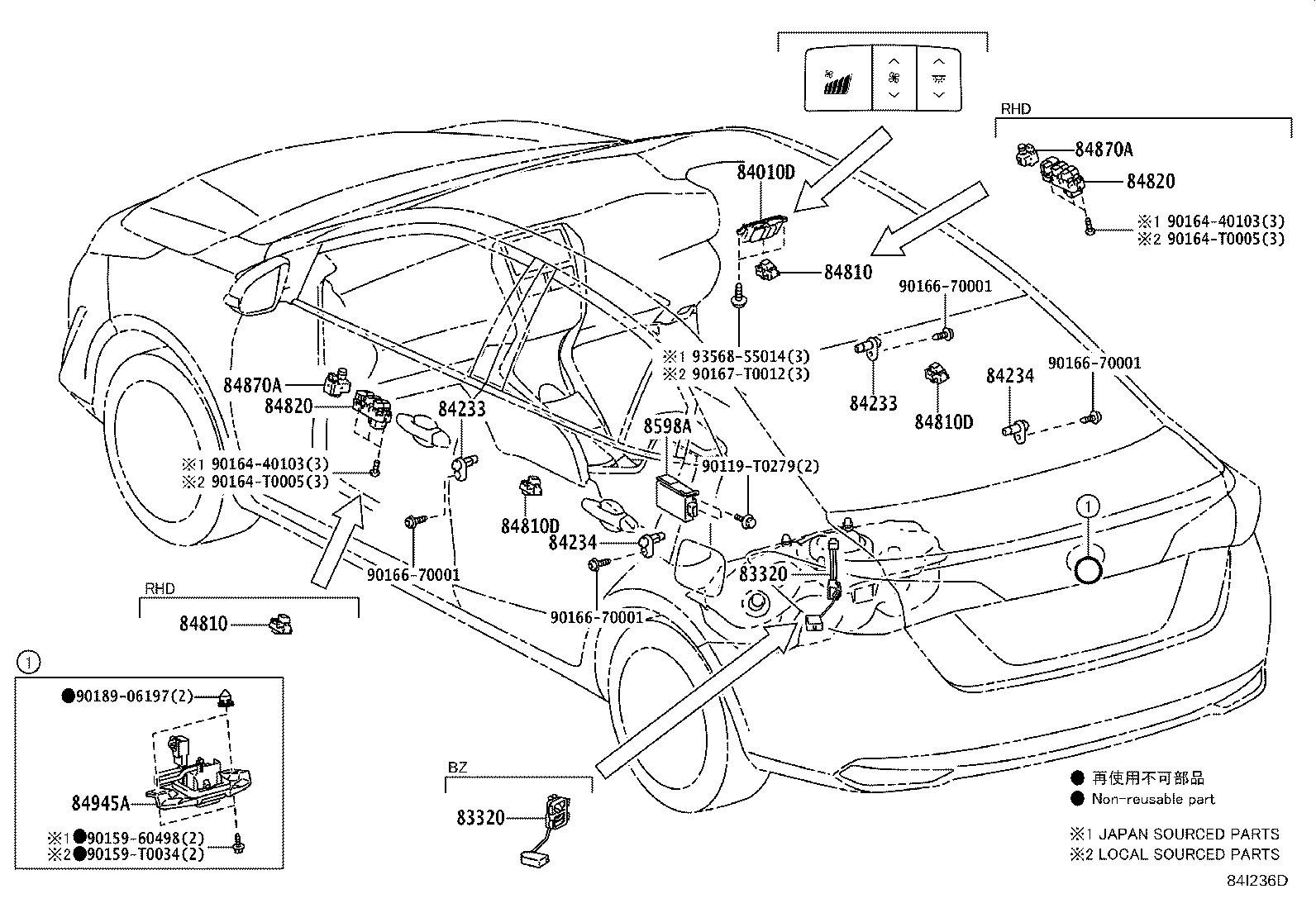

ILLUST NO. 8 OF 8(1708- )GEN,PKN,TH..A,I ; (1801- )GCC,IDN,IND,TAIW..A,C,F,G ; (1807- )D,E,
DOOR,ROOF,FLOOR & LUGGAGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-0D150 |
NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G |
1 | ||
| 83320-0D150 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I);NSP151..(AGT,GCC,GEN,IND,PH,PKN,TH,VN)..(A,D,E,G,H,I) |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-0D150 |
NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G |
1 | ||
| 83320-0D150 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I);NSP151..(AGT,GCC,GEN,IND,PH,PKN,TH,VN)..(A,D,E,G,H,I) |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-02070 |
NSP150..D,E,I;NSP150..CVT..A;NSP151,152..A,D,E,I;NSP150..5F..GCC..R..A;NSP150..LHD..5F..GEN..A |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-02070 |
NSP150..D,E,I;NSP150..CVT..A;NSP151,152..A,D,E,I;NSP150..5F..GCC..R..A;NSP150..LHD..5F..GEN..A |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-02070 |
NSP150..D,E,I;NSP150..CVT..A;NSP151,152..A,D,E,I;NSP150..5F..GCC..R..A;NSP150..LHD..5F..GEN..A |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-02070 |
NSP150..D,E,I;NSP150..CVT..A;NSP151,152..A,D,E,I;NSP150..5F..GCC..R..A;NSP150..LHD..5F..GEN..A |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-0D300 |
NSP150..CVT..A;NSP151..D..(A,H);NSP150..LHD..5F..GEN..A;NSP151..(G,R)..(A,D,E,I);NSP150,151..MTM..(AGT,GCC)..R..(A,H);NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-0D300 |
NSP150..CVT..A;NSP151..D..(A,H);NSP150..LHD..5F..GEN..A;NSP151..(G,R)..(A,D,E,I);NSP150,151..MTM..(AGT,GCC)..R..(A,H);NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) |
1 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-0D300 |
NSP151..AGT..R;NSP151..D..(A,H);NSP150..CVT..GEN..A;NSP150..GCC..(G,R)..A;NSP150..LHD..5F..GEN..A;NSP151..(G,R)..(A,D,E,I);NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) |
2 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-0D300 |
NSP151..AGT..R;NSP151..D..(A,H);NSP150..CVT..GEN..A;NSP150..GCC..(G,R)..A;NSP150..LHD..5F..GEN..A;NSP151..(G,R)..(A,D,E,I);NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) |
2 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-0D600 |
NSP151..AGT..R;NSP151..D..(A,H);NSP150..GCC..(G,R)..A;NSP151..LHD..(G,R)..(A,D,E);NSP150..LHD..(GEN,PH,VN)..(A,D,E) |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-0D600 |
NSP151..AGT..R;NSP151..D..(A,H);NSP150..GCC..(G,R)..A;NSP151..LHD..(G,R)..(A,D,E);NSP150..LHD..(GEN,PH,VN)..(A,D,E) |
1 | ||
| Common parts | ||||
| 90119-T0279 | ||||
| 90159-60498 | ||||
| 90159-T0034 | ||||
| 90164-40103 | ||||
| 90164-T0005 | ||||
| 90166-70001 | ||||
| 90167-T0012 | ||||
| 90189-06197 | ||||
| 93568-55014 | ||||

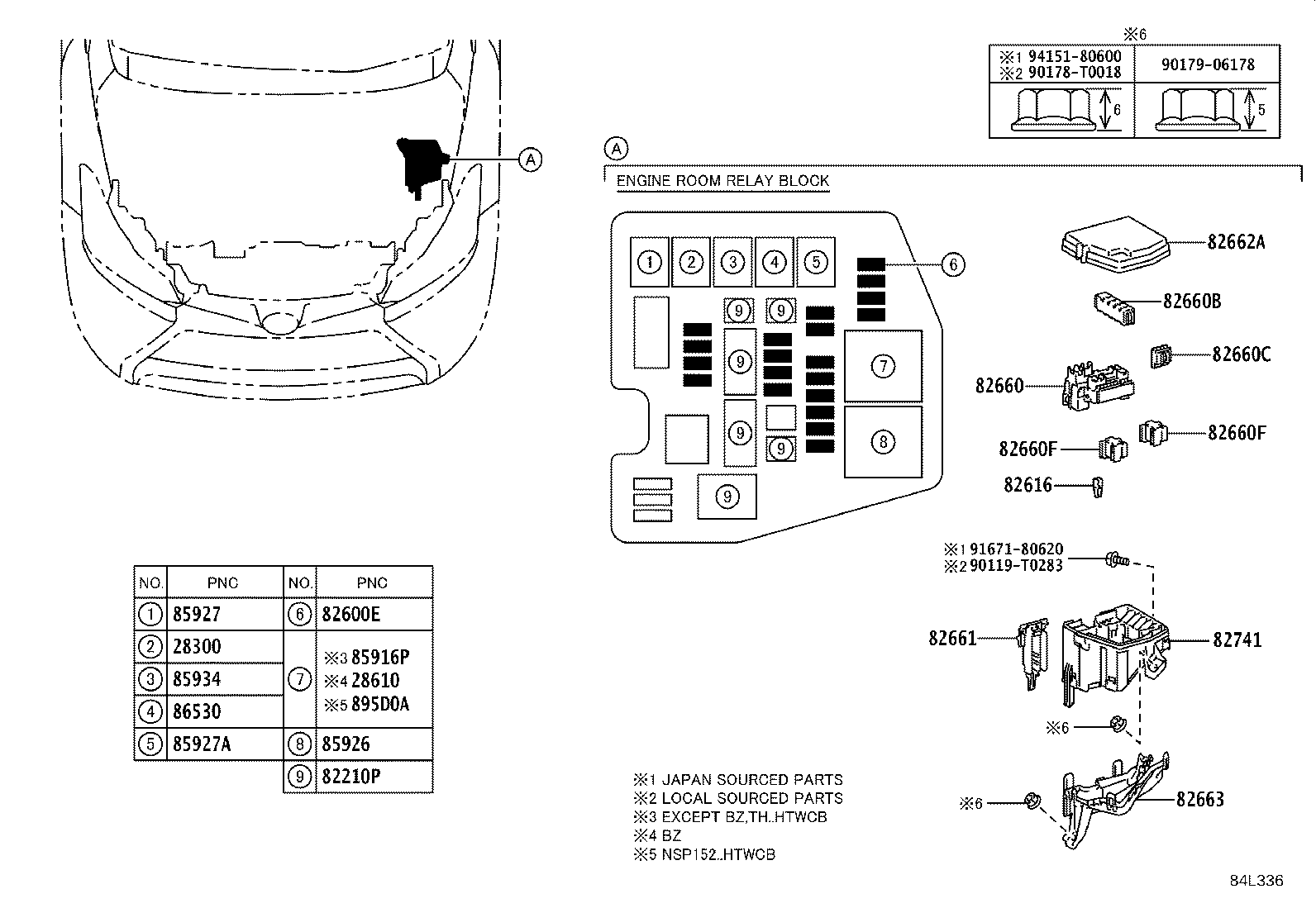

ILLUST NO. 3 OF 8(1708- )GEN,PKN,TH..A,I ; (1801- )GCC,IDN,IND,TAIW..A,C,F,G ; (1807- )D,E,
ENGINE ROOM RELAY BLOCK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-0L011 |
2NRFE..NSP151..A,D,E,G;2NRFE..NSP151..5F..IDN;1NRFE..NSP150..CVT..GEN..G..A;1NRFE..NSP150..CVT..GCC..(A,C);1NRFE..NSP150..5F..GCC..R..(A,C);2NRFE..NSP151..CVT..(GCC,IDN)..(G,R)..C;1NRFE,3NR#..NSP150,152..(GEN,PH,TH,VN)..(D,R)..(A,D,E) |
1 | ||
| 82210P - ENGINE ROOM FUSIBLE LINK | ||||
| 90982-08302 |
NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G 50A-30A-50A,FEMALE |
1 | ||
| 90982-08296 |
NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08295 |
NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08274 |
NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G 120A,TERM.:MALE,WHT |
1 | ||
| 90982-08295 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08296 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08302 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) 50A-30A-50A,FEMALE |
1 | ||
| 90982-08274 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) 120A,TERM.:MALE,WHT |
1 | ||
| 90982-08300 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) 50A-30A-30A,FEMALE |
1 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| 90982-09020 |
NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09024 |
NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G 25A,MINI FUSE |
1 | ||
| 90982-09025 |
NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G 30A,MINI FUSE,GRN |
1 | ||
| 90982-09023 |
NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09022 |
NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09021 |
NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G 10A,MINI FUSE,RED |
1 | ||
| 90982-09021 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) 10A,MINI FUSE,RED |
1 | ||
| 90982-09025 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) 30A,MINI FUSE,GRN |
1 | ||
| 90982-09022 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09023 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09020 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09024 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) 25A,MINI FUSE |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-58010 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) |
1 | ||
| 82660 - BLOCK ASSY, RELAY, ENGINE ROOM | ||||
| 82660-0D040 |
NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G |
1 | ||
| 82660-0D040 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-0D050 |
NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G |
1 | ||
| 82660-0D050 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) |
1 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-0D060 |
NSP151..IDN..G;NSP151..RHD..(D,R)..C |
1 | ||
| 82660-0D060 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) |
1 | ||
| 82660F - BLOCK ASSY, RELAY | ||||
| 82660-0H070 |
NSP151..IDN..G;NSP151..RHD..(D,R)..C |
1 | ||
| 82660-0H070 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) |
2 | ||
| 82660F - BLOCK ASSY, RELAY | ||||
| 82660-0H070 |
NSP151..IDN..G;NSP151..RHD..(D,R)..C |
1 | ||
| 82660-0H070 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) |
2 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-52050 |
NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G |
1 | ||
| 82661-52050 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-0D090 |
NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G |
1 | ||
| 82663-0D090 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-0D100 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) |
1 | ||
| 82741-0D100 |
NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-T2002 |
NSP151..IDN..G;NSP151..RHD..(D,R)..C |
1 | ||
| 90987-T2002 |
NSP151..A,D,E,I;NSP151..5F..IDN;NSP150..CVT..(A,C);NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) |
1 | ||
| 85926 - RELAY, HEADLAMP DIMMER | ||||
| 90987-T2003 |
NSP151..RHD..(D,R)..C |
1 | ||
| 90987-T2002 |
NSP151..A,D,E,I;NSP151..5F..IDN;NSP150..CVT..(A,C);NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-02027 |
NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G (J) |
1 | ||
| 90987-T2001 |
NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G (L) |
1 | ||
| 90987-02027 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) (J) |
1 | ||
| 90987-T2001 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) (L) |
1 | ||
| 85927A - RELAY, COOLING FAN, NO.2 | ||||
| 90080-87009 |
NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G (L) |
1 | ||
| 90987-04004 |
NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G (J) |
1 | ||
| 90080-87009 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) (L) |
1 | ||
| 90987-04004 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) (J) |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-T2001 |
NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G |
1 | ||
| 90987-T2001 |
NSP151..A,D,E,I;NSP151..5F..IDN;NSP150..CVT..(A,C);NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) |
1 | ||
| Common parts | ||||
| 90119-T0283 | ||||
| 90178-T0018 | ||||
| 90179-06178 | ||||
| 91671-80620 | ||||
| 94151-80600 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
