NSP151R-CEMDKT (2016)

Toyota Yaris/Vios/Limo

Production Oct 2016 - Dec 2017
Engine 2NRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1708- )NSP151..GCC,IDN..C ; (1708- )NSP151..A,D,E,F,G,H,I ; (1708- )NSP15

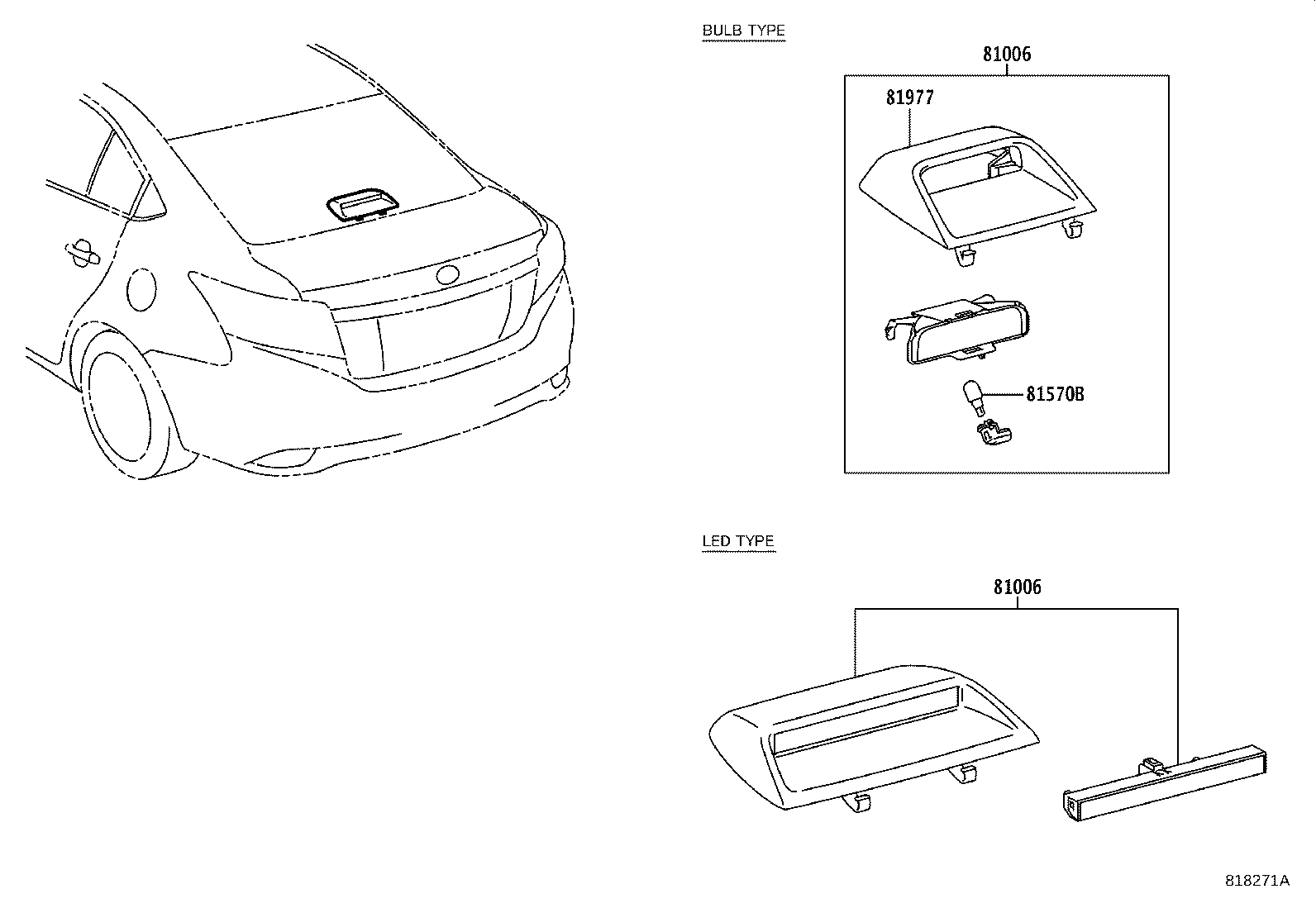

Click highlighted areas on diagram

diagram 81006 81006 81570B 81977
Part # Description Qty Price
81006 - LAMP SET, STOP CENTER
81006-0D270A0

NSP151..A,I;NSP151..R..E;NSP150..CVT..(A,C,I);NSP151..(GCC,IDN)..(G,R)..C;NSP150..5F..(GEN,PKN)..(D,R)..(A,I);NSP150..5F..(GCC,PKN)..(G,R)..(A,C,I)

IVORY,TRIM0#

 1
81006-0D270C0

NSP151..A,D;NSP151..GCC..G..C;NSP151..5F..IDN..(D,R);NSP150..CVT..GEN..G..A;NSP150..CVT..GCC..(A,C);NSP150..5F..GCC..R..(A,C);NSP151..CVT..(GCC,IDN)..R..C;NSP150..(GEN,PH,VN)..(D,R)..(A,D,E)

BLACK,TRIM2#

 1
81006-0D281C0

NSP152;NSP151..H

BLACK,TRIM2#

 1
81006 - LAMP SET, STOP CENTER
81006-0D270A0

NSP151..A,I;NSP151..R..E;NSP150..CVT..(A,C,I);NSP151..(GCC,IDN)..(G,R)..C;NSP150..5F..(GEN,PKN)..(D,R)..(A,I);NSP150..5F..(GCC,PKN)..(G,R)..(A,C,I)

IVORY,TRIM0#

 1
81006-0D270C0

NSP151..A,D;NSP151..GCC..G..C;NSP151..5F..IDN..(D,R);NSP150..CVT..GEN..G..A;NSP150..CVT..GCC..(A,C);NSP150..5F..GCC..R..(A,C);NSP151..CVT..(GCC,IDN)..R..C;NSP150..(GEN,PH,VN)..(D,R)..(A,D,E)

BLACK,TRIM2#

 1
81006-0D281C0

NSP152;NSP151..H

BLACK,TRIM2#

 1
81570B - BULB (FOR CENTER STOP LAMP)
90981-TB002

NSP150..GCC;NSP151..R..C;NSP151..TH..D..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G

12V 16W

 1
90981-TB002

NSP150..D,E,I;NSP151..A,D,I;NSP151..CVT..R..E;NSP150..CVT..(A,C);NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..5F..(IDN,VN)..(C,E);NSP151..CVT..(GCC,IDN)..(G,R)..C

12V 16W

 1
81977 - COVER, CENTER STOP LAMP
81977-0D170A0

NSP150..GCC;NSP151..R..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G

IVORY,TRIM0#

 1
81977-0D170C0

NSP150..GCC;NSP151..GCC..G;NSP151..GCC..R..B;NSP151..(GCC,TH)..(D,R)..C

BLACK,TRIM2#

 1
81977-0D270C0

NSP151..A,D;NSP151..GCC..G..C;NSP151..5F..IDN..(D,R);NSP150..CVT..GEN..G..A;NSP150..CVT..GCC..(A,C);NSP150..5F..GCC..R..(A,C);NSP151..CVT..(GCC,IDN)..R..C;NSP150..(GEN,PH,VN)..(D,R)..(A,D,E)

BLACK,TRIM2#

 1
81977-0D270A0

NSP151..A,I;NSP151..R..E;NSP150..CVT..(A,C,I);NSP151..(GCC,IDN)..(G,R)..C;NSP150..5F..(GEN,PKN)..(D,R)..(A,I);NSP150..5F..(GCC,PKN)..(G,R)..(A,C,I)

IVORY,TRIM0#

 1
