NSP151R-CEMDKT (2016)

Toyota Yaris/Vios/Limo

Production Oct 2016 - Dec 2017
Engine 2NRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(1708- )HTWC ; (1708- )NSP150,151..A,D,E,F,G,H ; (1801- )C ; (1901- )MA

Click highlighted areas on diagram

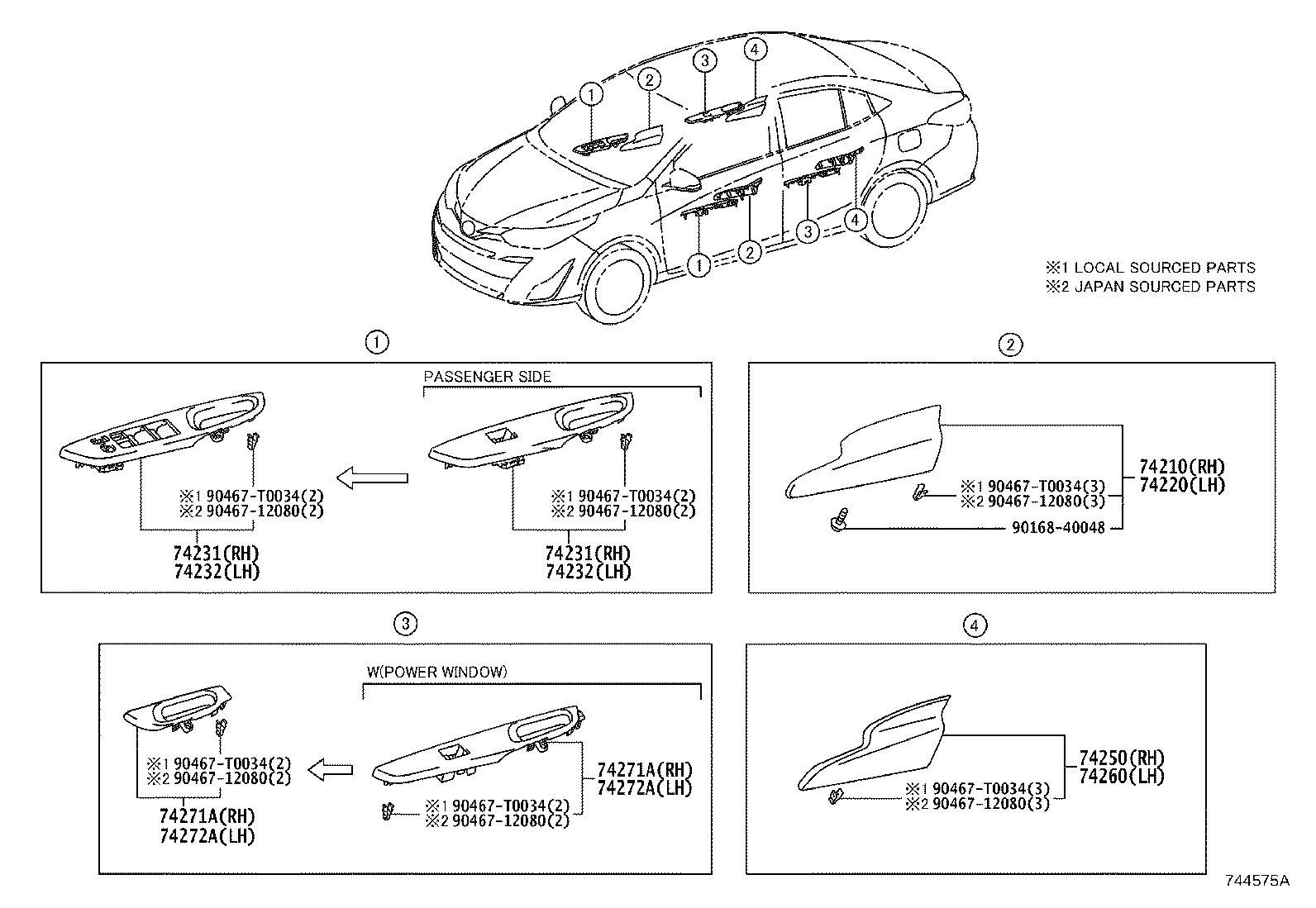

ARMREST

diagram 74210 74220 74231 74231 74232 74232 74250 74260 74271A 74271A 74272A 74272A 9016840048 9046712080 9046712080 9046712080 9046712080 9046712080 9046712080 90467T0034 90467T0034 90467T0034 90467T0034 90467T0034 90467T0034
Part # Description Qty Price
74210 - ARMREST ASSY, FRONT, RH
74210-0D050A0

NSP151..A;NSP151..R..E;NSP152..HTWC;NSP150..CVT..A;NSP150..5F..GCC..R..A;NSP150..LHD..5F..GEN..A

IVORY,TRIM0#

 1
74210-0D050C0

NSP151..A,D;NSP152..HTWC;NSP150..CVT..G..A;NSP150..5F..GCC..R..A;NSP150..CVT..GCC..(D,R)..A;NSP150..(GEN,PH,VN)..(D,R)..(A,D,E)

BLACK,TRIM2#

 1
74220 - ARMREST ASSY, FRONT, LH
74220-0D050A0

NSP151..A;NSP151..R..E;NSP152..HTWC;NSP150..CVT..A;NSP150..5F..GCC..R..A;NSP150..LHD..5F..GEN..A

IVORY,TRIM0#

 1
74220-0D050C0

NSP151..A,D;NSP152..HTWC;NSP150..CVT..G..A;NSP150..5F..GCC..R..A;NSP150..CVT..GCC..(D,R)..A;NSP150..(GEN,PH,VN)..(D,R)..(A,D,E)

BLACK,TRIM2#

 1
74232 - PANEL, FRONT ARMREST BASE, UPPER LH
74232-0DB00

NSP151..5F..E;NSP150..LHD..GEN..D;NSP151..LHD..(D,R)..A;NSP150..LHD..R..(A,D)

 1
74232 - PANEL, FRONT ARMREST BASE, UPPER LH
74232-0DB00

NSP151..5F..E;NSP150..LHD..GEN..D;NSP151..LHD..(D,R)..A;NSP150..LHD..R..(A,D)

 1
Common parts
90168-40048
90467-12080
90467-T0034
