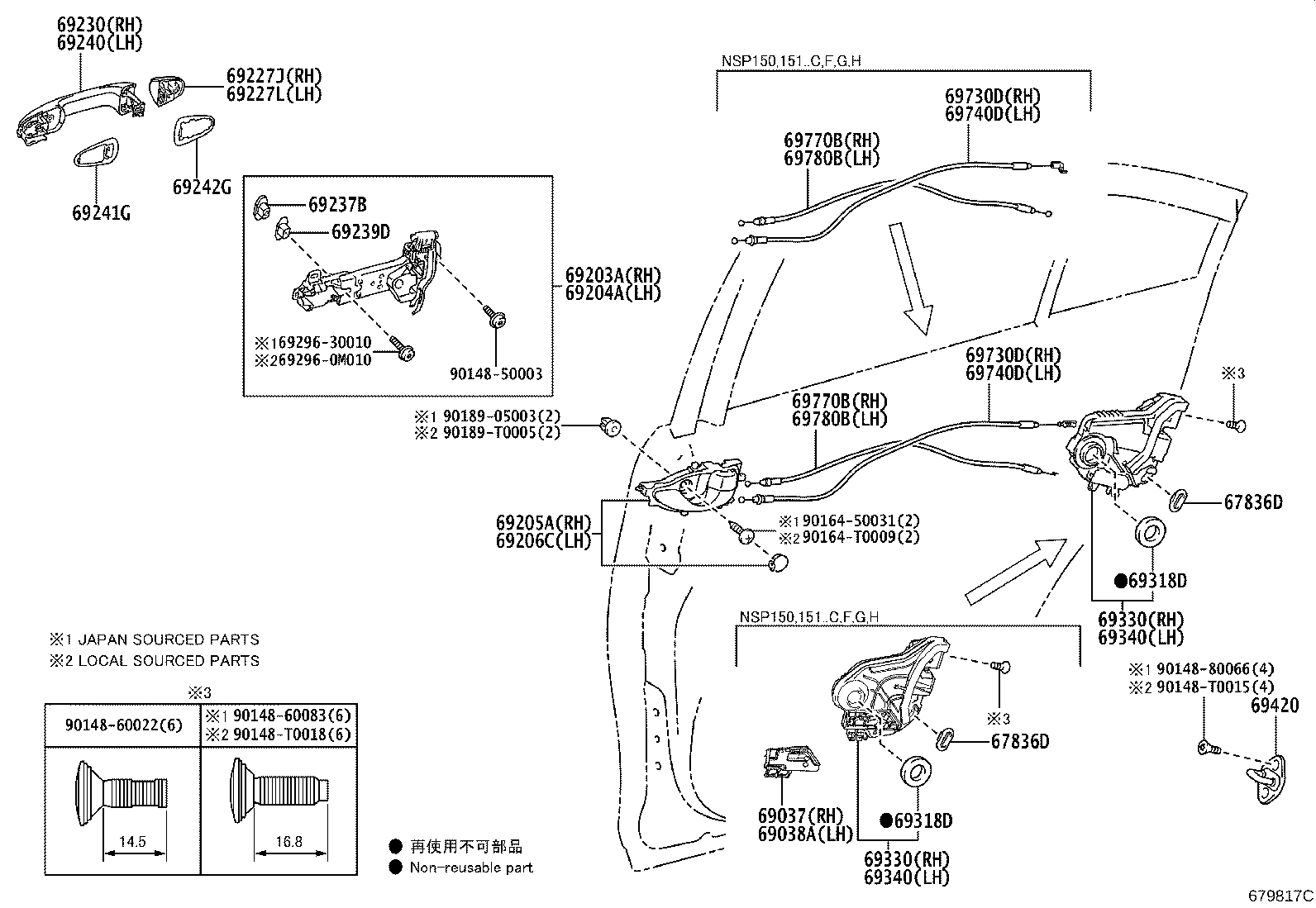

NSP151R-CEMDKT (2016)
Toyota Yaris/Vios/Limo
(1708- )HTWC ; (1708- )NSP150,151..A,F,G ;(1801- )C ; (1807- )D,E,H ;
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67836D - COVER, REAR DOOR LOCK CHILD PROTECTION | ||||
| 67836-02030 |
NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G |
2 | ||
| 67836-02030 |
NSP151..5F..IDN;NSP151..A,D,E,H,I;NSP150..CVT..(A,C);NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) |
2 | ||
| 67836D - COVER, REAR DOOR LOCK CHILD PROTECTION | ||||
| 67836-02030 |
NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G |
2 | ||
| 67836-02030 |
NSP151..5F..IDN;NSP151..A,D,E,H,I;NSP150..CVT..(A,C);NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) |
2 | ||
| 69203A - FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH | ||||
| 69203-0D210 |
NSP151..V..H;NSP151..A,D,E,I;NSP150..CVT..G..A;NSP150..5F..GCC..R..A;NSP150..CVT..GCC..(D,R)..A;NSP150,152..(GEN,PH,TH,VN)..(D,R)..(A,D,E) |
1 | ||
| 69204A - FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH | ||||
| 69204-0D210 |
NSP151..V..H;NSP151..A,D,E,I;NSP150..CVT..G..A;NSP150..5F..GCC..R..A;NSP150..CVT..GCC..(D,R)..A;NSP150,152..(GEN,PH,TH,VN)..(D,R)..(A,D,E) |
1 | ||
| 69205A - HANDLE SUB-ASSY, REAR DOOR INSIDE, RH | ||||
| 69205-0D340C0 |
NSP151..V..H;NSP150..5F..GEN..R..A;NSP150..CVT..GEN..(G,R)..A;NSP150,151..(AGT,GCC)..G..(A,H);NSP151..(GEN,PH,TH)..(G,R)..(A,D,H) BLACK,TRIM2# |
1 | ||
| 69206C - HANDLE SUB-ASSY, REAR DOOR INSIDE, LH | ||||
| 69206-0D340C0 |
NSP151..V..H;NSP150..5F..GEN..R..A;NSP150..CVT..GEN..(G,R)..A;NSP150,151..(AGT,GCC)..G..(A,H);NSP151..(GEN,PH,TH)..(G,R)..(A,D,H) BLACK,TRIM2# |
1 | ||
| 69239D - BUSH, REAR DOOR HANDLE | ||||
| 69239-0K080 |
NSP151..V..H;NSP150..CVT..A;NSP151..A,D,E,I;NSP150..5F..GCC..R..A;NSP150..LHD..5F..GEN..A;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) |
2 | ||
| 69241G - PAD, REAR DOOR OUTSIDE HANDLE, FRONT | ||||
| 69241-0K041 |
NSP150..D,E,I;NSP150..CVT..A;NSP151,152..A,D,E,I;NSP150..5F..GCC..R..A;NSP150..LHD..5F..GEN..A |
2 | ||
| 69242G - PAD, REAR DOOR OUTSIDE HANDLE, REAR | ||||
| 69242-0K030 |
NSP150..D,E,I;NSP150..CVT..A;NSP151,152..A,D,E,I;NSP150..5F..GCC..R..A;NSP150..LHD..5F..GEN..A |
2 | ||
| 69318D - SEAL, DOOR LOCK WIRING HARNESS | ||||
| 69318-51010 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) |
2 | ||
| 69318-51010 |
NSP151..R..C;NSP151..TH..D..C;NSP150..GCC..D..B;NSP151..GCC..R..B;NSP150..GCC..(G,R);NSP151..(GCC,IDN)..G |
2 | ||
| 69318D - SEAL, DOOR LOCK WIRING HARNESS | ||||
| 69318-51010 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) |
2 | ||
| 69318-51010 |
NSP151..R..C;NSP151..TH..D..C;NSP150..GCC..D..B;NSP151..GCC..R..B;NSP150..GCC..(G,R);NSP151..(GCC,IDN)..G |
2 | ||
| 69420 - PLATE ASSY, REAR DOOR LOCK STRIKER | ||||
| 69410-0D070 |
NSP151,152..A,D,E;NSP150..CVT..G..A;NSP150..5F..GCC..R..A;NSP150..CVT..GCC..(D,R)..A;NSP150..(GEN,PH,VN)..(D,R)..(A,D,E) |
2 | ||
| 69730D - CABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH | ||||
| 69730-0D270 |
NSP151,152..A,D,E;NSP150..CVT..G..A;NSP150..5F..GCC..R..A;NSP150..CVT..GCC..(D,R)..A;NSP150..(GEN,PH,VN)..(D,R)..(A,D,E) |
1 | ||
| 69730D - CABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH | ||||
| 69730-0D270 |
NSP151,152..A,D,E;NSP150..CVT..G..A;NSP150..5F..GCC..R..A;NSP150..CVT..GCC..(D,R)..A;NSP150..(GEN,PH,VN)..(D,R)..(A,D,E) |
1 | ||
| 69740D - CABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH | ||||
| 69730-0D270 |
NSP151,152..A,D,E;NSP150..CVT..G..A;NSP150..5F..GCC..R..A;NSP150..CVT..GCC..(D,R)..A;NSP150..(GEN,PH,VN)..(D,R)..(A,D,E) |
1 | ||
| 69740D - CABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH | ||||
| 69730-0D270 |
NSP151,152..A,D,E;NSP150..CVT..G..A;NSP150..5F..GCC..R..A;NSP150..CVT..GCC..(D,R)..A;NSP150..(GEN,PH,VN)..(D,R)..(A,D,E) |
1 | ||
| 69770B - CABLE ASSY, REAR DOOR INSIDE LOCKING, RH | ||||
| 69770-0D200 |
NSP151,152..A,D,E;NSP150..CVT..G..A;NSP150..5F..GCC..R..A;NSP150..CVT..GCC..(D,R)..A;NSP150..(GEN,PH,VN)..(D,R)..(A,D,E) |
1 | ||
| 69770B - CABLE ASSY, REAR DOOR INSIDE LOCKING, RH | ||||
| 69770-0D200 |
NSP151,152..A,D,E;NSP150..CVT..G..A;NSP150..5F..GCC..R..A;NSP150..CVT..GCC..(D,R)..A;NSP150..(GEN,PH,VN)..(D,R)..(A,D,E) |
1 | ||
| 69780B - CABLE ASSY, REAR DOOR INSIDE LOCKING, LH | ||||
| 69770-0D200 |
NSP151,152..A,D,E;NSP150..CVT..G..A;NSP150..5F..GCC..R..A;NSP150..CVT..GCC..(D,R)..A;NSP150..(GEN,PH,VN)..(D,R)..(A,D,E) |
1 | ||
| 69780B - CABLE ASSY, REAR DOOR INSIDE LOCKING, LH | ||||
| 69770-0D200 |
NSP151,152..A,D,E;NSP150..CVT..G..A;NSP150..5F..GCC..R..A;NSP150..CVT..GCC..(D,R)..A;NSP150..(GEN,PH,VN)..(D,R)..(A,D,E) |
1 | ||
| Common parts | ||||
| 69296-0M010 | ||||
| 69296-30010 | ||||
| 90148-50003 | ||||
| 90148-60022 | ||||
| 90148-60083 | ||||
| 90148-80066 | ||||
| 90148-T0015 | ||||
| 90148-T0018 | ||||
| 90164-50031 | ||||
| 90164-T0009 | ||||
| 90189-05003 | ||||
| 90189-T0005 | ||||
