NSP151R-CEMDKT (2016)

Toyota Yaris/Vios/Limo

Production Oct 2016 - Dec 2017
Engine 2NRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1610- )NSP151..5F..C

Click highlighted areas on diagram

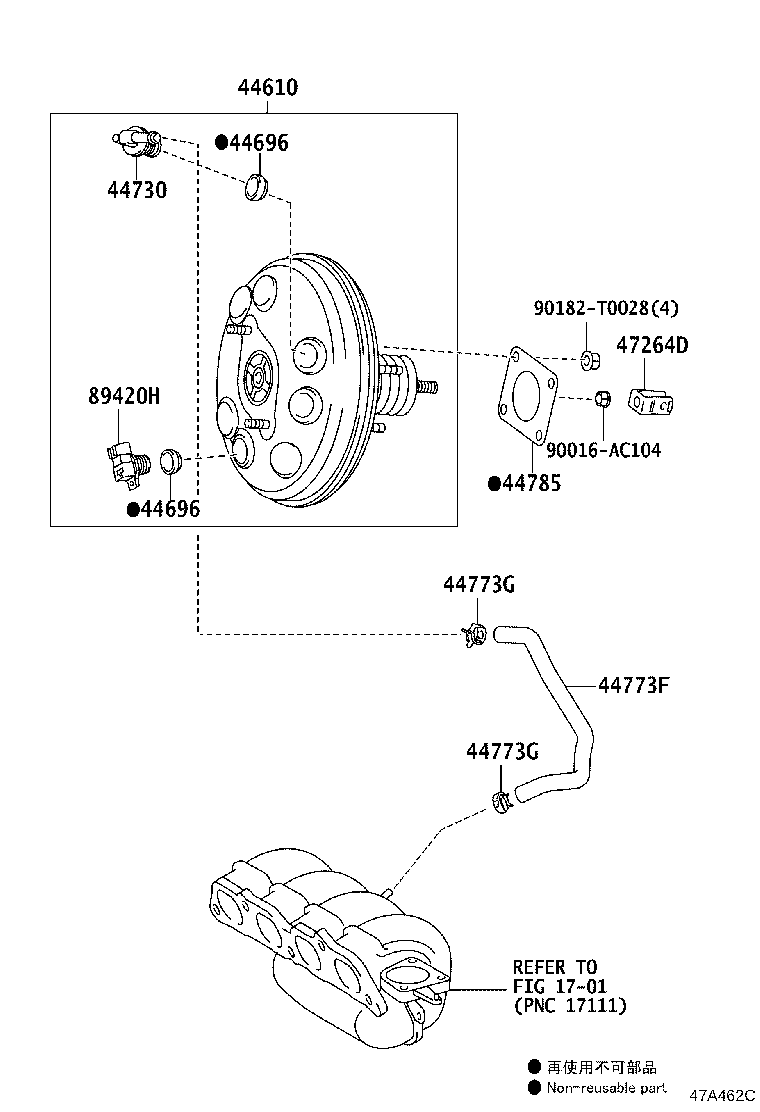

diagram 1701 44610 44696 44696 44730 44773F 44773G 44773G 44785 47264D 89420H 90016AC104 90182T0028
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-0D830

NSP151..TH..R..C

BRUNEI SPEC

 1
44610-0D860

NSP151..TH..R..C;NSP151..CVT..IDN..G

 1
44610-0D840

NSP151..5F..R..C;NSP151..TH..D..C

 1
44696 - GROMMET, CHECK VALVE
90016-AT003

NSP150,151..5F..(GCC,IDN,TH)

 2
44696 - GROMMET, CHECK VALVE
90016-AT003

NSP150,151..5F..(GCC,IDN,TH)

 2
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-20170

NSP151..5F..C

 1
44730-60070

NSP150..5F..(D,E,I);NSP150..LHD..5F..GEN;NSP150..5F..GCC..R..A;NSP151..5F..(A,D,E,I)

 1
44773F - HOSE, UNION TO CHECK VALVE
44773-0D080

NSP151..5F..C

 1
44773G - CLIP(FOR UNION TO CHECK VALVE HOSE)
90467-16014

NSP151..5F..C

 2
44773G - CLIP(FOR UNION TO CHECK VALVE HOSE)
90467-16014

NSP151..5F..C

 2
44785 - GASKET, BRAKE BOOSTER
44785-0D020

NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G

 1
44785-0D020

NSP151..A,D,E,I;NSP151..5F..IDN;NSP150..CVT..(A,C);NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I)

 1
47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD
47264-0D040

NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G

 1
47264-0D040

NSP151..A,D,E,I;NSP151..5F..IDN;NSP150..CVT..(A,C);NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I)

 1
89420H - SENSOR ASSY, VACUUM
89421-52020

NSP151..5F..IDN;NSP150..CVT..D..(A,C);NSP150..5F..GCC..R..(A,C);NSP150..CVT..(G,R)..(A,C,D);NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150..LHD..5F..(GEN,PH,VN)..(A,D,E);NSP151..(AGT,GCC,GEN,PH,TH,VN)..(A,D,E,H)

 1
Common parts
90016-AC104
90182-T0028
Linked diagrams
1701
