Toyota Yaris/vios/limo NSP151 STARTER

NSP151R-BEXGKT (2016)

Toyota Yaris/Vios/Limo

Production Apr 2016 - Sep 9999

Engine 2NRFE

Transmission CVT

Displacement 2500cc

Power 168 HP (125 kW)

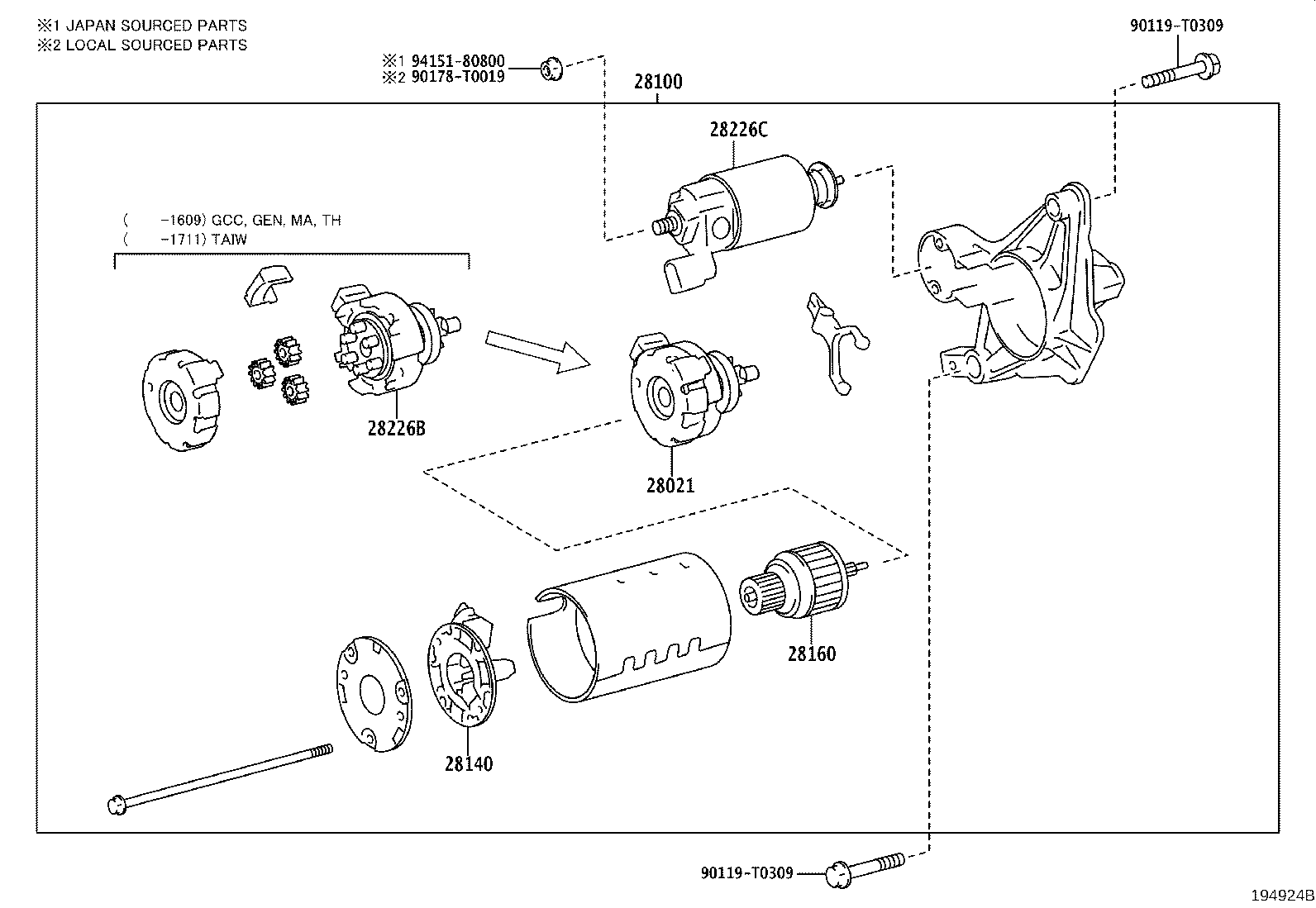

(1604- )1NRFE,2NRFE..GCC,GEN,IDN,PH,TAIW,TH,VN..B,C,D,E ; (1608-1812)2NRFE..MA

Click highlighted areas on diagram

12V 1.0KW

Part #	Description	Period	Qty
28021 - CLUTCH SUB-ASSY, STARTER CENTER BEARING
28021-0Y300	1NRFE..NSP150..C;2NRFE..NSP151..(D,R)..C;2NRFE..NSP151..(GCC,IDN)..G..C	07/2016 - 12/2017	1
28021-0Y300	2NRFE..NSP151..TH..G..C	07/2016 - 07/2017	1
28021-0Y300	2NRFE..NSP151..TH..B	09/2016 - 12/2999	1
28021-0Y300	2NRFE..NSP151..A,D,E;2NRFE..NSP151..5F..IDN;1NRFE..NSP150..CVT..GEN..G..A;1NRFE..NSP150..CVT..GCC..(A,C);1NRFE..NSP150..5F..GCC..R..(A,C);2NRFE..NSP151..CVT..(GCC,IDN)..(G,R)..C;1NRFE,3NRFE..NSP150,152..(GEN,PH,TH,VN)..(D,R)..(A,D,E)	08/2017 - 12/2999	1
28021-0Y310	2NR#..NSP151..H	07/2018 - 10/2019	1
28021-37130	2NRFE..NSP151..F,G	03/2018 - 01/2021	1
28021-0Y300	1NRFE..NSP150..5F..G..A;2NRFE..NSP151..CVT..D..C;1NRFE..NSP150..5F..GCC..D..(A,C)	08/2017 - 08/2021	1
28100 - STARTER ASSY
28100-0Y300	2NRFE..NSP151..TH..G..C 12V 1.0KW	07/2016 - 07/2017	1
28100-0Y300	1NRFE..NSP150..C;2NRFE..NSP151..(D,R)..C;2NRFE..NSP151..(GCC,IDN)..G..C 12V 1.0KW	07/2016 - 12/2017	1
28100-0Y380	2NRFE..NSP151..G 12V 1.0KW	04/2018 - 08/2019	1
28100-0Y310	2NRFE..NSP151..H 12V 1.0KW	07/2018 - 10/2019	1
28100-0Y300	1NRFE..NSP150..5F..D..C;2NRFE..NSP151..CVT..D..C 12V 1.0KW	01/2018 - 08/2021	1
28100-0Y370	2NRFE..NSP151..F 12V 1.0KW	03/2018 - 01/2021	1
28100-0Y300	1NRFE..NSP150..D,E;1NRFE..NSP150..(G,R)..C;2NRFE..NSP151..5F..D..C;1NRFE..NSP150..CVT..D..C;2NRFE..NSP151..(G,R)..(C,D,E) 12V 1.0KW	01/2018 - 12/2999	1
28100-0Y340	2NRFE..NSP151..TH..B 12V 1.0KW	04/2016 - 12/2999	1
28140 - HOLDER ASSY, STARTER BRUSH
28140-0Y300	2NRFE..NSP151..TH..G..C	04/2016 - 07/2017	1
28140-0Y300	2NRFE..NSP151..TH..B	04/2016 - 12/2999	1
28140-0Y300	1NRFE..NSP150..5F..G..A;2NRFE..NSP151..CVT..D..C;1NRFE..NSP150..5F..GCC..D..(A,C)	08/2017 - 08/2021	1
28140-0Y210	2NR#..NSP151..H	07/2018 - 10/2019	1
28140-21070	2NRFE..NSP151..F,G	03/2018 - 01/2021	1
28140-0Y300	1NRFE..NSP150..GCC;2NRFE..NSP151..(D,R)..C;2NRFE..NSP151..GCC..R..B;2NRFE..NSP151..(GCC,IDN)..G	04/2016 - 12/2017	1
28140-0Y300	2NRFE..NSP151..A,D,E;2NRFE..NSP151..5F..IDN;1NRFE..NSP150..CVT..GEN..G..A;1NRFE..NSP150..CVT..GCC..(A,C);1NRFE..NSP150..5F..GCC..R..(A,C);2NRFE..NSP151..CVT..(GCC,IDN)..(G,R)..C;1NRFE,3NRFE..NSP150,152..(GEN,PH,TH,VN)..(D,R)..(A,D,E)	08/2017 - 12/2999	1
28160 - ARMATURE ASSY, STARTER
28160-0Y300	1NRFE..NSP150..GCC;2NRFE..NSP151..(D,R)..C;2NRFE..NSP151..GCC..R..B;2NRFE..NSP151..(GCC,IDN)..G	04/2016 - 12/2017	1
28160-0Y300	2NRFE..NSP151..TH..G..C	04/2016 - 07/2017	1
28160-0Y300	1NRFE..NSP150..5F..G..A;2NRFE..NSP151..CVT..D..C;1NRFE..NSP150..5F..GCC..D..(A,C)	08/2017 - 08/2021	1
28160-47180	2NRFE..NSP151..F,G	03/2018 - 01/2021	1
28160-0Y310	2NRFE..NSP151..H	07/2018 - 10/2019	1
28160-0Y300	2NRFE..NSP151..A,D,E;2NRFE..NSP151..5F..IDN;1NRFE..NSP150..CVT..GEN..G..A;1NRFE..NSP150..CVT..GCC..(A,C);1NRFE..NSP150..5F..GCC..R..(A,C);2NRFE..NSP151..CVT..(GCC,IDN)..(G,R)..C;1NRFE,3NRFE..NSP150,152..(GEN,PH,TH,VN)..(D,R)..(A,D,E)	08/2017 - 12/2999	1
28160-0Y300	2NRFE..NSP151..TH..B	04/2016 - 12/2999	1
28226B - STARTER KIT, REPAIR SERVICE
28226-0Y300	1NRFE,2NRFE..NSP15#..GCC,GEN,MA,TH	04/2016 - 09/2016	1
28226C - STARTER KIT, REPAIR SERVICE, NO.2
28226-0Y340	2NRFE..NSP151..TH..G..C	04/2016 - 07/2017	1
28226-0Y340	1NRFE..NSP150..GCC;2NRFE..NSP151..(D,R)..C;2NRFE..NSP151..GCC..R..B;2NRFE..NSP151..(GCC,IDN)..G	04/2016 - 12/2017	1
28226-0Y340	2NRFE..NSP151..TH..B	04/2016 - 12/2999	1
28226-0Y340	1NRFE..NSP150..5F..G..A;2NRFE..NSP151..CVT..D..C;1NRFE..NSP150..5F..GCC..D..(A,C)	08/2017 - 08/2021	1
28226-0Y310	2NR#..NSP151..H	07/2018 - 10/2019	1
28226-47180	2NRFE..NSP151..F,G	03/2018 - 01/2021	1
28226-0Y340	2NRFE..NSP151..A,D,E;2NRFE..NSP151..5F..IDN;1NRFE..NSP150..CVT..GEN..G..A;1NRFE..NSP150..CVT..GCC..(A,C);1NRFE..NSP150..5F..GCC..R..(A,C);2NRFE..NSP151..CVT..(GCC,IDN)..(G,R)..C;1NRFE,3NRFE..NSP150,152..(GEN,PH,TH,VN)..(D,R)..(A,D,E)	08/2017 - 12/2999	1
Common parts
90119-T0309
90178-T0019
94151-80800

(1804- )2NRFE..G

Click highlighted areas on diagram

12V 1.0KW

Part #	Description	Period	Qty
28021 - CLUTCH SUB-ASSY, STARTER CENTER BEARING
28021-0Y300	1NRFE..NSP150..C;2NRFE..NSP151..(D,R)..C;2NRFE..NSP151..(GCC,IDN)..G..C	07/2016 - 12/2017	1
28021-0Y300	2NRFE..NSP151..TH..G..C	07/2016 - 07/2017	1
28021-0Y300	2NRFE..NSP151..TH..B	09/2016 - 12/2999	1
28021-0Y300	2NRFE..NSP151..A,D,E;2NRFE..NSP151..5F..IDN;1NRFE..NSP150..CVT..GEN..G..A;1NRFE..NSP150..CVT..GCC..(A,C);1NRFE..NSP150..5F..GCC..R..(A,C);2NRFE..NSP151..CVT..(GCC,IDN)..(G,R)..C;1NRFE,3NRFE..NSP150,152..(GEN,PH,TH,VN)..(D,R)..(A,D,E)	08/2017 - 12/2999	1
28021-0Y310	2NR#..NSP151..H	07/2018 - 10/2019	1
28021-37130	2NRFE..NSP151..F,G	03/2018 - 01/2021	1
28021-0Y300	1NRFE..NSP150..5F..G..A;2NRFE..NSP151..CVT..D..C;1NRFE..NSP150..5F..GCC..D..(A,C)	08/2017 - 08/2021	1
28100 - STARTER ASSY
28100-0Y300	2NRFE..NSP151..TH..G..C 12V 1.0KW	07/2016 - 07/2017	1
28100-0Y300	1NRFE..NSP150..C;2NRFE..NSP151..(D,R)..C;2NRFE..NSP151..(GCC,IDN)..G..C 12V 1.0KW	07/2016 - 12/2017	1
28100-0Y380	2NRFE..NSP151..G 12V 1.0KW	04/2018 - 08/2019	1
28100-0Y310	2NRFE..NSP151..H 12V 1.0KW	07/2018 - 10/2019	1
28100-0Y300	1NRFE..NSP150..5F..D..C;2NRFE..NSP151..CVT..D..C 12V 1.0KW	01/2018 - 08/2021	1
28100-0Y370	2NRFE..NSP151..F 12V 1.0KW	03/2018 - 01/2021	1
28100-0Y300	1NRFE..NSP150..D,E;1NRFE..NSP150..(G,R)..C;2NRFE..NSP151..5F..D..C;1NRFE..NSP150..CVT..D..C;2NRFE..NSP151..(G,R)..(C,D,E) 12V 1.0KW	01/2018 - 12/2999	1
28100-0Y340	2NRFE..NSP151..TH..B 12V 1.0KW	04/2016 - 12/2999	1
28140 - HOLDER ASSY, STARTER BRUSH
28140-0Y300	2NRFE..NSP151..TH..G..C	04/2016 - 07/2017	1
28140-0Y300	2NRFE..NSP151..TH..B	04/2016 - 12/2999	1
28140-0Y300	1NRFE..NSP150..5F..G..A;2NRFE..NSP151..CVT..D..C;1NRFE..NSP150..5F..GCC..D..(A,C)	08/2017 - 08/2021	1
28140-0Y210	2NR#..NSP151..H	07/2018 - 10/2019	1
28140-21070	2NRFE..NSP151..F,G	03/2018 - 01/2021	1
28140-0Y300	1NRFE..NSP150..GCC;2NRFE..NSP151..(D,R)..C;2NRFE..NSP151..GCC..R..B;2NRFE..NSP151..(GCC,IDN)..G	04/2016 - 12/2017	1
28140-0Y300	2NRFE..NSP151..A,D,E;2NRFE..NSP151..5F..IDN;1NRFE..NSP150..CVT..GEN..G..A;1NRFE..NSP150..CVT..GCC..(A,C);1NRFE..NSP150..5F..GCC..R..(A,C);2NRFE..NSP151..CVT..(GCC,IDN)..(G,R)..C;1NRFE,3NRFE..NSP150,152..(GEN,PH,TH,VN)..(D,R)..(A,D,E)	08/2017 - 12/2999	1
28160 - ARMATURE ASSY, STARTER
28160-0Y300	1NRFE..NSP150..GCC;2NRFE..NSP151..(D,R)..C;2NRFE..NSP151..GCC..R..B;2NRFE..NSP151..(GCC,IDN)..G	04/2016 - 12/2017	1
28160-0Y300	2NRFE..NSP151..TH..G..C	04/2016 - 07/2017	1
28160-0Y300	1NRFE..NSP150..5F..G..A;2NRFE..NSP151..CVT..D..C;1NRFE..NSP150..5F..GCC..D..(A,C)	08/2017 - 08/2021	1
28160-47180	2NRFE..NSP151..F,G	03/2018 - 01/2021	1
28160-0Y310	2NRFE..NSP151..H	07/2018 - 10/2019	1
28160-0Y300	2NRFE..NSP151..A,D,E;2NRFE..NSP151..5F..IDN;1NRFE..NSP150..CVT..GEN..G..A;1NRFE..NSP150..CVT..GCC..(A,C);1NRFE..NSP150..5F..GCC..R..(A,C);2NRFE..NSP151..CVT..(GCC,IDN)..(G,R)..C;1NRFE,3NRFE..NSP150,152..(GEN,PH,TH,VN)..(D,R)..(A,D,E)	08/2017 - 12/2999	1
28160-0Y300	2NRFE..NSP151..TH..B	04/2016 - 12/2999	1
28226C - STARTER KIT, REPAIR SERVICE, NO.2
28226-0Y340	2NRFE..NSP151..TH..G..C	04/2016 - 07/2017	1
28226-0Y340	1NRFE..NSP150..GCC;2NRFE..NSP151..(D,R)..C;2NRFE..NSP151..GCC..R..B;2NRFE..NSP151..(GCC,IDN)..G	04/2016 - 12/2017	1
28226-0Y340	2NRFE..NSP151..TH..B	04/2016 - 12/2999	1
28226-0Y340	1NRFE..NSP150..5F..G..A;2NRFE..NSP151..CVT..D..C;1NRFE..NSP150..5F..GCC..D..(A,C)	08/2017 - 08/2021	1
28226-0Y310	2NR#..NSP151..H	07/2018 - 10/2019	1
28226-47180	2NRFE..NSP151..F,G	03/2018 - 01/2021	1
28226-0Y340	2NRFE..NSP151..A,D,E;2NRFE..NSP151..5F..IDN;1NRFE..NSP150..CVT..GEN..G..A;1NRFE..NSP150..CVT..GCC..(A,C);1NRFE..NSP150..5F..GCC..R..(A,C);2NRFE..NSP151..CVT..(GCC,IDN)..(G,R)..C;1NRFE,3NRFE..NSP150,152..(GEN,PH,TH,VN)..(D,R)..(A,D,E)	08/2017 - 12/2999	1
Common parts
90119-T0309
90179-08204
90182-T0011
91612-61065

(1807- )2NR#..H

Click highlighted areas on diagram

12V 1.0KW,1.2KW

Part #	Description	Period	Qty
28021 - CLUTCH SUB-ASSY, STARTER CENTER BEARING
28021-0Y300	1NRFE..NSP150..C;2NRFE..NSP151..(D,R)..C;2NRFE..NSP151..(GCC,IDN)..G..C	07/2016 - 12/2017	1
28021-0Y300	2NRFE..NSP151..TH..G..C	07/2016 - 07/2017	1
28021-0Y300	2NRFE..NSP151..TH..B	09/2016 - 12/2999	1
28021-0Y300	2NRFE..NSP151..A,D,E;2NRFE..NSP151..5F..IDN;1NRFE..NSP150..CVT..GEN..G..A;1NRFE..NSP150..CVT..GCC..(A,C);1NRFE..NSP150..5F..GCC..R..(A,C);2NRFE..NSP151..CVT..(GCC,IDN)..(G,R)..C;1NRFE,3NRFE..NSP150,152..(GEN,PH,TH,VN)..(D,R)..(A,D,E)	08/2017 - 12/2999	1
28021-0Y310	2NR#..NSP151..H	07/2018 - 10/2019	1
28021-37130	2NRFE..NSP151..F,G	03/2018 - 01/2021	1
28021-0Y300	1NRFE..NSP150..5F..G..A;2NRFE..NSP151..CVT..D..C;1NRFE..NSP150..5F..GCC..D..(A,C)	08/2017 - 08/2021	1
28100 - STARTER ASSY
28100-0Y300	2NRFE..NSP151..TH..G..C 12V 1.0KW	07/2016 - 07/2017	1
28100-0Y300	1NRFE..NSP150..C;2NRFE..NSP151..(D,R)..C;2NRFE..NSP151..(GCC,IDN)..G..C 12V 1.0KW	07/2016 - 12/2017	1
28100-0Y380	2NRFE..NSP151..G 12V 1.0KW	04/2018 - 08/2019	1
28100-0Y310	2NRFE..NSP151..H 12V 1.0KW	07/2018 - 10/2019	1
28100-0Y300	1NRFE..NSP150..5F..D..C;2NRFE..NSP151..CVT..D..C 12V 1.0KW	01/2018 - 08/2021	1
28100-0Y370	2NRFE..NSP151..F 12V 1.0KW	03/2018 - 01/2021	1
28100-0Y300	1NRFE..NSP150..D,E;1NRFE..NSP150..(G,R)..C;2NRFE..NSP151..5F..D..C;1NRFE..NSP150..CVT..D..C;2NRFE..NSP151..(G,R)..(C,D,E) 12V 1.0KW	01/2018 - 12/2999	1
28100-0Y340	2NRFE..NSP151..TH..B 12V 1.0KW	04/2016 - 12/2999	1
28140 - HOLDER ASSY, STARTER BRUSH
28140-0Y300	2NRFE..NSP151..TH..G..C	04/2016 - 07/2017	1
28140-0Y300	2NRFE..NSP151..TH..B	04/2016 - 12/2999	1
28140-0Y300	1NRFE..NSP150..5F..G..A;2NRFE..NSP151..CVT..D..C;1NRFE..NSP150..5F..GCC..D..(A,C)	08/2017 - 08/2021	1
28140-0Y210	2NR#..NSP151..H	07/2018 - 10/2019	1
28140-21070	2NRFE..NSP151..F,G	03/2018 - 01/2021	1
28140-0Y300	1NRFE..NSP150..GCC;2NRFE..NSP151..(D,R)..C;2NRFE..NSP151..GCC..R..B;2NRFE..NSP151..(GCC,IDN)..G	04/2016 - 12/2017	1
28140-0Y300	2NRFE..NSP151..A,D,E;2NRFE..NSP151..5F..IDN;1NRFE..NSP150..CVT..GEN..G..A;1NRFE..NSP150..CVT..GCC..(A,C);1NRFE..NSP150..5F..GCC..R..(A,C);2NRFE..NSP151..CVT..(GCC,IDN)..(G,R)..C;1NRFE,3NRFE..NSP150,152..(GEN,PH,TH,VN)..(D,R)..(A,D,E)	08/2017 - 12/2999	1
28160 - ARMATURE ASSY, STARTER
28160-0Y300	1NRFE..NSP150..GCC;2NRFE..NSP151..(D,R)..C;2NRFE..NSP151..GCC..R..B;2NRFE..NSP151..(GCC,IDN)..G	04/2016 - 12/2017	1
28160-0Y300	2NRFE..NSP151..TH..G..C	04/2016 - 07/2017	1
28160-0Y300	1NRFE..NSP150..5F..G..A;2NRFE..NSP151..CVT..D..C;1NRFE..NSP150..5F..GCC..D..(A,C)	08/2017 - 08/2021	1
28160-47180	2NRFE..NSP151..F,G	03/2018 - 01/2021	1
28160-0Y310	2NRFE..NSP151..H	07/2018 - 10/2019	1
28160-0Y300	2NRFE..NSP151..A,D,E;2NRFE..NSP151..5F..IDN;1NRFE..NSP150..CVT..GEN..G..A;1NRFE..NSP150..CVT..GCC..(A,C);1NRFE..NSP150..5F..GCC..R..(A,C);2NRFE..NSP151..CVT..(GCC,IDN)..(G,R)..C;1NRFE,3NRFE..NSP150,152..(GEN,PH,TH,VN)..(D,R)..(A,D,E)	08/2017 - 12/2999	1
28160-0Y300	2NRFE..NSP151..TH..B	04/2016 - 12/2999	1
28226C - STARTER KIT, REPAIR SERVICE, NO.2
28226-0Y340	2NRFE..NSP151..TH..G..C	04/2016 - 07/2017	1
28226-0Y340	1NRFE..NSP150..GCC;2NRFE..NSP151..(D,R)..C;2NRFE..NSP151..GCC..R..B;2NRFE..NSP151..(GCC,IDN)..G	04/2016 - 12/2017	1
28226-0Y340	2NRFE..NSP151..TH..B	04/2016 - 12/2999	1
28226-0Y340	1NRFE..NSP150..5F..G..A;2NRFE..NSP151..CVT..D..C;1NRFE..NSP150..5F..GCC..D..(A,C)	08/2017 - 08/2021	1
28226-0Y310	2NR#..NSP151..H	07/2018 - 10/2019	1
28226-47180	2NRFE..NSP151..F,G	03/2018 - 01/2021	1
28226-0Y340	2NRFE..NSP151..A,D,E;2NRFE..NSP151..5F..IDN;1NRFE..NSP150..CVT..GEN..G..A;1NRFE..NSP150..CVT..GCC..(A,C);1NRFE..NSP150..5F..GCC..R..(A,C);2NRFE..NSP151..CVT..(GCC,IDN)..(G,R)..C;1NRFE,3NRFE..NSP150,152..(GEN,PH,TH,VN)..(D,R)..(A,D,E)	08/2017 - 12/2999	1
Common parts
90179-08204
91612-61065

NSP151R-BEXGKT (2016)

(1604- )1NRFE,2NRFE..GCC,GEN,IDN,PH,TAIW,TH,VN..B,C,D,E ; (1608-1812)2NRFE..MA

(1804- )2NRFE..G

(1807- )2NR#..H
