NSP151L-BEXGKM (2016)
Toyota Yaris/Vios/Limo

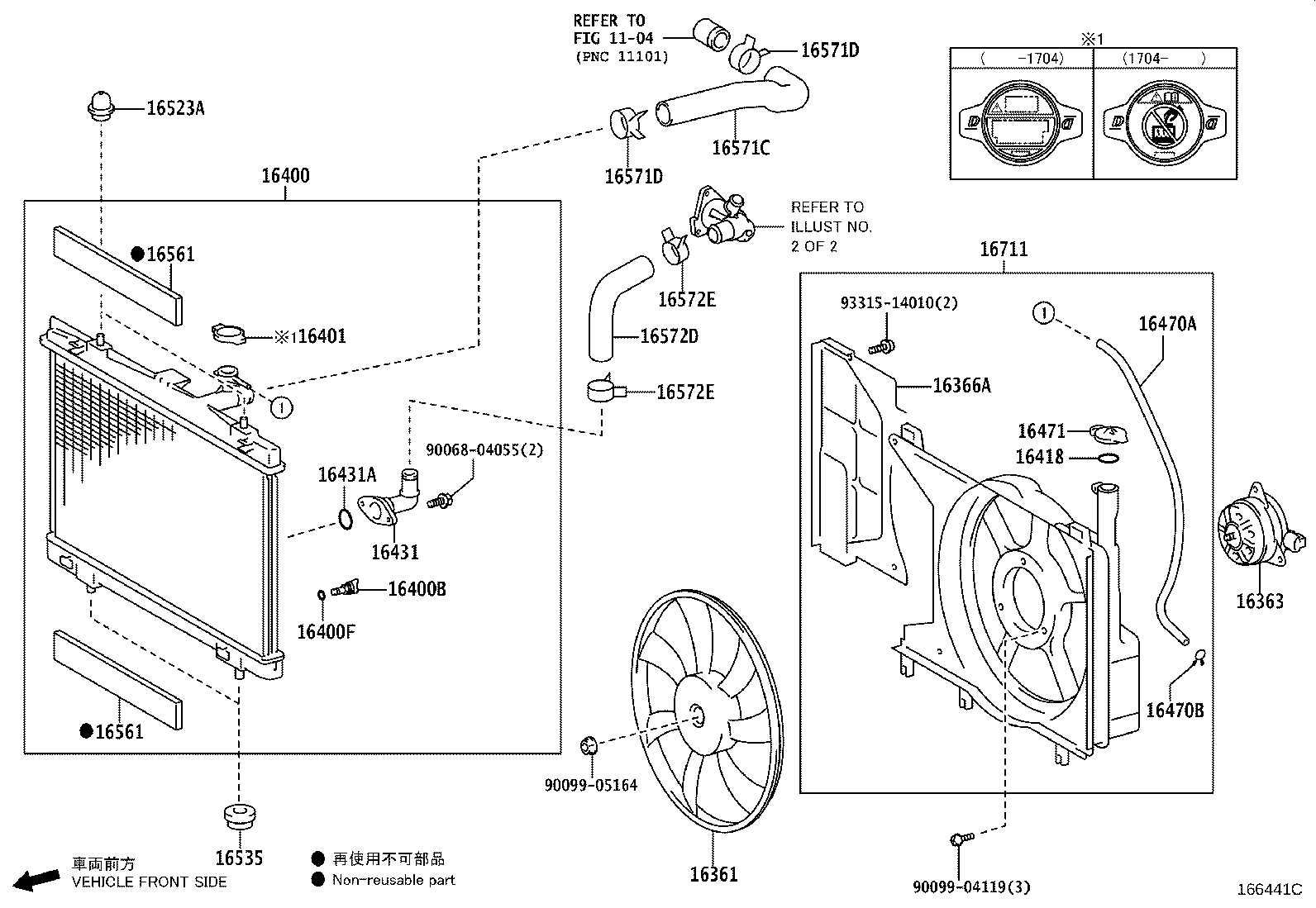

ILLUST NO. 1 OF 2(1607- )1NRFE,2NRFE..PH..B
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16361 - FAN | ||||
| 16361-0M110 |
1NRFE..NSP150..D,E,I;1NRFE..NSP150..CVT..A;1NRFE..NSP150..5F..GCC..R..A;1NRFE..NSP150..LHD..5F..GEN..A;2NRFE,3NR#..NSP151,152..A,D,E,I |
1 | ||
| 16361-0M120 |
2NRFE..NSP151..5F..D..C;1NRFE..NSP150..CVT..D..C;1NRFE,2NRFE..NSP150,151..(G,R)..C |
1 | ||
| 16361-0M110 |
1NRFE,2NRFE..NSP150,151..PH |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-0Y050 |
2NRFE..NSP151..5F..IDN;2NR#..NSP151..A,E,G,H,I;1NRFE..NSP150..CVT..(A,C,I);2NRFE..NSP151..CVT..(GCC,IDN)..(G,R)..C;1NRFE..NSP150..5F..(GCC,PKN)..(G,R)..(A,C,I);1NRFE..NSP150..5F..(GEN,PKN,VN)..(D,R)..(A,E,I) |
1 | ||
| 16366A - INSULATOR, COOLING FAN MOTOR | ||||
| 16366-0Y120 |
1NRFE..NSP150..C;2NRFE..NSP151..(D,R)..C;2NRFE..NSP151..(GCC,IDN)..G..C |
1 | ||
| 16366-0Y240 |
2NRFE..NSP151..A,D,E;1NRFE..NSP150..CVT..G..A;1NRFE..NSP150..5F..GCC..R..A;1NRFE..NSP150..CVT..GCC..(D,R)..A;1NRFE..NSP150..(GEN,PH,VN)..(D,R)..(A,D,E) |
1 | ||
| 16366-0Y120 |
2NRFE..NSP151..5F..D..C;1NRFE..NSP150..CVT..D..C;1NRFE,2NRFE..NSP150,151..(G,R)..C |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-0Y210 |
1NRFE,2NRFE..NSP150,151..PH |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-0C180 |
1NRFE..NSP150..GCC;2NRFE..NSP151..(D,R)..C;2NRFE..NSP151..GCC..R..B;2NRFE..NSP151..(GCC,IDN)..G |
1 | ||
| 16417-0C180 |
1NRFE,2NRFE..NSP150,151..PH |
1 | ||
| 16417-0C180 |
2NRFE..NSP151..5F..IDN;1NRFE..NSP150..CVT..GEN..G..A;1NRFE..NSP150..CVT..GCC..(A,C);2NR#,3NR#..NSP151,152..A,D,E,G,H;1NRFE..NSP150..5F..GCC..R..(A,C);2NRFE..NSP151..CVT..(GCC,IDN)..(G,R)..C;1NRFE..NSP150..(GEN,PH,VN)..(D,R)..(A,D,E) |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16492-21050 |
1NRFE,2NRFE..NSP150,151..PH |
1 | ||
| 16492-21050 |
1NRFE..NSP150..C;2NRFE..NSP151..(D,R)..C;2NRFE..NSP151..GCC..R..B;1NRFE..NSP150..CVT..GCC..B;2NRFE..NSP151..(GCC,IDN)..G |
1 | ||
| 16492-21050 |
1NRFE..NSP150..5F..R..C;2NRFE..NSP151..CVT..D..(G,H);2NRFE..NSP151..CVT..GEN..G..H;1NRFE..NSP150..CVT..GCC..(A,C);1NRFE,2NRFBE,3NR#..NSP15#..(BZ,PH,TH)..(A,D,H);2NRFE..NSP151..MTM..(AGT,GEN,IDN,IND,PH)..(C,D,G,H);2NRFE..NSP151..CVT..(AGT,GCC,IDN,IND,PH)..(G,R,V)..(A,C,D,G,H) |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-0M010 |
1NRFE,2NRFE..NSP150,151..PH |
1 | ||
| 16401-0M010 |
2NRFE..NSP151..A,D,E,G;2NRFE..NSP151..5F..IDN;1NRFE..NSP150..CVT..GEN..G..A;1NRFE..NSP150..CVT..GCC..(A,C);1NRFE..NSP150..5F..GCC..R..(A,C);2NRFE..NSP151..CVT..(GCC,IDN)..(G,R)..C;1NRFE,3NR#..NSP150,152..(GEN,PH,TH,VN)..(D,R)..(A,D,E) |
1 | ||
| 16401-36020 |
1NRFE,2NR#..NSP150,151..H,I |
1 | ||
| 16418 - PACKING | ||||
| 16476-0H060 |
1NRFE..NSP150..CVT..G..A;1NRFE..NSP150..5F..GCC..R..A;2NR#,3NR#..NSP151,152..A,D,E,H;1NRFE..NSP150..CVT..GCC..(D,R)..A;1NRFE..NSP150..(GEN,PH,VN)..(D,R)..(A,D,E) |
1 | ||
| 16476-0M150 |
2NRFE..NSP151..5F..D..C;1NRFE..NSP150..CVT..D..C;1NRFE,2NRFE..NSP150,151..(G,R)..C |
1 | ||
| 16476-0H060 |
1NRFE,2NRFE..NSP150,151..PH |
1 | ||
| 16431 - INLET, RADIATOR WATER | ||||
| 16431-0Y190 |
2NRFE..NSP151..A,D,E;2NRFE..NSP151..5F..IDN;1NRFE..NSP150..CVT..GEN..G..A;1NRFE..NSP150..CVT..GCC..(A,C);1NRFE..NSP150..5F..GCC..R..(A,C);2NRFE..NSP151..CVT..(GCC,IDN)..(G,R)..C;1NRFE..NSP150..(GEN,PH,VN)..(D,R)..(A,D,E) |
1 | ||
| 16431A - RING, O(FOR RADIATOR WATER INLET) | ||||
| 16492-0Y100 |
1NRFE..NSP150..5F..GCC..R..A;1NRFE..NSP150..CVT..GEN..G..A;1NRFE..NSP150..(GEN,PH,VN)..(D,R)..(A,D,E);2NRFE..NSP151..(GEN,IND,PH,TH,VN)..(A,D,E,G) |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 16377-0Y120 |
1NRFE..NSP150..C;2NRFE..NSP151..(D,R)..C;2NRFE..NSP151..(GCC,IDN)..G..C |
1 | ||
| 16377-0Y120 |
2NRFE..NSP151..5F..D..C;1NRFE..NSP150..CVT..D..C;1NRFE,2NRFE..NSP150,151..(G,R)..C |
1 | ||
| 16377-0Y240 |
2NRFE..NSP151..A,D,E;1NRFE..NSP150..CVT..G..A;1NRFE..NSP150..5F..GCC..R..A;1NRFE..NSP150..CVT..GCC..(D,R)..A;1NRFE..NSP150..(GEN,PH,VN)..(D,R)..(A,D,E) |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
1NRFE..NSP150..GCC;2NRFE..NSP151..(D,R)..C;2NRFE..NSP151..GCC..R..B;2NRFE..NSP151..(GCC,IDN)..G |
1 | ||
| 90467-11085 |
2NRFE..NSP151..5F..IDN;1NRFE..NSP150..CVT..GEN..G..A;1NRFE..NSP150..CVT..GCC..(A,C);2NR#,3NR#..NSP151,152..A,D,E,G,H;1NRFE..NSP150..5F..GCC..R..(A,C);2NRFE..NSP151..CVT..(GCC,IDN)..(G,R)..C;1NRFE..NSP150..(GEN,PH,VN)..(D,R)..(A,D,E) |
1 | ||
| 90467-11085 |
1NRFE,2NRFE..NSP150,151..PH |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16376-0Y050 |
1NRFE,2NRFE..NSP150,151..PH |
1 | ||
| 16376-0Y050 |
1NRFE..NSP150..CVT..G..A;1NRFE..NSP150..5F..GCC..R..A;2NR#,3NR#..NSP151,152..A,D,E,H;1NRFE..NSP150..CVT..GCC..(D,R)..A;1NRFE..NSP150..(GEN,PH,VN)..(D,R)..(A,D,E) |
1 | ||
| 16376-0M150 |
2NRFE..NSP151..5F..D..C;1NRFE..NSP150..CVT..D..C;1NRFE,2NRFE..NSP150,151..(G,R)..C |
1 | ||
| 16523A - CUSHION, RADIATOR SUPPORT | ||||
| 16523-0M050 |
1NRFE,2NRFE..NSP150,151..PH (L) |
2 | ||
| 16523-21030 |
1NRFE,2NRFE..NSP150,151..PH (J) |
2 | ||
| 16523-21030 |
1NRFE..NSP150..GCC;2NRFE..NSP151..(D,R)..C;2NRFE..NSP151..GCC..R..B;2NRFE..NSP151..(GCC,IDN)..G (J) |
2 | ||
| 16523-0M050 |
1NRFE..NSP150..D,E,I;1NRFE..NSP150..CVT..A;1NRFE..NSP150..5F..GCC..R..A;1NRFE..NSP150..LHD..5F..GEN..A;2NRFE,3NR#..NSP151,152..A,D,E,I (L) |
2 | ||
| 16523-0M030 |
2NRFE..NSP151..5F..D..C;1NRFE..NSP150..CVT..D..C;1NRFE,2NRFE..NSP150,151..(G,R)..C (L) |
2 | ||
| 16523-21030 |
2NRFE..NSP151..A,D,E,I;2NRFE..NSP151..5F..IDN;1NRFE..NSP150..CVT..(A,C);1NRFE..NSP150..5F..R..(A,C);1NRFE..NSP150..5F..GEN..D..A;2NRFE..NSP151..CVT..(GCC,IDN)..(G,R)..C;1NRFE,3NR#..NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) (J) |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 90480-22025 |
1NRFE,2NRFE..NSP150,151..PH |
2 | ||
| 90480-22025 |
1NRFE..NSP150..GCC;2NRFE..NSP151..(D,R)..C;2NRFE..NSP151..GCC..R..B;2NRFE..NSP151..(GCC,IDN)..G |
2 | ||
| 90480-22025 |
2NRFE..NSP151..A,D,E,I;2NRFE..NSP151..5F..IDN;1NRFE..NSP150..CVT..(A,C);1NRFE..NSP150..5F..R..(A,C);1NRFE..NSP150..5F..GEN..D..A;2NRFE..NSP151..CVT..(GCC,IDN)..(G,R)..C;1NRFE,3NR#..NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) |
2 | ||
| 16571C - HOSE, RADIATOR, NO.1 | ||||
| 16571-0Y290 |
1NRFE..NSP150..CVT..C;2NRFE..NSP151..CVT..(D,R)..C;2NRFE..NSP151..CVT..(GCC,IDN)..G..C |
1 | ||
| 16571-0Y101 |
1NRFE,2NRFE,3NR#..NSP15#..CVT..(A,D,E,I) |
1 | ||
| 16571-0Y290 |
1NRFE..NSP150..CVT..C;2NRFE..NSP151..CVT..(G,R)..C |
1 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 96136-43901 |
2NRFE..NSP151..5F..IDN;1NRFE..NSP150..CVT..(A,C);2NRFE..NSP151..A,D,E,G,H,I;1NRFE..NSP150..5F..R..(A,C);1NRFE..NSP150..5F..GEN..D..A;2NRFE..NSP151..CVT..(GCC,IDN)..(G,R)..C;1NRFE,2NRFBE,3NR#..NSP15#..(BZ,PH,PKN,TH,VN)..(A,D,E,H,I) |
2 | ||
| 96136-43901 |
1NRFE,2NRFE..NSP150,151..PH |
2 | ||
| 96136-43901 |
1NRFE..NSP150..GCC;2NRFE..NSP151..(D,R)..C;2NRFE..NSP151..GCC..R..B;2NRFE..NSP151..(GCC,IDN)..G |
2 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 96136-43901 |
2NRFE..NSP151..5F..IDN;1NRFE..NSP150..CVT..(A,C);2NRFE..NSP151..A,D,E,G,H,I;1NRFE..NSP150..5F..R..(A,C);1NRFE..NSP150..5F..GEN..D..A;2NRFE..NSP151..CVT..(GCC,IDN)..(G,R)..C;1NRFE,2NRFBE,3NR#..NSP15#..(BZ,PH,PKN,TH,VN)..(A,D,E,H,I) |
2 | ||
| 96136-43901 |
1NRFE,2NRFE..NSP150,151..PH |
2 | ||
| 96136-43901 |
1NRFE..NSP150..GCC;2NRFE..NSP151..(D,R)..C;2NRFE..NSP151..GCC..R..B;2NRFE..NSP151..(GCC,IDN)..G |
2 | ||
| 16572D - HOSE, RADIATOR, NO.2 | ||||
| 16572-0Y161 |
1NRFE,2NRFE..NSP150,151..PH |
1 | ||
| 16572-0Y161 |
1NRFE..NSP150..GCC;2NRFE..NSP151..(D,R)..C;2NRFE..NSP151..GCC..R..B;2NRFE..NSP151..(GCC,IDN)..G |
1 | ||
| 16572-0Y161 |
1NRFE..NSP150..D,E,I;2NRFE..NSP151..A,D,E,I;2NRFE..NSP151..5F..IDN;1NRFE..NSP150..CVT..(A,C);1NRFE..NSP150..5F..R..(A,C);1NRFE..NSP150..5F..GEN..D..A;2NRFE..NSP151..CVT..(GCC,IDN)..(G,R)..C |
1 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 96136-43901 |
1NRFE..NSP150..GCC;2NRFE..NSP151..(D,R)..C;2NRFE..NSP151..GCC..R..B;2NRFE..NSP151..(GCC,IDN)..G |
2 | ||
| 96136-43901 |
1NRFE,2NRFE..NSP150,151..PH |
2 | ||
| 96136-43901 |
2NRFE..NSP151..5F..IDN;1NRFE..NSP150..CVT..(A,C);2NRFE..NSP151..A,D,E,G,H,I;1NRFE..NSP150..5F..R..(A,C);1NRFE..NSP150..5F..GEN..D..A;2NRFE..NSP151..CVT..(GCC,IDN)..(G,R)..C;1NRFE,2NRFBE,3NR#..NSP15#..(BZ,PH,PKN,TH,VN)..(A,D,E,H,I) |
2 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 96136-43901 |
1NRFE..NSP150..GCC;2NRFE..NSP151..(D,R)..C;2NRFE..NSP151..GCC..R..B;2NRFE..NSP151..(GCC,IDN)..G |
2 | ||
| 96136-43901 |
1NRFE,2NRFE..NSP150,151..PH |
2 | ||
| 96136-43901 |
2NRFE..NSP151..5F..IDN;1NRFE..NSP150..CVT..(A,C);2NRFE..NSP151..A,D,E,G,H,I;1NRFE..NSP150..5F..R..(A,C);1NRFE..NSP150..5F..GEN..D..A;2NRFE..NSP151..CVT..(GCC,IDN)..(G,R)..C;1NRFE,2NRFBE,3NR#..NSP15#..(BZ,PH,PKN,TH,VN)..(A,D,E,H,I) |
2 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-0Y090 |
2NRFE..NSP151..5F..D..C;1NRFE..NSP150..CVT..D..C;1NRFE,2NRFE..NSP150,151..(G,R)..C |
1 | ||
| 16711-0Y090 |
1NRFE..NSP150..C;2NRFE..NSP151..(D,R)..C;2NRFE..NSP151..(GCC,IDN)..G..C |
1 | ||
| 16711-0Y180 |
1NRFE,2NRFE..NSP150,151..PH |
1 | ||
| 16711-0Y160 |
2NRFE..NSP151..A,E;1NRFE..NSP150..CVT..G..A;1NRFE..NSP150..5F..GCC..R..A;1NRFE..NSP150..CVT..GCC..(D,R)..A;1NRFE..NSP150..(GEN,VN)..(D,R)..(A,E) |
1 | ||
| Common parts | ||||
| 90068-04055 | ||||
| 90099-04119 | ||||
| 90099-05164 | ||||
| 93315-14010 | ||||
| Linked diagrams | ||||
| 1104 | ||||
