NSP151L-BEXDK (2016)

Toyota Yaris/Vios/Limo

Production Apr 2016 - Sep 2017
Engine 2NRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1604- )NSP151..CVT

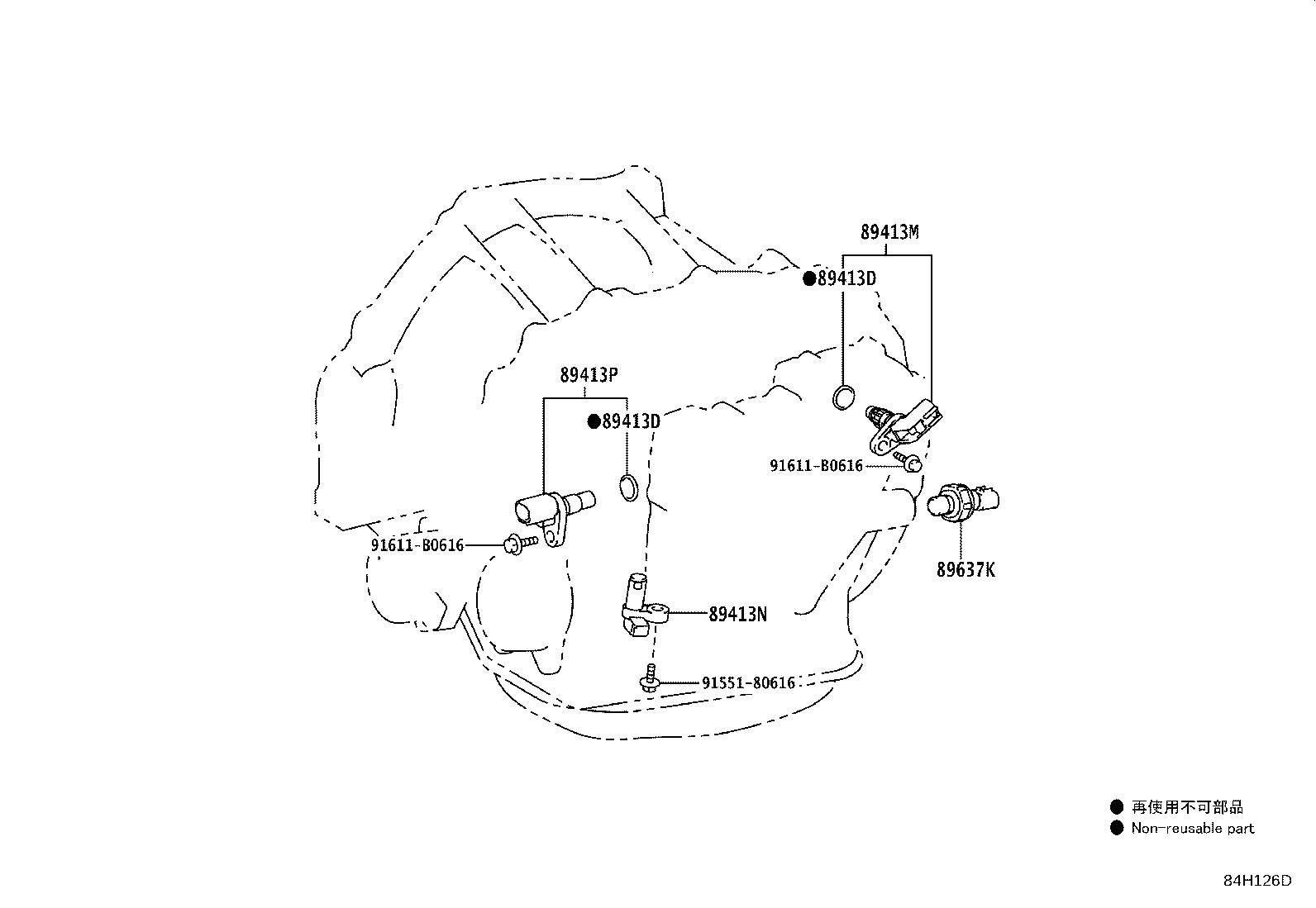

Click highlighted areas on diagram

K312

diagram 89413D 89413D 89413M 89413N 89413P 89637K 9155180616 91611B0616 91611B0616
Part # Description Qty Price
89413D - RING, O(FOR TRANSMISSION REVOLUTION SENSOR)
90301-11008

NSP151..CVT..(B,C)

 2
90301-11008

NSP152..HTWCB;NSP151..CVT..(A,D,E,G,H,I);NSP151..CVT..(GCC,IDN)..(G,R)..C

 2
89413D - RING, O(FOR TRANSMISSION REVOLUTION SENSOR)
90301-11008

NSP151..CVT..(B,C)

 2
90301-11008

NSP152..HTWCB;NSP151..CVT..(A,D,E,G,H,I);NSP151..CVT..(GCC,IDN)..(G,R)..C

 2
89413M - SENSOR, TRANSMISSION REVOLUTION, (NOUT)
89413-12020

NSP151..CVT..(B,C)

 1
89413-12020

NSP151..CVT..(A,D,E,G,H,I);NSP151..CVT..(GCC,IDN)..(G,R)..C

 1
89413N - SENSOR, TRANSMISSION REVOLUTION, (NT)
89413-50020

NSP151..CVT..(B,C)

 1
89413-50020

NSP151..CVT..(A,D,E,G,H,I);NSP151..CVT..(GCC,IDN)..(G,R)..C

 1
89637K - SENSOR, OIL PRESSURE
89637-63010

NSP150,151..CVT..(B,C)

 1
89637-63010

NSP152..HTWC;NSP150..CVT..(A,C,D,I);NSP151..CVT..(A,D,E,G,H,I);NSP151..CVT..(GCC,IDN)..(G,R)..C

 1
Common parts
91551-80616
91611-B0616
