Toyota Yaris/vios/limo NCP151 FRONT DRIVE SHAFT

NCP151R-BEPGK (2013)

Toyota Yaris/Vios/Limo

Production Aug 2013 - Mar 2016

Engine 2NZFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

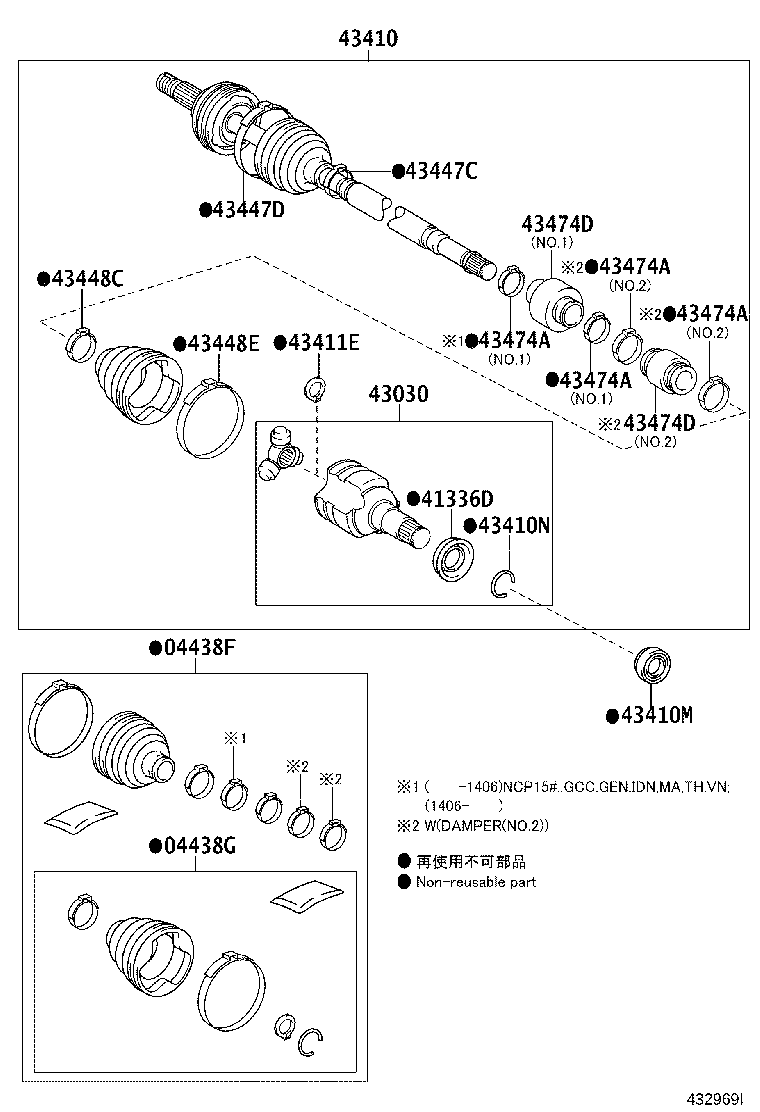

ILLUST NO. 1 OF 2(1304- )GCC,GEN,IDN,MA,PH,PKN,TH,VN..A,B,C,D,E,I

Click highlighted areas on diagram

Part #	Description	Period	Qty
04438F - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH
04427-0D350	NCP15#..(GCC,GEN,TH)..B	04/2013 - 03/2016	1
04427-0D350	NCP15#..C	04/2013 - 09/2016	1
04438G - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH
04437-0D250	NCP15#..C	04/2013 - 09/2016	1
04437-0D250	NCP15#..(GCC,GEN,TH)..B	04/2013 - 03/2016	1
04437-0D250	NSP150,151..GEN	04/2013 - 09/2017	1
41336D - COVER, FRONT DRIVE SHAFT DUST, RH
41336-0D110	NCP15#..C;NCP15#..MA,VN	04/2013 - 04/2016	1
41336-0D110	NCP15#..(GCC,GEN,TH)..B	04/2013 - 03/2016	1
43030 - JOINT ASSY, FRONT DRIVE INBOARD, RH
43040-0D030	NCP15#..C	04/2013 - 09/2016	1
43040-0D030	NCP15#..(GCC,GEN,TH)..B	04/2013 - 03/2016	1
43040-0D030	NSP150,151..GEN	04/2013 - 09/2017	1
43410 - SHAFT ASSY, FRONT DRIVE, RH
43410-0D260	NCP15#..(GCC,GEN,TH)..B	04/2013 - 03/2016	1
43410-0D260	NCP15#..C	04/2013 - 09/2016	1
43410N - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)
43425-0D390	NCP15#..(GCC,GEN,TH)..B	04/2013 - 03/2016	1
43425-0D390	NCP15#..C	04/2013 - 09/2016	1
43425-0D390	NSP150,151..GEN	04/2013 - 09/2017	1
43411E - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)
43425-0D380	NCP15#..(GCC,GEN,TH)..B	04/2013 - 03/2016	1
43425-0D380	NCP15#..C	04/2013 - 09/2016	1
43425-0D380	NSP150,151..GEN	04/2013 - 09/2017	1
43447C - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
42345-0DA70	NCP15#..(GCC,GEN,TH)..B	04/2013 - 03/2016	1
42345-0DA70	NCP15#..C	04/2013 - 09/2016	1
42345-0DA70	NSP150,151..GEN	04/2013 - 09/2017	1
43447D - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
42345-0DA80	NCP15#..C	04/2013 - 09/2016	1
42345-0DA80	NSP150,151..GEN	04/2013 - 09/2017	1
42345-0DA80	NCP15#..(GCC,GEN,TH)..B	04/2013 - 03/2016	1
43448C - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)
42345-0DA70	NCP15#..(GCC,GEN,TH)..B	04/2013 - 03/2016	1
42345-0DA70	NSP150,151..GEN	04/2013 - 09/2017	1
42345-0DA70	NCP15#..C	04/2013 - 09/2016	1
43448E - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
42345-0DA60	NCP15#..(GCC,GEN,TH)..B	04/2013 - 03/2016	1
42345-0DA60	NSP150,151..GEN	04/2013 - 09/2017	1
42345-0DA60	NCP15#..C	04/2013 - 09/2016	1
43474A - CLAMP (FOR DRIVE SHAFT DAMPER SETTING)
42345-0DA50	NCP15#..(GCC,GEN,TH)..B NO.1:REFER ILLUST.	04/2013 - 03/2016	2
42345-0DA50	NCP15#..C NO.1:REFER ILLUST.	04/2013 - 09/2016	2
43474A - CLAMP (FOR DRIVE SHAFT DAMPER SETTING)
42345-0DA50	NCP15#..(GCC,GEN,TH)..B NO.1:REFER ILLUST.	04/2013 - 03/2016	2
42345-0DA50	NCP15#..C NO.1:REFER ILLUST.	04/2013 - 09/2016	2
43474A - CLAMP (FOR DRIVE SHAFT DAMPER SETTING)
42345-0DA50	NCP15#..(GCC,GEN,TH)..B NO.1:REFER ILLUST.	04/2013 - 03/2016	2
42345-0DA50	NCP15#..C NO.1:REFER ILLUST.	04/2013 - 09/2016	2
43474A - CLAMP (FOR DRIVE SHAFT DAMPER SETTING)
42345-0DA50	NCP15#..(GCC,GEN,TH)..B NO.1:REFER ILLUST.	04/2013 - 03/2016	2
42345-0DA50	NCP15#..C NO.1:REFER ILLUST.	04/2013 - 09/2016	2
43474D - DAMPER, FRONT DRIVE SHAFT, RH
43474-0D140	NCP15#..(GCC,GEN,TH)..B NO.1:REFER ILLUST.	04/2013 - 03/2016	1
43474-0D140	NCP15#..C NO.1:REFER ILLUST.	04/2013 - 09/2016	1
43474D - DAMPER, FRONT DRIVE SHAFT, RH
43474-0D140	NCP15#..(GCC,GEN,TH)..B NO.1:REFER ILLUST.	04/2013 - 03/2016	1
43474-0D140	NCP15#..C NO.1:REFER ILLUST.	04/2013 - 09/2016	1

ILLUST NO. 2 OF 2(1304- )GCC,GEN,IDN,MA,PH,PKN,TH,VN..A,B,C,D,E,I

Click highlighted areas on diagram

Part #	Description	Period	Qty
04438H - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH
04428-0D330	NCP15#..(GCC,GEN,TH)..B	04/2013 - 03/2016	1
04428-0D330	NCP15#..C	04/2013 - 09/2016	1
04438J - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH
04437-0D250	NCP15#..C	04/2013 - 09/2016	1
04437-0D250	NCP15#..(GCC,GEN,TH)..B	04/2013 - 03/2016	1
04437-0D250	NSP150,151..GEN	04/2013 - 09/2017	1
41336E - COVER, FRONT DRIVE SHAFT DUST, LH
41336-0D110	NCP15#..(GCC,GEN,TH)..B	04/2013 - 03/2016	1
41336-0D110	NCP15#..C;NCP15#..MA,VN	04/2013 - 04/2016	1
43040 - JOINT ASSY, FRONT DRIVE INBOARD, LH
43040-0D030	NCP15#..(GCC,GEN,TH)..B	04/2013 - 03/2016	1
43040-0D030	NSP150,151..GEN	04/2013 - 09/2017	1
43040-0D030	NCP15#..C	04/2013 - 09/2016	1
43412B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH)
43425-0D380	NCP15#..(GCC,GEN,TH)..B	04/2013 - 03/2016	1
43425-0D380	NCP15#..C	04/2013 - 09/2016	1
43425-0D380	NSP150,151..GEN	04/2013 - 09/2017	1
43420 - SHAFT ASSY, FRONT DRIVE, LH
43420-0D280	NCP15#..(GCC,GEN,TH)..B	04/2013 - 03/2016	1
43420-0D280	NCP15#..C	04/2013 - 09/2016	1
43420G - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH)
43425-0D390	NSP150,151..GEN	04/2013 - 09/2017	1
43425-0D390	NCP15#..C	04/2013 - 09/2016	1
43425-0D390	NCP15#..(GCC,GEN,TH)..B	04/2013 - 03/2016	1
43447E - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
42345-0DA70	NCP15#..C	04/2013 - 09/2016	1
42345-0DA70	NCP15#..(GCC,GEN,TH)..B	04/2013 - 03/2016	1
42345-0DA70	NSP150,151..GEN	04/2013 - 09/2017	1
43447F - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
42345-0DA80	NSP150,151..GEN	04/2013 - 09/2017	1
42345-0DA80	NCP15#..C	04/2013 - 09/2016	1
42345-0DA80	NCP15#..(GCC,GEN,TH)..B	04/2013 - 03/2016	1
43448F - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH)
42345-0DA70	NCP15#..(GCC,GEN,TH)..B	04/2013 - 03/2016	1
42345-0DA70	NSP150,151..GEN	04/2013 - 09/2017	1
42345-0DA70	NCP15#..C	04/2013 - 09/2016	1
43448G - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
42345-0DA60	NCP15#..(GCC,GEN,TH)..B	04/2013 - 03/2016	1
42345-0DA60	NCP15#..C	04/2013 - 09/2016	1
42345-0DA60	NSP150,151..GEN	04/2013 - 09/2017	1
