NCP151L-CEPRKV (2014)

Toyota Yaris/Vios/Limo

Production Feb 2014 - Sep 2016
Engine 2NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1604- )NSP151..TH..A,C ; (1604- )LHD..GEN..D..A,B ; (1801- )CVT..IDN..R ;

Click highlighted areas on diagram

DEALER OPTION

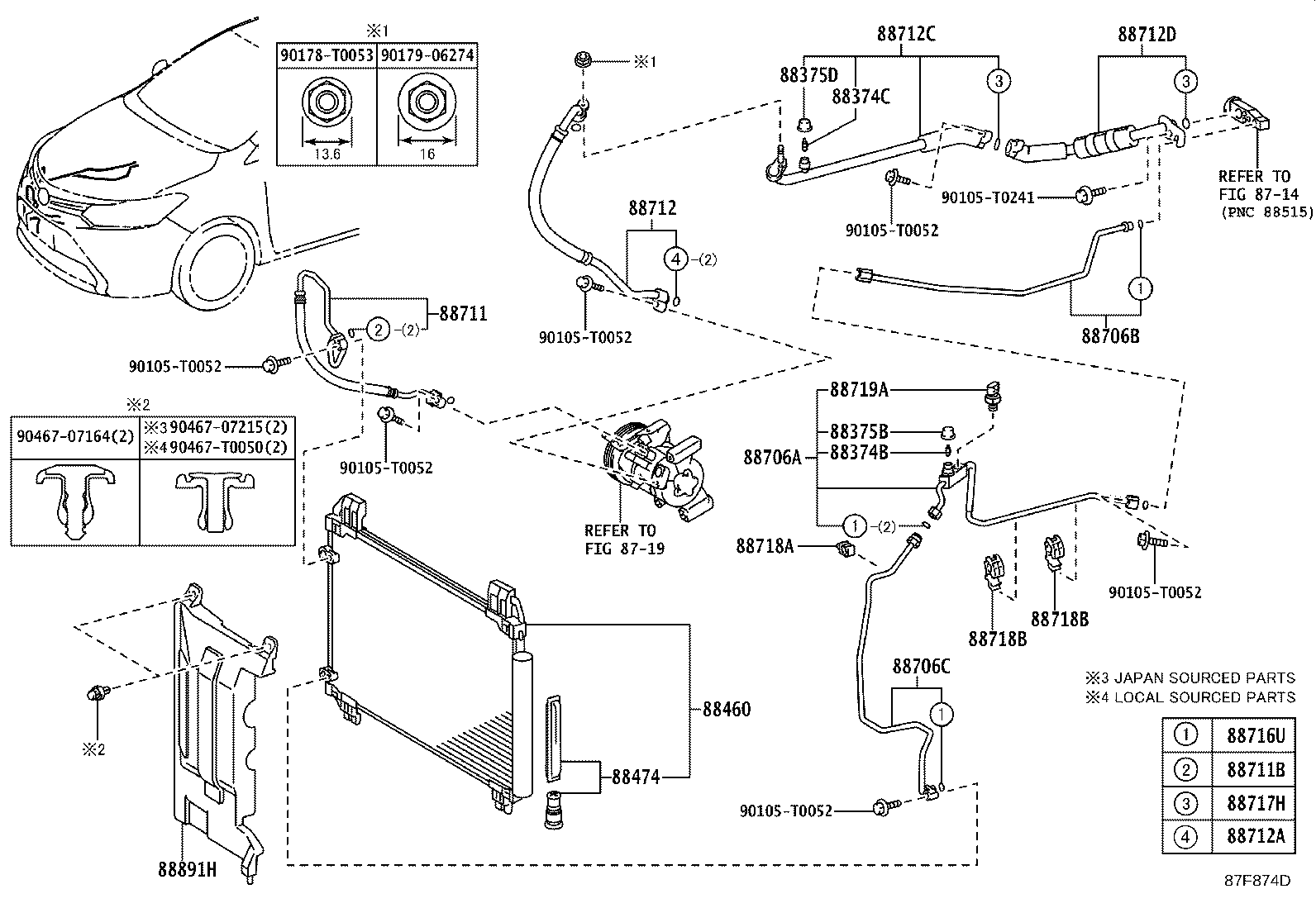

diagram 8714 8719 88374B 88374C 88375B 88375D 88460 88474 88706A 88706B 88706C 88711 88711B 88712 88712A 88712C 88712D 88716U 88717H 88718A 88718B 88718B 88719A 88891H 90105T0052 90105T0052 90105T0052 90105T0052 90105T0052 90105T0052 90105T0241 90178T0053 9017906274 9046707164 9046707215 90467T0050
Part # Description Qty Price
88374C - VALVE, SERVICE, NO.2
88374-30010

NCP15#..(GCC,IDN)..C

 1
88374-30010

NSP150,151..GCC,IDN

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-30280

NCP150..B;NCP151,NSP150..B,C;NCP150,NSP151..(GCC,IDN)..C;NSP151..(GCC,GEN,PH,TAIW,TH,VN)..B

 1
88375D - CAP, SERVICE VALVE, NO.2
88375-30290

NCP15#..(GCC,IDN)..C

 1
88375-30290

NSP150,151..GCC,IDN

 1
88460 - CONDENSER ASSY, COOLER
88460-0D380

NCP15#..GCC..C

 1
88474 - DRYER, COOLER
88474-17010

NCP15#..(GCC,IDN)..C

 1
88474-17010

NSP150,151..GCC,IDN

 1
88706A - TUBE SUB-ASSY, LIQUID, A
88706-0D600

NCP15#..GCC..C

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-0D490

NCP15#..GCC..C

 1
88711B - RING, O(FOR COOLER REFRIGERANT DISCHARGE HOSE)
90099-14120

NCP151;NCP150..B;NSP151..GCC..B;NSP150..LHD..CVT..B;NCP150..(GCC,IDN)..C;NSP151..(GEN,IDN,PH,TAIW)..(B,C);NSP150..LHD..5F..(GCC,GEN,PH)..(B,C)

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-0D720

NCP15#..GCC..C

 1
88712A - RING, O(FOR COOLER REFRIGERANT SUCTION HOSE)
90099-14121

NCP15#..(GCC,IDN)..C

 1
88712C - HOSE, SUCTION
88707-0D330

NCP15#..GCC..C

 1
88716U - RING, O(FOR COOLER REFRIGERANT LIQUID PIPE)
90099-14119

NCP151;NCP150..B;NSP151..GCC..B;NSP150..LHD..CVT..B;NCP150..(GCC,IDN)..C;NSP150..LHD..5F..(B,C);NSP151..(GEN,IDN,MA,PH,TAIW,VN)..(B,C)

 1
88718B - CLAMP, NO.2(FOR COOLER REFRIGERANT PIPE)
88718-0D650

NCP15#..GCC..C

 2
88718B - CLAMP, NO.2(FOR COOLER REFRIGERANT PIPE)
88718-0D650

NCP15#..GCC..C

 2
Common parts
90105-T0052
90105-T0241
90178-T0053
90179-06274
90467-07164
90467-07215
90467-T0050
Linked diagrams
8714
8719
