Toyota Yaris/vios/limo NCP151 HEATING & AIR CONDITIONING - COOLER UNIT

Manufacturers Home
Toyota
GR
YARIS/VIOS/LIMO
NCP151L-CEPRKV (2014)
8714 - HEATING & AIR CONDITIONING - COOLER UNIT

NCP151L-CEPRKV (2014)

Toyota Yaris/Vios/Limo

Production Feb 2014 - Sep 2016

Engine 2NZFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

(1304- )NSP151..TH..B,C ; (1304- )NCP15#,NSP150..RHD..B,C ; (1608-1812)MA ; (

Click highlighted areas on diagram

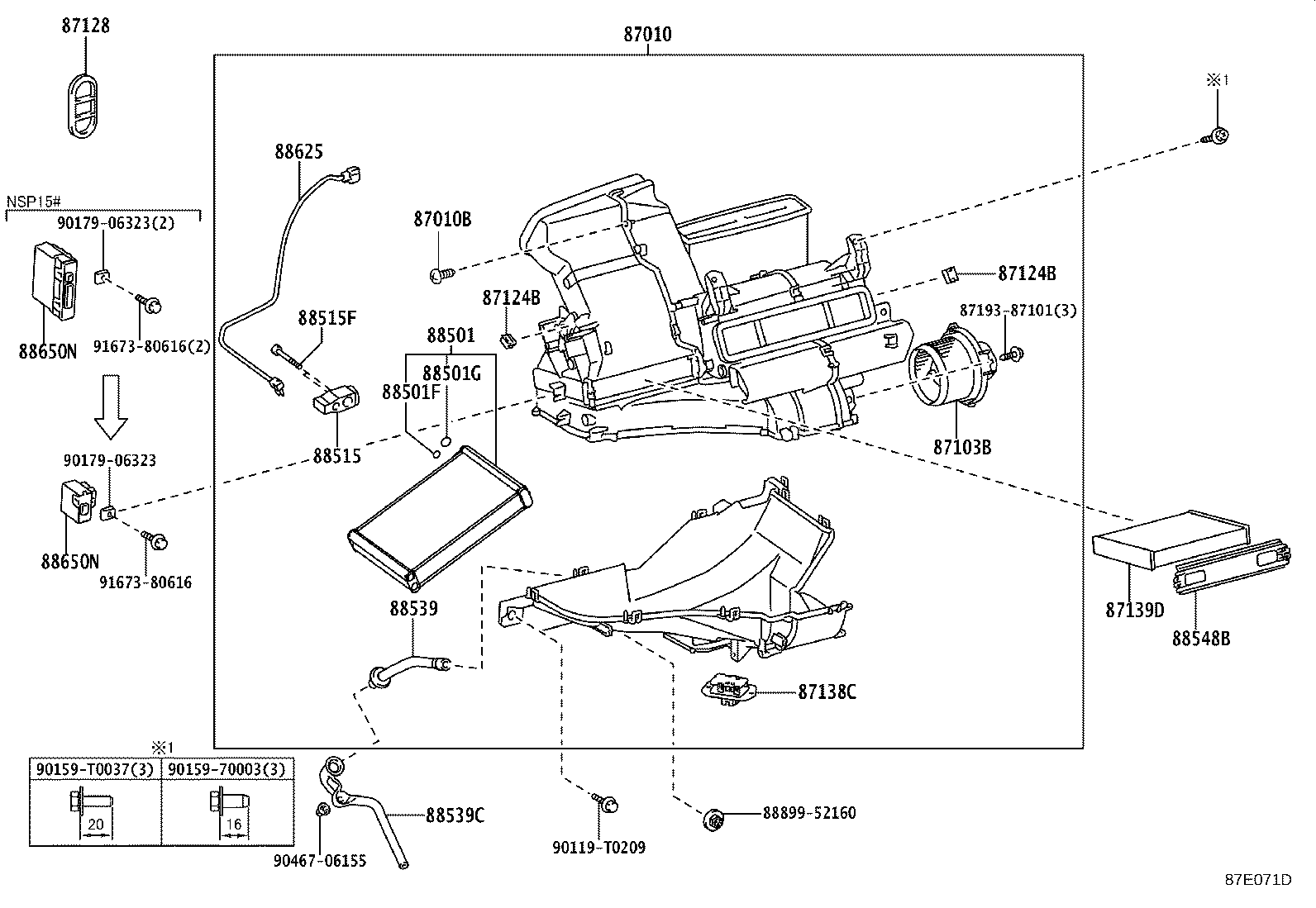

MANUAL AIR CONDITIONER

Part #	Description	Period	Qty
87010 - UNIT ASSY, AIR CONDITIONER
87010-0DC00	NCP15#..GCC..G..C G-HIGH PACKAGE	02/2014 - 09/2016	1
87010-0DB90	NCP15#..GCC..C	02/2014 - 09/2016	1
87010B - SCREW(FOR AIR CONDITIONER UNIT)
90099-00968	NCP15#..GCC..C	02/2014 - 09/2016	15
90099-00968	NCP15#..GCC..G..C G-HIGH PACKAGE	02/2014 - 09/2016	24
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-0D370	NCP15#..GCC..C	02/2014 - 09/2016	1
87124B - CLAMP, HEATER
87124-0D310	NCP15#..GCC..C	02/2014 - 09/2016	3
87124B - CLAMP, HEATER
87124-0D310	NCP15#..GCC..C	02/2014 - 09/2016	3
87128 - GROMMET, HEATER
87128-0D160	NCP15#..GCC..C	02/2014 - 09/2016	1
87128 - GROMMET, HEATER
87128-0D160	NCP15#..GCC..C	02/2014 - 09/2016	1
87138C - RESISTOR, BLOWER
87138-0D310	NCP15#..GCC..C	02/2014 - 09/2016	1
87139D - ELEMENT, AIR REFINER
87139-06080	NCP15#..(GCC,TH)..C DUST FILTER	04/2013 - 09/2016	1
87139-50100	NCP15#..C *DPF	04/2013 - 09/2016	1
87150B - RADIATOR ASSY, HEATER
87150-0D190	NCP15#..GCC..C	02/2014 - 09/2016	1
87237B - COVER, HEATER PIPING
87237-0D100	NCP15#..GCC..C	02/2014 - 09/2016	1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-0D330	NCP15#..GCC..C	02/2014 - 09/2016	1
88501F - O-RING, COOLER EVAPORATOR NO.1(DISCHARGE)
90099-14120	NCP15#..C ID=10.8,OD=15.6	04/2013 - 09/2016	1
88501G - O-RING, COOLER EVAPORATOR NO.1(SUCTION)
90099-14121	NCP15#..C ID=13.4,OD=18.2	04/2013 - 09/2016	1
88515F - BOLT(FOR COOLER EXPANSION VALVE)
90099-04630	NCP15#..C	04/2013 - 09/2016	2
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-0D430	NCP15#..GCC..C	02/2014 - 09/2016	1
88539C - HOSE, COOLER UNIT DRAIN, NO.2
88539-0D450	NCP15#..GCC..C	02/2014 - 09/2016	1
Common parts
87193-87101
88899-52160
90105-T0241
90119-T0209
90159-70003
90159-T0037
90179-06323
90467-06155
91673-80616

(1304- )NSP151..TH..B,C ; (1304- )NCP15#,NSP150..RHD..B,C ; (1608-1812)MA ; (

Click highlighted areas on diagram

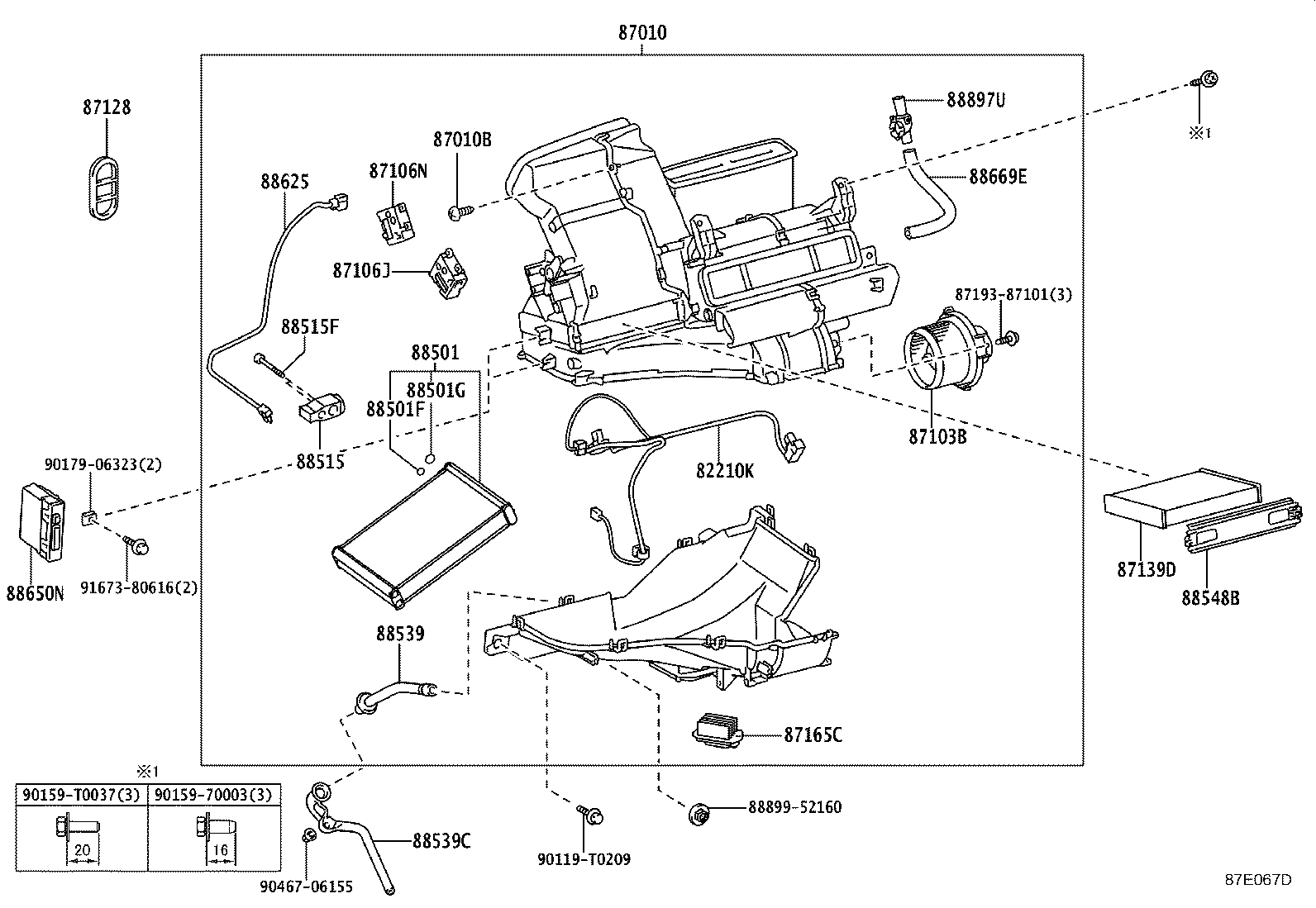

AUTO BOOST VENTILATOR

Part #	Description	Period	Qty
87010 - UNIT ASSY, AIR CONDITIONER
87010-0DC00	NCP15#..GCC..G..C G-HIGH PACKAGE	02/2014 - 09/2016	1
87010-0DB90	NCP15#..GCC..C	02/2014 - 09/2016	1
87010B - SCREW(FOR AIR CONDITIONER UNIT)
90099-00968	NCP15#..GCC..C	02/2014 - 09/2016	15
90099-00968	NCP15#..GCC..G..C G-HIGH PACKAGE	02/2014 - 09/2016	24
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-0D370	NCP15#..GCC..C	02/2014 - 09/2016	1
87106J - SERVO SUB-ASSY, DAMPER(FOR MODE)
87106-0D190	NCP15#..GCC..G..C G-HIGH PACKAGE	02/2014 - 09/2016	1
87106N - SERVO SUB-ASSY, DAMPER(FOR RECIRCULATION)
87106-0D210	NCP15#..GCC..G..C G-HIGH PACKAGE	02/2014 - 09/2016	1
87128 - GROMMET, HEATER
87128-0D160	NCP15#..GCC..C	02/2014 - 09/2016	1
87139D - ELEMENT, AIR REFINER
87139-06080	NCP15#..(GCC,TH)..C DUST FILTER	04/2013 - 09/2016	1
87139-50100	NCP15#..C *DPF	04/2013 - 09/2016	1
87165C - CONTROL, BLOWER MOTOR
87165-0D060	NCP15#..GCC..G..C G-HIGH PACKAGE	02/2014 - 09/2016	1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-0D330	NCP15#..GCC..C	02/2014 - 09/2016	1
88501F - O-RING, COOLER EVAPORATOR NO.1(DISCHARGE)
90099-14120	NCP15#..C ID=10.8,OD=15.6	04/2013 - 09/2016	1
88501G - O-RING, COOLER EVAPORATOR NO.1(SUCTION)
90099-14121	NCP15#..C ID=13.4,OD=18.2	04/2013 - 09/2016	1
88515F - BOLT(FOR COOLER EXPANSION VALVE)
90099-04630	NCP15#..C	04/2013 - 09/2016	2
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-0D430	NCP15#..GCC..C	02/2014 - 09/2016	1
88539C - HOSE, COOLER UNIT DRAIN, NO.2
88539-0D450	NCP15#..GCC..C	02/2014 - 09/2016	1
88669E - HOSE, AIR
87233-0D010	NCP15#..GCC..G..C G-HIGH PACKAGE	02/2014 - 09/2016	1
88897U - PIPE, ASPIRATOR
88897-0D040	NCP15#..GCC..G..C G-HIGH PACKAGE	02/2014 - 09/2016	1
Common parts
87193-87101
88899-52160
90119-T0209
90159-70003
90159-T0037
90179-06323
90467-06155
91673-80616

(1304- )NSP151..TH..B,C ; (1304- )NCP15#,NSP150..RHD..B,C ; (1608-1812)MA ; (

Click highlighted areas on diagram

MANUAL BOOST VENTILATOR

Part #	Description	Period	Qty
87010 - UNIT ASSY, AIR CONDITIONER
87010-0DC00	NCP15#..GCC..G..C G-HIGH PACKAGE	02/2014 - 09/2016	1
87010-0DB90	NCP15#..GCC..C	02/2014 - 09/2016	1
87010B - SCREW(FOR AIR CONDITIONER UNIT)
90099-00968	NCP15#..GCC..C	02/2014 - 09/2016	15
90099-00968	NCP15#..GCC..G..C G-HIGH PACKAGE	02/2014 - 09/2016	24
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-0D370	NCP15#..GCC..C	02/2014 - 09/2016	1
87124B - CLAMP, HEATER
87124-0D310	NCP15#..GCC..C	02/2014 - 09/2016	3
87124B - CLAMP, HEATER
87124-0D310	NCP15#..GCC..C	02/2014 - 09/2016	3
87128 - GROMMET, HEATER
87128-0D160	NCP15#..GCC..C	02/2014 - 09/2016	1
87138C - RESISTOR, BLOWER
87138-0D310	NCP15#..GCC..C	02/2014 - 09/2016	1
87139D - ELEMENT, AIR REFINER
87139-06080	NCP15#..(GCC,TH)..C DUST FILTER	04/2013 - 09/2016	1
87139-50100	NCP15#..C *DPF	04/2013 - 09/2016	1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-0D330	NCP15#..GCC..C	02/2014 - 09/2016	1
88501F - O-RING, COOLER EVAPORATOR NO.1(DISCHARGE)
90099-14120	NCP15#..C ID=10.8,OD=15.6	04/2013 - 09/2016	1
88501G - O-RING, COOLER EVAPORATOR NO.1(SUCTION)
90099-14121	NCP15#..C ID=13.4,OD=18.2	04/2013 - 09/2016	1
88515F - BOLT(FOR COOLER EXPANSION VALVE)
90099-04630	NCP15#..C	04/2013 - 09/2016	2
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-0D430	NCP15#..GCC..C	02/2014 - 09/2016	1
88539C - HOSE, COOLER UNIT DRAIN, NO.2
88539-0D450	NCP15#..GCC..C	02/2014 - 09/2016	1
Common parts
87193-87101
88899-52160
90119-T0209
90159-70003
90159-T0037
90179-06323
90467-06155
91673-80616
