NCP151L-CEPRKV (2014)

Toyota Yaris/Vios/Limo

Production Feb 2014 - Sep 2016
Engine 2NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

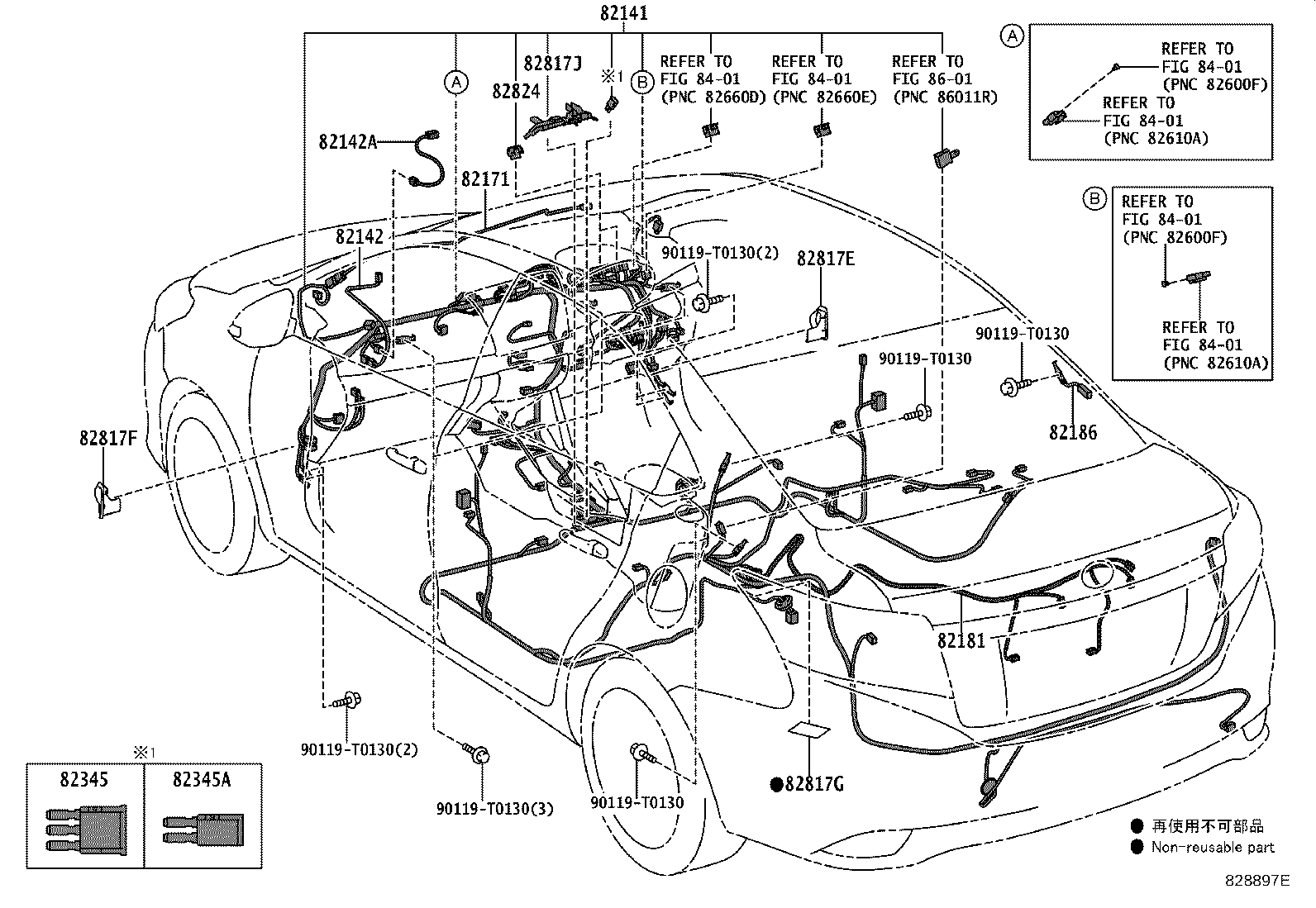

ILLUST NO. 3 OF11(1304- )NSP151..TH..B ; (1304- )NCP15#,NSP150..RHD..B ; (1312-1609)RHD..C ; (

Click highlighted areas on diagram

INSTRUMENT PANEL & FLOOR & ROOF

diagram 82141 82142 82142A 82171 82181 82186 82345 82345A 82817E 82817F 82817G 82817J 82824 8401 8401 8401 8401 8401 8401 8601 90119T0130 90119T0130 90119T0130 90119T0130 90119T0130 90119T0130
Part # Description Qty Price
82141 - WIRE, INSTRUMENT PANEL
82145-0DU60

NCP15#..GCC..G..C

 1
82145-0DU50

NCP15#..4FC..GCC..R..C

 1
82145-0DU70

NCP15#..GCC..G..C

G-HIGH PACKAGE&FRONT AIR CONDITIONER-WITH(AUTO)

 1
82145-0DU80

NCP151..4FC..D..C

 1
82142 - WIRE, INSTRUMENT PANEL, NO.2
82142-0D410

NCP15#..GCC..G..C

G-HIGH PACKAGE&FRONT AIR CONDITIONER-WITH(AUTO)

 1
82181 - WIRE, LUGGAGE ROOM, NO.1
82181-0D230

NCP15#..GCC..C

 1
82181-0D240

NCP15#..GCC..G..C

G-HIGH PACKAGE

 1
82817E - PROTECTOR, WIRING HARNESS, NO.6
82817-0D600

NCP15#..C

 1
82817F - PROTECTOR, WIRING HARNESS, NO.7
82817-0D610

NCP15#..C

 1
82817J - PROTECTOR, WIRING HARNESS, NO.9
82817-0D690

NSP151..B,C;NCP15#,NSP150..(GCC,GEN,IDN,MA,PH,TH,VN)..(B,C)

 1
82824 - CONNECTOR, WIRING HARNESS
82824-52630

NSP151..B,C;NCP15#,NSP150..(GCC,GEN,IDN,MA,PH,TH,VN)..(B,C)

 2
Common parts
90119-T0130
Linked diagrams
8401
8601

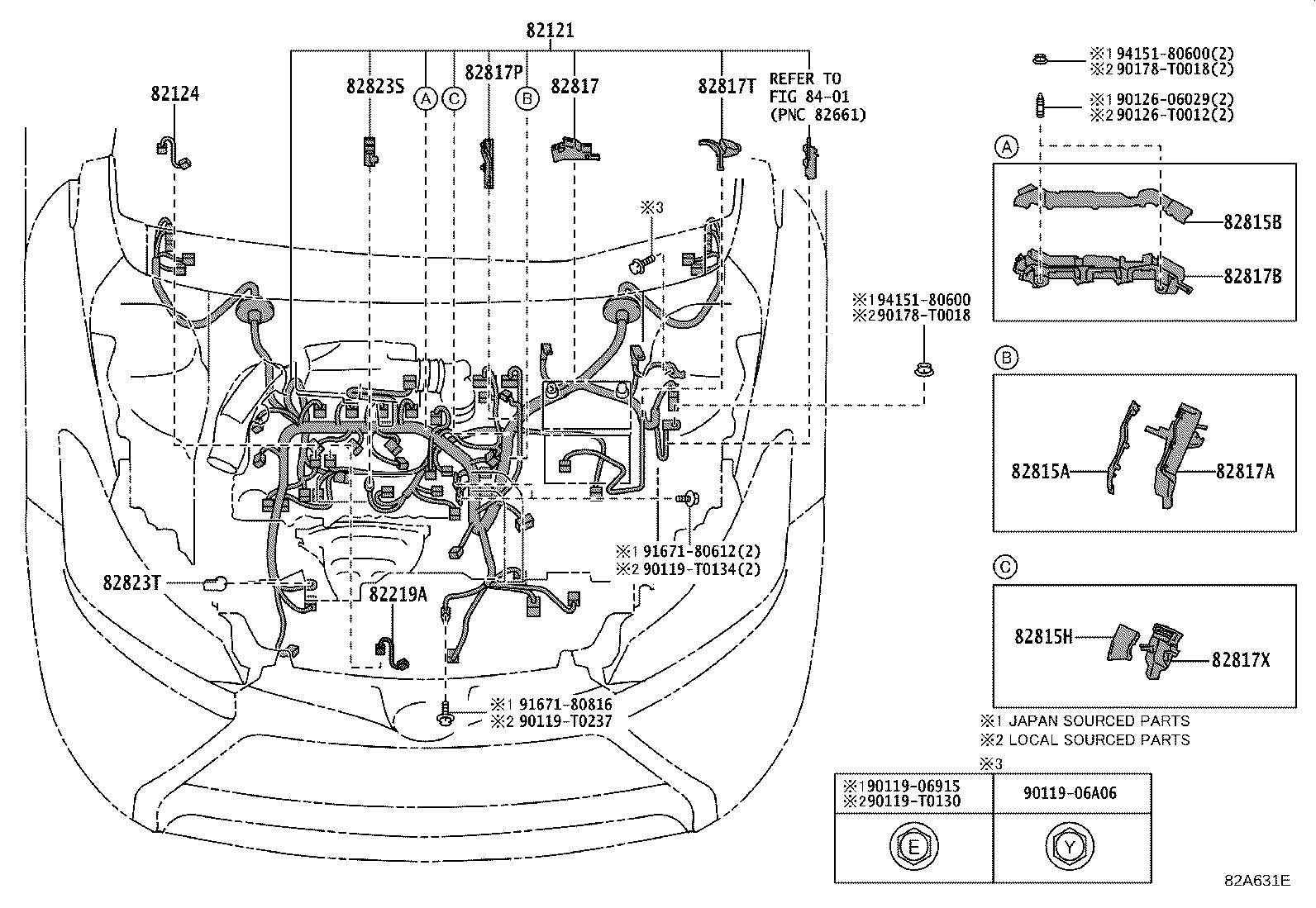

ILLUST NO. 2 OF11(1604- )HTWC ; (1604- )NSP150,151

Click highlighted areas on diagram

ENGINE

diagram 82121 82124 82219A 82815A 82815B 82815H 82817 82817A 82817B 82817P 82817T 82817X 82823S 82823T 8401 9011906915 9011906A06 90119T0130 90119T0134 90119T0237 9012606029 90126T0012 90178T0018 90178T0018 9167180612 9167180816 9415180600 9415180600
Part # Description Qty Price
82121 - WIRE, ENGINE
82121-0DM60

NCP15#..4FC..GCC..C

 1
82823S - CAP, STARTER TERMINAL
82823-20080

NCP15#..C

 1
82823T - CAP, ALTERNATOR TERMINAL
82823-22050

NCP15#..C

 1
Common parts
90119-06915
90119-06A06
90119-T0130
90119-T0134
90119-T0237
90126-06029
90126-T0012
90178-T0018
91671-80612
91671-80816
94151-80600
Linked diagrams
8401
