Toyota Yaris/vios/limo NCP151 LOCK CYLINDER SET

NCP151L-CEPRKV (2014)

Toyota Yaris/Vios/Limo

Production Feb 2014 - Sep 2016

Engine 2NZFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

(1304-1609)NCP15#..GCC,GEN,IDN,MA,PH,TH,VN ; (1604-1812)NSP150,151..GCC,GEN,MA,PH,V

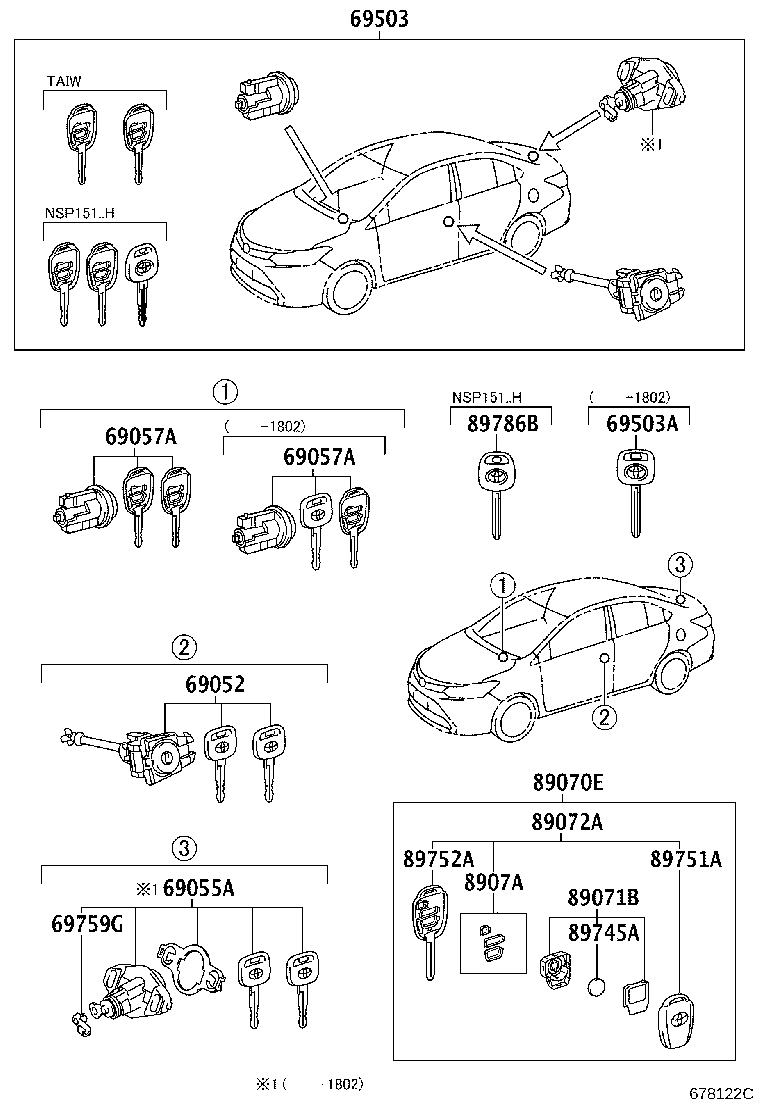

Click highlighted areas on diagram

WITHOUT(SMART ENTRY)

Part #	Description	Period	Qty
69052 - CYLINDER & KEY SET, DOOR LOCK, LH
69052-0D320	NCP15#..GCC..G..C G-HIGH PACKAGE&WIRELESS DOOR LOCK-WITH(SMART ENTRY)	02/2014 - 09/2016	1
69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK
69057-0D550	NCP151..4FC..D..C	02/2014 - 09/2016	1
69503 - CYLINDER SET, LOCK
69005-0DC00	NCP15#..GCC..G..C G-HIGH PACKAGE&WIRELESS DOOR LOCK-WITH(SMART ENTRY)	02/2014 - 09/2016	1
69005-0D180	NCP151..4FC..D..C	02/2014 - 09/2016	1
69685A - PAD, LOCK CYLINDER
69563-0D030	NCP151..C;NCP150..(D,R)..C;NCP150..(GCC,TH)..G..C	04/2013 - 09/2016	1
69759G - SNAP, LUGGAGE DOOR LOCK CYLINDER
69759-06020	NCP151..C;NCP150..(D,R)..C;NCP150..(GCC,TH)..G..C	04/2013 - 09/2016	1
89070E - TRANSMITTER ASSY, DOOR CONTROL
89070-0D730	NCP15#..GCC..(G,R)..C UAE SPEC	02/2014 - 09/2016	1
89070-0D740	NCP15#..GCC..(G,R)..C JORDAN SPEC	02/2014 - 09/2016	1
89071B - MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL
89071-0D110	NCP15#..GCC..(G,R)..C JORDAN SPEC	02/2014 - 09/2016	1
89071-0D130	NCP15#..GCC..G..C G-HIGH PACKAGE&WIRELESS DOOR LOCK-WITH(SMART ENTRY)	02/2014 - 09/2016	1
89071-0D130	NCP15#..GCC..G..C UAE SPEC&G-HIGH PACKAGE&WIRELESS DOOR LOCK-WITH(SMART ENTRY)	02/2014 - 09/2016	1
89071-0D130	NCP15#..GCC..G..C JORDAN SPEC&G-HIGH PACKAGE&WIRELESS DOOR LOCK-WITH(SMART ENTRY)	02/2014 - 09/2016	1
89072A - HOUSING SET, DOOR CONTROL TRANSMITTER
89072-0D460	NCP15#..GCC..(G,R)..C UAE SPEC	02/2014 - 09/2016	1
8907A - SWITCH SET, TRANSMITTER
8907A-52010	NCP151..(G,R)..C;NCP150..GCC..G..C;NCP150..(GCC,IDN)..R..C	04/2013 - 09/2016	1
89745A - BATTERY, TRANSMITTER
89745-0D060	NCP15#..GCC..G..C G-HIGH PACKAGE&WIRELESS DOOR LOCK-WITH(SMART ENTRY)	02/2014 - 09/2016	1
89745-0D060	NCP15#..GCC..G..C JORDAN SPEC&G-HIGH PACKAGE&WIRELESS DOOR LOCK-WITH(SMART ENTRY)	02/2014 - 09/2016	1
89745-0D060	NCP15#..GCC..G..C UAE SPEC&G-HIGH PACKAGE&WIRELESS DOOR LOCK-WITH(SMART ENTRY)	02/2014 - 09/2016	1
89751A - COVER, TRANSMITTER HOUSING
89751-42090	NCP151..(G,R)..C;NCP150..GCC..G..C;NCP150..(GCC,IDN)..R..C	04/2013 - 09/2016	1
89751-0D100	NCP15#..GCC..(G,R)..C UAE SPEC	02/2014 - 09/2016	1
89785B - TRANSMITTER, TRANSPONDER KEY MASTER
89785-60210	NCP15#..GCC..G..C G-HIGH PACKAGE&WIRELESS DOOR LOCK-WITH(SMART ENTRY)	02/2014 - 09/2016	1
89786B - TRANSMITTER, TRANSPONDER KEY SUB
89786-60220	NCP15#..GCC..G..C BLANK KEY,G-HIGH PACKAGE&WIRELESS DOOR LOCK-WITH(SMART ENTRY)	02/2014 - 09/2016	1
Linked diagrams
8401

(1404- )TAIW ; (1807- )H

Click highlighted areas on diagram

WITHOUT(SMART ENTRY)

Part #	Description	Period	Qty
69052 - CYLINDER & KEY SET, DOOR LOCK, LH
69052-0D320	NCP15#..GCC..G..C G-HIGH PACKAGE&WIRELESS DOOR LOCK-WITH(SMART ENTRY)	02/2014 - 09/2016	1
69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK
69057-0D550	NCP151..4FC..D..C	02/2014 - 09/2016	1
69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK
69057-0D550	NCP151..4FC..D..C	02/2014 - 09/2016	1
69503 - CYLINDER SET, LOCK
69005-0DC00	NCP15#..GCC..G..C G-HIGH PACKAGE&WIRELESS DOOR LOCK-WITH(SMART ENTRY)	02/2014 - 09/2016	1
69005-0D180	NCP151..4FC..D..C	02/2014 - 09/2016	1
69759G - SNAP, LUGGAGE DOOR LOCK CYLINDER
69759-06020	NCP151..C;NCP150..(D,R)..C;NCP150..(GCC,TH)..G..C	04/2013 - 09/2016	1
89070E - TRANSMITTER ASSY, DOOR CONTROL
89070-0D730	NCP15#..GCC..(G,R)..C UAE SPEC	02/2014 - 09/2016	1
89070-0D740	NCP15#..GCC..(G,R)..C JORDAN SPEC	02/2014 - 09/2016	1
89071B - MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL
89071-0D110	NCP15#..GCC..(G,R)..C JORDAN SPEC	02/2014 - 09/2016	1
89071-0D130	NCP15#..GCC..G..C G-HIGH PACKAGE&WIRELESS DOOR LOCK-WITH(SMART ENTRY)	02/2014 - 09/2016	1
89071-0D130	NCP15#..GCC..G..C UAE SPEC&G-HIGH PACKAGE&WIRELESS DOOR LOCK-WITH(SMART ENTRY)	02/2014 - 09/2016	1
89071-0D130	NCP15#..GCC..G..C JORDAN SPEC&G-HIGH PACKAGE&WIRELESS DOOR LOCK-WITH(SMART ENTRY)	02/2014 - 09/2016	1
89072A - HOUSING SET, DOOR CONTROL TRANSMITTER
89072-0D460	NCP15#..GCC..(G,R)..C UAE SPEC	02/2014 - 09/2016	1
8907A - SWITCH SET, TRANSMITTER
8907A-52010	NCP151..(G,R)..C;NCP150..GCC..G..C;NCP150..(GCC,IDN)..R..C	04/2013 - 09/2016	1
89745A - BATTERY, TRANSMITTER
89745-0D060	NCP15#..GCC..G..C G-HIGH PACKAGE&WIRELESS DOOR LOCK-WITH(SMART ENTRY)	02/2014 - 09/2016	1
89745-0D060	NCP15#..GCC..G..C JORDAN SPEC&G-HIGH PACKAGE&WIRELESS DOOR LOCK-WITH(SMART ENTRY)	02/2014 - 09/2016	1
89745-0D060	NCP15#..GCC..G..C UAE SPEC&G-HIGH PACKAGE&WIRELESS DOOR LOCK-WITH(SMART ENTRY)	02/2014 - 09/2016	1
89751A - COVER, TRANSMITTER HOUSING
89751-42090	NCP151..(G,R)..C;NCP150..GCC..G..C;NCP150..(GCC,IDN)..R..C	04/2013 - 09/2016	1
89751-0D100	NCP15#..GCC..(G,R)..C UAE SPEC	02/2014 - 09/2016	1
89786B - TRANSMITTER, TRANSPONDER KEY SUB
89786-60220	NCP15#..GCC..G..C BLANK KEY,G-HIGH PACKAGE&WIRELESS DOOR LOCK-WITH(SMART ENTRY)	02/2014 - 09/2016	1

NCP151L-CEPRKV (2014)

(1304-1609)NCP15#..GCC,GEN,IDN,MA,PH,TH,VN ; (1604-1812)NSP150,151..GCC,GEN,MA,PH,V

(1404- )TAIW ; (1807- )H
