NCP151L-CEPRKV (2014)

Toyota Yaris/Vios/Limo

Production Feb 2014 - Sep 2016
Engine 2NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1304-1812)NSP151..GCC..B ; (1304-1812)NSP151..GEN,MA,PH,TAIW,TH,VN..B,C ; (1304-

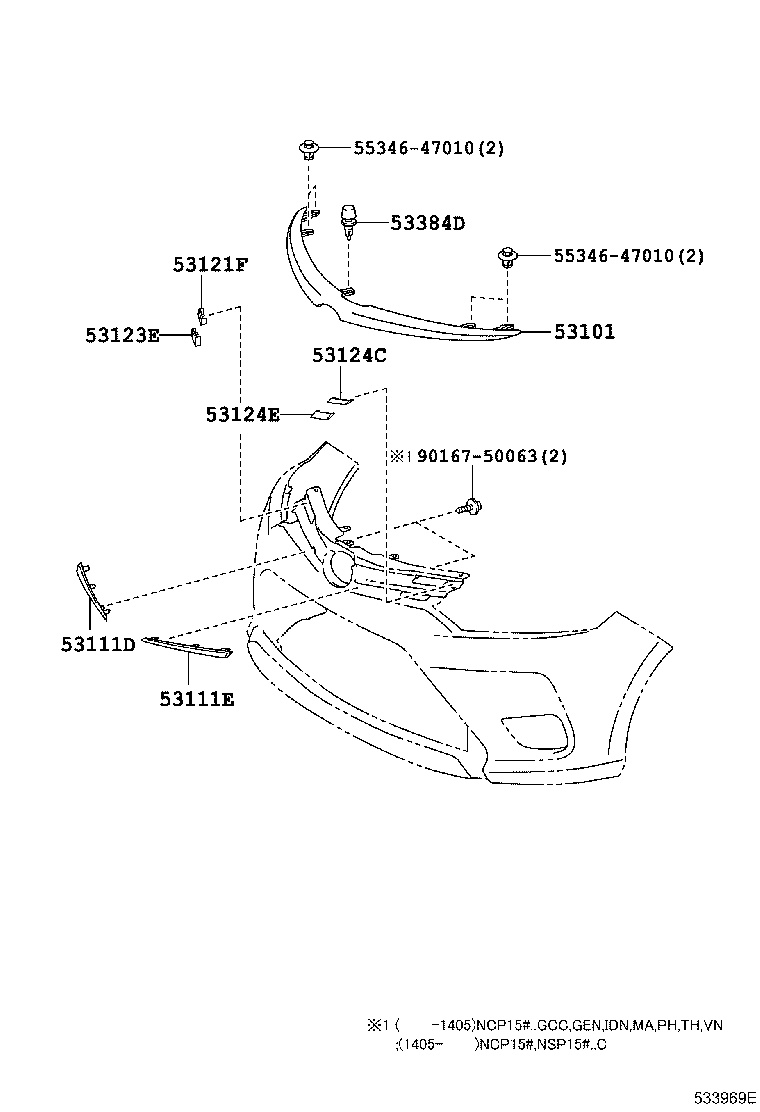

Click highlighted areas on diagram

diagram 53101 53111D 53111E 53121F 53123E 53124C 53124E 53384D 5534647010 5534647010 9016750063
Part # Description Qty Price
53101 - GRILLE SUB-ASSY, RADIATOR
53101-0D904

NCP151..D..C

PAINT REQ.,J-HIGH PACKAGE

 1
53101-0D904

NCP151..D..C

PAINT REQ.,J-HIGH PACKAGE

 1
53111D - MOULDING, RADIATOR GRILLE, RH
53121-0D200

NCP151..D..C

J-HIGH PACKAGE

 1
53121-0D200

NCP151..D..C

J-HIGH PACKAGE

 1
53111E - MOULDING, RADIATOR GRILLE, LH
53124-0D140

NCP151..D..C

J-HIGH PACKAGE

 1
53124-0D140

NCP151..D..C

J-HIGH PACKAGE

 1
53384D - CUSHION, HOOD, CENTER
53384-22070

NCP15#..C

 1
53384-22070

NCP15#..C

 1
Common parts
55346-47010
90167-50063
