NCP151L-CEPRKV (2014)

Toyota Yaris/Vios/Limo

Production Feb 2014 - Sep 2016
Engine 2NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(1402- )NCP150..TAIW ; (1402- )NCP15#..GCC..C

Click highlighted areas on diagram

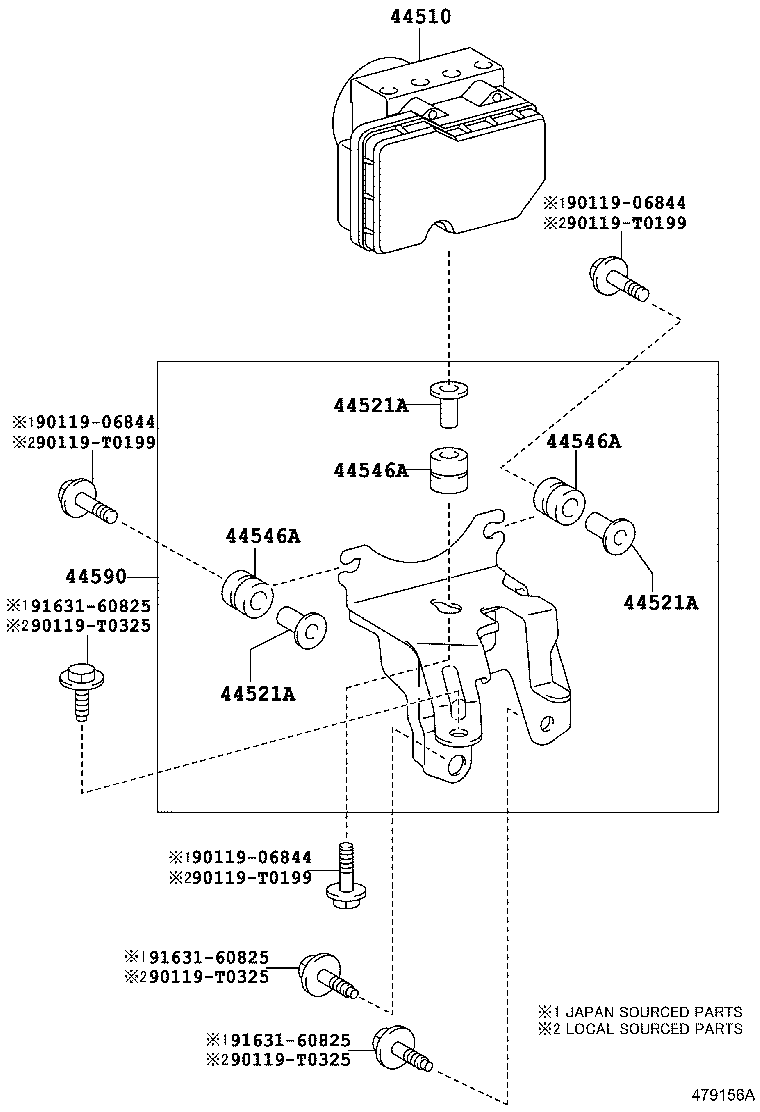

BRAKE ACTUATOR

diagram 44510 44521A 44521A 44521A 44546A 44546A 44546A 44590 9011906844 9011906844 9011906844 90119T0199 90119T0199 90119T0199 90119T0325 90119T0325 90119T0325 9163160825 9163160825 9163160825
Part # Description Qty Price
44510 - ACTUATOR ASSY, BRAKE
44050-0D310

NCP15#..GCC..C

 1
44521A - COLLAR, BRAKE ACTUATOR CASE, NO.1
44521-0D010

NCP151..C;NCP150..(G,R)..C;NCP150..TH..D..C

 3
44521A - COLLAR, BRAKE ACTUATOR CASE, NO.1
44521-0D010

NCP151..C;NCP150..(G,R)..C;NCP150..TH..D..C

 3
44521A - COLLAR, BRAKE ACTUATOR CASE, NO.1
44521-0D010

NCP151..C;NCP150..(G,R)..C;NCP150..TH..D..C

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44547-02050

NCP151..C;NCP150..(G,R)..C;NCP150..TH..D..C

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44547-02050

NCP151..C;NCP150..(G,R)..C;NCP150..TH..D..C

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44547-02050

NCP151..C;NCP150..(G,R)..C;NCP150..TH..D..C

 3
44590 - BRACKET ASSY, BRAKE ACTUATOR
44590-0D230

NCP15#..GCC..C

 1
Common parts
90119-06844
90119-T0199
90119-T0325
91631-60825

ILLUST NO. 2 OF 2(1604- )5F..GCC..B ; (1604- )NSP151..5F..GEN..D..B ; (1604- )NSP150,151..L

Click highlighted areas on diagram

BRAKE ACTUATOR, W(VSC)

diagram 44510 44521A 44521A 44521A 44546A 44546A 44546A 44590 90119T0199 90119T0199 90119T0199 90119T0325 90119T0325 90119T0325
Part # Description Qty Price
44510 - ACTUATOR ASSY, BRAKE
44050-0D310

NCP15#..GCC..C

 1
44521A - COLLAR, BRAKE ACTUATOR CASE, NO.1
44521-0D010

NCP151..C;NCP150..(G,R)..C;NCP150..TH..D..C

 3
44521A - COLLAR, BRAKE ACTUATOR CASE, NO.1
44521-0D010

NCP151..C;NCP150..(G,R)..C;NCP150..TH..D..C

 3
44521A - COLLAR, BRAKE ACTUATOR CASE, NO.1
44521-0D010

NCP151..C;NCP150..(G,R)..C;NCP150..TH..D..C

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44547-02050

NCP151..C;NCP150..(G,R)..C;NCP150..TH..D..C

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44547-02050

NCP151..C;NCP150..(G,R)..C;NCP150..TH..D..C

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44547-02050

NCP151..C;NCP150..(G,R)..C;NCP150..TH..D..C

 3
44590 - BRACKET ASSY, BRAKE ACTUATOR
44590-0D230

NCP15#..GCC..C

 1
Common parts
90119-T0199
90119-T0325
