NCP151L-CEPRKV (2014)

Toyota Yaris/Vios/Limo

Production Feb 2014 - Sep 2016
Engine 2NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1404- )TAIW ; (1807- )H

Click highlighted areas on diagram

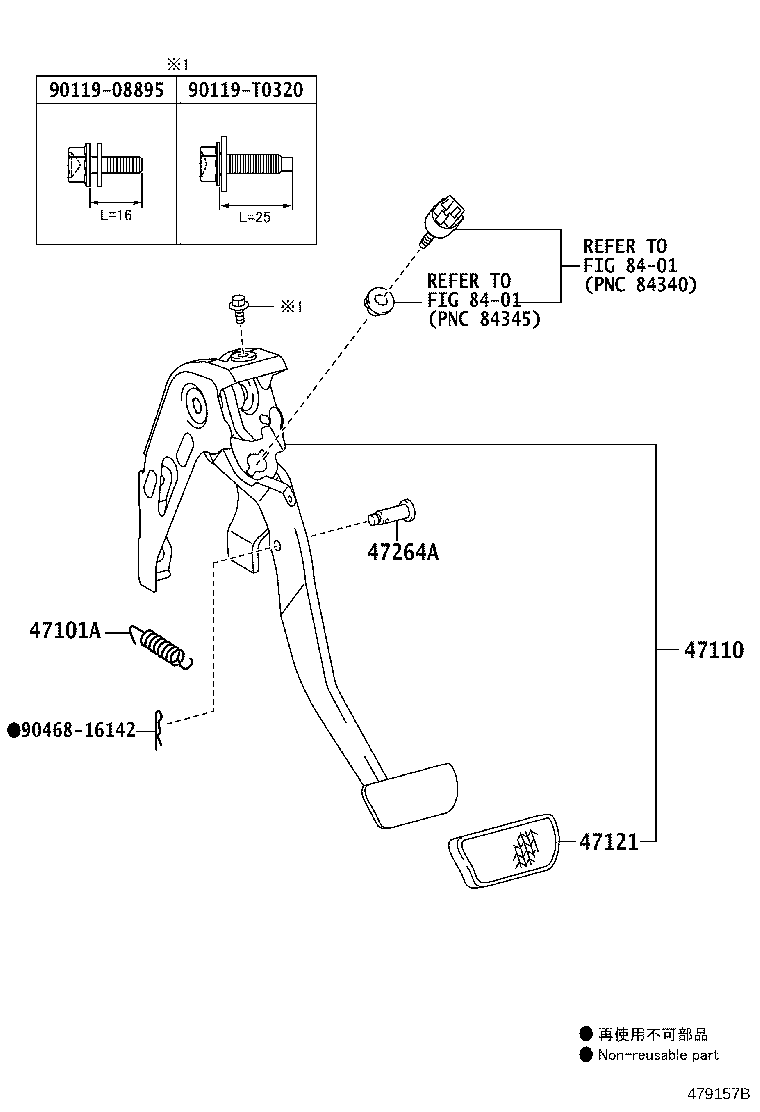

diagram 47101A 47110 47121 47264A 8401 8401 9011908895 90119T0320 9046816142
Part # Description Qty Price
47101A - SPRING(FOR BRAKE PEDAL RETURN)
90506-14088

NCP15#..C

(J)

 1
90506-T0015

NCP15#..C

(L)

 1
47121 - PAD, BRAKE PEDAL
47121-52010

NCP15#..4FC..C

 1
47264A - PIN(FOR PUSH ROD)
90249-08051

NCP15#..C

 1
Common parts
90119-08895
90119-T0320
90468-16142
Linked diagrams
8401
