NCP151L-CEPRKV (2014)

Toyota Yaris/Vios/Limo

Production Feb 2014 - Sep 2016
Engine 2NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

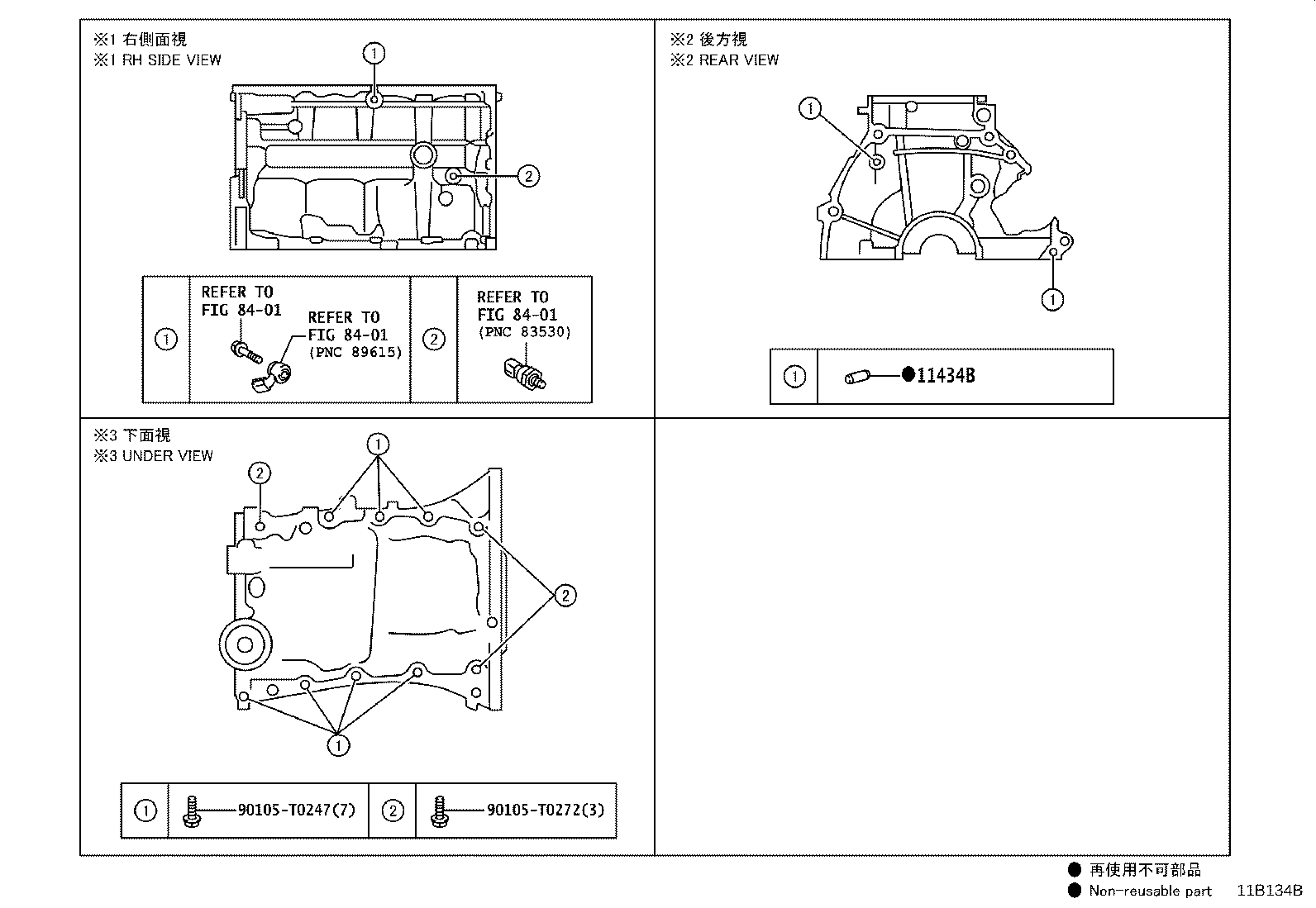

ILLUST NO. 2 OF 2(1604- )1NRFE..CVT..D..D ; (1604- )1NRFE,2NRFE,3NR#..A,B,C,F,G,I ; (1807-

Click highlighted areas on diagram

diagram 11434B 8401 8401 8401 90105T0247 90105T0272
Part # Description Qty Price
Common parts
90105-T0247
90105-T0272
Linked diagrams
8401

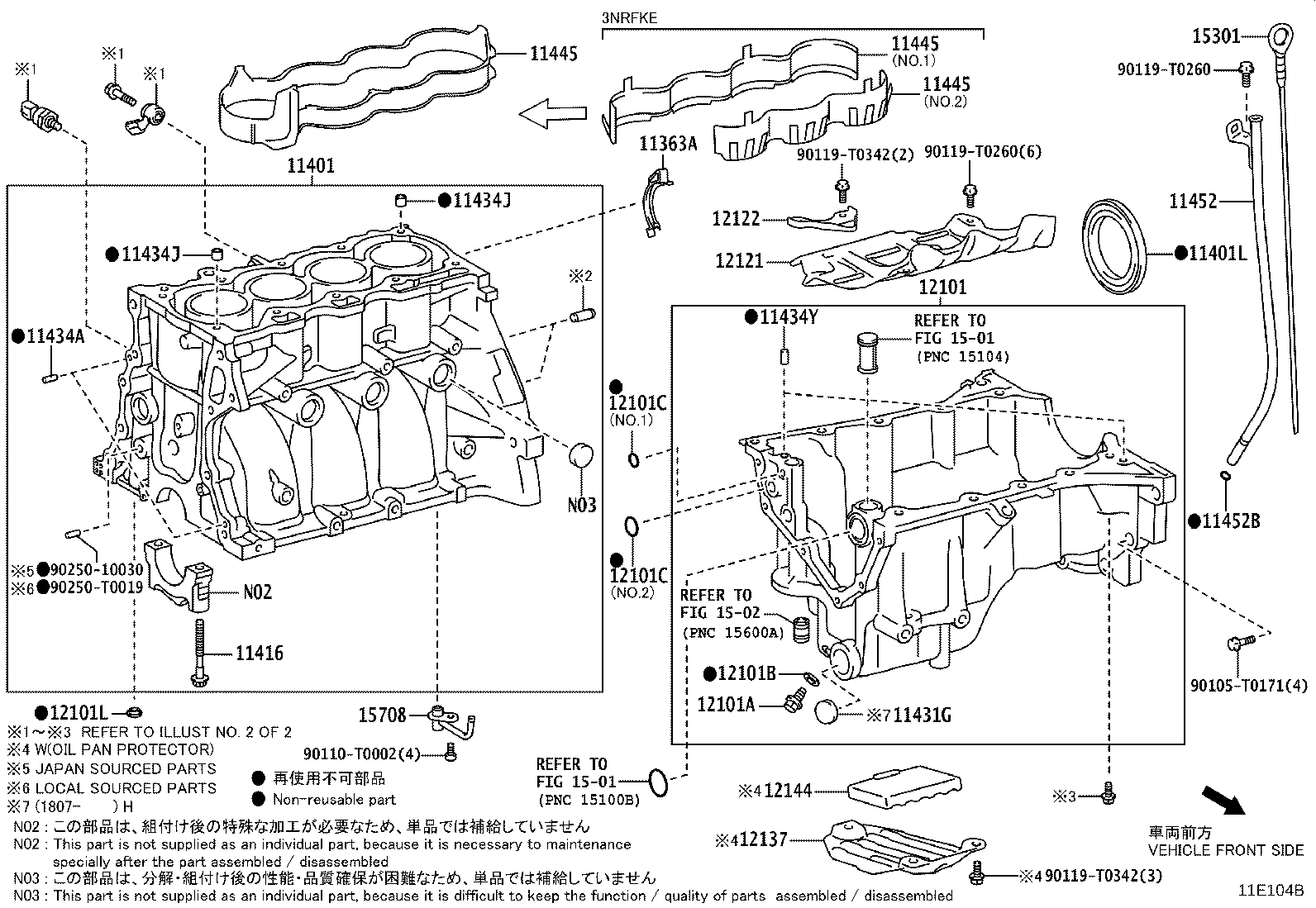

ILLUST NO. 1 OF 2(1604- )1NRFE..CVT..D..D ; (1604- )1NRFE,2NRFE,3NR#..A,B,C,F,G,I ; (1807-

Click highlighted areas on diagram

diagram 11363A 11401 11401L 11416 11431G 11434A 11434J 11434J 11434Y 11445 11445 11445 11452 11452B 12101 12101A 12101B 12101C 12101C 12101L 12121 12122 12137 12144 1501 1501 1502 15301 15708 90105T0171 90110T0002 90119T0260 90119T0260 90119T0342 90119T0342 9025010030 90250T0019
Part # Description Qty Price
11363A - COVER, FLYWHEEL HOUSING SIDE
11363-21010

1NZFE,2NZFE..NCP15#..C;1NZFE,2NZFE..NCP15#..MA,VN

(J)

 1
11363-21010

1NZFE,2NZFE..NCP15#..C;1NZFE,2NZFE..NCP15#..MA,VN

(J)

 1
11401 - BLOCK SUB-ASSY, CYLINDER
11401-29848

2NZFE..NCP151..C

 1
11401-29848

2NZFE..NCP151..C

 1
11401L - SEAL, ENGINE REAR OIL
90311-75022

2NZFE..NCP151..C

 1
90311-75022

2NZFE..NCP151..C

 1
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90910-02125

1NZFE,2NZFE..NCP15#..C

 10
90910-02125

1NZFE,2NZFE..NCP15#..C

 10
12101A - PLUG(FOR OIL PAN DRAIN)
90341-12012

1NZFE,2NZFE..NCP15#..C

 1
90341-12012

1NZFE,2NZFE..NCP15#..C

 1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-12031

1NZFE,2NZFE..NCP15#..C

 1
90430-12031

1NZFE,2NZFE..NCP15#..C

 1
Common parts
90105-T0171
90110-T0002
90119-T0260
90119-T0342
90250-10030
90250-T0019
Linked diagrams
1501
1502
