NCP151L-BEPDKV (2013)

Toyota Yaris/Vios/Limo

Production Aug 2013 - Mar 2016
Engine 2NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

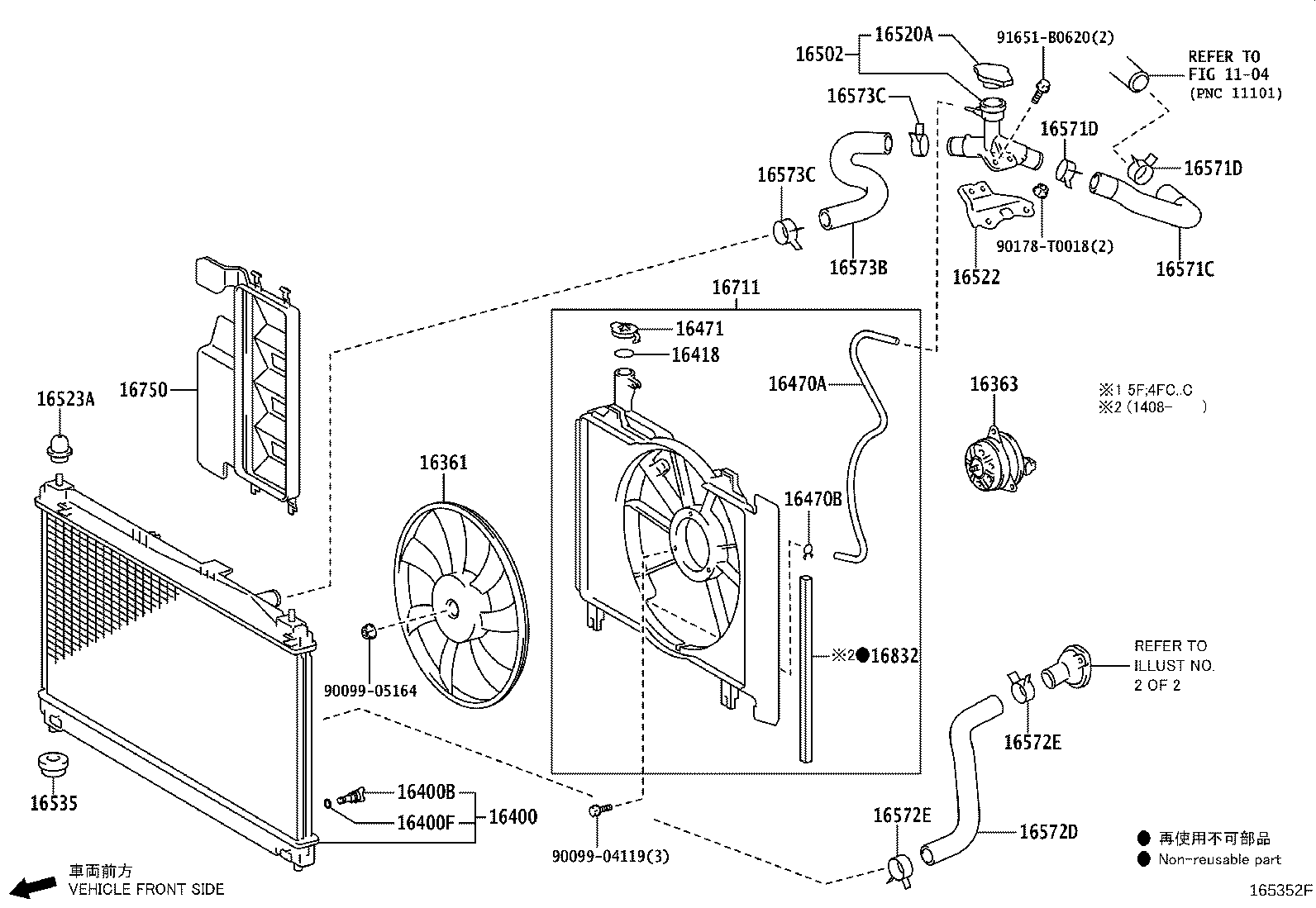

ILLUST NO. 1 OF 2(1308- )1NZFE,2NZFE..GCC

Click highlighted areas on diagram

diagram 1104 16361 16363 16400 16400B 16400F 16418 16470A 16470B 16471 16502 16520A 16522 16523A 16535 16571C 16571D 16571D 16572D 16572E 16572E 16573B 16573C 16573C 16711 16750 16832 9009904119 9009905164 90178T0018 91651B0620
Part # Description Qty Price
16361 - FAN
16361-0M110

1NZFE,2NZFE..NCP15#..(GCC,GEN,TH)..B

 1
16363 - MOTOR, COOLING FAN
16363-0Y040

1NZFE,2NZFE..NCP15#..C

 1
16363-0Y040

1NZFE,2NZFE..NCP15#..(GCC,GEN,TH)..B

 1
16400 - RADIATOR ASSY
16400-0M220

1NZFE,2NZFE..NCP15#..4FC..GCC..B

 1
16400B - PLUG, RADIATOR DRAIN COCK
16417-0C180

1NZFE,2NZFE..NCP15#..(GCC,GEN,TH)..B

 1
16417-0C180

1NZFE,2NZFE..NCP15#..C

 1
16400F - PACKING(FOR RADIATOR DRAIN COCK)
16492-21050

1NZFE,2NZFE..NCP15#..(GCC,GEN,TH)..B

 1
16492-21050

1NZFE,2NZFE..NCP15#..C

 1
16418 - PACKING
16476-0H060

1NZFE,2NZFE..NCP15#..(GCC,GEN,TH)..B

 1
16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
16377-0M110

1NZFE,2NZFE..NCP15#..(GCC,GEN,TH)..B

 1
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

1NZFE,2NZFE..NCP15#..C

 1
90467-11085

1NZFE,2NZFE..NCP15#..(GCC,GEN,TH)..B

 1
16471 - CAP SUB-ASSY, RESERVE TANK
16376-0Y050

1NZFE,2NZFE..NCP15#..(GCC,GEN,TH)..B

 1
16502 - FILLER SUB-ASSY, WATER
16502-0M020

1NZFE,2NZFE..NCP15#..(GCC,GEN,TH)..B

 1
16502-0M020

1NZFE,2NZFE..NCP15#..C

 1
16520A - CAP SUB-ASSY, WATER FILLER
16401-0H060

1NZFE,2NZFE..NCP15#..(GCC,GEN,TH)..B

 1
16401-0H060

1NZFE,2NZFE..NCP15#..C

 1
16522 - BRACKET, WATER FILLER
16522-0M020

1NZFE,2NZFE..NCP15#..(GCC,GEN,TH)..B

 1
16522-0M020

1NZFE,2NZFE..NCP15#..C

 1
16523A - CUSHION, RADIATOR SUPPORT
16523-0M050

1NZFE,2NZFE..NCP15#..(GCC,GEN,TH)..B

(L)

 2
16523-21030

1NZFE,2NZFE..NCP15#..C

(J)

 2
16523-21030

1NZFE,2NZFE..NCP15#..(GCC,GEN,TH)..B

(J)

 2
16535 - SUPPORT, RADIATOR, LOWER
90480-22025

1NZFE,2NZFE..NCP15#..C

 2
90480-22025

1NZFE,2NZFE..NCP15#..(GCC,GEN,TH)..B

 2
16571C - HOSE, RADIATOR, NO.1
16571-0M080

1NZFE,2NZFE..NCP15#..(GCC,GEN,TH)..B

 1
16571-0M080

1NZFE,2NZFE..NCP15#..C

 1
16571D - CLIP, RADIATOR HOSE, NO.1
96136-43901

1NZFE,2NZFE..NCP15#..(GCC,GEN,TH)..B

 2
96136-43901

1NZFE,2NZFE..NCP15#..C

 2
16571D - CLIP, RADIATOR HOSE, NO.1
96136-43901

1NZFE,2NZFE..NCP15#..(GCC,GEN,TH)..B

 2
96136-43901

1NZFE,2NZFE..NCP15#..C

 2
16572D - HOSE, RADIATOR, NO.2
16572-0M090

1NZFE,2NZFE..NCP15#..(GCC,GEN)..B

 1
16572-0M090

1NZFE,2NZFE..NCP15#..C

 1
16572E - CLIP, RADIATOR HOSE, NO.2
96136-43901

1NZFE,2NZFE..NCP15#..(GCC,GEN,TH)..B

 2
96136-43901

1NZFE,2NZFE..NCP15#..C

 2
16572E - CLIP, RADIATOR HOSE, NO.2
96136-43901

1NZFE,2NZFE..NCP15#..(GCC,GEN,TH)..B

 2
96136-43901

1NZFE,2NZFE..NCP15#..C

 2
16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3
96136-43901

1NZFE,2NZFE..NCP15#..(GCC,GEN,TH)..B

 2
96136-43901

1NZFE,2NZFE..NCP15#..C

 2
16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3
96136-43901

1NZFE,2NZFE..NCP15#..(GCC,GEN,TH)..B

 2
96136-43901

1NZFE,2NZFE..NCP15#..C

 2
16711 - SHROUD, FAN
16711-0M110

1NZFE,2NZFE..NCP15#..(GCC,GEN,TH)..B

 1
16750 - DUCT ASSY, FAN SHROUD VENTILATION
16750-0M010

1NZFE,2NZFE..NCP15#..GCC..B

 1
16832 - SEAL, FAN SHROUD
16561-0M020

1NZFE,2NZFE..NCP15#..(GCC,GEN,TH)..B

 1
Common parts
90099-04119
90099-05164
90178-T0018
91651-B0620
Linked diagrams
1104
