NCP151L-BEMDKM (2013)
Toyota Yaris/Vios/Limo

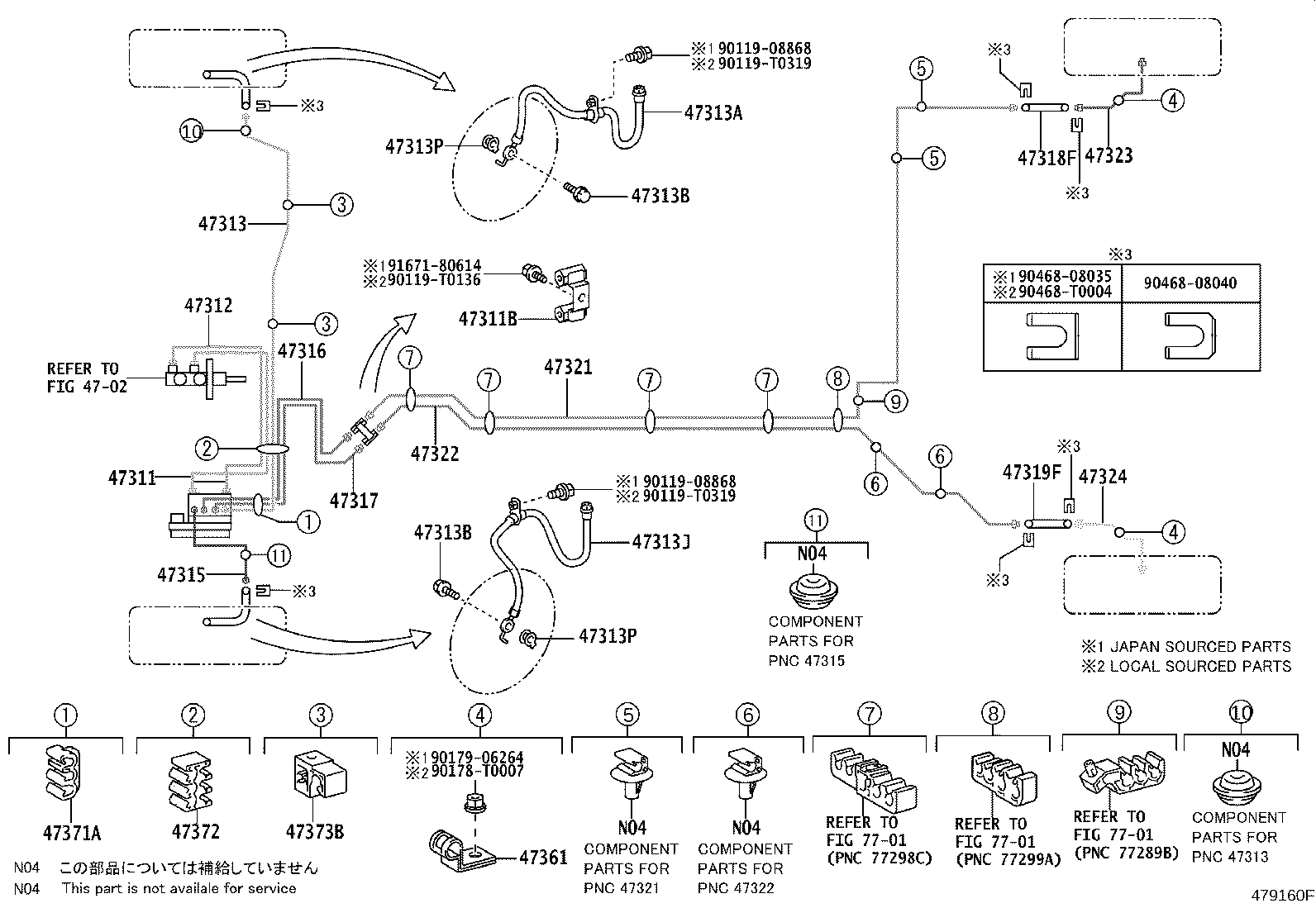

ILLUST NO. 1 OF 2(1307- )CVT..R..D ; (1307- )NCP150..VN..R; (1307- )NSP151..PH,VN ; (1307-
W(ABS OR VSC) & REAR DISC BRAKE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-0D640 |
NCP151..PH..D |
1 | ||
| 47311-0D640 |
NCP151..PH..D |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90412-10260 |
NCP15#..PH |
1 | ||
| 90412-10260 |
NCP15#..PH |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-0D570 |
NCP151..PH..D |
1 | ||
| 47312-0D570 |
NCP151..PH..D |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-0D560 |
NCP151..PH..D |
1 | ||
| 47313-0D560 |
NCP151..PH..D |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-T2081 |
NCP15#..C |
1 | ||
| 90947-T2081 |
NCP15#..C |
1 | ||
| 90947-T2081 |
NCP15#..PH |
1 | ||
| 90947-T2081 |
NCP15#..PH |
1 | ||
| 90947-T2081 |
NSP150,151..PH |
1 | ||
| 90947-T2081 |
NSP150,151..PH |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
NCP15#..PH |
2 | ||
| 90401-10058 |
NCP15#..PH |
2 | ||
| 90401-10058 |
NCP15#..C |
2 | ||
| 90401-10058 |
NCP15#..C |
2 | ||
| 90401-10058 |
NSP150,151..PH |
2 | ||
| 90401-10058 |
NSP150,151..PH |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
NCP15#..PH |
2 | ||
| 90401-10058 |
NCP15#..PH |
2 | ||
| 90401-10058 |
NCP15#..C |
2 | ||
| 90401-10058 |
NCP15#..C |
2 | ||
| 90401-10058 |
NSP150,151..PH |
2 | ||
| 90401-10058 |
NSP150,151..PH |
2 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-T2082 |
NCP15#..PH |
1 | ||
| 90947-T2082 |
NCP15#..PH |
1 | ||
| 90947-T2082 |
NCP15#..C |
1 | ||
| 90947-T2082 |
NCP15#..C |
1 | ||
| 90947-T2082 |
NSP150,151..PH |
1 | ||
| 90947-T2082 |
NSP150,151..PH |
1 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50021 |
NCP15#..PH |
2 | ||
| 47389-50021 |
NCP15#..PH |
2 | ||
| 47389-50021 |
NCP15#..C |
2 | ||
| 47389-50021 |
NCP15#..C |
2 | ||
| 47389-50021 |
NSP150,151..PH |
2 | ||
| 47389-50021 |
NSP150,151..PH |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50021 |
NCP15#..PH |
2 | ||
| 47389-50021 |
NCP15#..PH |
2 | ||
| 47389-50021 |
NCP15#..C |
2 | ||
| 47389-50021 |
NCP15#..C |
2 | ||
| 47389-50021 |
NSP150,151..PH |
2 | ||
| 47389-50021 |
NSP150,151..PH |
2 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-0D540 |
NCP151..PH..D |
1 | ||
| 47315-0D540 |
NCP151..PH..D |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-0D450 |
NCP151..PH..D |
1 | ||
| 47316-0D450 |
NCP151..PH..D |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-0D450 |
NCP151..PH..D |
1 | ||
| 47317-0D450 |
NCP151..PH..D |
1 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-T2083 |
NCP15#..C |
1 | ||
| 90947-T2083 |
NCP15#..C |
1 | ||
| 90947-T2083 |
NCP15#..PH |
1 | ||
| 90947-T2083 |
NCP15#..PH |
1 | ||
| 90947-T2083 |
NSP150,151..PH |
1 | ||
| 90947-T2083 |
NSP150,151..PH |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-T2084 |
NCP15#..C |
1 | ||
| 90947-T2084 |
NCP15#..C |
1 | ||
| 90947-T2084 |
NSP150,151..PH |
1 | ||
| 90947-T2084 |
NSP150,151..PH |
1 | ||
| 90947-T2084 |
NCP15#..PH |
1 | ||
| 90947-T2084 |
NCP15#..PH |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-0D390 |
NCP15#..PH |
1 | ||
| 47321-0D390 |
NCP15#..PH |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-0D390 |
NCP15#..PH |
1 | ||
| 47322-0D390 |
NCP15#..PH |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-0D270 |
NCP151..PH |
1 | ||
| 47323-0D270 |
NCP151..PH |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-0D270 |
NCP151..PH |
1 | ||
| 47324-0D270 |
NCP151..PH |
1 | ||
| 47361 - CLAMP, TUBE | ||||
| 90461-T0006 |
NCP15#..C |
2 | ||
| 90461-T0006 |
NCP15#..C |
2 | ||
| 90461-T0006 |
NCP15#..PH |
2 | ||
| 90461-T0006 |
NCP15#..PH |
2 | ||
| 90461-T0006 |
NSP150,151..PH |
2 | ||
| 90461-T0006 |
NSP150,151..PH |
2 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 90464-00868 |
NCP15#..PH |
1 | ||
| 90464-00868 |
NCP15#..PH |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 90949-01969 |
NCP15#..PH |
1 | ||
| 90949-01969 |
NCP15#..PH |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 90949-01D18 |
NCP15#..PH |
2 | ||
| 90949-01D18 |
NCP15#..PH |
2 | ||
| Common parts | ||||
| 90119-08868 | ||||
| 90119-T0136 | ||||
| 90119-T0319 | ||||
| 90178-T0007 | ||||
| 90468-08035 | ||||
| 90468-08040 | ||||
| 90468-T0004 | ||||
| Linked diagrams | ||||
| 4702 | ||||
| 7701 | ||||
(1307- )NCP151..PH..D ; (1307- )NSP150..5F..GEN..R..B ; (1307- )NCP151..LH
BRAKE TUBE, W/O(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47150 - VALVE ASSY, PROPORTIONING | ||||
| 47150-12270 |
NCP151..PH..D |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-0D640 |
NCP151..PH..D |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90412-10260 |
NCP15#..PH |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-0D570 |
NCP151..PH..D |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-0D560 |
NCP151..PH..D |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-T2081 |
NCP15#..C |
1 | ||
| 90947-T2081 |
NCP15#..PH |
1 | ||
| 90947-T2081 |
NSP150,151..PH |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
NCP15#..PH |
2 | ||
| 90401-10058 |
NCP15#..C |
2 | ||
| 90401-10058 |
NSP150,151..PH |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
NCP15#..PH |
2 | ||
| 90401-10058 |
NCP15#..C |
2 | ||
| 90401-10058 |
NSP150,151..PH |
2 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-T2082 |
NCP15#..PH |
1 | ||
| 90947-T2082 |
NCP15#..C |
1 | ||
| 90947-T2082 |
NSP150,151..PH |
1 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50021 |
NCP15#..PH |
2 | ||
| 47389-50021 |
NCP15#..C |
2 | ||
| 47389-50021 |
NSP150,151..PH |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50021 |
NCP15#..PH |
2 | ||
| 47389-50021 |
NCP15#..C |
2 | ||
| 47389-50021 |
NSP150,151..PH |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-0D150 |
NCP151..PH..D |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-0D540 |
NCP151..PH..D |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-0D450 |
NCP151..PH..D |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-0D450 |
NCP151..PH..D |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-0D020 |
NCP151..PH..D |
1 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-T2083 |
NCP15#..C |
1 | ||
| 90947-T2083 |
NCP15#..PH |
1 | ||
| 90947-T2083 |
NSP150,151..PH |
1 | ||
| 47319 - TUBE, FRONT BRAKE, NO.9 | ||||
| 47319-0D020 |
NCP151..PH..D |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-T2084 |
NCP15#..C |
1 | ||
| 90947-T2084 |
NSP150,151..PH |
1 | ||
| 90947-T2084 |
NCP15#..PH |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-0D390 |
NCP15#..PH |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-0D390 |
NCP15#..PH |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-0D270 |
NCP151..PH |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-0D270 |
NCP151..PH |
1 | ||
| 47361 - CLAMP, TUBE | ||||
| 90461-T0006 |
NCP15#..C |
2 | ||
| 90461-T0006 |
NCP15#..PH |
2 | ||
| 90461-T0006 |
NSP150,151..PH |
2 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 90464-00868 |
NCP15#..PH |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 90949-01969 |
NCP15#..PH |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 90949-01D18 |
NCP15#..PH |
2 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 90464-00883 |
NCP151..PH..D |
1 | ||
| 47391 - WAY, BRAKE TUBE | ||||
| 47391-52010 |
NCP151..PH..D |
1 | ||
| Common parts | ||||
| 90119-08868 | ||||
| 90119-T0136 | ||||
| 90119-T0319 | ||||
| 90119-T0325 | ||||
| 90178-T0007 | ||||
| 90178-T0018 | ||||
| 90468-08035 | ||||
| 90468-08040 | ||||
| 90468-T0004 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 4702 | ||||
| 7701 | ||||
ILLUST NO. 1 OF 2(1307- )NCP151..GCC ; (1307- )NSP151..D,E; (1307- )NSP150..PH..R..B ; (13
W(ABS OR VSC) & REAR DRUM BRAKE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-0D640 |
NCP151..PH..D |
1 | ||
| 47311-0D640 |
NCP151..PH..D |
1 | ||
| 47311-0D640 |
NCP151..PH..D |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90412-10260 |
NCP15#..PH |
1 | ||
| 90412-10260 |
NCP15#..PH |
1 | ||
| 90412-10260 |
NCP15#..PH |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-0D570 |
NCP151..PH..D |
1 | ||
| 47312-0D570 |
NCP151..PH..D |
1 | ||
| 47312-0D570 |
NCP151..PH..D |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-0D560 |
NCP151..PH..D |
1 | ||
| 47313-0D560 |
NCP151..PH..D |
1 | ||
| 47313-0D560 |
NCP151..PH..D |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-T2081 |
NCP15#..C |
1 | ||
| 90947-T2081 |
NCP15#..C |
1 | ||
| 90947-T2081 |
NCP15#..C |
1 | ||
| 90947-T2081 |
NCP15#..PH |
1 | ||
| 90947-T2081 |
NCP15#..PH |
1 | ||
| 90947-T2081 |
NCP15#..PH |
1 | ||
| 90947-T2081 |
NSP150,151..PH |
1 | ||
| 90947-T2081 |
NSP150,151..PH |
1 | ||
| 90947-T2081 |
NSP150,151..PH |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
NCP15#..PH |
2 | ||
| 90401-10058 |
NCP15#..PH |
2 | ||
| 90401-10058 |
NCP15#..PH |
2 | ||
| 90401-10058 |
NCP15#..C |
2 | ||
| 90401-10058 |
NCP15#..C |
2 | ||
| 90401-10058 |
NCP15#..C |
2 | ||
| 90401-10058 |
NSP150,151..PH |
2 | ||
| 90401-10058 |
NSP150,151..PH |
2 | ||
| 90401-10058 |
NSP150,151..PH |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
NCP15#..PH |
2 | ||
| 90401-10058 |
NCP15#..PH |
2 | ||
| 90401-10058 |
NCP15#..PH |
2 | ||
| 90401-10058 |
NCP15#..C |
2 | ||
| 90401-10058 |
NCP15#..C |
2 | ||
| 90401-10058 |
NCP15#..C |
2 | ||
| 90401-10058 |
NSP150,151..PH |
2 | ||
| 90401-10058 |
NSP150,151..PH |
2 | ||
| 90401-10058 |
NSP150,151..PH |
2 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-T2082 |
NCP15#..PH |
1 | ||
| 90947-T2082 |
NCP15#..PH |
1 | ||
| 90947-T2082 |
NCP15#..PH |
1 | ||
| 90947-T2082 |
NCP15#..C |
1 | ||
| 90947-T2082 |
NCP15#..C |
1 | ||
| 90947-T2082 |
NCP15#..C |
1 | ||
| 90947-T2082 |
NSP150,151..PH |
1 | ||
| 90947-T2082 |
NSP150,151..PH |
1 | ||
| 90947-T2082 |
NSP150,151..PH |
1 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50021 |
NCP15#..PH |
2 | ||
| 47389-50021 |
NCP15#..PH |
2 | ||
| 47389-50021 |
NCP15#..PH |
2 | ||
| 47389-50021 |
NCP15#..C |
2 | ||
| 47389-50021 |
NCP15#..C |
2 | ||
| 47389-50021 |
NCP15#..C |
2 | ||
| 47389-50021 |
NSP150,151..PH |
2 | ||
| 47389-50021 |
NSP150,151..PH |
2 | ||
| 47389-50021 |
NSP150,151..PH |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50021 |
NCP15#..PH |
2 | ||
| 47389-50021 |
NCP15#..PH |
2 | ||
| 47389-50021 |
NCP15#..PH |
2 | ||
| 47389-50021 |
NCP15#..C |
2 | ||
| 47389-50021 |
NCP15#..C |
2 | ||
| 47389-50021 |
NCP15#..C |
2 | ||
| 47389-50021 |
NSP150,151..PH |
2 | ||
| 47389-50021 |
NSP150,151..PH |
2 | ||
| 47389-50021 |
NSP150,151..PH |
2 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-0D540 |
NCP151..PH..D |
1 | ||
| 47315-0D540 |
NCP151..PH..D |
1 | ||
| 47315-0D540 |
NCP151..PH..D |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-0D450 |
NCP151..PH..D |
1 | ||
| 47316-0D450 |
NCP151..PH..D |
1 | ||
| 47316-0D450 |
NCP151..PH..D |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-0D450 |
NCP151..PH..D |
1 | ||
| 47317-0D450 |
NCP151..PH..D |
1 | ||
| 47317-0D450 |
NCP151..PH..D |
1 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-T2083 |
NCP15#..C |
1 | ||
| 90947-T2083 |
NCP15#..C |
1 | ||
| 90947-T2083 |
NCP15#..C |
1 | ||
| 90947-T2083 |
NCP15#..PH |
1 | ||
| 90947-T2083 |
NCP15#..PH |
1 | ||
| 90947-T2083 |
NCP15#..PH |
1 | ||
| 90947-T2083 |
NSP150,151..PH |
1 | ||
| 90947-T2083 |
NSP150,151..PH |
1 | ||
| 90947-T2083 |
NSP150,151..PH |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-T2084 |
NCP15#..C |
1 | ||
| 90947-T2084 |
NCP15#..C |
1 | ||
| 90947-T2084 |
NCP15#..C |
1 | ||
| 90947-T2084 |
NSP150,151..PH |
1 | ||
| 90947-T2084 |
NSP150,151..PH |
1 | ||
| 90947-T2084 |
NSP150,151..PH |
1 | ||
| 90947-T2084 |
NCP15#..PH |
1 | ||
| 90947-T2084 |
NCP15#..PH |
1 | ||
| 90947-T2084 |
NCP15#..PH |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-0D390 |
NCP15#..PH |
1 | ||
| 47321-0D390 |
NCP15#..PH |
1 | ||
| 47321-0D390 |
NCP15#..PH |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-0D390 |
NCP15#..PH |
1 | ||
| 47322-0D390 |
NCP15#..PH |
1 | ||
| 47322-0D390 |
NCP15#..PH |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-0D270 |
NCP151..PH |
1 | ||
| 47323-0D270 |
NCP151..PH |
1 | ||
| 47323-0D270 |
NCP151..PH |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-0D270 |
NCP151..PH |
1 | ||
| 47324-0D270 |
NCP151..PH |
1 | ||
| 47324-0D270 |
NCP151..PH |
1 | ||
| 47361 - CLAMP, TUBE | ||||
| 90461-T0006 |
NCP15#..C |
2 | ||
| 90461-T0006 |
NCP15#..C |
2 | ||
| 90461-T0006 |
NCP15#..C |
2 | ||
| 90461-T0006 |
NCP15#..PH |
2 | ||
| 90461-T0006 |
NCP15#..PH |
2 | ||
| 90461-T0006 |
NCP15#..PH |
2 | ||
| 90461-T0006 |
NSP150,151..PH |
2 | ||
| 90461-T0006 |
NSP150,151..PH |
2 | ||
| 90461-T0006 |
NSP150,151..PH |
2 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 90464-00868 |
NCP15#..PH |
1 | ||
| 90464-00868 |
NCP15#..PH |
1 | ||
| 90464-00868 |
NCP15#..PH |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 90949-01969 |
NCP15#..PH |
1 | ||
| 90949-01969 |
NCP15#..PH |
1 | ||
| 90949-01969 |
NCP15#..PH |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 90949-01D18 |
NCP15#..PH |
2 | ||
| 90949-01D18 |
NCP15#..PH |
2 | ||
| 90949-01D18 |
NCP15#..PH |
2 | ||
| Common parts | ||||
| 90119-08868 | ||||
| 90119-T0136 | ||||
| 90119-T0319 | ||||
| 90178-T0007 | ||||
| 90179-06264 | ||||
| 90468-08035 | ||||
| 90468-08040 | ||||
| 90468-T0004 | ||||
| 91671-80614 | ||||
| Linked diagrams | ||||
| 4702 | ||||
| 7701 | ||||
ILLUST NO. 1 OF 2(1307- )NCP151..LHD..GEN..D ; (1307- )NSP150..LHD..A,C,D,E ; (1307- )NCP15
W(ABS OR VSC) & REAR DRUM BRAKE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-0D640 |
NCP151..PH..D |
1 | ||
| 47311-0D640 |
NCP151..PH..D |
1 | ||
| 47311-0D640 |
NCP151..PH..D |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90412-10260 |
NCP15#..PH |
1 | ||
| 90412-10260 |
NCP15#..PH |
1 | ||
| 90412-10260 |
NCP15#..PH |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-0D570 |
NCP151..PH..D |
1 | ||
| 47312-0D570 |
NCP151..PH..D |
1 | ||
| 47312-0D570 |
NCP151..PH..D |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-0D560 |
NCP151..PH..D |
1 | ||
| 47313-0D560 |
NCP151..PH..D |
1 | ||
| 47313-0D560 |
NCP151..PH..D |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-T2081 |
NCP15#..C |
1 | ||
| 90947-T2081 |
NCP15#..C |
1 | ||
| 90947-T2081 |
NCP15#..C |
1 | ||
| 90947-T2081 |
NCP15#..PH |
1 | ||
| 90947-T2081 |
NCP15#..PH |
1 | ||
| 90947-T2081 |
NCP15#..PH |
1 | ||
| 90947-T2081 |
NSP150,151..PH |
1 | ||
| 90947-T2081 |
NSP150,151..PH |
1 | ||
| 90947-T2081 |
NSP150,151..PH |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
NCP15#..PH |
2 | ||
| 90401-10058 |
NCP15#..PH |
2 | ||
| 90401-10058 |
NCP15#..PH |
2 | ||
| 90401-10058 |
NCP15#..C |
2 | ||
| 90401-10058 |
NCP15#..C |
2 | ||
| 90401-10058 |
NCP15#..C |
2 | ||
| 90401-10058 |
NSP150,151..PH |
2 | ||
| 90401-10058 |
NSP150,151..PH |
2 | ||
| 90401-10058 |
NSP150,151..PH |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
NCP15#..PH |
2 | ||
| 90401-10058 |
NCP15#..PH |
2 | ||
| 90401-10058 |
NCP15#..PH |
2 | ||
| 90401-10058 |
NCP15#..C |
2 | ||
| 90401-10058 |
NCP15#..C |
2 | ||
| 90401-10058 |
NCP15#..C |
2 | ||
| 90401-10058 |
NSP150,151..PH |
2 | ||
| 90401-10058 |
NSP150,151..PH |
2 | ||
| 90401-10058 |
NSP150,151..PH |
2 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-T2082 |
NCP15#..PH |
1 | ||
| 90947-T2082 |
NCP15#..PH |
1 | ||
| 90947-T2082 |
NCP15#..PH |
1 | ||
| 90947-T2082 |
NCP15#..C |
1 | ||
| 90947-T2082 |
NCP15#..C |
1 | ||
| 90947-T2082 |
NCP15#..C |
1 | ||
| 90947-T2082 |
NSP150,151..PH |
1 | ||
| 90947-T2082 |
NSP150,151..PH |
1 | ||
| 90947-T2082 |
NSP150,151..PH |
1 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50021 |
NCP15#..PH |
2 | ||
| 47389-50021 |
NCP15#..PH |
2 | ||
| 47389-50021 |
NCP15#..PH |
2 | ||
| 47389-50021 |
NCP15#..C |
2 | ||
| 47389-50021 |
NCP15#..C |
2 | ||
| 47389-50021 |
NCP15#..C |
2 | ||
| 47389-50021 |
NSP150,151..PH |
2 | ||
| 47389-50021 |
NSP150,151..PH |
2 | ||
| 47389-50021 |
NSP150,151..PH |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50021 |
NCP15#..PH |
2 | ||
| 47389-50021 |
NCP15#..PH |
2 | ||
| 47389-50021 |
NCP15#..PH |
2 | ||
| 47389-50021 |
NCP15#..C |
2 | ||
| 47389-50021 |
NCP15#..C |
2 | ||
| 47389-50021 |
NCP15#..C |
2 | ||
| 47389-50021 |
NSP150,151..PH |
2 | ||
| 47389-50021 |
NSP150,151..PH |
2 | ||
| 47389-50021 |
NSP150,151..PH |
2 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-0D540 |
NCP151..PH..D |
1 | ||
| 47315-0D540 |
NCP151..PH..D |
1 | ||
| 47315-0D540 |
NCP151..PH..D |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-0D450 |
NCP151..PH..D |
1 | ||
| 47316-0D450 |
NCP151..PH..D |
1 | ||
| 47316-0D450 |
NCP151..PH..D |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-0D450 |
NCP151..PH..D |
1 | ||
| 47317-0D450 |
NCP151..PH..D |
1 | ||
| 47317-0D450 |
NCP151..PH..D |
1 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-T2083 |
NCP15#..C |
1 | ||
| 90947-T2083 |
NCP15#..C |
1 | ||
| 90947-T2083 |
NCP15#..C |
1 | ||
| 90947-T2083 |
NCP15#..PH |
1 | ||
| 90947-T2083 |
NCP15#..PH |
1 | ||
| 90947-T2083 |
NCP15#..PH |
1 | ||
| 90947-T2083 |
NSP150,151..PH |
1 | ||
| 90947-T2083 |
NSP150,151..PH |
1 | ||
| 90947-T2083 |
NSP150,151..PH |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-T2084 |
NCP15#..C |
1 | ||
| 90947-T2084 |
NCP15#..C |
1 | ||
| 90947-T2084 |
NCP15#..C |
1 | ||
| 90947-T2084 |
NSP150,151..PH |
1 | ||
| 90947-T2084 |
NSP150,151..PH |
1 | ||
| 90947-T2084 |
NSP150,151..PH |
1 | ||
| 90947-T2084 |
NCP15#..PH |
1 | ||
| 90947-T2084 |
NCP15#..PH |
1 | ||
| 90947-T2084 |
NCP15#..PH |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-0D390 |
NCP15#..PH |
1 | ||
| 47321-0D390 |
NCP15#..PH |
1 | ||
| 47321-0D390 |
NCP15#..PH |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-0D390 |
NCP15#..PH |
1 | ||
| 47322-0D390 |
NCP15#..PH |
1 | ||
| 47322-0D390 |
NCP15#..PH |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-0D270 |
NCP151..PH |
1 | ||
| 47323-0D270 |
NCP151..PH |
1 | ||
| 47323-0D270 |
NCP151..PH |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-0D270 |
NCP151..PH |
1 | ||
| 47324-0D270 |
NCP151..PH |
1 | ||
| 47324-0D270 |
NCP151..PH |
1 | ||
| 47361 - CLAMP, TUBE | ||||
| 90461-T0006 |
NCP15#..C |
2 | ||
| 90461-T0006 |
NCP15#..C |
2 | ||
| 90461-T0006 |
NCP15#..C |
2 | ||
| 90461-T0006 |
NCP15#..PH |
2 | ||
| 90461-T0006 |
NCP15#..PH |
2 | ||
| 90461-T0006 |
NCP15#..PH |
2 | ||
| 90461-T0006 |
NSP150,151..PH |
2 | ||
| 90461-T0006 |
NSP150,151..PH |
2 | ||
| 90461-T0006 |
NSP150,151..PH |
2 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 90464-00868 |
NCP15#..PH |
1 | ||
| 90464-00868 |
NCP15#..PH |
1 | ||
| 90464-00868 |
NCP15#..PH |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 90949-01969 |
NCP15#..PH |
1 | ||
| 90949-01969 |
NCP15#..PH |
1 | ||
| 90949-01969 |
NCP15#..PH |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 90949-01D18 |
NCP15#..PH |
2 | ||
| 90949-01D18 |
NCP15#..PH |
2 | ||
| 90949-01D18 |
NCP15#..PH |
2 | ||
| Common parts | ||||
| 90119-08868 | ||||
| 90119-T0136 | ||||
| 90119-T0319 | ||||
| 90178-T0007 | ||||
| 90179-06264 | ||||
| 90468-08035 | ||||
| 90468-08040 | ||||
| 90468-T0004 | ||||
| 91671-80614 | ||||
| Linked diagrams | ||||
| 4702 | ||||
| 7701 | ||||
ILLUST NO. 2 OF 2(1604- )5F..GCC..B ; (1604- )NSP151..5F..GEN..D..B ; (1604- )NSP150,151..L
BRAKE ACTUATOR, W(VSC)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44521A - COLLAR, BRAKE ACTUATOR CASE, NO.1 | ||||
| 44521-0D010 |
NCP151..C;NCP150..(G,R)..C;NCP150..TH..D..C |
3 | ||
| 44521A - COLLAR, BRAKE ACTUATOR CASE, NO.1 | ||||
| 44521-0D010 |
NCP151..C;NCP150..(G,R)..C;NCP150..TH..D..C |
3 | ||
| 44521A - COLLAR, BRAKE ACTUATOR CASE, NO.1 | ||||
| 44521-0D010 |
NCP151..C;NCP150..(G,R)..C;NCP150..TH..D..C |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44547-02050 |
NCP151..C;NCP150..(G,R)..C;NCP150..TH..D..C |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44547-02050 |
NCP151..C;NCP150..(G,R)..C;NCP150..TH..D..C |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44547-02050 |
NCP151..C;NCP150..(G,R)..C;NCP150..TH..D..C |
3 | ||
| Common parts | ||||
| 90119-T0199 | ||||
| 90119-T0325 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
