NCP150R-BEPRKT (2013)

Toyota Yaris/Vios/Limo

Production Apr 2013 - Mar 2016
Engine 1NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1304- )NSP150..CVT..GEN..R..A ; (1304- )NSP150..CVT..GEN,PH..D,G..A,D ; (130

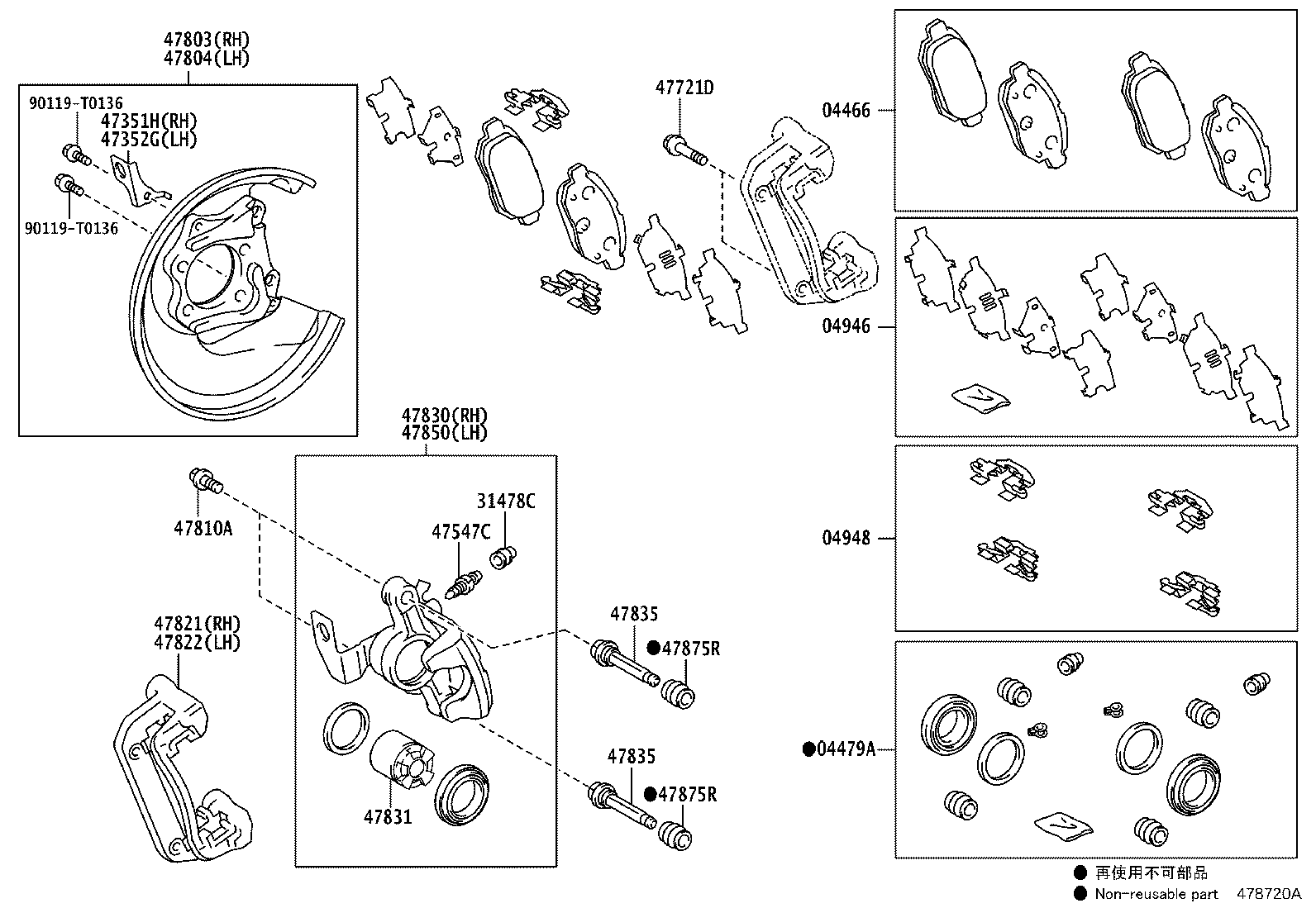

Click highlighted areas on diagram

diagram 04466 04479A 04946 04948 31478C 47351H 47352G 47547C 47721D 47803 47804 47810A 47821 47822 47830 47831 47835 47835 47850 47875R 47875R 90119T0136 90119T0136
Part # Description Qty Price
04466 - PAD KIT, DISC BRAKE, REAR
04466-52170

NCP150..4FC..TH..R..B

MARK NBK D6247,SINGAPORE SPEC

 1
04466-52170

NCP150..4FC..TH..R..B

MARK NBK D6247,SINGAPORE SPEC

 1
04479A - CYLINDER KIT, DISC BRAKE, REAR
04479-52250

NCP150..4FC..TH..R..B

SINGAPORE SPEC

 1
04479-52250

NCP150..4FC..TH..R..B

SINGAPORE SPEC

 1
04946 - SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)
04946-52080

NCP150..4FC..TH..R..B

SINGAPORE SPEC

 1
04946-52080

NCP150..4FC..TH..R..B

SINGAPORE SPEC

 1
04948 - FITTING KIT, DISC BRAKE, REAR
04948-12060

NCP150..4FC..TH..R..B

SINGAPORE SPEC

 1
04948-12060

NCP150..4FC..TH..R..B

SINGAPORE SPEC

 1
31478C - CAP, BLEEDER PLUG(FOR REAR DISC BRAKE)
31478-52010

NCP150..4FC..TH..R..B

SINGAPORE SPEC

 2
31478-52010

NCP150..4FC..TH..R..B

SINGAPORE SPEC

 2
47351H - BRACKET, FLEXIBLE HOSE, RH
47351-0D160

NCP150..4FC..TH..R..B

SINGAPORE SPEC

 1
47351-0D160

NCP150..4FC..TH..R..B

SINGAPORE SPEC

 1
47352G - BRACKET, FLEXIBLE HOSE, LH
47352-0D130

NCP150..4FC..TH..R..B

SINGAPORE SPEC

 1
47352-0D130

NCP150..4FC..TH..R..B

SINGAPORE SPEC

 1
47547C - PLUG, BLEEDER(FOR REAR DISC BRAKE)
47847-52050

NCP150..4FC..TH..R..B

SINGAPORE SPEC

 2
47847-52050

NCP150..4FC..TH..R..B

SINGAPORE SPEC

 2
47721D - BOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)
90105-T0180

NCP150..4FC..TH..R..B

*10-1.25PX24-21.5,SINGAPORE SPEC

 4
90105-T0180

NCP150..4FC..TH..R..B

*10-1.25PX24-21.5,SINGAPORE SPEC

 4
47803 - COVER SUB-ASSY, DISC BRAKE DUST, REAR RH
47803-0D040

NCP150..4FC..TH..R..B

SINGAPORE SPEC

 1
47803-0D040

NCP150..4FC..TH..R..B

SINGAPORE SPEC

 1
47804 - COVER SUB-ASSY, DISC BRAKE DUST, REAR LH
47804-0D040

NCP150..4FC..TH..R..B

SINGAPORE SPEC

 1
47804-0D040

NCP150..4FC..TH..R..B

SINGAPORE SPEC

 1
47810A - BOLT, HEXAGON(FOR REAR CALIPER)
90015-AA102

NCP150..4FC..TH..R..B

SINGAPORE SPEC

 4
90015-AA102

NCP150..4FC..TH..R..B

SINGAPORE SPEC

 4
47821 - MOUNTING, REAR DISC BRAKE CYLINDER, RH
47821-12151

NCP150..4FC..TH..R..B

SINGAPORE SPEC

 1
47821-12151

NCP150..4FC..TH..R..B

SINGAPORE SPEC

 1
47822 - MOUNTING, REAR DISC BRAKE CYLINDER, LH
47821-12151

NCP150..4FC..TH..R..B

SINGAPORE SPEC

 1
47821-12151

NCP150..4FC..TH..R..B

SINGAPORE SPEC

 1
47830 - CYLINDER ASSY, DISC BRAKE, REAR RH
47830-52200

NCP150..4FC..TH..R..B

SINGAPORE SPEC

 1
47830-52200

NCP150..4FC..TH..R..B

SINGAPORE SPEC

 1
47831 - PISTON, REAR DISC BRAKE
47831-52090

NCP150..4FC..TH..R..B

SINGAPORE SPEC

 2
47831-52090

NCP150..4FC..TH..R..B

SINGAPORE SPEC

 2
47835 - PIN, REAR DISC BRAKE PAD GUIDE
47835-12150

NCP150..4FC..TH..R..B

SINGAPORE SPEC

 4
47835-12150

NCP150..4FC..TH..R..B

SINGAPORE SPEC

 4
47835 - PIN, REAR DISC BRAKE PAD GUIDE
47835-12150

NCP150..4FC..TH..R..B

SINGAPORE SPEC

 4
47835-12150

NCP150..4FC..TH..R..B

SINGAPORE SPEC

 4
47850 - CYLINDER ASSY, DISC BRAKE, REAR LH
47850-52200

NCP150..4FC..TH..R..B

SINGAPORE SPEC

 1
47850-52200

NCP150..4FC..TH..R..B

SINGAPORE SPEC

 1
47875R - BOOT, BUSH DUST(FOR REAR DISC BRAKE)
47875-12150

NCP150..4FC..TH..R..B

SINGAPORE SPEC

 4
47875-12150

NCP150..4FC..TH..R..B

SINGAPORE SPEC

 4
47875R - BOOT, BUSH DUST(FOR REAR DISC BRAKE)
47875-12150

NCP150..4FC..TH..R..B

SINGAPORE SPEC

 4
47875-12150

NCP150..4FC..TH..R..B

SINGAPORE SPEC

 4
Common parts
90119-T0136
