NCP150R-BEPRKE (2013)

Toyota Yaris/Vios/Limo

Production Oct 2013 - Aug 2016
Engine 1NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1310- )MA

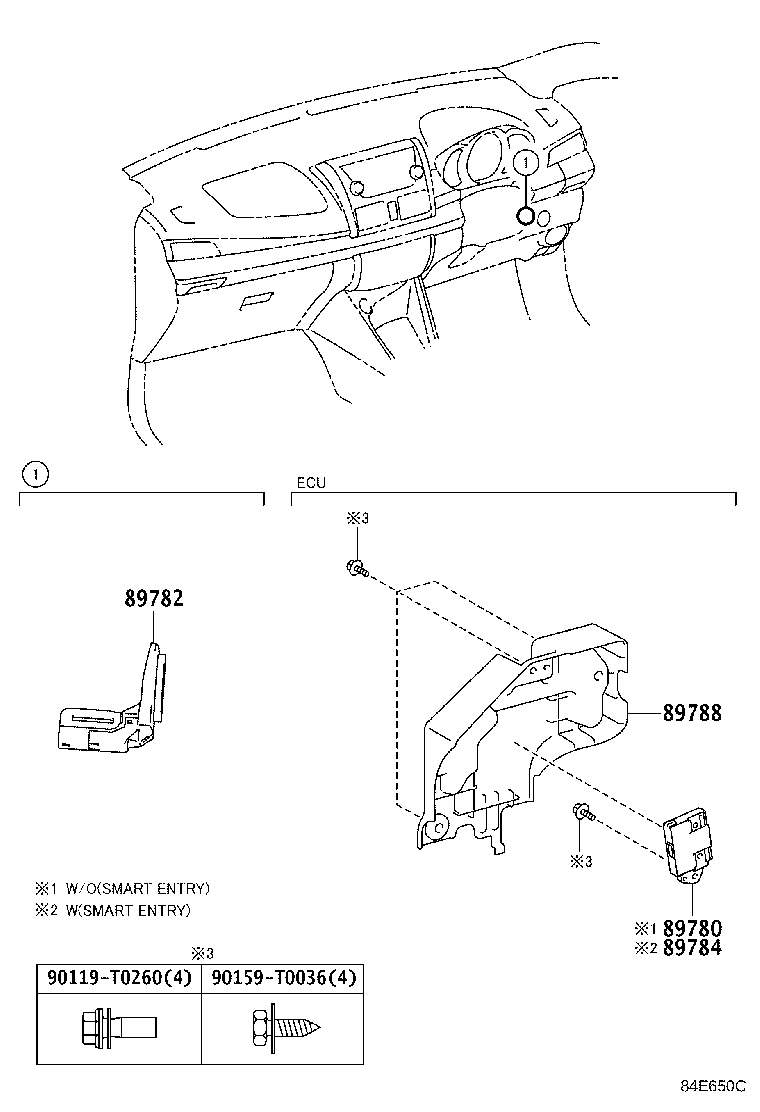

Click highlighted areas on diagram

diagram 89780 89782 89784 89788 90119T0260 90159T0036
Part # Description Qty Price
89780 - COMPUTER ASSY, TRANSPONDER KEY
89780-0D100

NCP150..MA..(D,R)

 1
89782 - COIL, TRANSPONDER KEY
89782-0D010

NCP150..MA..(D,R)

 1
89784 - COMPUTER, IMMOBILIZER CODE
89784-52040

NCP150..MA..(D,R)

 1
89788 - BRACKET, TRANSPONDER KEY
89788-0D010

NCP150..MA

 1
Common parts
90119-T0260
90159-T0036
