NCP150R-BEPRKD (2013)

Toyota Yaris/Vios/Limo

Production Apr 2013 - Jun 2015
Engine 1NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1304-1901)NSP151..MA ; (1304- )NSP151..TH..B; (1304- )NCP15#,NSP150..RHD..B

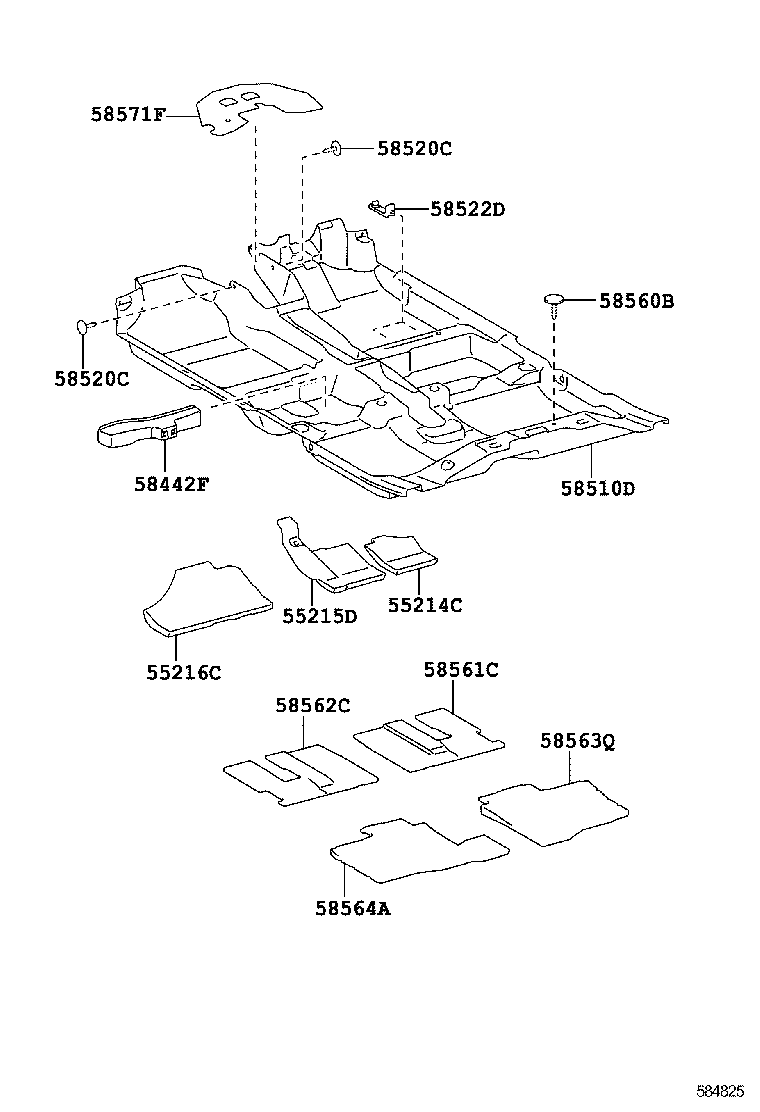

Click highlighted areas on diagram

diagram 55214C 55215D 55216C 58442F 58510D 58520C 58520C 58522D 58560B 58561C 58562C 58563Q 58564A 58571F
Part # Description Qty Price
55214C - PAD, DASH PANEL INSULATOR, NO.2
55214-0D170

NCP150..IDN..B

 1
55215D - PAD, DASH PANEL INSULATOR, NO.3
55215-0D220

NCP150..IDN..B

 1
55216C - PAD, DASH PANEL INSULATOR, NO.4
55216-0D030

NCP150..IDN..B

 1
58442F - COVER, JACK
58442-0D110

NCP150..IDN..B

 1
58510D - CARPET ASSY, FLOOR, FRONT
58510-0DB30C1

NCP150..IDN..D..B;NCP150,NSP151..TH..B

BLACK,TRIM2#

 1
58510-0DB30A1

NCP150,NSP151..(IDN,TH)..(G,R)..B

IVORY,TRIM0#

 1
58520C - CLIP(FOR FRONT FLOOR CARPET)
90467-T0004A1

NSP151..GEN..D..B;NCP150..(GEN,TH)..D;NCP151,NSP150..(GCC,GEN)..(B,C);NCP150..(GCC,GEN,IDN,PH,TH,VN)..(G,R);NSP151..(GCC,GEN,IDN,TH,VN)..(G,R)..(B,C)

SHELL,TRIM0#

 2
90467-T0004C1

NSP151..IDN..D;NSP151..(GCC,GEN,MA,PH,TH,VN)..(B,C);NCP15#,NSP150..(GCC,GEN,IDN,MA,PH,TH,VN)..(B,C)

BLACK,TRIM2#

 2
58520C - CLIP(FOR FRONT FLOOR CARPET)
90467-T0004A1

NSP151..GEN..D..B;NCP150..(GEN,TH)..D;NCP151,NSP150..(GCC,GEN)..(B,C);NCP150..(GCC,GEN,IDN,PH,TH,VN)..(G,R);NSP151..(GCC,GEN,IDN,TH,VN)..(G,R)..(B,C)

SHELL,TRIM0#

 2
90467-T0004C1

NSP151..IDN..D;NSP151..(GCC,GEN,MA,PH,TH,VN)..(B,C);NCP15#,NSP150..(GCC,GEN,IDN,MA,PH,TH,VN)..(B,C)

BLACK,TRIM2#

 2
58522D - HOOK, FLOOR CARPET, NO.2
58522-52030

NCP15#,NSP150,151..B,C

 2
58560B - CLIP(FOR FLOOR CARPET, REAR)
90467-07049C0

NCP15#,NSP15#

BLACK

 1
58561C - SILENCER, FRONT FLOOR, NO.1
58561-0D230

NCP150..IDN..B

 1
58562C - SILENCER, FRONT FLOOR, NO.2
58562-0D190

NCP150..IDN..B

 1
58563Q - SILENCER, FRONT FLOOR, NO.3
58563-0D220

NCP150..IDN..B

 1
58564A - SILENCER, FRONT FLOOR, NO.4
58564-0D180

NCP150..IDN..B

 1
58571F - PAD, FRONT FLOOR, FRONT
58571-0D050

NCP150..IDN..B

 1
