NCP150R-BEPGKT (2013)

Toyota Yaris/Vios/Limo

Production Apr 2013 - Mar 2016
Engine 1NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1304- )NSP151..GCC,GEN,PH,VN..B ; (1304-)NCP15#,NSP150..GCC,GEN,IDN,PH,TH,V

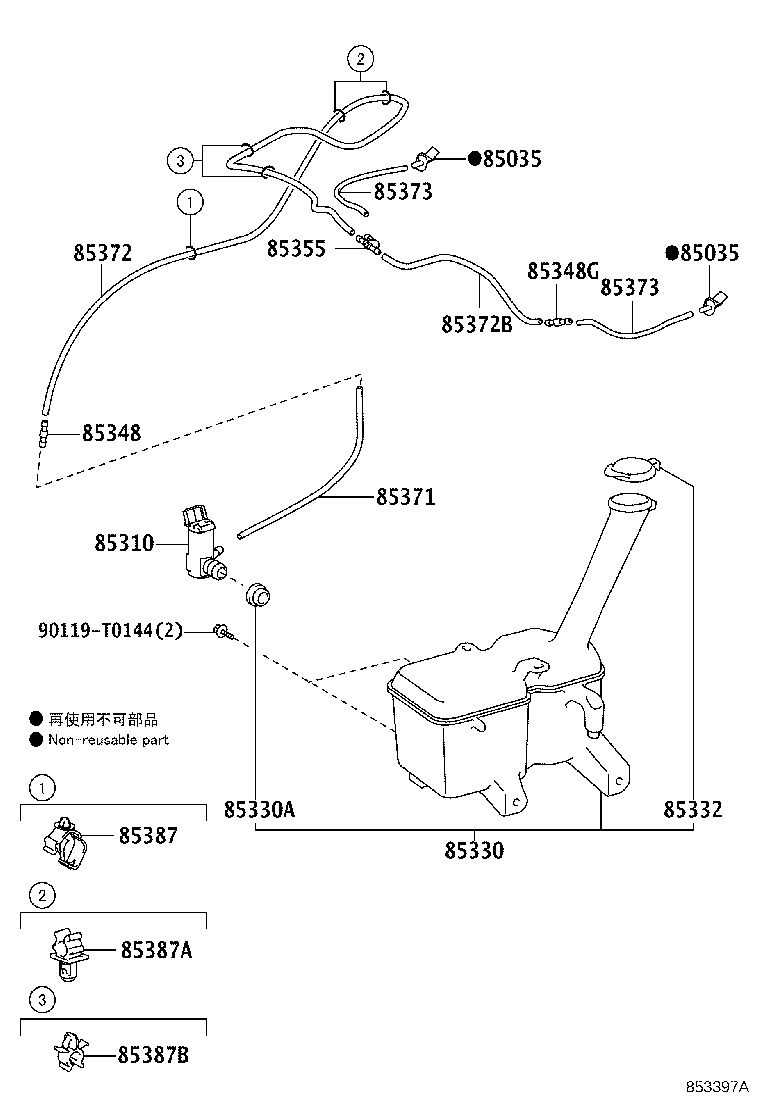

Click highlighted areas on diagram

diagram 85035 85035 85310 85330 85330A 85332 85348 85348G 85355 85371 85372 85372B 85373 85373 85387 85387A 85387B 90119T0144
Part # Description Qty Price
85035 - NOZZLE SUB-ASSY, WASHER
85381-30230

NCP15#,NSP150,151..(GCC,GEN,IDN,PH,TH,VN)..B

 2
85035 - NOZZLE SUB-ASSY, WASHER
85381-30230

NCP15#,NSP150,151..(GCC,GEN,IDN,PH,TH,VN)..B

 2
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85330-0D130

NCP15#..(GCC,GEN,TH)..B

 1
85330-0D130

NCP15#..C

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85315-0D220

NCP15#..(GCC,GEN,TH)..B

 1
85330A - BUSH, WINDSHIELD WASHER JAR
90099-32089

NCP15#..(GCC,GEN,TH)..B

 1
90099-32089

NCP15#..C

 1
85332 - CAP, WINDSHIELD WASHER JAR
85316-YE011

NCP15#..(GCC,GEN,TH)..B

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85375-02330

NCP15#,NSP150,151..(GCC,GEN,IDN,PH,TAIW,TH,VN)..B

 1
85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2
85375-02330

NCP15#,NSP150,151..(GCC,GEN,IDN,PH,TAIW,TH,VN)..B

 1
85355 - VALVE, WINDSHIELD WASHER HOSE
85321-28020

NCP15#,NSP150,151..B,C

 1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90068-33207

NCP15#..(GCC,GEN,TH)..B

L=230

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90068-59128

NCP15#,NSP150,151..(GCC,GEN,IDN,PH,TAIW,TH,VN)..B

L=1590

 1
85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
90068-59111

NCP15#,NSP150,151..(GCC,GEN,IDN,PH,TAIW,TH,VN)..B

L=305

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90068-33207

NCP15#,NSP150,151..(GCC,GEN,IDN,PH,TH,VN)..B

L=230

 2
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90068-33207

NCP15#,NSP150,151..(GCC,GEN,IDN,PH,TH,VN)..B

L=230

 2
85387 - CLAMP NO.1 (FOR WINDSEIELD WASHER)
82711-3F230

NCP15#,NSP150,151..B,C

 1
85387A - CLAMP, WASHER, NO.2
85371-52110

NCP15#,NSP150,151..B

 2
85387B - CLAMP, WASHER, NO.3
90469-T0005

NCP15#,NSP150,151..(GCC,GEN,IDN,MA,PH,TH,VN)..B

 2
Common parts
90119-T0144
