NCP150R-BEPGKD (2013)

Toyota Yaris/Vios/Limo

Production Apr 2013 - Jun 2015
Engine 1NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1304- )4FC..GCC,GEN,IDN,MA,PH,TH,VN

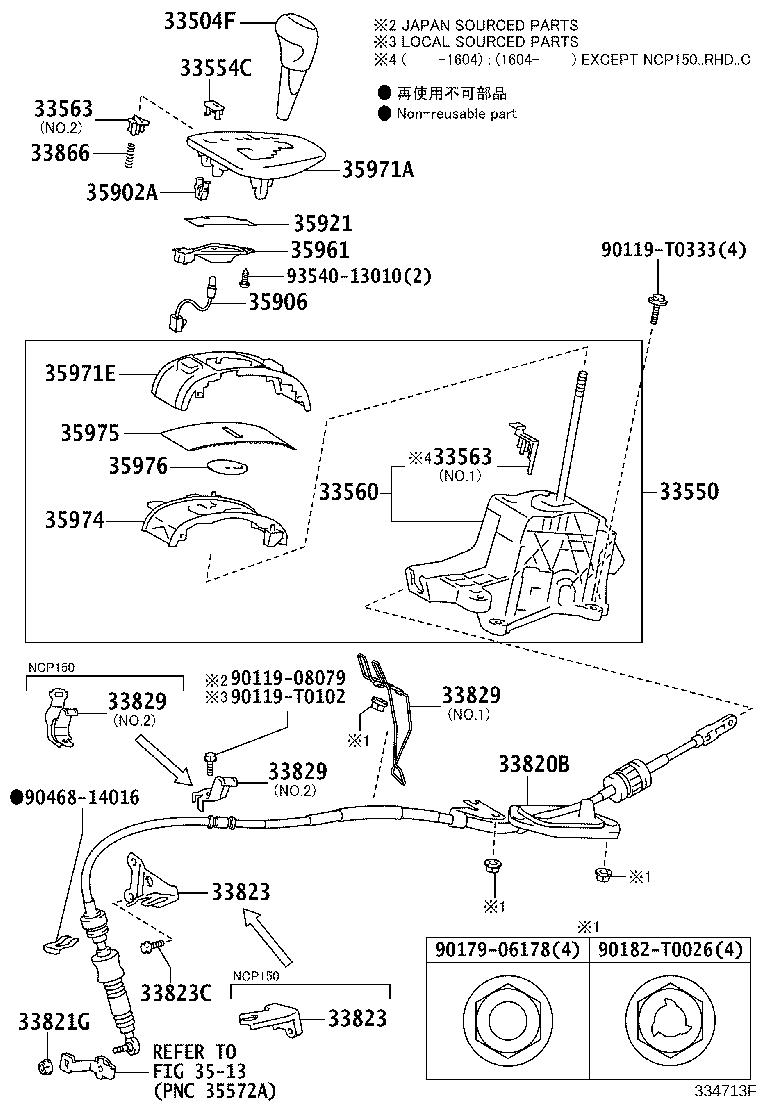

Click highlighted areas on diagram

diagram 33504F 33550 33554C 33560 33563 33563 33820B 33821G 33823 33823 33823C 33829 33829 33829 33866 3513 35902A 35906 35921 35961 35971A 35971E 35974 35975 35976 9011908079 90119T0102 90119T0333 9017906178 90182T0026 9046814016 9354013010
Part # Description Qty Price
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-0D400C0

NCP150..4FC..IDN..G..B

BLACK,TRIM0#,2#

 1
33504-0D370C0

NCP150..IDN..D..B

BLACK,TRIM2#

 1
33504-0D390C0

NCP150..4FC..IDN..R..B

BLACK,TRIM0#,2#

 1
33504-0D400C0

NCP150..RHD..4FC..G..C

BLACK,TRIM0#,2#

 1
33504-0D390C0

NCP151..4FC..C;NCP150..GCC..G..C;NCP150..4FC..R..C

BLACK,TRIM0#,2#

 1
33504-0D370C0

NCP150..IDN..D..C

BLACK,TRIM2#

 1
33550 - FLOOR SHIFT ASSY, TRANSMISSION
33550-0D440

NCP150..4FC..IDN..B

 1
33554C - COVER, SHIFT LOCK RELEASE BUTTON
33502-0D040

NCP150..4FC..IDN..B

 1
33560 - UNIT ASSY, SHIFT LOCK CONTROL
33560-0D190

NCP150..4FC..IDN..B

 1
33563 - BUTTON, SHIFT LOCK RELEASE
33563-0D110

NCP15#..RHD..4FC

NO.2

 1
33563-0D111

NCP150..4FC..IDN..B

NO.2

 1
33563-0D090

NCP150..4FC..IDN..B

NO.1

 1
33563-0D090

NCP150..RHD..4FC..C

NO.1

 1
33563 - BUTTON, SHIFT LOCK RELEASE
33563-0D110

NCP15#..RHD..4FC

NO.2

 1
33563-0D111

NCP150..4FC..IDN..B

NO.2

 1
33563-0D090

NCP150..4FC..IDN..B

NO.1

 1
33563-0D090

NCP150..RHD..4FC..C

NO.1

 1
33820B - CABLE ASSY, TRANSMISSION CONTROL
33820-0D500

NCP150..4FC..IDN..B

 1
33821G - NUT (FOR TRANSMISSION CONTROL CABLE)
90179-08040

NCP15#..4FC..C

 1
90179-08040

NCP150..4FC..IDN..B

 1
33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823-0D010

NCP150..4FC..IDN..B

 1
33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823-0D010

NCP150..4FC..IDN..B

 1
33823C - BOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)
90119-T0102

NCP15#..4FC

 2
90119-08079

NCP150..4FC..IDN..B

(J)

 2
90119-T0102

NCP150..4FC..IDN..B

(L)

 2
33829 - SUPPORT, TRANSMISSION CONTROL CABLE
33829-0D160

NCP150..4FC..IDN..B

NO.1

 1
33829-52111

NCP150..4FC..IDN..B

NO.2

 1
33829-52210

NCP15#..4FC..B

NO.1

 1
33829-52111

NCP150..4FC..C

NO.2

 1
33829 - SUPPORT, TRANSMISSION CONTROL CABLE
33829-0D160

NCP150..4FC..IDN..B

NO.1

 1
33829-52111

NCP150..4FC..IDN..B

NO.2

 1
33829-52210

NCP15#..4FC..B

NO.1

 1
33829-52111

NCP150..4FC..C

NO.2

 1
33829 - SUPPORT, TRANSMISSION CONTROL CABLE
33829-0D160

NCP150..4FC..IDN..B

NO.1

 1
33829-52111

NCP150..4FC..IDN..B

NO.2

 1
33829-52210

NCP15#..4FC..B

NO.1

 1
33829-52111

NCP150..4FC..C

NO.2

 1
33866 - SPRING, SHIFT LOCK RELEASE
33866-06030

NCP150..4FC..IDN..B

 1
35902A - CLIP, COVER SUB-ASSY, POSITION INDICATOR HOUSING
90467-10201

NCP150..4FC..IDN..B

 4
90467-10201

NCP15#..4FC..C

 4
35906 - WIRE SUB-ASSY, INDICATOR LAMP
35906-0D150

NCP150..4FC..IDN..B

 1
35921 - PLATE, CONTROL POSITION INDICATOR
35921-0D080

NCP150..RHD..4FC..C

 1
35921-0D080

NCP150..4FC..IDN..B

 1
35961 - HOUSING, POSITION INDICATOR LAMP
35961-0D020

NCP15#..RHD..4FC

 1
35961-0D021

NCP150..4FC..IDN..B

 1
35971A - HOUSING, POSITION INDICATOR, UPPER
35971-0D310

NCP150..4FC..IDN..B

 1
35971E - HOUSING, POSITION INDICATOR
35971-0D260

NCP150..4FC..IDN..B

 1
35974 - HOUSING, POSITION INDICATOR, LOWER
35974-0D030

NCP150..4FC..IDN..B

 1
35975 - COVER, SLIDE (FOR POSITION INDICATOR)
35975-0D070

NCP150..4FC..IDN..C;NCP15#..4FC..(GCC,GEN,TH)

 1
35975-0D070

NCP150..4FC..IDN..B

 1
35976 - COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)
35976-0D100

NCP150..4FC..IDN..B

 1
35976-0D100

NCP150..4FC..IDN..C;NCP15#..4FC..(GCC,GEN,TH)

 1
Common parts
90119-08079
90119-T0102
90119-T0333
90179-06178
90182-T0026
90468-14016
93540-13010
Linked diagrams
3513
