NCP150R-BEMGKD (2013)
Toyota Yaris/Vios/Limo

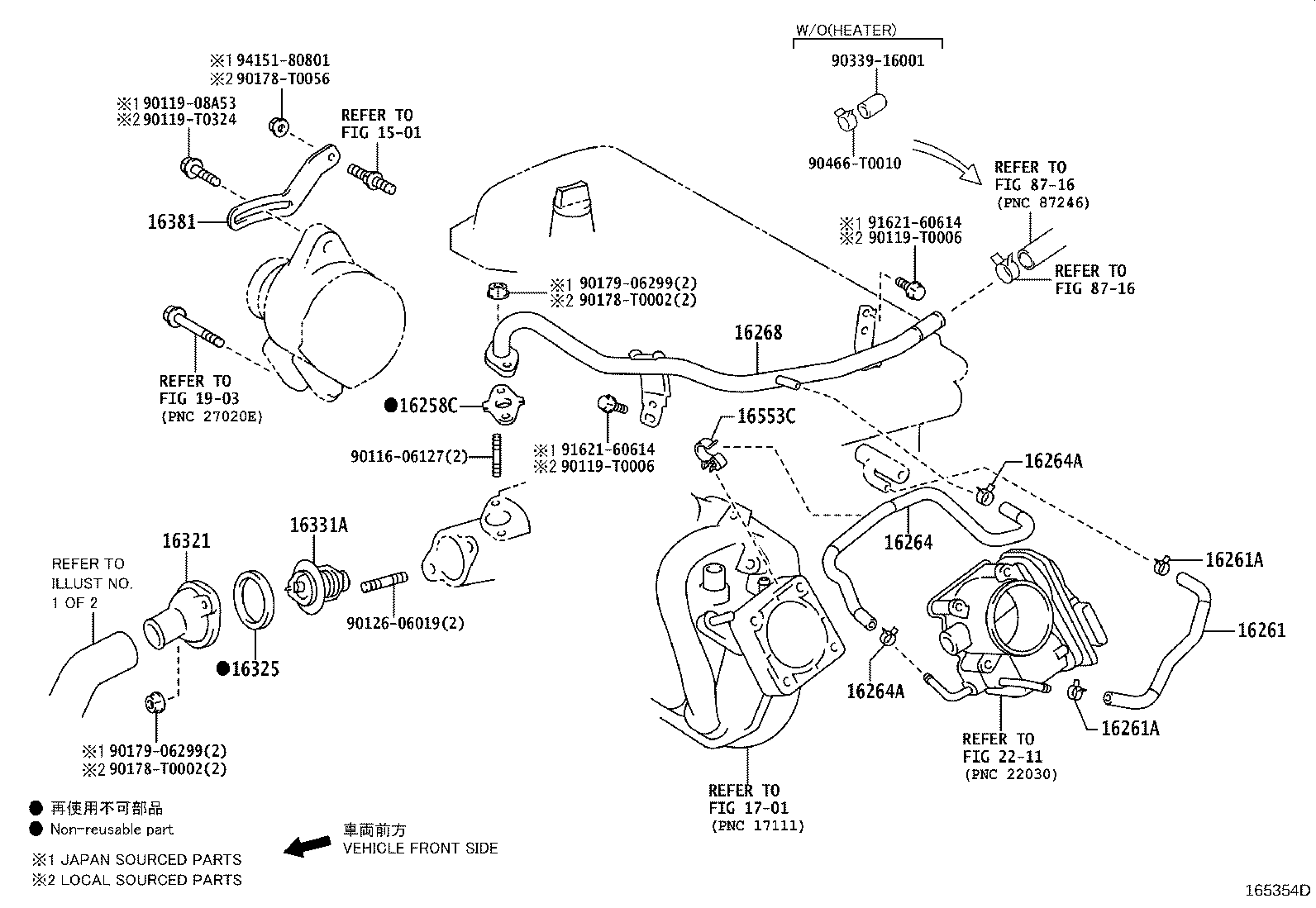

ILLUST NO. 2 OF 2(1304- )1NZFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16258C - GASKET(FOR WATER BY-PASS PIPE) | ||||
| 16258-21021 |
1NZFE..NCP150..IDN..B |
1 | ||
| 16258-21021 |
1NZFE,2NZFE..NCP15#..C |
1 | ||
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-0M010 |
1NZFE..NCP150..IDN..B (L) |
1 | ||
| 16261-21090 |
1NZFE..NCP150..IDN..B (J) |
1 | ||
| 16261-0M010 |
1NZFE..NCP150..C (L) |
1 | ||
| 16261-21090 |
1NZFE..NCP150..C (J) |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90466-T0047 |
1NZFE..NCP150..IDN..B (L) |
2 | ||
| 90467-13054 |
1NZFE..NCP150..IDN..B (J) |
2 | ||
| 90467-13054 |
1NZFE..NCP150..C (J) |
2 | ||
| 90466-T0047 |
1NZFE..NCP150..C (L) |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90466-T0047 |
1NZFE..NCP150..IDN..B (L) |
2 | ||
| 90467-13054 |
1NZFE..NCP150..IDN..B (J) |
2 | ||
| 90467-13054 |
1NZFE..NCP150..C (J) |
2 | ||
| 90466-T0047 |
1NZFE..NCP150..C (L) |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-21070 |
1NZFE..NCP150..GCC,GEN,IDN,MA,PH,TH,VN (J) |
1 | ||
| 16264-0M010 |
1NZFE..NCP150..GCC,GEN,IDN,MA,PH,TH,VN (L) |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90466-T0047 |
1NZFE..NCP150..GCC,GEN,IDN,MA,PH,TH,VN (L) |
2 | ||
| 90467-13054 |
1NZFE..NCP150..GCC,GEN,IDN,MA,PH,TH,VN (J) |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90466-T0047 |
1NZFE..NCP150..GCC,GEN,IDN,MA,PH,TH,VN (L) |
2 | ||
| 90467-13054 |
1NZFE..NCP150..GCC,GEN,IDN,MA,PH,TH,VN (J) |
2 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-21022 |
1NZFE..NCP150..GCC,GEN,IDN,MA,PH,TH,VN (J) |
1 | ||
| 16268-0M020 |
1NZFE..NCP150..GCC,GEN,IDN,MA,PH,TH,VN (L) |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-21020 |
1NZFE..NCP150..IDN..B |
1 | ||
| 16321-21020 |
1NZFE,2NZFE..NCP15#..C |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-62010 |
1NZFE..NCP150..IDN..B (J) |
1 | ||
| 16325-0H020 |
1NZFE..NCP150..C (L) |
1 | ||
| 16325-62010 |
1NZFE..NCP150..C (J) |
1 | ||
| 16325-0H020 |
1NZFE..NCP150..IDN..B (L) |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03093 |
1NZFE..NCP150..IDN..B *WAX 82-95 |
1 | ||
| 90916-03093 |
1NZFE,2NZFE..NCP15#..C *WAX 82-95 |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-0M030 |
1NZFE..NCP150..IDN..B |
1 | ||
| 16553C - CLAMP, HOSE | ||||
| 16581-21010 |
1NZFE..NCP150..IDN..B |
1 | ||
| 16581-21010 |
1NZFE,2NZFE..NCP15#..C |
1 | ||
| Common parts | ||||
| 90116-06127 | ||||
| 90119-08A53 | ||||
| 90119-T0006 | ||||
| 90119-T0324 | ||||
| 90126-06019 | ||||
| 90178-T0002 | ||||
| 90178-T0056 | ||||
| 90179-06299 | ||||
| 90339-16001 | ||||
| 90466-T0010 | ||||
| 91621-60614 | ||||
| 94151-80801 | ||||
| Linked diagrams | ||||
| 1501 | ||||
| 1701 | ||||
| 1903 | ||||
| 2211 | ||||
| 8716 | ||||

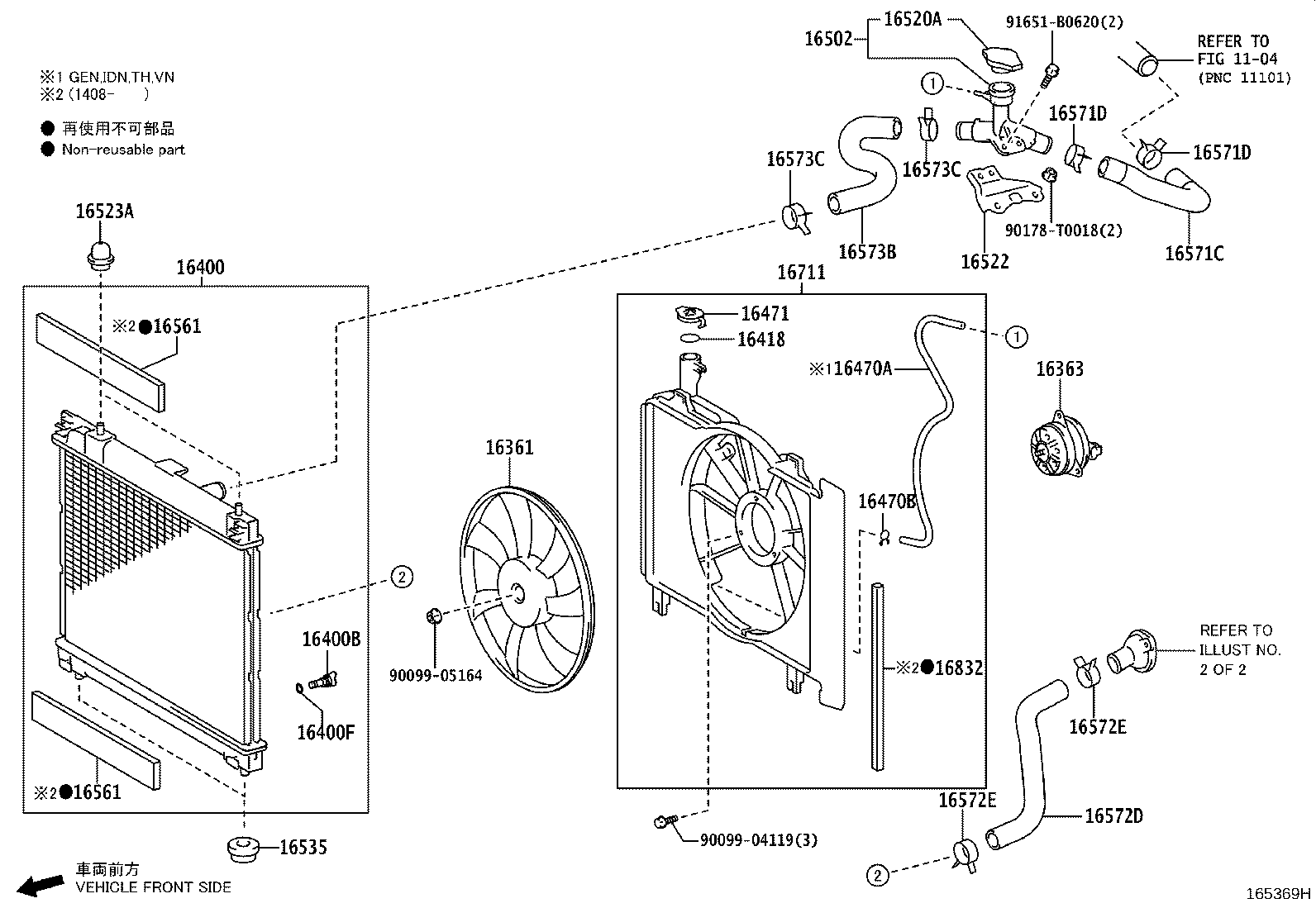

ILLUST NO. 1 OF 2(1304- )1NZFE,2NZFE..GEN,IDN,MA,PH,TH,VN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16361 - FAN | ||||
| 16361-0M110 |
1NZFE..NCP150..IDN..B |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-0Y040 |
1NZFE..NCP150..IDN..B |
1 | ||
| 16363-0Y040 |
1NZFE,2NZFE..NCP15#..C |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-0M190 |
1NZFE,2NZFE..NCP15#..5F..(GEN,IDN,TH,VN)..B |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-0C180 |
1NZFE..NCP150..IDN..B |
1 | ||
| 16417-0C180 |
1NZFE,2NZFE..NCP15#..C |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16492-21050 |
1NZFE,2NZFE..NCP15#..C |
1 | ||
| 16492-21050 |
1NZFE..NCP150..IDN..B |
1 | ||
| 16418 - PACKING | ||||
| 16476-0H060 |
1NZFE..NCP150..IDN..B |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 16377-0M110 |
1NZFE..NCP150..IDN..B |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
1NZFE,2NZFE..NCP15#..C |
1 | ||
| 90467-11085 |
1NZFE..NCP150..IDN..B |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16376-0Y050 |
1NZFE..NCP150..IDN..B |
1 | ||
| 16502 - FILLER SUB-ASSY, WATER | ||||
| 16502-0M020 |
1NZFE..NCP150..IDN..B |
1 | ||
| 16502-0M020 |
1NZFE,2NZFE..NCP15#..C |
1 | ||
| 16520A - CAP SUB-ASSY, WATER FILLER | ||||
| 16401-0H060 |
1NZFE..NCP150..IDN..B |
1 | ||
| 16401-0H060 |
1NZFE,2NZFE..NCP15#..C |
1 | ||
| 16522 - BRACKET, WATER FILLER | ||||
| 16522-0M020 |
1NZFE..NCP150..IDN..B |
1 | ||
| 16522-0M020 |
1NZFE,2NZFE..NCP15#..C |
1 | ||
| 16523A - CUSHION, RADIATOR SUPPORT | ||||
| 16523-21030 |
1NZFE..NCP150..IDN..B (J) |
2 | ||
| 16523-0M050 |
1NZFE..NCP150..IDN..B (L) |
2 | ||
| 16523-21030 |
1NZFE,2NZFE..NCP15#..C (J) |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 90480-22025 |
1NZFE..NCP150..IDN..B |
2 | ||
| 90480-22025 |
1NZFE,2NZFE..NCP15#..C |
2 | ||
| 16561 - SEAL, RADIATOR TO SUPPORT, NO.1 | ||||
| 16561-0Y010 |
1NZFE..NCP150..IDN..B |
2 | ||
| 16561 - SEAL, RADIATOR TO SUPPORT, NO.1 | ||||
| 16561-0Y010 |
1NZFE..NCP150..IDN..B |
2 | ||
| 16571C - HOSE, RADIATOR, NO.1 | ||||
| 16571-0M080 |
1NZFE..NCP150..IDN..B |
1 | ||
| 16571-0M080 |
1NZFE,2NZFE..NCP15#..C |
1 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 96136-43901 |
1NZFE..NCP150..IDN..B |
2 | ||
| 96136-43901 |
1NZFE,2NZFE..NCP15#..C |
2 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 96136-43901 |
1NZFE..NCP150..IDN..B |
2 | ||
| 96136-43901 |
1NZFE,2NZFE..NCP15#..C |
2 | ||
| 16572D - HOSE, RADIATOR, NO.2 | ||||
| 16572-0M090 |
1NZFE..NCP150..IDN..B |
1 | ||
| 16572-0M090 |
1NZFE,2NZFE..NCP15#..C |
1 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 96136-43901 |
1NZFE..NCP150..IDN..B |
2 | ||
| 96136-43901 |
1NZFE,2NZFE..NCP15#..C |
2 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 96136-43901 |
1NZFE..NCP150..IDN..B |
2 | ||
| 96136-43901 |
1NZFE,2NZFE..NCP15#..C |
2 | ||
| 16573B - HOSE, RADIATOR, NO.3 | ||||
| 16573-0M080 |
1NZFE..NCP150..IDN..B |
1 | ||
| 16573-0M080 |
1NZFE..NCP150..C |
1 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 96136-43901 |
1NZFE,2NZFE..NCP15#..C |
2 | ||
| 96136-43901 |
1NZFE..NCP150..IDN..B |
2 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 96136-43901 |
1NZFE,2NZFE..NCP15#..C |
2 | ||
| 96136-43901 |
1NZFE..NCP150..IDN..B |
2 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-0M110 |
1NZFE..NCP150..IDN..B |
1 | ||
| 16832 - SEAL, FAN SHROUD | ||||
| 16561-0M020 |
1NZFE..NCP150..IDN..B |
1 | ||
| Common parts | ||||
| 90099-04119 | ||||
| 90099-05164 | ||||
| 90178-T0018 | ||||
| 91651-B0620 | ||||
| Linked diagrams | ||||
| 1104 | ||||
