NCP150R-BEMGKD (2013)

Toyota Yaris/Vios/Limo

Production Apr 2013 - Jun 2015
Engine 1NZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1304-1609)NCP15# ; (1601-1801)NSP150,151..C ; (1604- )NSP150,151..GCC,GEN,PH,TA

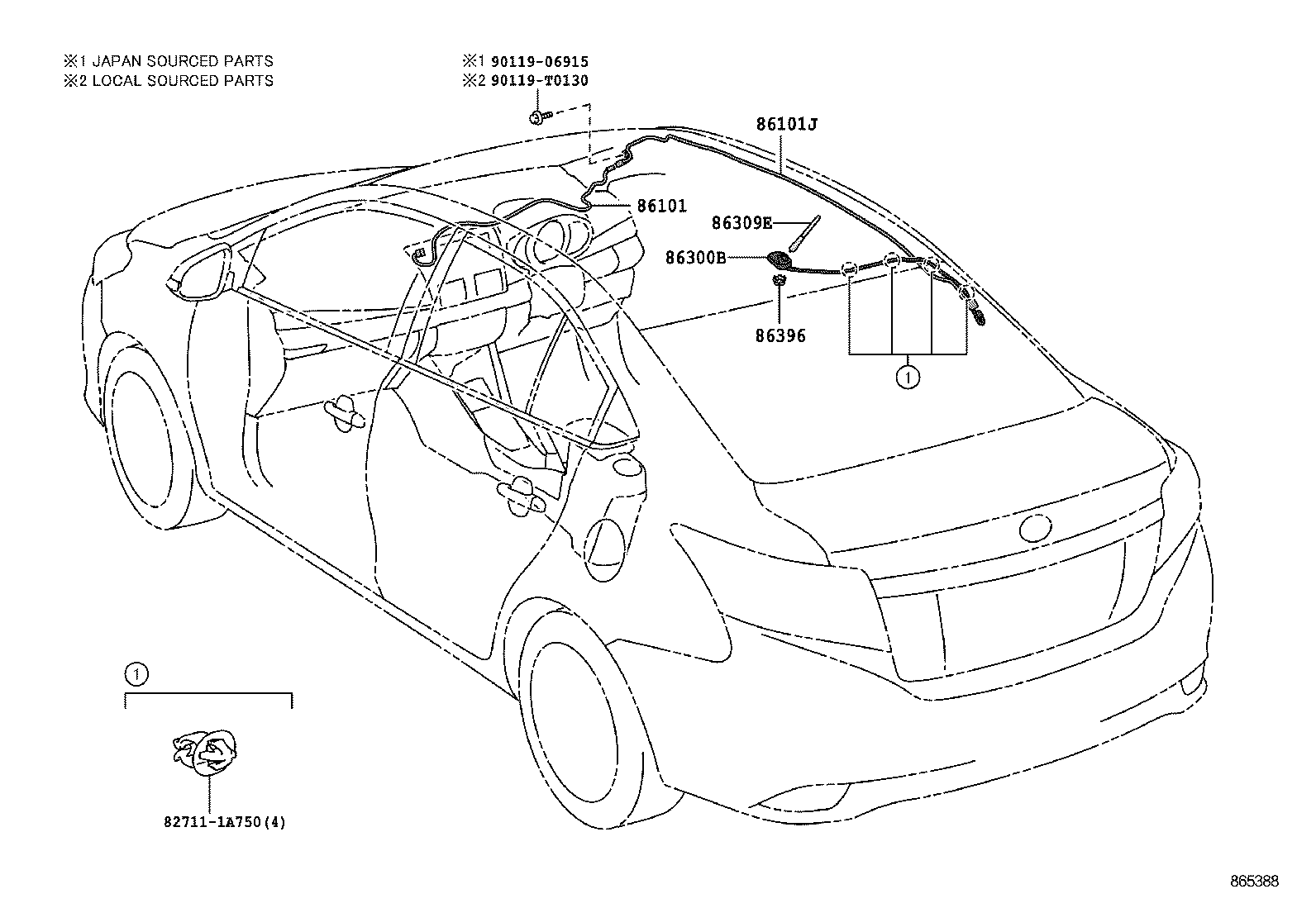

Click highlighted areas on diagram

diagram 827111A750 86101 86101J 86300B 86309E 86396 9011906915 90119T0130
Part # Description Qty Price
86101 - CORD SUB-ASSY, ANTENNA
86101-0D510

NCP150..IDN..B

 1
86101J - CORD SUB-ASSY, ANTENNA, NO.2
86101-0D490

NCP150..IDN..B

 1
86300B - ANTENNA ASSY, AMPLIFIER, NO.1
86300-0D270

NCP150..IDN..B

 1
86309E - POLE SUB-ASSY, ROOF ANTENNA
86309-0D140

NCP150..IDN..B

 1
86396 - NUT, ANTENNA
86396-47010

NCP150..IDN..B

 1
86396-47010

NCP15#..C

 1
Common parts
82711-1A750
90119-06915
90119-T0130
