NCP150R-BEMGKD (2013)
Toyota Yaris/Vios/Limo
(1304-1801)GCC,IDN ; (1304- )NSP151..PH,TH,VN..B,C ; (1304- )NCP15#,NSP150..M

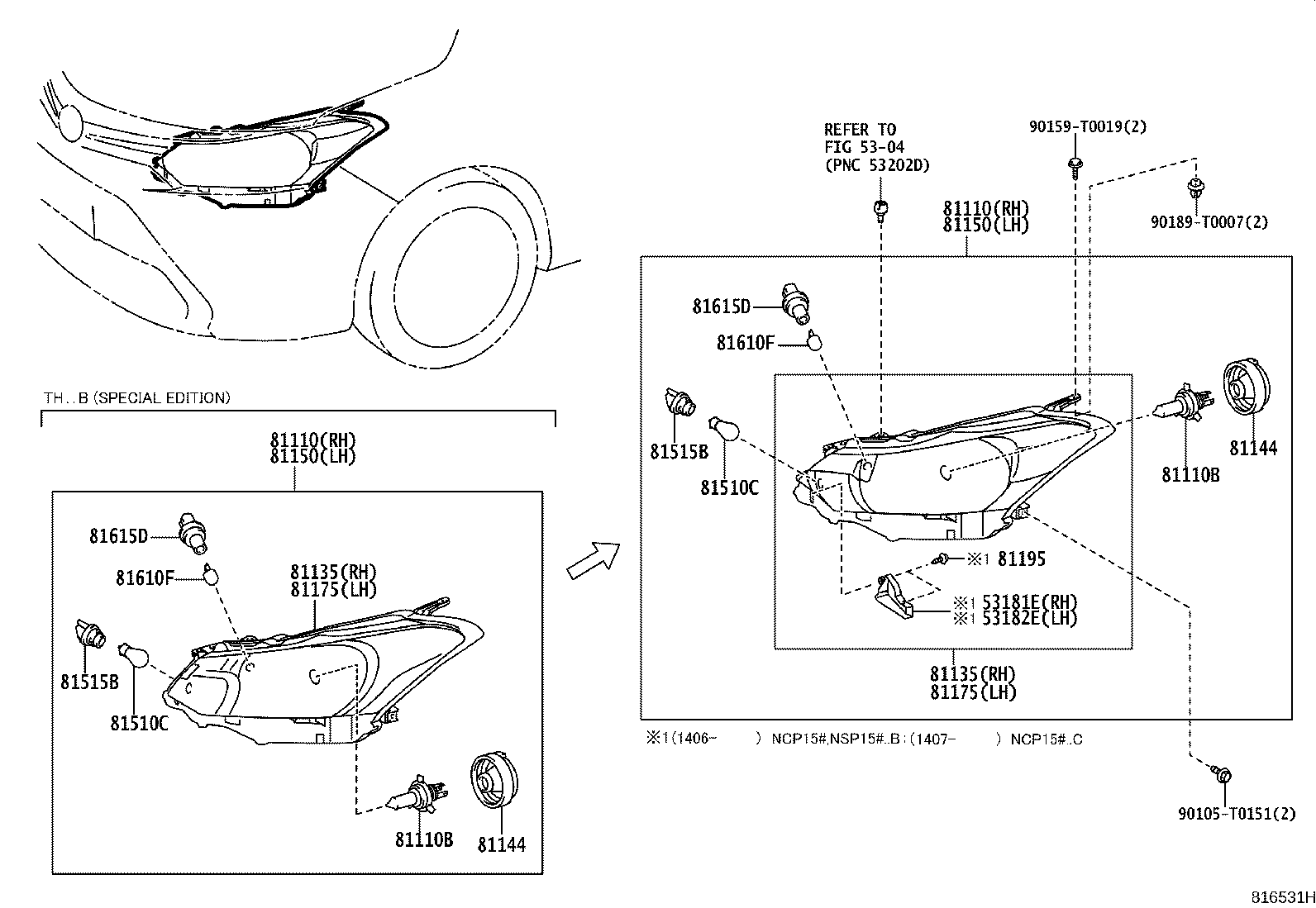

HALOGEN(MULTI REFLECTOR TYPE)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53181E - COVER, HEADLAMP, RH | ||||
| 53181-0D010 |
NCP150..IDN..(D,R)..B |
1 | ||
| 53182E - COVER, HEADLAMP, LH | ||||
| 53182-0D010 |
NCP150..IDN..(D,R)..B |
1 | ||
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-0D740 |
NCP150..(IDN,TH)..G..B |
1 | ||
| 81110-0D570 |
NCP151..RHD;NCP150..(IDN,TH)..(D,R)..B |
1 | ||
| 81110-0D830 |
NCP150..RHD..(D,R)..C |
1 | ||
| 81110-0D850 |
NCP150..RHD..G..C |
1 | ||
| 81110-0D571 |
NCP150..IDN..(D,R)..B |
1 | ||
| 81110-0D741 |
NCP150..IDN..G..B |
1 | ||
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-0D740 |
NCP150..(IDN,TH)..G..B |
1 | ||
| 81110-0D570 |
NCP151..RHD;NCP150..(IDN,TH)..(D,R)..B |
1 | ||
| 81110-0D830 |
NCP150..RHD..(D,R)..C |
1 | ||
| 81110-0D850 |
NCP150..RHD..G..C |
1 | ||
| 81110-0D571 |
NCP150..IDN..(D,R)..B |
1 | ||
| 81110-0D741 |
NCP150..IDN..G..B |
1 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-13058 |
NCP150..D,R 12V 60/55W,HALOGEN |
2 | ||
| 90981-13091 |
NCP150..IDN..G..B 12V 55W,HALOGEN |
2 | ||
| 90981-13100 |
NCP150..IDN..(D,R)..B 12V 60/55W |
2 | ||
| 90981-13058 |
NCP151..C;NCP150..(D,R)..C;NCP150..GCC..G..C 12V 60/55W,HALOGEN |
2 | ||
| 90981-13091 |
NCP150..RHD..G..C 12V 55W,HALOGEN |
2 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-13058 |
NCP150..D,R 12V 60/55W,HALOGEN |
2 | ||
| 90981-13091 |
NCP150..IDN..G..B 12V 55W,HALOGEN |
2 | ||
| 90981-13100 |
NCP150..IDN..(D,R)..B 12V 60/55W |
2 | ||
| 90981-13058 |
NCP151..C;NCP150..(D,R)..C;NCP150..GCC..G..C 12V 60/55W,HALOGEN |
2 | ||
| 90981-13091 |
NCP150..RHD..G..C 12V 55W,HALOGEN |
2 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81130-0D740 |
NCP150..(IDN,TH)..G..B |
1 | ||
| 81130-0D570 |
NCP151..RHD;NCP150..(IDN,TH)..(D,R)..B |
1 | ||
| 81130-0D571 |
NCP150..IDN..(D,R)..B |
1 | ||
| 81130-0D830 |
NCP150..RHD..(D,R)..C |
1 | ||
| 81130-0D850 |
NCP150..RHD..G..C |
1 | ||
| 81130-0D741 |
NCP150..IDN..G..B |
1 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81130-0D740 |
NCP150..(IDN,TH)..G..B |
1 | ||
| 81130-0D570 |
NCP151..RHD;NCP150..(IDN,TH)..(D,R)..B |
1 | ||
| 81130-0D571 |
NCP150..IDN..(D,R)..B |
1 | ||
| 81130-0D830 |
NCP150..RHD..(D,R)..C |
1 | ||
| 81130-0D850 |
NCP150..RHD..G..C |
1 | ||
| 81130-0D741 |
NCP150..IDN..G..B |
1 | ||
| 81144 - COVER, HEADLAMP, NO.1 | ||||
| 90069-81095 |
NCP150..IDN..G..B |
2 | ||
| 90075-65002 |
NCP150..IDN..(D,R)..B |
2 | ||
| 90075-65002 |
NCP151..C;NCP150..(D,R)..C;NCP150..GCC..G..C |
2 | ||
| 81144 - COVER, HEADLAMP, NO.1 | ||||
| 90069-81095 |
NCP150..IDN..G..B |
2 | ||
| 90075-65002 |
NCP150..IDN..(D,R)..B |
2 | ||
| 90075-65002 |
NCP151..C;NCP150..(D,R)..C;NCP150..GCC..G..C |
2 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-0D740 |
NCP150..(IDN,TH)..G..B |
1 | ||
| 81150-0D570 |
NCP151..RHD;NCP150..(IDN,TH)..(D,R)..B |
1 | ||
| 81150-0D850 |
NCP150..RHD..G..C |
1 | ||
| 81150-0D741 |
NCP150..IDN..G..B |
1 | ||
| 81150-0D830 |
NCP150..RHD..(D,R)..C |
1 | ||
| 81150-0D571 |
NCP150..IDN..(D,R)..B |
1 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-0D740 |
NCP150..(IDN,TH)..G..B |
1 | ||
| 81150-0D570 |
NCP151..RHD;NCP150..(IDN,TH)..(D,R)..B |
1 | ||
| 81150-0D850 |
NCP150..RHD..G..C |
1 | ||
| 81150-0D741 |
NCP150..IDN..G..B |
1 | ||
| 81150-0D830 |
NCP150..RHD..(D,R)..C |
1 | ||
| 81150-0D571 |
NCP150..IDN..(D,R)..B |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81170-0D740 |
NCP150..(IDN,TH)..G..B |
1 | ||
| 81170-0D830 |
NCP150..RHD..(D,R)..C |
1 | ||
| 81170-0D570 |
NCP151..RHD;NCP150..(IDN,TH)..(D,R)..B |
1 | ||
| 81170-0D850 |
NCP150..RHD..G..C |
1 | ||
| 81170-0D571 |
NCP150..IDN..(D,R)..B |
1 | ||
| 81170-0D741 |
NCP150..IDN..G..B |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81170-0D740 |
NCP150..(IDN,TH)..G..B |
1 | ||
| 81170-0D830 |
NCP150..RHD..(D,R)..C |
1 | ||
| 81170-0D570 |
NCP151..RHD;NCP150..(IDN,TH)..(D,R)..B |
1 | ||
| 81170-0D850 |
NCP150..RHD..G..C |
1 | ||
| 81170-0D571 |
NCP150..IDN..(D,R)..B |
1 | ||
| 81170-0D741 |
NCP150..IDN..G..B |
1 | ||
| 81195 - SCREW, HEADLAMP | ||||
| 90075-02051 |
NCP150..IDN..(D,R)..B |
4 | ||
| 81510C - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90981-15028 |
NCP150..IDN..B 12V 21W,AMBER |
2 | ||
| 90981-15028 |
NCP15#..C 12V 21W,AMBER |
2 | ||
| 81510C - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90981-15028 |
NCP150..IDN..B 12V 21W,AMBER |
2 | ||
| 90981-15028 |
NCP15#..C 12V 21W,AMBER |
2 | ||
| 81515B - SOCKET, FRONT TURN SIGNAL LAMP | ||||
| 90075-60069 |
NCP150..IDN..B |
2 | ||
| 90075-60069 |
NCP15#..C |
2 | ||
| 81515B - SOCKET, FRONT TURN SIGNAL LAMP | ||||
| 90075-60069 |
NCP150..IDN..B |
2 | ||
| 90075-60069 |
NCP15#..C |
2 | ||
| 81610F - BULB(FOR CLEARANCE LAMP) | ||||
| 90981-11069 |
NCP150..IDN..B 12V 5W |
2 | ||
| 81610F - BULB(FOR CLEARANCE LAMP) | ||||
| 90981-11069 |
NCP150..IDN..B 12V 5W |
2 | ||
| 81615D - SOCKET, CLEARANCE LAMP | ||||
| 90075-60077 |
NCP150..IDN..B |
2 | ||
| 90075-60077 |
NCP15#..C |
2 | ||
| 81615D - SOCKET, CLEARANCE LAMP | ||||
| 90075-60077 |
NCP150..IDN..B |
2 | ||
| 90075-60077 |
NCP15#..C |
2 | ||
| Common parts | ||||
| 90105-T0151 | ||||
| 90159-T0019 | ||||
| 90189-T0007 | ||||
| Linked diagrams | ||||
| 5304 | ||||
(1304-1801)GCC,IDN ; (1304- )MA,PH,TAIW,TH,VN..B,C ; (1308-1709)GEN

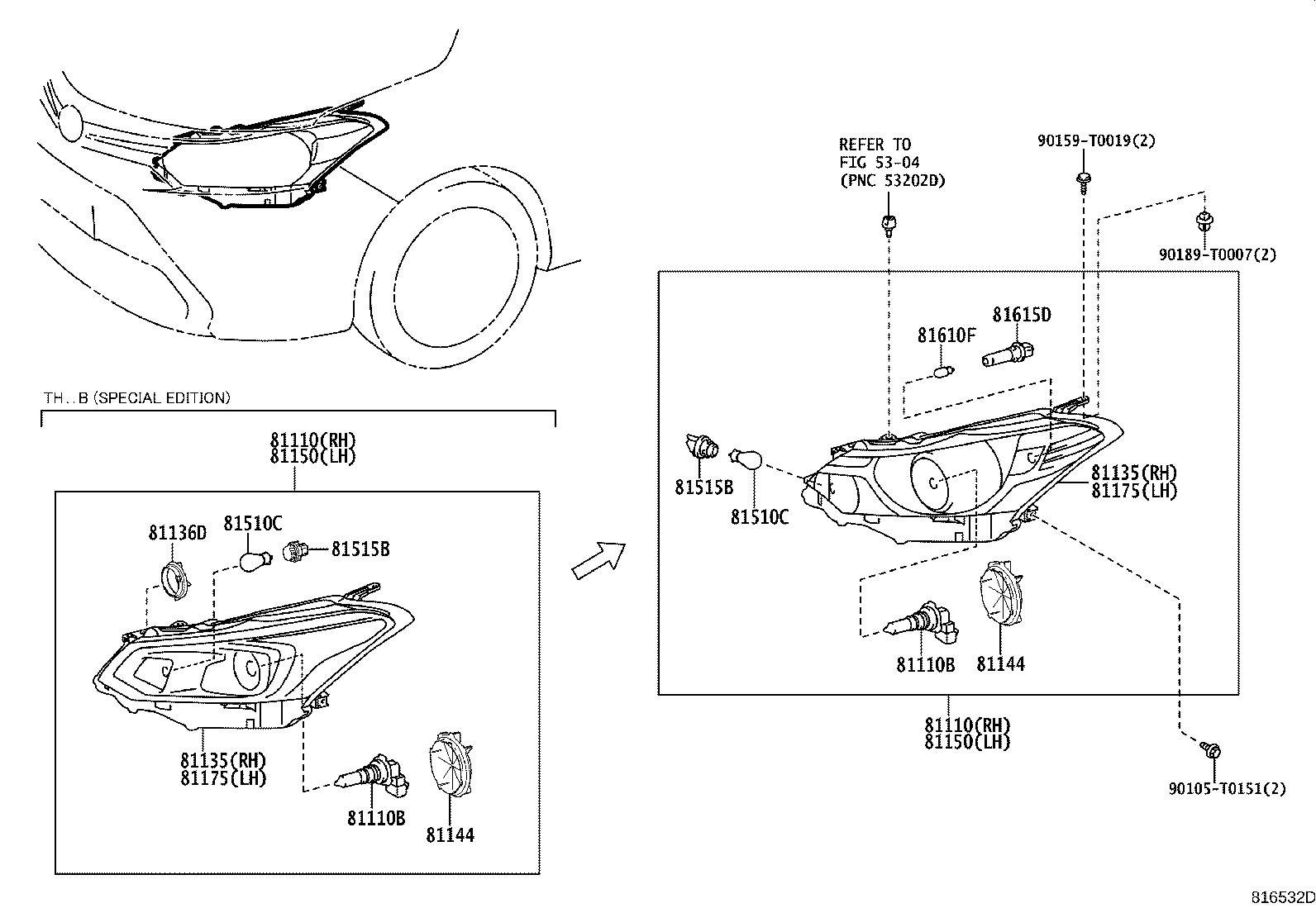

HALOGEN(PROJECTOR TYPE)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-0D740 |
NCP150..(IDN,TH)..G..B |
1 | ||
| 81110-0D570 |
NCP151..RHD;NCP150..(IDN,TH)..(D,R)..B |
1 | ||
| 81110-0D830 |
NCP150..RHD..(D,R)..C |
1 | ||
| 81110-0D850 |
NCP150..RHD..G..C |
1 | ||
| 81110-0D571 |
NCP150..IDN..(D,R)..B |
1 | ||
| 81110-0D741 |
NCP150..IDN..G..B |
1 | ||
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-0D740 |
NCP150..(IDN,TH)..G..B |
1 | ||
| 81110-0D570 |
NCP151..RHD;NCP150..(IDN,TH)..(D,R)..B |
1 | ||
| 81110-0D830 |
NCP150..RHD..(D,R)..C |
1 | ||
| 81110-0D850 |
NCP150..RHD..G..C |
1 | ||
| 81110-0D571 |
NCP150..IDN..(D,R)..B |
1 | ||
| 81110-0D741 |
NCP150..IDN..G..B |
1 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-13058 |
NCP150..D,R 12V 60/55W,HALOGEN |
2 | ||
| 90981-13091 |
NCP150..IDN..G..B 12V 55W,HALOGEN |
2 | ||
| 90981-13100 |
NCP150..IDN..(D,R)..B 12V 60/55W |
2 | ||
| 90981-13058 |
NCP151..C;NCP150..(D,R)..C;NCP150..GCC..G..C 12V 60/55W,HALOGEN |
2 | ||
| 90981-13091 |
NCP150..RHD..G..C 12V 55W,HALOGEN |
2 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-13058 |
NCP150..D,R 12V 60/55W,HALOGEN |
2 | ||
| 90981-13091 |
NCP150..IDN..G..B 12V 55W,HALOGEN |
2 | ||
| 90981-13100 |
NCP150..IDN..(D,R)..B 12V 60/55W |
2 | ||
| 90981-13058 |
NCP151..C;NCP150..(D,R)..C;NCP150..GCC..G..C 12V 60/55W,HALOGEN |
2 | ||
| 90981-13091 |
NCP150..RHD..G..C 12V 55W,HALOGEN |
2 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81130-0D740 |
NCP150..(IDN,TH)..G..B |
1 | ||
| 81130-0D570 |
NCP151..RHD;NCP150..(IDN,TH)..(D,R)..B |
1 | ||
| 81130-0D571 |
NCP150..IDN..(D,R)..B |
1 | ||
| 81130-0D830 |
NCP150..RHD..(D,R)..C |
1 | ||
| 81130-0D850 |
NCP150..RHD..G..C |
1 | ||
| 81130-0D741 |
NCP150..IDN..G..B |
1 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81130-0D740 |
NCP150..(IDN,TH)..G..B |
1 | ||
| 81130-0D570 |
NCP151..RHD;NCP150..(IDN,TH)..(D,R)..B |
1 | ||
| 81130-0D571 |
NCP150..IDN..(D,R)..B |
1 | ||
| 81130-0D830 |
NCP150..RHD..(D,R)..C |
1 | ||
| 81130-0D850 |
NCP150..RHD..G..C |
1 | ||
| 81130-0D741 |
NCP150..IDN..G..B |
1 | ||
| 81144 - COVER, HEADLAMP, NO.1 | ||||
| 90069-81095 |
NCP150..IDN..G..B |
2 | ||
| 90075-65002 |
NCP150..IDN..(D,R)..B |
2 | ||
| 90075-65002 |
NCP151..C;NCP150..(D,R)..C;NCP150..GCC..G..C |
2 | ||
| 81144 - COVER, HEADLAMP, NO.1 | ||||
| 90069-81095 |
NCP150..IDN..G..B |
2 | ||
| 90075-65002 |
NCP150..IDN..(D,R)..B |
2 | ||
| 90075-65002 |
NCP151..C;NCP150..(D,R)..C;NCP150..GCC..G..C |
2 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-0D740 |
NCP150..(IDN,TH)..G..B |
1 | ||
| 81150-0D570 |
NCP151..RHD;NCP150..(IDN,TH)..(D,R)..B |
1 | ||
| 81150-0D850 |
NCP150..RHD..G..C |
1 | ||
| 81150-0D741 |
NCP150..IDN..G..B |
1 | ||
| 81150-0D830 |
NCP150..RHD..(D,R)..C |
1 | ||
| 81150-0D571 |
NCP150..IDN..(D,R)..B |
1 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-0D740 |
NCP150..(IDN,TH)..G..B |
1 | ||
| 81150-0D570 |
NCP151..RHD;NCP150..(IDN,TH)..(D,R)..B |
1 | ||
| 81150-0D850 |
NCP150..RHD..G..C |
1 | ||
| 81150-0D741 |
NCP150..IDN..G..B |
1 | ||
| 81150-0D830 |
NCP150..RHD..(D,R)..C |
1 | ||
| 81150-0D571 |
NCP150..IDN..(D,R)..B |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81170-0D740 |
NCP150..(IDN,TH)..G..B |
1 | ||
| 81170-0D830 |
NCP150..RHD..(D,R)..C |
1 | ||
| 81170-0D570 |
NCP151..RHD;NCP150..(IDN,TH)..(D,R)..B |
1 | ||
| 81170-0D850 |
NCP150..RHD..G..C |
1 | ||
| 81170-0D571 |
NCP150..IDN..(D,R)..B |
1 | ||
| 81170-0D741 |
NCP150..IDN..G..B |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81170-0D740 |
NCP150..(IDN,TH)..G..B |
1 | ||
| 81170-0D830 |
NCP150..RHD..(D,R)..C |
1 | ||
| 81170-0D570 |
NCP151..RHD;NCP150..(IDN,TH)..(D,R)..B |
1 | ||
| 81170-0D850 |
NCP150..RHD..G..C |
1 | ||
| 81170-0D571 |
NCP150..IDN..(D,R)..B |
1 | ||
| 81170-0D741 |
NCP150..IDN..G..B |
1 | ||
| 81510C - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90981-15028 |
NCP150..IDN..B 12V 21W,AMBER |
2 | ||
| 90981-15028 |
NCP15#..C 12V 21W,AMBER |
2 | ||
| 81510C - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90981-15028 |
NCP150..IDN..B 12V 21W,AMBER |
2 | ||
| 90981-15028 |
NCP15#..C 12V 21W,AMBER |
2 | ||
| 81515B - SOCKET, FRONT TURN SIGNAL LAMP | ||||
| 90075-60069 |
NCP150..IDN..B |
2 | ||
| 90075-60069 |
NCP15#..C |
2 | ||
| 81515B - SOCKET, FRONT TURN SIGNAL LAMP | ||||
| 90075-60069 |
NCP150..IDN..B |
2 | ||
| 90075-60069 |
NCP15#..C |
2 | ||
| 81610F - BULB(FOR CLEARANCE LAMP) | ||||
| 90981-11069 |
NCP150..IDN..B 12V 5W |
2 | ||
| 81615D - SOCKET, CLEARANCE LAMP | ||||
| 90075-60077 |
NCP150..IDN..B |
2 | ||
| 90075-60077 |
NCP15#..C |
2 | ||
| Common parts | ||||
| 90105-T0151 | ||||
| 90159-T0019 | ||||
| 90189-T0007 | ||||
| Linked diagrams | ||||
| 5304 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
