NCP150R-BEMGKD (2013)
Toyota Yaris/Vios/Limo
(1304- )

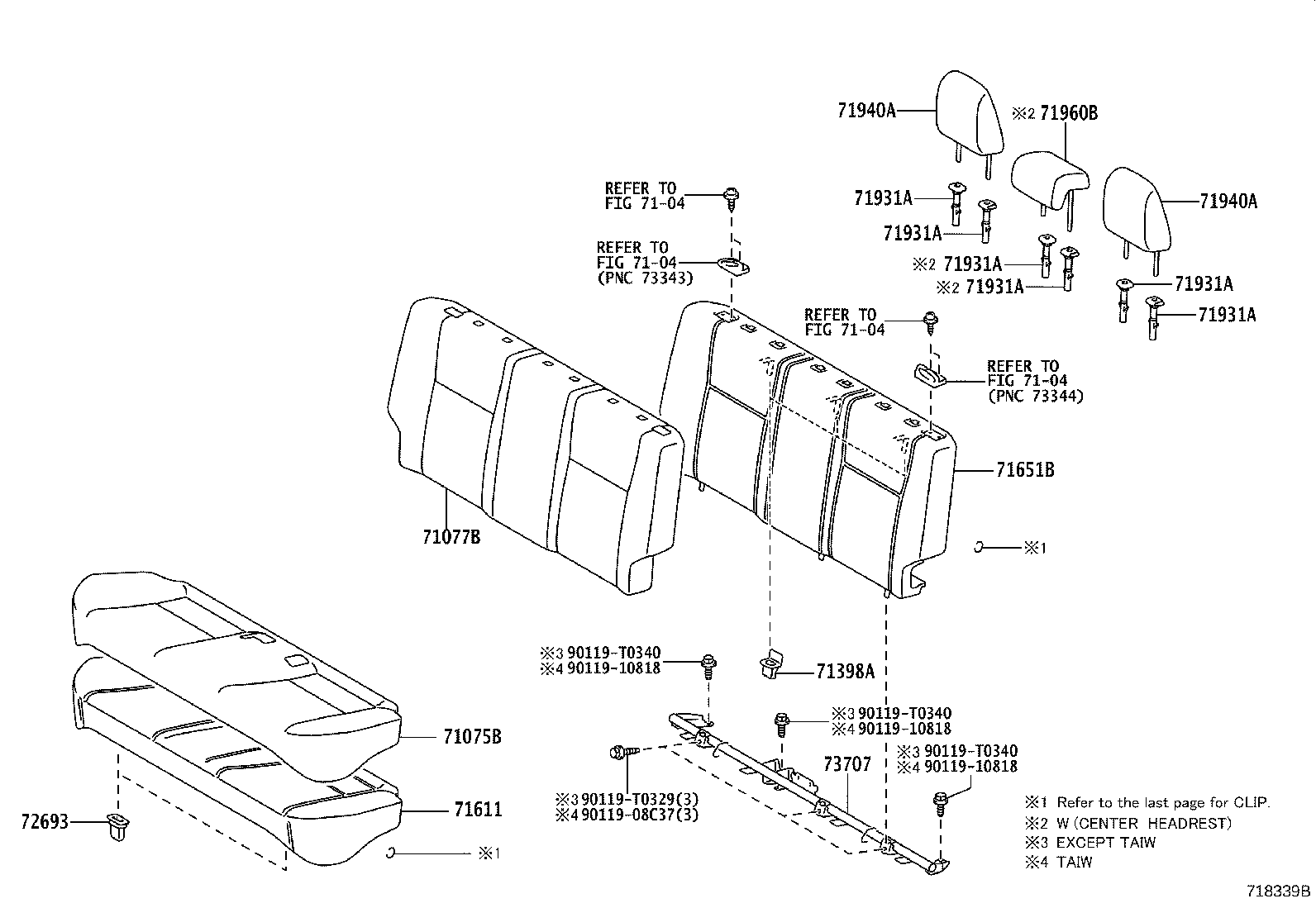

FIXED SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71075-0DC20C0 |
NCP150..IDN..D..B REAR SEAT CENTER HEADREST-WITHOUT,BLACK,TRIM2# |
1 | ||
| 71075-0DF40C0 |
NCP150..IDN..D..B BLACK,TRIM2# |
1 | ||
| 71075-0DF20C0 |
NCP150,NSP151..(IDN,TH)..(G,R)..B BLACK,TRIM2# |
1 | ||
| 71075-0DF20A0 |
NCP150,NSP151..(IDN,TH)..(G,R)..B IVORY,TRIM0# |
1 | ||
| 71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE) | ||||
| 71077-0DG00C1 |
NCP150..IDN..D..B REAR SEAT CENTER HEADREST-WITHOUT,BLACK,TRIM2# |
1 | ||
| 71077-0DM60C1 |
NCP150..IDN..D..B BLACK,TRIM2# |
1 | ||
| 71077-0DF40A1 |
NCP150..IDN..R..B;NCP150,NSP151..TH..(G,R)..B IVORY,TRIM0# |
1 | ||
| 71077-0DF40C1 |
NCP150..IDN..R..B;NCP150,NSP151..TH..(G,R)..B BLACK,TRIM2# |
1 | ||
| 71398A - HOLDER, REAR SEAT BACK | ||||
| 71398-02040 |
NCP15#..(D,R)..C |
3 | ||
| 71398-02040 |
NCP150..IDN..(D,R)..B |
3 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71503-0D270 |
NCP15#,NSP150,151..(GCC,GEN,IDN,TH)..B |
1 | ||
| 71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE) | ||||
| 71651-0D410 |
NCP150..IDN..D..B REAR SEAT CENTER HEADREST-WITHOUT |
1 | ||
| 71651-0D600 |
NCP150,NSP151..TH..B;NCP150..IDN..(D,R)..B |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-02130C0 |
NCP150..IDN..D..B W/O(LOCK),REAR SEAT CENTER HEADREST-WITHOUT,BLACK,TRIM2# |
2 | ||
| 71930-02370C0 |
NCP150..IDN..D..B W(LOCK)&W(BUTTON),REAR SEAT CENTER HEADREST-WITHOUT,BLACK,TRIM2# |
2 | ||
| 71931-02130A2 |
NCP151..GCC;NCP150..TH..D..B;NSP150,151..GCC..C;NCP150,NSP151..VN..R..B;NCP150..(GCC,IDN,PH,TH)..(G,R);NSP151..(IDN,TH)..(G,R)..(B,C) W/O(LOCK),IVORY,TRIM0# |
3 | ||
| 71930-02370A2 |
NCP151..GCC;NCP150..TH..D..B;NSP150,151..GCC..C;NCP150,NSP151..VN..R..B;NCP150..(GCC,IDN,PH,TH)..(G,R);NSP151..(IDN,TH)..(G,R)..(B,C) W(LOCK)&W(BUTTON),IVORY,TRIM0# |
3 | ||
| 71930-02370C0 |
NSP151..IDN..D;NCP151..GCC,PH,VN;NSP150..(PH,VN)..B;NSP150,151..GCC..C;NCP150..GCC,IDN,TH,VN;NSP151..(PH,TH)..(B,C) W(LOCK)&W(BUTTON),BLACK,TRIM2# |
3 | ||
| 71931-02130C0 |
NSP151..IDN..D;NCP151..GCC,PH,VN;NSP150..(PH,VN)..B;NSP150,151..GCC..C;NCP150..GCC,IDN,TH,VN;NSP151..(PH,TH)..(B,C) W/O(LOCK),BLACK,TRIM2# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-02130C0 |
NCP150..IDN..D..B W/O(LOCK),REAR SEAT CENTER HEADREST-WITHOUT,BLACK,TRIM2# |
2 | ||
| 71930-02370C0 |
NCP150..IDN..D..B W(LOCK)&W(BUTTON),REAR SEAT CENTER HEADREST-WITHOUT,BLACK,TRIM2# |
2 | ||
| 71931-02130A2 |
NCP151..GCC;NCP150..TH..D..B;NSP150,151..GCC..C;NCP150,NSP151..VN..R..B;NCP150..(GCC,IDN,PH,TH)..(G,R);NSP151..(IDN,TH)..(G,R)..(B,C) W/O(LOCK),IVORY,TRIM0# |
3 | ||
| 71930-02370A2 |
NCP151..GCC;NCP150..TH..D..B;NSP150,151..GCC..C;NCP150,NSP151..VN..R..B;NCP150..(GCC,IDN,PH,TH)..(G,R);NSP151..(IDN,TH)..(G,R)..(B,C) W(LOCK)&W(BUTTON),IVORY,TRIM0# |
3 | ||
| 71930-02370C0 |
NSP151..IDN..D;NCP151..GCC,PH,VN;NSP150..(PH,VN)..B;NSP150,151..GCC..C;NCP150..GCC,IDN,TH,VN;NSP151..(PH,TH)..(B,C) W(LOCK)&W(BUTTON),BLACK,TRIM2# |
3 | ||
| 71931-02130C0 |
NSP151..IDN..D;NCP151..GCC,PH,VN;NSP150..(PH,VN)..B;NSP150,151..GCC..C;NCP150..GCC,IDN,TH,VN;NSP151..(PH,TH)..(B,C) W/O(LOCK),BLACK,TRIM2# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-02130C0 |
NCP150..IDN..D..B W/O(LOCK),REAR SEAT CENTER HEADREST-WITHOUT,BLACK,TRIM2# |
2 | ||
| 71930-02370C0 |
NCP150..IDN..D..B W(LOCK)&W(BUTTON),REAR SEAT CENTER HEADREST-WITHOUT,BLACK,TRIM2# |
2 | ||
| 71931-02130A2 |
NCP151..GCC;NCP150..TH..D..B;NSP150,151..GCC..C;NCP150,NSP151..VN..R..B;NCP150..(GCC,IDN,PH,TH)..(G,R);NSP151..(IDN,TH)..(G,R)..(B,C) W/O(LOCK),IVORY,TRIM0# |
3 | ||
| 71930-02370A2 |
NCP151..GCC;NCP150..TH..D..B;NSP150,151..GCC..C;NCP150,NSP151..VN..R..B;NCP150..(GCC,IDN,PH,TH)..(G,R);NSP151..(IDN,TH)..(G,R)..(B,C) W(LOCK)&W(BUTTON),IVORY,TRIM0# |
3 | ||
| 71930-02370C0 |
NSP151..IDN..D;NCP151..GCC,PH,VN;NSP150..(PH,VN)..B;NSP150,151..GCC..C;NCP150..GCC,IDN,TH,VN;NSP151..(PH,TH)..(B,C) W(LOCK)&W(BUTTON),BLACK,TRIM2# |
3 | ||
| 71931-02130C0 |
NSP151..IDN..D;NCP151..GCC,PH,VN;NSP150..(PH,VN)..B;NSP150,151..GCC..C;NCP150..GCC,IDN,TH,VN;NSP151..(PH,TH)..(B,C) W/O(LOCK),BLACK,TRIM2# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-02130C0 |
NCP150..IDN..D..B W/O(LOCK),REAR SEAT CENTER HEADREST-WITHOUT,BLACK,TRIM2# |
2 | ||
| 71930-02370C0 |
NCP150..IDN..D..B W(LOCK)&W(BUTTON),REAR SEAT CENTER HEADREST-WITHOUT,BLACK,TRIM2# |
2 | ||
| 71931-02130A2 |
NCP151..GCC;NCP150..TH..D..B;NSP150,151..GCC..C;NCP150,NSP151..VN..R..B;NCP150..(GCC,IDN,PH,TH)..(G,R);NSP151..(IDN,TH)..(G,R)..(B,C) W/O(LOCK),IVORY,TRIM0# |
3 | ||
| 71930-02370A2 |
NCP151..GCC;NCP150..TH..D..B;NSP150,151..GCC..C;NCP150,NSP151..VN..R..B;NCP150..(GCC,IDN,PH,TH)..(G,R);NSP151..(IDN,TH)..(G,R)..(B,C) W(LOCK)&W(BUTTON),IVORY,TRIM0# |
3 | ||
| 71930-02370C0 |
NSP151..IDN..D;NCP151..GCC,PH,VN;NSP150..(PH,VN)..B;NSP150,151..GCC..C;NCP150..GCC,IDN,TH,VN;NSP151..(PH,TH)..(B,C) W(LOCK)&W(BUTTON),BLACK,TRIM2# |
3 | ||
| 71931-02130C0 |
NSP151..IDN..D;NCP151..GCC,PH,VN;NSP150..(PH,VN)..B;NSP150,151..GCC..C;NCP150..GCC,IDN,TH,VN;NSP151..(PH,TH)..(B,C) W/O(LOCK),BLACK,TRIM2# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-02130C0 |
NCP150..IDN..D..B W/O(LOCK),REAR SEAT CENTER HEADREST-WITHOUT,BLACK,TRIM2# |
2 | ||
| 71930-02370C0 |
NCP150..IDN..D..B W(LOCK)&W(BUTTON),REAR SEAT CENTER HEADREST-WITHOUT,BLACK,TRIM2# |
2 | ||
| 71931-02130A2 |
NCP151..GCC;NCP150..TH..D..B;NSP150,151..GCC..C;NCP150,NSP151..VN..R..B;NCP150..(GCC,IDN,PH,TH)..(G,R);NSP151..(IDN,TH)..(G,R)..(B,C) W/O(LOCK),IVORY,TRIM0# |
3 | ||
| 71930-02370A2 |
NCP151..GCC;NCP150..TH..D..B;NSP150,151..GCC..C;NCP150,NSP151..VN..R..B;NCP150..(GCC,IDN,PH,TH)..(G,R);NSP151..(IDN,TH)..(G,R)..(B,C) W(LOCK)&W(BUTTON),IVORY,TRIM0# |
3 | ||
| 71930-02370C0 |
NSP151..IDN..D;NCP151..GCC,PH,VN;NSP150..(PH,VN)..B;NSP150,151..GCC..C;NCP150..GCC,IDN,TH,VN;NSP151..(PH,TH)..(B,C) W(LOCK)&W(BUTTON),BLACK,TRIM2# |
3 | ||
| 71931-02130C0 |
NSP151..IDN..D;NCP151..GCC,PH,VN;NSP150..(PH,VN)..B;NSP150,151..GCC..C;NCP150..GCC,IDN,TH,VN;NSP151..(PH,TH)..(B,C) W/O(LOCK),BLACK,TRIM2# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-02130C0 |
NCP150..IDN..D..B W/O(LOCK),REAR SEAT CENTER HEADREST-WITHOUT,BLACK,TRIM2# |
2 | ||
| 71930-02370C0 |
NCP150..IDN..D..B W(LOCK)&W(BUTTON),REAR SEAT CENTER HEADREST-WITHOUT,BLACK,TRIM2# |
2 | ||
| 71931-02130A2 |
NCP151..GCC;NCP150..TH..D..B;NSP150,151..GCC..C;NCP150,NSP151..VN..R..B;NCP150..(GCC,IDN,PH,TH)..(G,R);NSP151..(IDN,TH)..(G,R)..(B,C) W/O(LOCK),IVORY,TRIM0# |
3 | ||
| 71930-02370A2 |
NCP151..GCC;NCP150..TH..D..B;NSP150,151..GCC..C;NCP150,NSP151..VN..R..B;NCP150..(GCC,IDN,PH,TH)..(G,R);NSP151..(IDN,TH)..(G,R)..(B,C) W(LOCK)&W(BUTTON),IVORY,TRIM0# |
3 | ||
| 71930-02370C0 |
NSP151..IDN..D;NCP151..GCC,PH,VN;NSP150..(PH,VN)..B;NSP150,151..GCC..C;NCP150..GCC,IDN,TH,VN;NSP151..(PH,TH)..(B,C) W(LOCK)&W(BUTTON),BLACK,TRIM2# |
3 | ||
| 71931-02130C0 |
NSP151..IDN..D;NCP151..GCC,PH,VN;NSP150..(PH,VN)..B;NSP150,151..GCC..C;NCP150..GCC,IDN,TH,VN;NSP151..(PH,TH)..(B,C) W/O(LOCK),BLACK,TRIM2# |
3 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-0D850C0 |
NCP150..IDN..D..B BLACK,TRIM2# |
2 | ||
| 71940-0D750A1 |
NSP150..GEN..B;NCP151..(GCC,GEN)..B;NCP150,NSP151..GEN..D..B;NSP151..(GEN,TH)..(G,R)..B;NCP150..(GCC,GEN,IDN,TH)..(G,R)..B IVORY/IVORY,TRIM0# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-0D850C0 |
NCP150..IDN..D..B BLACK,TRIM2# |
2 | ||
| 71940-0D750A1 |
NSP150..GEN..B;NCP151..(GCC,GEN)..B;NCP150,NSP151..GEN..D..B;NSP151..(GEN,TH)..(G,R)..B;NCP150..(GCC,GEN,IDN,TH)..(G,R)..B IVORY/IVORY,TRIM0# |
2 | ||
| 71960B - HEADREST ASSY, REAR SEAT, CENTER | ||||
| 71960-0D490C1 |
NCP150..IDN..D..B BLACK,TRIM2# |
1 | ||
| 71960-0D240A2 |
NCP15#,NSP150,151..(GCC,IDN)..G..B IVORY/IVORY,TRIM0# |
1 | ||
| 71960-0D220A2 |
NCP151..GCC..(D,R)..B;NCP150..(GCC,IDN)..R..B;NCP150,NSP151..TH..(G,R)..B IVORY/IVORY,TRIM0# |
1 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-12080 |
NCP150..IDN..B |
2 | ||
| 72693-12080 |
NCP150..IDN..D..C REAR SEAT CENTER HEADREST-WITHOUT |
2 | ||
| 72693-12080 |
NCP151..C;NCP150..G..C;NCP150..GCC..R..C |
2 | ||
| 73707 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, INNER | ||||
| 73705-0D180 |
NCP150..IDN..D..B REAR SEAT CENTER HEADREST-WITHOUT |
1 | ||
| 73705-0D360 |
NCP150..IDN..(D,R)..B |
1 | ||
| 73705-0D370 |
NCP150..IDN..G..B |
1 | ||
| Common parts | ||||
| 90119-08C37 | ||||
| 90119-10818 | ||||
| 90119-T0329 | ||||
| 90119-T0340 | ||||
| Linked diagrams | ||||
| 7104 | ||||
(1304- )
FOLDING SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 66990 - HOLDER ASSY, CUP | ||||
| 66991-0D040A0 |
NCP150..IDN..G..B IVORY,TRIM0# |
1 | ||
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-0D380 |
NCP150..IDN..G..B |
1 | ||
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-0D310 |
NCP150..IDN..G..B |
1 | ||
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71075-0DC20C0 |
NCP150..IDN..D..B REAR SEAT CENTER HEADREST-WITHOUT,BLACK,TRIM2# |
1 | ||
| 71075-0DF40C0 |
NCP150..IDN..D..B BLACK,TRIM2# |
1 | ||
| 71075-0DF20C0 |
NCP150,NSP151..(IDN,TH)..(G,R)..B BLACK,TRIM2# |
1 | ||
| 71075-0DF20A0 |
NCP150,NSP151..(IDN,TH)..(G,R)..B IVORY,TRIM0# |
1 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-0DM40C3 |
NCP150..IDN..G..B IVORY,TRIM0# |
1 | ||
| 71077-0DM40C2 |
NCP150..IDN..G..B BLACK,TRIM2# |
1 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-0DA30C2 |
NCP150..IDN..G..B BLACK,TRIM2# |
1 | ||
| 71078-0DA30C3 |
NCP150..IDN..G..B IVORY,TRIM0# |
1 | ||
| 71480A - CLIP (FOR REAR SEAT BACK) | ||||
| 90467-08186C0 |
NCP150..IDN..G..B BLACK |
2 | ||
| 90467-08186C0 |
NCP15#..G..C BLACK |
2 | ||
| 71480A - CLIP (FOR REAR SEAT BACK) | ||||
| 90467-08186C0 |
NCP150..IDN..G..B BLACK |
2 | ||
| 90467-08186C0 |
NCP15#..G..C BLACK |
2 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71503-0D270 |
NCP15#,NSP150,151..(GCC,GEN,IDN,TH)..B |
1 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71651-0D360 |
NCP150..GEN..R;NCP150..(GCC,GEN,IDN)..G..B;NCP151,NSP150,151..GCC..G..B;NCP151,NSP150,151..GEN..(G,R)..B |
1 | ||
| 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71652-0D350 |
NCP150..IDN..G..B |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-02130C0 |
NCP150..IDN..D..B W/O(LOCK),REAR SEAT CENTER HEADREST-WITHOUT,BLACK,TRIM2# |
2 | ||
| 71930-02370C0 |
NCP150..IDN..D..B W(LOCK)&W(BUTTON),REAR SEAT CENTER HEADREST-WITHOUT,BLACK,TRIM2# |
2 | ||
| 71931-02130A2 |
NCP151..GCC;NCP150..TH..D..B;NSP150,151..GCC..C;NCP150,NSP151..VN..R..B;NCP150..(GCC,IDN,PH,TH)..(G,R);NSP151..(IDN,TH)..(G,R)..(B,C) W/O(LOCK),IVORY,TRIM0# |
3 | ||
| 71930-02370A2 |
NCP151..GCC;NCP150..TH..D..B;NSP150,151..GCC..C;NCP150,NSP151..VN..R..B;NCP150..(GCC,IDN,PH,TH)..(G,R);NSP151..(IDN,TH)..(G,R)..(B,C) W(LOCK)&W(BUTTON),IVORY,TRIM0# |
3 | ||
| 71930-02370C0 |
NSP151..IDN..D;NCP151..GCC,PH,VN;NSP150..(PH,VN)..B;NSP150,151..GCC..C;NCP150..GCC,IDN,TH,VN;NSP151..(PH,TH)..(B,C) W(LOCK)&W(BUTTON),BLACK,TRIM2# |
3 | ||
| 71931-02130C0 |
NSP151..IDN..D;NCP151..GCC,PH,VN;NSP150..(PH,VN)..B;NSP150,151..GCC..C;NCP150..GCC,IDN,TH,VN;NSP151..(PH,TH)..(B,C) W/O(LOCK),BLACK,TRIM2# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-02130C0 |
NCP150..IDN..D..B W/O(LOCK),REAR SEAT CENTER HEADREST-WITHOUT,BLACK,TRIM2# |
2 | ||
| 71930-02370C0 |
NCP150..IDN..D..B W(LOCK)&W(BUTTON),REAR SEAT CENTER HEADREST-WITHOUT,BLACK,TRIM2# |
2 | ||
| 71931-02130A2 |
NCP151..GCC;NCP150..TH..D..B;NSP150,151..GCC..C;NCP150,NSP151..VN..R..B;NCP150..(GCC,IDN,PH,TH)..(G,R);NSP151..(IDN,TH)..(G,R)..(B,C) W/O(LOCK),IVORY,TRIM0# |
3 | ||
| 71930-02370A2 |
NCP151..GCC;NCP150..TH..D..B;NSP150,151..GCC..C;NCP150,NSP151..VN..R..B;NCP150..(GCC,IDN,PH,TH)..(G,R);NSP151..(IDN,TH)..(G,R)..(B,C) W(LOCK)&W(BUTTON),IVORY,TRIM0# |
3 | ||
| 71930-02370C0 |
NSP151..IDN..D;NCP151..GCC,PH,VN;NSP150..(PH,VN)..B;NSP150,151..GCC..C;NCP150..GCC,IDN,TH,VN;NSP151..(PH,TH)..(B,C) W(LOCK)&W(BUTTON),BLACK,TRIM2# |
3 | ||
| 71931-02130C0 |
NSP151..IDN..D;NCP151..GCC,PH,VN;NSP150..(PH,VN)..B;NSP150,151..GCC..C;NCP150..GCC,IDN,TH,VN;NSP151..(PH,TH)..(B,C) W/O(LOCK),BLACK,TRIM2# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-02130C0 |
NCP150..IDN..D..B W/O(LOCK),REAR SEAT CENTER HEADREST-WITHOUT,BLACK,TRIM2# |
2 | ||
| 71930-02370C0 |
NCP150..IDN..D..B W(LOCK)&W(BUTTON),REAR SEAT CENTER HEADREST-WITHOUT,BLACK,TRIM2# |
2 | ||
| 71931-02130A2 |
NCP151..GCC;NCP150..TH..D..B;NSP150,151..GCC..C;NCP150,NSP151..VN..R..B;NCP150..(GCC,IDN,PH,TH)..(G,R);NSP151..(IDN,TH)..(G,R)..(B,C) W/O(LOCK),IVORY,TRIM0# |
3 | ||
| 71930-02370A2 |
NCP151..GCC;NCP150..TH..D..B;NSP150,151..GCC..C;NCP150,NSP151..VN..R..B;NCP150..(GCC,IDN,PH,TH)..(G,R);NSP151..(IDN,TH)..(G,R)..(B,C) W(LOCK)&W(BUTTON),IVORY,TRIM0# |
3 | ||
| 71930-02370C0 |
NSP151..IDN..D;NCP151..GCC,PH,VN;NSP150..(PH,VN)..B;NSP150,151..GCC..C;NCP150..GCC,IDN,TH,VN;NSP151..(PH,TH)..(B,C) W(LOCK)&W(BUTTON),BLACK,TRIM2# |
3 | ||
| 71931-02130C0 |
NSP151..IDN..D;NCP151..GCC,PH,VN;NSP150..(PH,VN)..B;NSP150,151..GCC..C;NCP150..GCC,IDN,TH,VN;NSP151..(PH,TH)..(B,C) W/O(LOCK),BLACK,TRIM2# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-02130C0 |
NCP150..IDN..D..B W/O(LOCK),REAR SEAT CENTER HEADREST-WITHOUT,BLACK,TRIM2# |
2 | ||
| 71930-02370C0 |
NCP150..IDN..D..B W(LOCK)&W(BUTTON),REAR SEAT CENTER HEADREST-WITHOUT,BLACK,TRIM2# |
2 | ||
| 71931-02130A2 |
NCP151..GCC;NCP150..TH..D..B;NSP150,151..GCC..C;NCP150,NSP151..VN..R..B;NCP150..(GCC,IDN,PH,TH)..(G,R);NSP151..(IDN,TH)..(G,R)..(B,C) W/O(LOCK),IVORY,TRIM0# |
3 | ||
| 71930-02370A2 |
NCP151..GCC;NCP150..TH..D..B;NSP150,151..GCC..C;NCP150,NSP151..VN..R..B;NCP150..(GCC,IDN,PH,TH)..(G,R);NSP151..(IDN,TH)..(G,R)..(B,C) W(LOCK)&W(BUTTON),IVORY,TRIM0# |
3 | ||
| 71930-02370C0 |
NSP151..IDN..D;NCP151..GCC,PH,VN;NSP150..(PH,VN)..B;NSP150,151..GCC..C;NCP150..GCC,IDN,TH,VN;NSP151..(PH,TH)..(B,C) W(LOCK)&W(BUTTON),BLACK,TRIM2# |
3 | ||
| 71931-02130C0 |
NSP151..IDN..D;NCP151..GCC,PH,VN;NSP150..(PH,VN)..B;NSP150,151..GCC..C;NCP150..GCC,IDN,TH,VN;NSP151..(PH,TH)..(B,C) W/O(LOCK),BLACK,TRIM2# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-02130C0 |
NCP150..IDN..D..B W/O(LOCK),REAR SEAT CENTER HEADREST-WITHOUT,BLACK,TRIM2# |
2 | ||
| 71930-02370C0 |
NCP150..IDN..D..B W(LOCK)&W(BUTTON),REAR SEAT CENTER HEADREST-WITHOUT,BLACK,TRIM2# |
2 | ||
| 71931-02130A2 |
NCP151..GCC;NCP150..TH..D..B;NSP150,151..GCC..C;NCP150,NSP151..VN..R..B;NCP150..(GCC,IDN,PH,TH)..(G,R);NSP151..(IDN,TH)..(G,R)..(B,C) W/O(LOCK),IVORY,TRIM0# |
3 | ||
| 71930-02370A2 |
NCP151..GCC;NCP150..TH..D..B;NSP150,151..GCC..C;NCP150,NSP151..VN..R..B;NCP150..(GCC,IDN,PH,TH)..(G,R);NSP151..(IDN,TH)..(G,R)..(B,C) W(LOCK)&W(BUTTON),IVORY,TRIM0# |
3 | ||
| 71930-02370C0 |
NSP151..IDN..D;NCP151..GCC,PH,VN;NSP150..(PH,VN)..B;NSP150,151..GCC..C;NCP150..GCC,IDN,TH,VN;NSP151..(PH,TH)..(B,C) W(LOCK)&W(BUTTON),BLACK,TRIM2# |
3 | ||
| 71931-02130C0 |
NSP151..IDN..D;NCP151..GCC,PH,VN;NSP150..(PH,VN)..B;NSP150,151..GCC..C;NCP150..GCC,IDN,TH,VN;NSP151..(PH,TH)..(B,C) W/O(LOCK),BLACK,TRIM2# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-02130C0 |
NCP150..IDN..D..B W/O(LOCK),REAR SEAT CENTER HEADREST-WITHOUT,BLACK,TRIM2# |
2 | ||
| 71930-02370C0 |
NCP150..IDN..D..B W(LOCK)&W(BUTTON),REAR SEAT CENTER HEADREST-WITHOUT,BLACK,TRIM2# |
2 | ||
| 71931-02130A2 |
NCP151..GCC;NCP150..TH..D..B;NSP150,151..GCC..C;NCP150,NSP151..VN..R..B;NCP150..(GCC,IDN,PH,TH)..(G,R);NSP151..(IDN,TH)..(G,R)..(B,C) W/O(LOCK),IVORY,TRIM0# |
3 | ||
| 71930-02370A2 |
NCP151..GCC;NCP150..TH..D..B;NSP150,151..GCC..C;NCP150,NSP151..VN..R..B;NCP150..(GCC,IDN,PH,TH)..(G,R);NSP151..(IDN,TH)..(G,R)..(B,C) W(LOCK)&W(BUTTON),IVORY,TRIM0# |
3 | ||
| 71930-02370C0 |
NSP151..IDN..D;NCP151..GCC,PH,VN;NSP150..(PH,VN)..B;NSP150,151..GCC..C;NCP150..GCC,IDN,TH,VN;NSP151..(PH,TH)..(B,C) W(LOCK)&W(BUTTON),BLACK,TRIM2# |
3 | ||
| 71931-02130C0 |
NSP151..IDN..D;NCP151..GCC,PH,VN;NSP150..(PH,VN)..B;NSP150,151..GCC..C;NCP150..GCC,IDN,TH,VN;NSP151..(PH,TH)..(B,C) W/O(LOCK),BLACK,TRIM2# |
3 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-0D850C0 |
NCP150..IDN..D..B BLACK,TRIM2# |
2 | ||
| 71940-0D750A1 |
NSP150..GEN..B;NCP151..(GCC,GEN)..B;NCP150,NSP151..GEN..D..B;NSP151..(GEN,TH)..(G,R)..B;NCP150..(GCC,GEN,IDN,TH)..(G,R)..B IVORY/IVORY,TRIM0# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-0D850C0 |
NCP150..IDN..D..B BLACK,TRIM2# |
2 | ||
| 71940-0D750A1 |
NSP150..GEN..B;NCP151..(GCC,GEN)..B;NCP150,NSP151..GEN..D..B;NSP151..(GEN,TH)..(G,R)..B;NCP150..(GCC,GEN,IDN,TH)..(G,R)..B IVORY/IVORY,TRIM0# |
2 | ||
| 71960B - HEADREST ASSY, REAR SEAT, CENTER | ||||
| 71960-0D490C1 |
NCP150..IDN..D..B BLACK,TRIM2# |
1 | ||
| 71960-0D240A2 |
NCP15#,NSP150,151..(GCC,IDN)..G..B IVORY/IVORY,TRIM0# |
1 | ||
| 71960-0D220A2 |
NCP151..GCC..(D,R)..B;NCP150..(GCC,IDN)..R..B;NCP150,NSP151..TH..(G,R)..B IVORY/IVORY,TRIM0# |
1 | ||
| 72603 - LOCK SUB-ASSY, REAR SEAT BACK, RH | ||||
| 72630-0D080 |
NCP15#..G..C |
1 | ||
| 72630-0D080 |
NCP150..IDN..G..B |
1 | ||
| 72604 - LOCK SUB-ASSY, REAR SEAT BACK, LH | ||||
| 72640-0D080 |
NCP150..IDN..G..B |
1 | ||
| 72640-0D080 |
NCP15#..G..C |
1 | ||
| 72641 - PIN, REAR SEAT BACK LOCK | ||||
| 72641-0D120 |
NCP150..IDN..G..B |
2 | ||
| 72641 - PIN, REAR SEAT BACK LOCK | ||||
| 72641-0D120 |
NCP150..IDN..G..B |
2 | ||
| 72651D - ROD, REAR SEAT BACK LOCK, RH | ||||
| 72651-0D070A0 |
NCP150..IDN..G..B IVORY,TRIM0# |
1 | ||
| 72651-0D070C0 |
NCP150..IDN..G..B BLACK,TRIM2# |
1 | ||
| 72651-0D070A0 |
NCP15#..G..C IVORY,TRIM0# |
1 | ||
| 72651-0D070C0 |
NCP15#..G..C BLACK,TRIM2# |
1 | ||
| 72651E - ROD, REAR SEAT BACK LOCK, LH | ||||
| 72652-0D070A0 |
NCP150..IDN..G..B IVORY,TRIM0# |
1 | ||
| 72652-0D070C0 |
NCP150..IDN..G..B BLACK,TRIM2# |
1 | ||
| 72652-0D070A0 |
NCP15#..G..C IVORY,TRIM0# |
1 | ||
| 72652-0D070C0 |
NCP15#..G..C BLACK,TRIM2# |
1 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-12080 |
NCP150..IDN..B |
2 | ||
| 72693-12080 |
NCP150..IDN..D..C REAR SEAT CENTER HEADREST-WITHOUT |
2 | ||
| 72693-12080 |
NCP151..C;NCP150..G..C;NCP150..GCC..R..C |
2 | ||
| 72830 - ARMREST ASSY, REAR SEAT, CENTER | ||||
| 72830-0D070A0 |
NCP150..IDN..G..B IVORY,TRIM0# |
1 | ||
| 72830-0D070C0 |
NCP150..IDN..G..B BLACK,TRIM2# |
1 | ||
| 72831B - PLATE, REAR SEAT CENTER ARMREST, NO.1 | ||||
| 72831-47010 |
NCP150..IDN..G..B |
1 | ||
| 72831-47010 |
NCP15#..G..C |
1 | ||
| 72868B - COVER, CENTER ARMREST HINGE | ||||
| 72868-0D040A0 |
NCP150..IDN..G..B IVORY,TRIM0# |
1 | ||
| 73528 - CARPET, REAR SEAT SUB FLOOR, REAR | ||||
| 73528-0D020 |
NCP150..IDN..G..B |
1 | ||
| 73707 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, INNER | ||||
| 73705-0D180 |
NCP150..IDN..D..B REAR SEAT CENTER HEADREST-WITHOUT |
1 | ||
| 73705-0D360 |
NCP150..IDN..(D,R)..B |
1 | ||
| 73705-0D370 |
NCP150..IDN..G..B |
1 | ||
| Common parts | ||||
| 90105-T0175 | ||||
| 90109-08163 | ||||
| 90119-10818 | ||||
| 90119-T0340 | ||||
| 90119-T0458 | ||||
| 90206-10016 | ||||
| 90386-10033 | ||||
| 91553-10818 | ||||
| 91645-80825 | ||||
| Linked diagrams | ||||
| 7104 | ||||
(1304- )
CLIP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 71149-30050 | ||||
| 90468-16019 | ||||
| 90468-18008 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
