NCP150R-BEMGKD (2013)
Toyota Yaris/Vios/Limo
(1304-1609)NCP15# ; (1601-1801)NSP150,151..C ; (1604-1812)NSP150,151..GCC,GEN,MA,PH

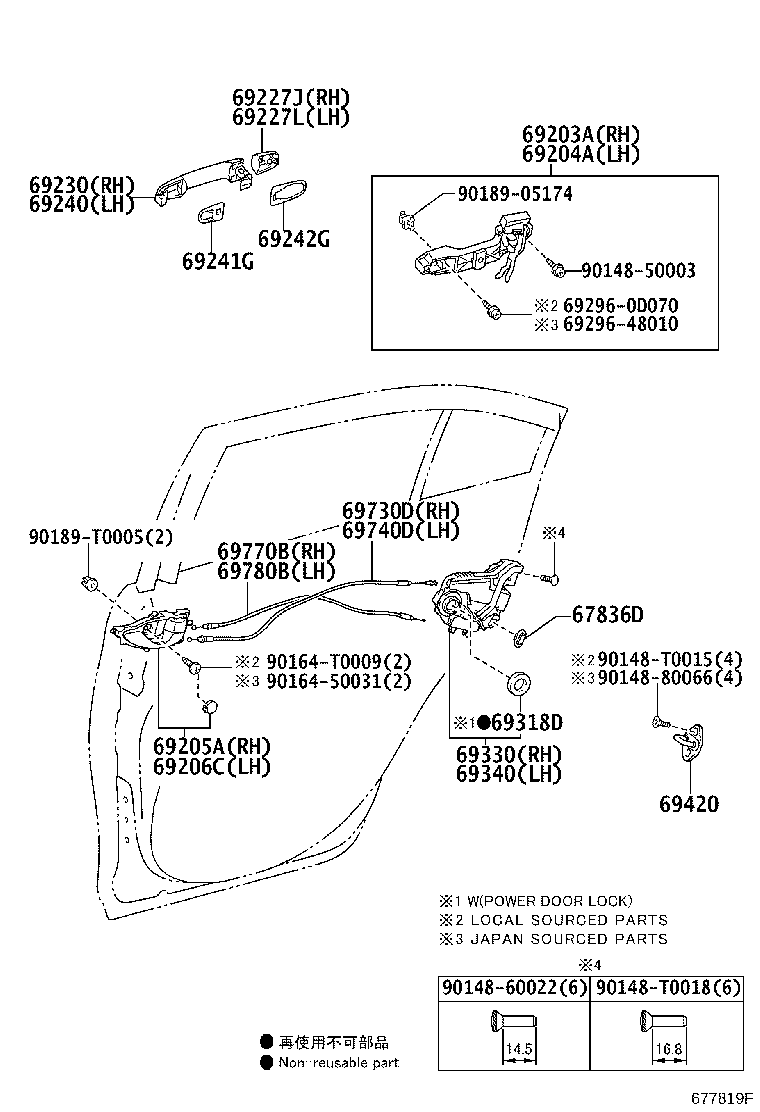

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67836D - COVER, REAR DOOR LOCK CHILD PROTECTION | ||||
| 67836-02030 |
NCP150..IDN..B |
2 | ||
| 67836-02030 |
NCP15#..C |
2 | ||
| 69203A - FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH | ||||
| 69203-0D120 |
NCP150..IDN..B |
1 | ||
| 69204A - FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH | ||||
| 69204-0D120 |
NCP150..IDN..B |
1 | ||
| 69205A - HANDLE SUB-ASSY, REAR DOOR INSIDE, RH | ||||
| 69205-0D330C0 |
NCP150..IDN..(D,R)..B BLACK,TRIM2# |
1 | ||
| 69205-0D330A0 |
NCP150..IDN..R..B IVORY,TRIM0# |
1 | ||
| 69205-0D340C0 |
NCP150..IDN..G..B BLACK,TRIM2# |
1 | ||
| 69205-0D340A0 |
NCP150..IDN..G..B IVORY,TRIM0# |
1 | ||
| 69206C - HANDLE SUB-ASSY, REAR DOOR INSIDE, LH | ||||
| 69206-0D340C0 |
NCP150..IDN..G..B BLACK,TRIM2# |
1 | ||
| 69206-0D340A0 |
NCP150..IDN..G..B IVORY,TRIM0# |
1 | ||
| 69206-0D330A0 |
NCP150..IDN..R..B IVORY,TRIM0# |
1 | ||
| 69206-0D330C0 |
NCP150..IDN..(D,R)..B BLACK,TRIM2# |
1 | ||
| 69227J - COVER, REAR DOOR OUTSIDE HANDLE, RH | ||||
| 69227-02070 |
NCP150..IDN..D..B BLACK |
1 | ||
| 69227-06031 |
NCP150..IDN..G..B *CR |
1 | ||
| 69227-06906 |
NCP150..IDN..R..B LESS COLOR |
1 | ||
| 69227L - COVER, REAR DOOR OUTSIDE HANDLE, LH | ||||
| 69227-02070 |
NCP150..IDN..D..B BLACK |
1 | ||
| 69227-06906 |
NCP150..IDN..R..B LESS COLOR |
1 | ||
| 69227-06031 |
NCP150..IDN..G..B *CR |
1 | ||
| 69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH | ||||
| 69210-06905 |
NCP150..IDN..R..B PAINT REQ. |
1 | ||
| 69210-06040 |
NCP150..IDN..G..B PLATED |
1 | ||
| 69211-02130 |
NCP150..IDN..D..B NO PAINT REQ. |
1 | ||
| 69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH | ||||
| 69210-06040 |
NCP150..IDN..G..B PLATED |
1 | ||
| 69210-06905 |
NCP150..IDN..R..B PAINT REQ. |
1 | ||
| 69211-02130 |
NCP150..IDN..D..B NO PAINT REQ. |
1 | ||
| 69241G - PAD, REAR DOOR OUTSIDE HANDLE, FRONT | ||||
| 69241-06030 |
NCP150..IDN..B |
2 | ||
| 69242G - PAD, REAR DOOR OUTSIDE HANDLE, REAR | ||||
| 69242-06020 |
NCP150..IDN..B |
2 | ||
| 69318D - SEAL, DOOR LOCK WIRING HARNESS | ||||
| 69318-51010 |
NCP150..IDN..B |
2 | ||
| 69318-51010 |
NCP15#..(G,R)..C;NCP150..TH..D..C |
2 | ||
| 69330 - LOCK ASSY, REAR DOOR, RH | ||||
| 69050-0D200 |
NCP150..IDN..G..B |
1 | ||
| 69050-0D210 |
NCP150..IDN..R..B |
1 | ||
| 69330-0D150 |
NCP150..IDN..D..B |
1 | ||
| 69340 - LOCK ASSY, REAR DOOR, LH | ||||
| 69060-0D200 |
NCP150..IDN..G..B |
1 | ||
| 69060-0D210 |
NCP150..IDN..R..B |
1 | ||
| 69340-0D150 |
NCP150..IDN..D..B |
1 | ||
| 69420 - PLATE ASSY, REAR DOOR LOCK STRIKER | ||||
| 69410-0D070 |
NCP150..IDN..B |
2 | ||
| 69730D - CABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH | ||||
| 69730-0D170 |
NCP150..IDN..B |
1 | ||
| 69740D - CABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH | ||||
| 69730-0D170 |
NCP150..IDN..B |
1 | ||
| 69770B - CABLE ASSY, REAR DOOR INSIDE LOCKING, RH | ||||
| 69770-0D130 |
NCP150..IDN..B |
1 | ||
| 69780B - CABLE ASSY, REAR DOOR INSIDE LOCKING, LH | ||||
| 69770-0D130 |
NCP150..IDN..B |
1 | ||
| Common parts | ||||
| 69296-0D070 | ||||
| 69296-48010 | ||||
| 90148-50003 | ||||
| 90148-60022 | ||||
| 90148-80066 | ||||
| 90148-T0015 | ||||
| 90148-T0018 | ||||
| 90164-50031 | ||||
| 90164-T0009 | ||||
| 90189-05174 | ||||
| 90189-T0005 | ||||
