NCP150R-BEMGKD (2013)

Toyota Yaris/Vios/Limo

Production Apr 2013 - Jun 2015
Engine 1NZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1304- )NCP150,NSP150,151..5F..GEN,IDN,PH,VN..D..B,C

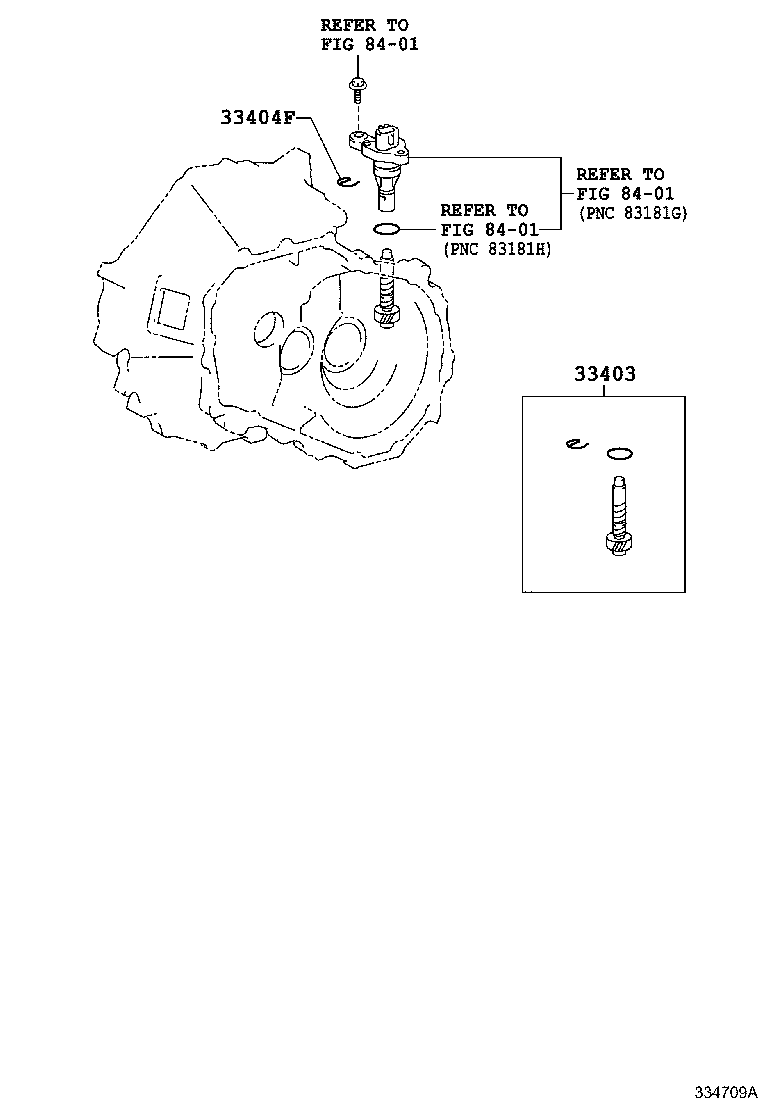

Click highlighted areas on diagram

C50,C54

diagram 33403 33404F 8401 8401 8401
Part # Description Qty Price
33403 - GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)
33403-19465

NCP151..PH..D;NCP150,NSP150,151..5F..(IDN,VN)..D

N=31,MARK 31:35

 1
33403-19465

NCP151..PH..D;NCP150,NSP150,151..5F..(IDN,VN)..D

N=31,MARK 31:35

 1
33404F - CLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)
90468-12005

NCP15#..5F..(PH,TH,VN)..D..B;NCP150,NSP150,151..5F..(IDN,VN)..D

 1
90468-12005

NCP15#..5F..(PH,TH,VN)..D..B;NCP150,NSP150,151..5F..(IDN,VN)..D

 1
Linked diagrams
8401
