NCP150L-BEPVKR (2014)

Toyota Yaris/Vios/Limo

Production Apr 2014 - Apr 2016
Engine 1NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1404- )NCP150..TAIW

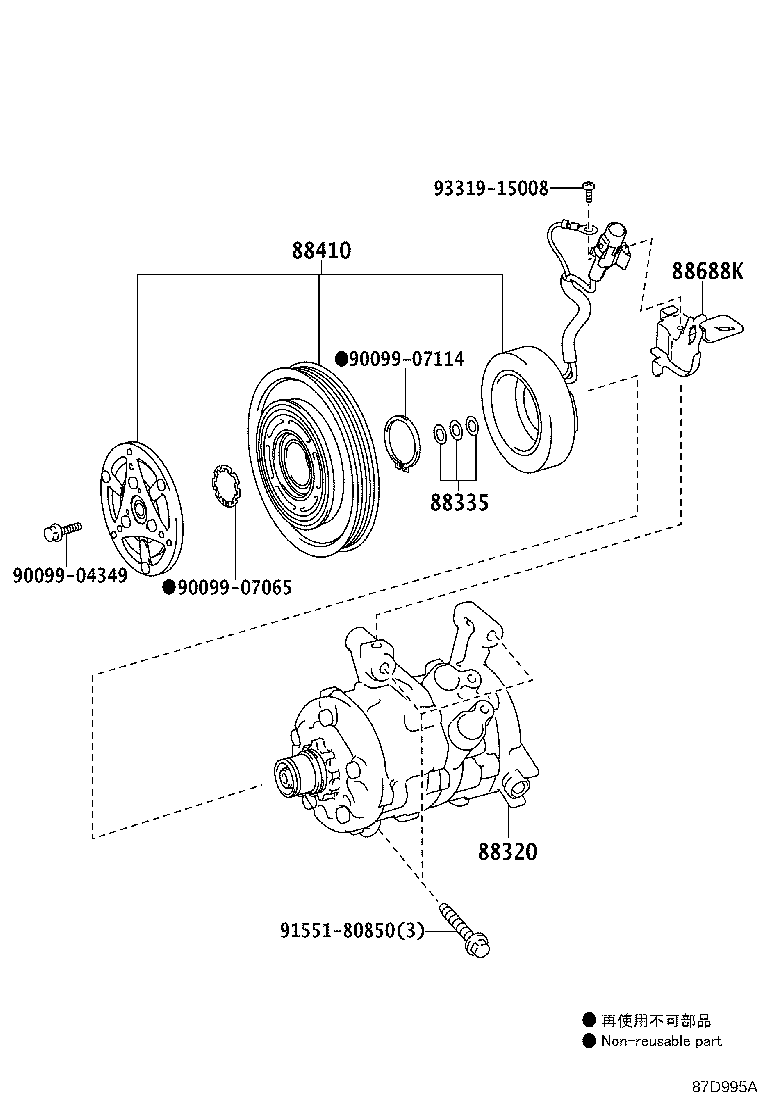

Click highlighted areas on diagram

diagram 88320 88335 88410 88688K 9009904349 9009907065 9009907114 9155180850 9331915008
Part # Description Qty Price
88320 - COMPRESSOR ASSY, COOLER
88320-0D090

NCP150..TAIW

 1
88410 - CLUTCH ASSY, MAGNET
88410-0D310

NCP150..TAIW

 1
88688K - BRACKET, COOLER COMPRESSOR
88849-0D020

NCP150..TAIW

 1
Common parts
90099-04349
90099-07065
90099-07114
91551-80850
93319-15008
