NCP150L-BEPDKR (2014)
Toyota Yaris/Vios/Limo
Production
Apr 2014
-
Apr 2016
Engine
1NZFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1404- )TAIW

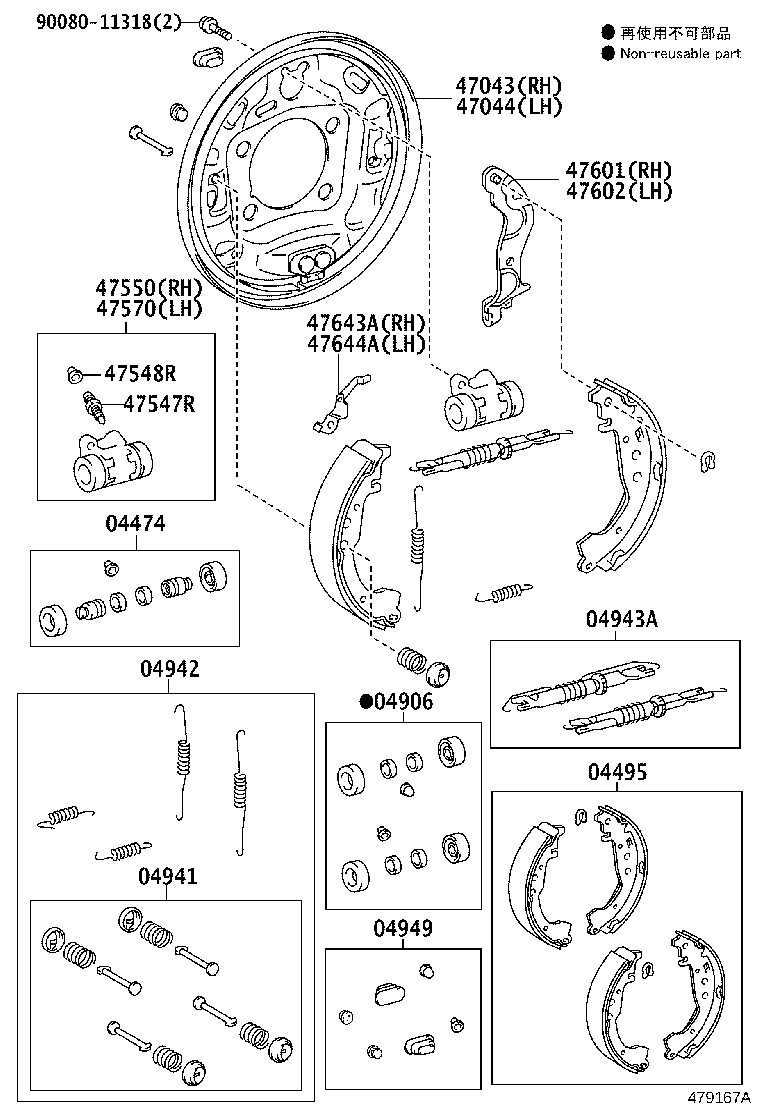

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04474 - CYLINDER KIT, REAR WHEEL | ||||
| 04474-52010 |
NCP150..TAIW |
2 | ||
| 04495 - SHOE KIT, REAR BRAKE | ||||
| 04495-0D120 |
NCP150..TAIW MARK HTM LN521 |
1 | ||
| 04906 - CUP KIT, REAR WHEEL CYLINDER | ||||
| 04906-52010 |
NCP150..TAIW |
1 | ||
| 04941 - SPRING KIT, REAR BRAKE SHOE HOLD DOWN | ||||
| 04941-0D050 |
NCP150..TAIW |
1 | ||
| 04942 - SPRING KIT, REAR BRAKE | ||||
| 04942-0D060 |
NCP150..TAIW |
1 | ||
| 04943A - STRUT KIT, REAR BRAKE | ||||
| 04943-0D030 |
NCP150..TAIW |
1 | ||
| 04949 - PLUG KIT, REAR BRAKE | ||||
| 04949-0D030 |
NCP150..TAIW |
1 | ||
| 47043 - PLATE SUB-ASSY, BRAKE BACKING, REAR RH | ||||
| 47043-0D050 |
NCP150..TAIW |
1 | ||
| 47044 - PLATE SUB-ASSY, BRAKE BACKING, REAR LH | ||||
| 47044-0D050 |
NCP150..TAIW |
1 | ||
| 47547R - PLUG, BLEEDER(FOR DRUM BRAKE, REAR) | ||||
| 47547-20010 |
NCP151..C;NCP151..PH,VN;NCP150..TAIW..V;NCP150..TH..D..C;NCP150..GCC..G..C;NCP150..(MA,TAIW)..(D,R);NCP150..(GCC,IDN)..(D,R)..C |
2 | ||
| 47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER) | ||||
| 47550-52050 |
NCP150..TAIW |
1 | ||
| 47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER) | ||||
| 47570-52050 |
NCP150..TAIW |
1 | ||
| 47601 - LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE) | ||||
| 47601-0D050 |
NCP150..TAIW |
1 | ||
| 47602 - LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE) | ||||
| 47602-0D050 |
NCP150..TAIW |
1 | ||
| 47643A - LEVER, REAR BRAKE AUTOMATIC ADJUST, RH | ||||
| 47643-0D050 |
NCP150..TAIW |
1 | ||
| 47644A - LEVER, REAR BRAKE AUTOMATIC ADJUST, LH | ||||
| 47644-0D050 |
NCP150..TAIW |
1 | ||
| Common parts | ||||
| 90080-11318 | ||||
