NCP12L-BEPRK (1999)
Toyota Yaris/Echo 4d

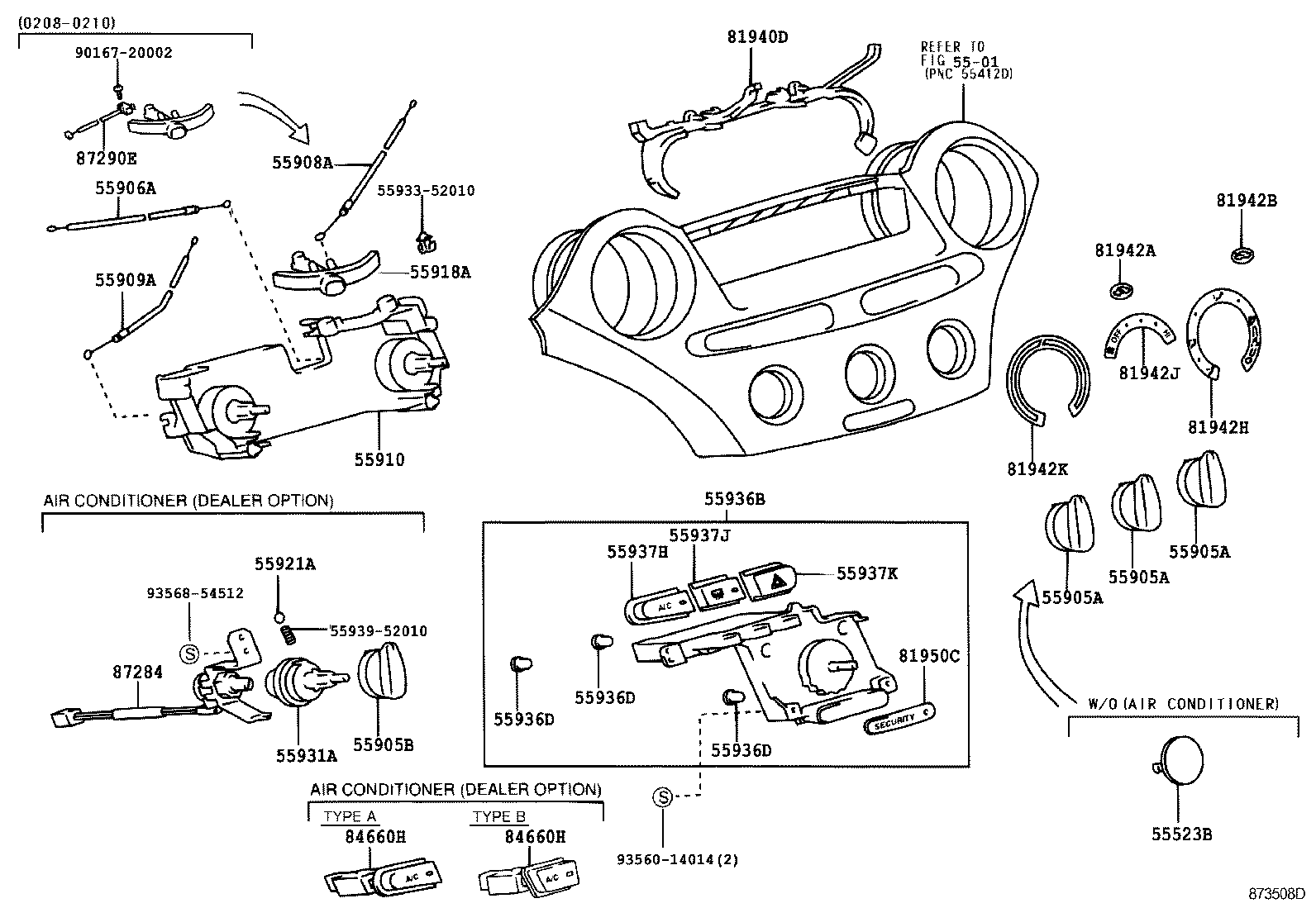

ILLUST NO. 1 OF 2(9908- )LHD
CONTROL--W(HEATER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55523B - COVER, HEATER CONTROL OPENING | ||||
| 55523-52010B0 |
NCP1#..GCC,GEN SHADOW GRAY,TRIM1# |
1 | ||
| 55523-52010B2 |
NCP1#..LHD DK.GRAY,TRIM1# |
1 | ||
| 55523-52010 |
NCP1#..LHD..GEN |
1 | ||
| 55523-52010B1 |
NCP1#..GCC,GEN AMETHYST,TRIM9# |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-52010 |
NCP1#..LHD W(HEATER) |
3 | ||
| 55905-52010 |
NCP1#..GCC,GEN |
2 | ||
| 55905-52010 |
NCP1#..LHD |
2 | ||
| 55905-52030 |
NCP1#..LHD SILVER PAINTED |
3 | ||
| 55905-52010 |
NCP1# W(AIR CONDITIONER) |
3 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-52010 |
NCP1#..LHD W(HEATER) |
3 | ||
| 55905-52010 |
NCP1#..GCC,GEN |
2 | ||
| 55905-52010 |
NCP1#..LHD |
2 | ||
| 55905-52030 |
NCP1#..LHD SILVER PAINTED |
3 | ||
| 55905-52010 |
NCP1# W(AIR CONDITIONER) |
3 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-52010 |
NCP1#..LHD W(HEATER) |
3 | ||
| 55905-52010 |
NCP1#..GCC,GEN |
2 | ||
| 55905-52010 |
NCP1#..LHD |
2 | ||
| 55905-52030 |
NCP1#..LHD SILVER PAINTED |
3 | ||
| 55905-52010 |
NCP1# W(AIR CONDITIONER) |
3 | ||
| 55905B - KNOB, HEATER CONTROL, NO.2 | ||||
| 55905-52010 |
NCP1#..LHD..GEN DEALER OPTION |
1 | ||
| 55905-52010 |
NCP1#..GEN DEALER OPTION |
1 | ||
| 55905-52080 |
NCP1#..LHD..GEN |
1 | ||
| 55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL | ||||
| 55906-52010 |
NCP1# |
1 | ||
| 55906-52010 |
NCP1# |
1 | ||
| 55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL | ||||
| 55908-52010 |
NCP1#..LHD |
1 | ||
| 55908-52010 |
NCP1#..LHD |
1 | ||
| 55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL | ||||
| 55909-52010 |
NCP1#..LHD |
1 | ||
| 55909-52010 |
NCP1#..LHD |
1 | ||
| 55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR | ||||
| 55910-52010 |
NCP1#..LHD W(HEATER) |
1 | ||
| 55910-52020 |
NCP1#..LHD W(AIR CONDITIONER) |
1 | ||
| 55910-52060 |
NCP1#..LHD |
1 | ||
| 55910-52010 |
NCP1#..LHD W(HEATER) |
1 | ||
| 55910-52060 |
NCP1#..LHD |
1 | ||
| 55910-52020 |
NCP1#..LHD W(AIR CONDITIONER) |
1 | ||
| 55918A - LEVER, AIR INLET DAMPER CONTROL | ||||
| 55918-52060 |
NCP1# |
1 | ||
| 55918-52060 |
NCP1#..LHD |
1 | ||
| 55918-52010 |
NCP1# |
1 | ||
| 55918-52070 |
NCP1#..LHD |
1 | ||
| 55921A - RETAINER, HEATER CONTROL | ||||
| 55921-52010 |
NCP1#..GEN |
1 | ||
| 55921-52010 |
NCP1#..GEN |
1 | ||
| 55931A - SHAFT, HEATER CONTROL LEVER | ||||
| 55931-52010 |
NCP1#..GEN |
1 | ||
| 55931-52010 |
NCP1#..GEN |
1 | ||
| 55936B - SWITCH, CENTER CLUSTER MODULE | ||||
| 84010-52080 |
NCP1#..GEN |
1 | ||
| 84010-52020 |
NCP1#..GEN W(AIR CONDITIONER & REAR WINDOW DEFOGGER) |
1 | ||
| 84010-52040 |
NCP1#..GEN W(REAR WINDOW DEFOGGER) |
1 | ||
| 84010-52060 |
NCP1#..GEN W(AIR CONDITIONER) |
1 | ||
| 84010-52020 |
NCP1#..LHD..GEN W(AIR CONDITIONER & REAR WINDOW DEFOGGER) |
1 | ||
| 84010-52040 |
NCP1#..LHD..GEN W(REAR WINDOW DEFOGGER) |
1 | ||
| 84010-52120 |
NCP1#..LHD..GEN W(ENGINE IMMOBILIZER SYSTEM & REAR WINDOW DEFOGGER) |
1 | ||
| 84010-52080 |
NCP1#..LHD..GEN |
1 | ||
| 84010-52100 |
NCP1#..ARL,GEN W(AIR CONDITIONER & ENGINE IMMOBILIZER & REAR WINDOW DEFOGGER) |
1 | ||
| 84010-52060 |
NCP1#..LHD..GEN W(AIR CONDITIONER) |
1 | ||
| 84010-52130 |
NCP1#..GEN W(AIR CONDITIONER & ENGINE IMMOBILIZER) |
1 | ||
| 84010-52120 |
NCP1#..ARL,GEN W(ENGINE IMMOBILIZER SYSTEM & REAR WINDOW DEFOGGER) |
1 | ||
| 84010-52100 |
NCP1#..LHD..GEN W(AIR CONDITIONER & ENGINE IMMOBILIZER & REAR WINDOW DEFOGGER) |
1 | ||
| 84010-52130 |
NCP1#..LHD..GEN W(AIR CONDITIONER & ENGINE IMMOBILIZER) |
1 | ||
| 84010-52140 |
NCP1#..LHD..GEN W(ENGINE IMMOBILIZER SYSTEM) |
1 | ||
| 84010-52140 |
NCP1#..GEN W(ENGINE IMMOBILIZER SYSTEM) |
1 | ||
| 55936D - BLUB, CENTER CLUSTER MODULE SWITCH | ||||
| 84999-10530 |
NCP1#..LHD 14V 1.8W |
2 | ||
| 84999-10530 |
NCP1# 14V 1.8W |
2 | ||
| 84999-10530 |
NCP1# 14V 1.8W |
2 | ||
| 55936D - BLUB, CENTER CLUSTER MODULE SWITCH | ||||
| 84999-10530 |
NCP1#..LHD 14V 1.8W |
2 | ||
| 84999-10530 |
NCP1# 14V 1.8W |
2 | ||
| 84999-10530 |
NCP1# 14V 1.8W |
2 | ||
| 55936D - BLUB, CENTER CLUSTER MODULE SWITCH | ||||
| 84999-10530 |
NCP1#..LHD 14V 1.8W |
2 | ||
| 84999-10530 |
NCP1# 14V 1.8W |
2 | ||
| 84999-10530 |
NCP1# 14V 1.8W |
2 | ||
| 55937H - KNOB, CENTER CLUSTER MODULE, NO.5 | ||||
| 55937-52020 |
NCP1#..LHD |
1 | ||
| 55937-52010 |
NCP1#..LHD W(AIR CONDITIONER) |
1 | ||
| 55937-52020 |
NCP1# |
1 | ||
| 55937-52010 |
NCP1# W(AIR CONDITIONER) |
1 | ||
| 55937J - KNOB, CENTER CLUSTER MODULE, NO.6 | ||||
| 55937-52050 |
NCP1#..GCC,GEN |
1 | ||
| 55937-52050 |
NCP1#..LHD |
1 | ||
| 55937-52030 |
NCP1# W(REAR WINDOW DEFOGGER) |
1 | ||
| 55937-52030 |
NCP1#..LHD W(REAR WINDOW DEFOGGER) |
1 | ||
| 55937K - KNOB, CENTER CLUSTER MODULE, NO.7 | ||||
| 55937-52060 |
NCP1# |
1 | ||
| 55937-52060 |
NCP1#..LHD |
1 | ||
| 81940D - LENS ASSY, HEATER CONTROL | ||||
| 81940-52020 |
NCP1#..LHD |
1 | ||
| 81940-52020 |
NCP1# |
1 | ||
| 81942A - SHEET, HEATER CONTROL NAME, NO.1 | ||||
| 81942-52010B0 |
NCP1# SHADOW GRAY,TRIM1# |
1 | ||
| 81942-52010B1 |
NCP1# AMETHYST,TRIM9# |
1 | ||
| 81942-52010B2 |
NCP1# DK.GRAY,TRIM1# |
1 | ||
| 81942-52010E0 |
NCP1# SANDAL WOOD,TRIM4# |
1 | ||
| 81942B - SHEET, HEATER CONTROL NAME, NO.2 | ||||
| 81942-52020B2 |
NCP1# DK.GRAY,TRIM1# |
1 | ||
| 81942-52020B0 |
NCP1# SHADOW GRAY,TRIM1# |
1 | ||
| 81942-52020B1 |
NCP1# AMETHYST,TRIM9# |
1 | ||
| 81942-52020E0 |
NCP1# SANDAL WOOD,TRIM4# |
1 | ||
| 81942H - SHEET, HEATER CONTROL NAME, NO.3 | ||||
| 81942-52080B1 |
NCP1#..LHD W(HEATER),AMETHYST,TRIM9# |
1 | ||
| 81942-52080B0 |
NCP1#..LHD W(HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 81942-52070B1 |
NCP1#..GCC,GEN AMETHYST,TRIM9# |
1 | ||
| 81942-52070B0 |
NCP1#..GCC,GEN SHADOW GRAY,TRIM1# |
1 | ||
| 81942-52080B1 |
NCP1# W(HEATER),AMETHYST,TRIM9# |
1 | ||
| 81942-52080B0 |
NCP1# W(HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 81942-52080B2 |
NCP1#..LHD..GEN W(HEATER),DK.GRAY,TRIM1# |
1 | ||
| 81942-52070B2 |
NCP1#..LHD DK.GRAY,TRIM1# |
1 | ||
| 81942-52080E0 |
NCP1#..LHD W(HEATER),SANDAL WOOD,TRIM4# |
1 | ||
| 81942-52070E0 |
NCP1#..LHD SANDAL WOOD,TRIM4# |
1 | ||
| 81942J - SHEET, HEATER CONTROL NAME, NO.4 | ||||
| 81942-52040E0 |
NCP1#..LHD SANDAL WOOD,TRIM4# |
1 | ||
| 81942-52040B1 |
NCP1# AMETHYST,TRIM9# |
1 | ||
| 81942-52040B2 |
NCP1#..LHD DK.GRAY,TRIM1# |
1 | ||
| 81942-52040B0 |
NCP1# SHADOW GRAY,TRIM1# |
1 | ||
| 81942K - SHEET, HEATER CONTROL NAME, NO.5 | ||||
| 81942-52050B0 |
NCP1# W(HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 81942-52060B0 |
NCP1#..GCC,GEN SHADOW GRAY,TRIM1# |
1 | ||
| 81942-52050B1 |
NCP1# W(HEATER),AMETHYST,TRIM9# |
1 | ||
| 81942-52060B2 |
NCP1#..LHD DK.GRAY,TRIM1# |
1 | ||
| 81942-52060B1 |
NCP1#..GCC,GEN AMETHYST,TRIM9# |
1 | ||
| 81942-52050E0 |
NCP1#..LHD W(HEATER),SANDAL WOOD,TRIM4# |
1 | ||
| 81942-52060E0 |
NCP1#..LHD SANDAL WOOD,TRIM4# |
1 | ||
| 81942-52050B2 |
NCP1#..LHD..GEN W(HEATER),DK.GRAY,TRIM1# |
1 | ||
| 81950C - LENS ASSY, CENTER CLUSTER MODULE INDICATOR | ||||
| 81950-52020 |
NCP1#..ARL,GEN W(ENGINE IMMOBILIZER SYSTEM) |
1 | ||
| 81950-52030 |
NCP1#..GEN |
1 | ||
| 81950-52020 |
NCP1#..LHD..GEN W(ENGINE IMMOBILIZER SYSTEM) |
1 | ||
| 81950-52030 |
NCP1#..LHD..GEN |
1 | ||
| 84660H - SWITCH ASSY, COOLER CONTROL | ||||
| 84660-52010 |
NCP1#..ARL,GEN |
1 | ||
| 84660-52020 |
NCP1#..LHD..GEN |
1 | ||
| 84660-52020 |
NCP1#..LHD..GEN |
1 | ||
| 84660-52010 |
NCP1#..LHD..GEN DEALER OPTION |
1 | ||
| 84660-52020 |
NCP1#..LHD..GEN |
1 | ||
| 84660H - SWITCH ASSY, COOLER CONTROL | ||||
| 84660-52010 |
NCP1#..ARL,GEN |
1 | ||
| 84660-52020 |
NCP1#..LHD..GEN |
1 | ||
| 84660-52020 |
NCP1#..LHD..GEN |
1 | ||
| 84660-52010 |
NCP1#..LHD..GEN DEALER OPTION |
1 | ||
| 84660-52020 |
NCP1#..LHD..GEN |
1 | ||
| 87284 - RESISTOR SUB-ASSY, VARIABLE | ||||
| 88032-52010 |
NCP1#..LHD |
1 | ||
| 88032-52010 |
NCP1#..LHD |
1 | ||
| 87290E - SWITCH ASSY, HEATER | ||||
| 87290-52030 |
NCP1#..LHD |
1 | ||
| Common parts | ||||
| 55933-52010 | ||||
| 55939-52010 | ||||
| 90167-20002 | ||||
| 93560-14014 | ||||
| 93568-54512 | ||||
| Linked diagrams | ||||
| 5501 | ||||

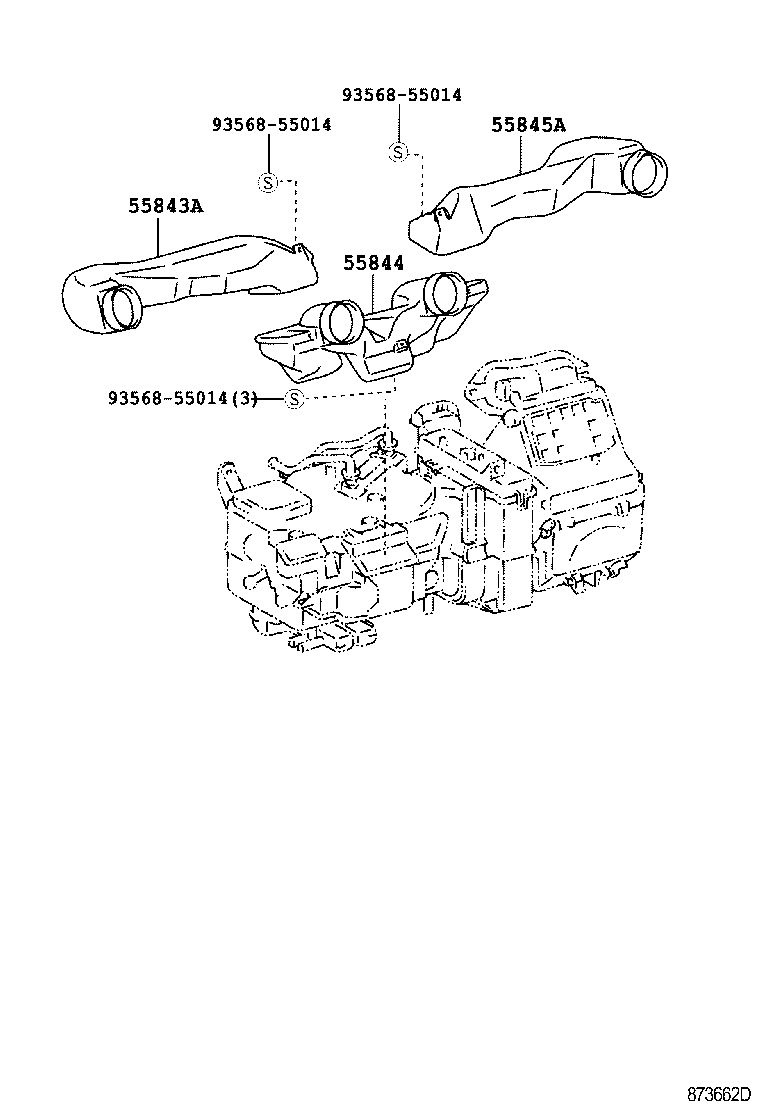

ILLUST NO. 2 OF 2(9908- )LHD
AIR DUCT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55843A - DUCT, HEATER TO REGISTER, NO.1 | ||||
| 55843-52010 |
NCP1#..LHD |
1 | ||
| 55843-52010 |
NCP1#..LHD |
1 | ||
| 55844 - DUCT, HEATER TO REGISTER, NO.2 | ||||
| 55844-52010 |
NCP1#..LHD |
1 | ||
| 55844-52010 |
NCP1#..LHD |
1 | ||
| 55845A - DUCT, HEATER TO REGISTER, NO.3 | ||||
| 55845-52010 |
NCP1#..LHD |
1 | ||
| 55845-52010 |
NCP1#..LHD |
1 | ||
| Common parts | ||||
| 93568-55014 | ||||

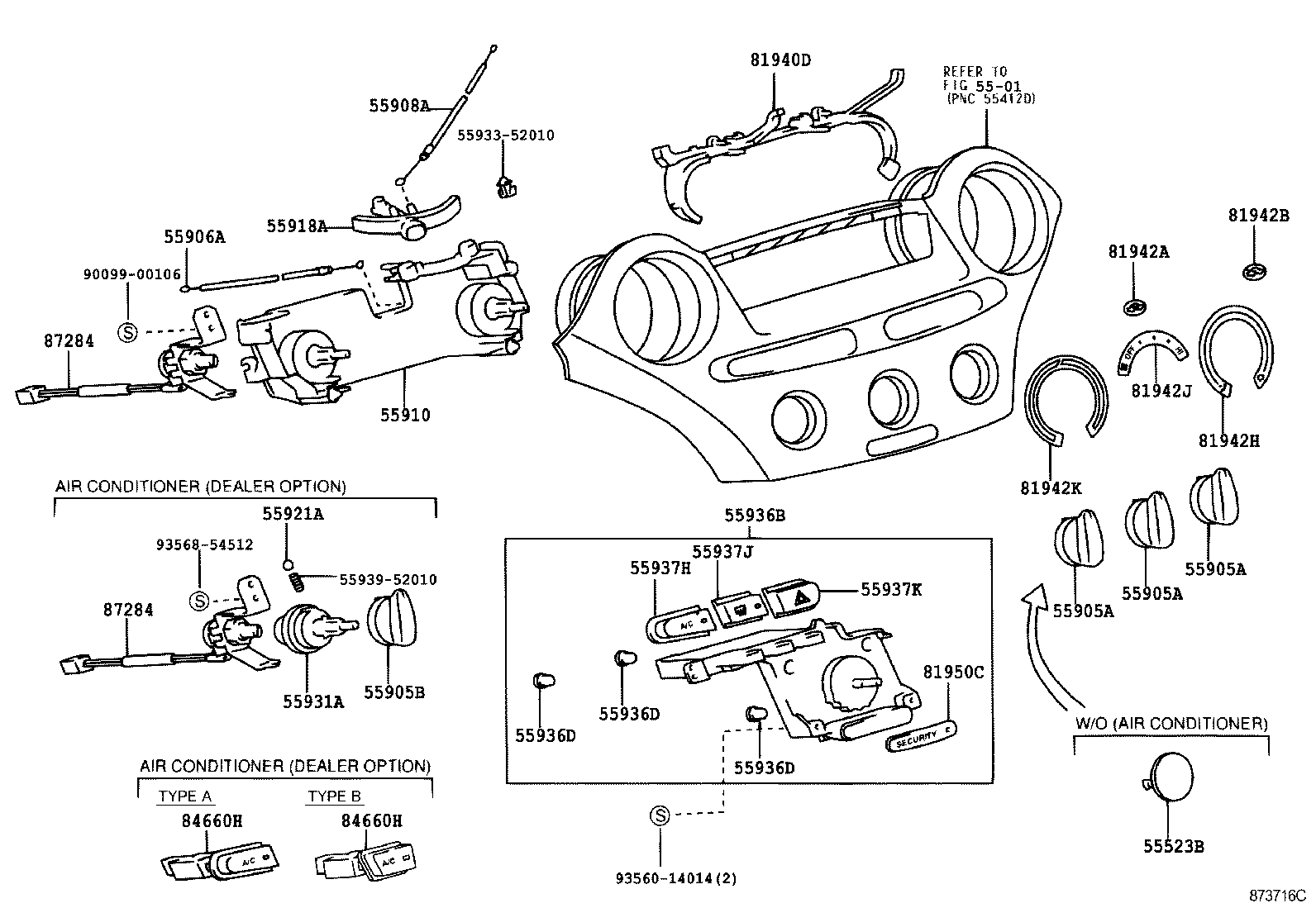

ILLUST NO. 1 OF 2(9908- )LHD
CONTROL--W/O(HEATER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55523B - COVER, HEATER CONTROL OPENING | ||||
| 55523-52010B0 |
NCP1#..GCC,GEN SHADOW GRAY,TRIM1# |
1 | ||
| 55523-52010B2 |
NCP1#..LHD DK.GRAY,TRIM1# |
1 | ||
| 55523-52010 |
NCP1#..LHD..GEN |
1 | ||
| 55523-52010B1 |
NCP1#..GCC,GEN AMETHYST,TRIM9# |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-52010 |
NCP1#..LHD W(HEATER) |
3 | ||
| 55905-52010 |
NCP1#..GCC,GEN |
2 | ||
| 55905-52010 |
NCP1#..LHD |
2 | ||
| 55905-52030 |
NCP1#..LHD SILVER PAINTED |
3 | ||
| 55905-52010 |
NCP1# W(AIR CONDITIONER) |
3 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-52010 |
NCP1#..LHD W(HEATER) |
3 | ||
| 55905-52010 |
NCP1#..GCC,GEN |
2 | ||
| 55905-52010 |
NCP1#..LHD |
2 | ||
| 55905-52030 |
NCP1#..LHD SILVER PAINTED |
3 | ||
| 55905-52010 |
NCP1# W(AIR CONDITIONER) |
3 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-52010 |
NCP1#..LHD W(HEATER) |
3 | ||
| 55905-52010 |
NCP1#..GCC,GEN |
2 | ||
| 55905-52010 |
NCP1#..LHD |
2 | ||
| 55905-52030 |
NCP1#..LHD SILVER PAINTED |
3 | ||
| 55905-52010 |
NCP1# W(AIR CONDITIONER) |
3 | ||
| 55905B - KNOB, HEATER CONTROL, NO.2 | ||||
| 55905-52010 |
NCP1#..LHD..GEN DEALER OPTION |
1 | ||
| 55905-52010 |
NCP1#..GEN DEALER OPTION |
1 | ||
| 55905-52080 |
NCP1#..LHD..GEN |
1 | ||
| 55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL | ||||
| 55906-52010 |
NCP1# |
1 | ||
| 55906-52010 |
NCP1# |
1 | ||
| 55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL | ||||
| 55908-52010 |
NCP1#..LHD |
1 | ||
| 55908-52010 |
NCP1#..LHD |
1 | ||
| 55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR | ||||
| 55910-52010 |
NCP1#..LHD W(HEATER) |
1 | ||
| 55910-52020 |
NCP1#..LHD W(AIR CONDITIONER) |
1 | ||
| 55910-52060 |
NCP1#..LHD |
1 | ||
| 55910-52010 |
NCP1#..LHD W(HEATER) |
1 | ||
| 55910-52060 |
NCP1#..LHD |
1 | ||
| 55910-52020 |
NCP1#..LHD W(AIR CONDITIONER) |
1 | ||
| 55918A - LEVER, AIR INLET DAMPER CONTROL | ||||
| 55918-52060 |
NCP1# |
1 | ||
| 55918-52060 |
NCP1#..LHD |
1 | ||
| 55918-52010 |
NCP1# |
1 | ||
| 55918-52070 |
NCP1#..LHD |
1 | ||
| 55921A - RETAINER, HEATER CONTROL | ||||
| 55921-52010 |
NCP1#..GEN |
1 | ||
| 55921-52010 |
NCP1#..GEN |
1 | ||
| 55931A - SHAFT, HEATER CONTROL LEVER | ||||
| 55931-52010 |
NCP1#..GEN |
1 | ||
| 55931-52010 |
NCP1#..GEN |
1 | ||
| 55936B - SWITCH, CENTER CLUSTER MODULE | ||||
| 84010-52080 |
NCP1#..GEN |
1 | ||
| 84010-52020 |
NCP1#..GEN W(AIR CONDITIONER & REAR WINDOW DEFOGGER) |
1 | ||
| 84010-52040 |
NCP1#..GEN W(REAR WINDOW DEFOGGER) |
1 | ||
| 84010-52060 |
NCP1#..GEN W(AIR CONDITIONER) |
1 | ||
| 84010-52020 |
NCP1#..LHD..GEN W(AIR CONDITIONER & REAR WINDOW DEFOGGER) |
1 | ||
| 84010-52040 |
NCP1#..LHD..GEN W(REAR WINDOW DEFOGGER) |
1 | ||
| 84010-52120 |
NCP1#..LHD..GEN W(ENGINE IMMOBILIZER SYSTEM & REAR WINDOW DEFOGGER) |
1 | ||
| 84010-52080 |
NCP1#..LHD..GEN |
1 | ||
| 84010-52100 |
NCP1#..ARL,GEN W(AIR CONDITIONER & ENGINE IMMOBILIZER & REAR WINDOW DEFOGGER) |
1 | ||
| 84010-52060 |
NCP1#..LHD..GEN W(AIR CONDITIONER) |
1 | ||
| 84010-52130 |
NCP1#..GEN W(AIR CONDITIONER & ENGINE IMMOBILIZER) |
1 | ||
| 84010-52120 |
NCP1#..ARL,GEN W(ENGINE IMMOBILIZER SYSTEM & REAR WINDOW DEFOGGER) |
1 | ||
| 84010-52100 |
NCP1#..LHD..GEN W(AIR CONDITIONER & ENGINE IMMOBILIZER & REAR WINDOW DEFOGGER) |
1 | ||
| 84010-52130 |
NCP1#..LHD..GEN W(AIR CONDITIONER & ENGINE IMMOBILIZER) |
1 | ||
| 84010-52140 |
NCP1#..LHD..GEN W(ENGINE IMMOBILIZER SYSTEM) |
1 | ||
| 84010-52140 |
NCP1#..GEN W(ENGINE IMMOBILIZER SYSTEM) |
1 | ||
| 55936D - BLUB, CENTER CLUSTER MODULE SWITCH | ||||
| 84999-10530 |
NCP1#..LHD 14V 1.8W |
2 | ||
| 84999-10530 |
NCP1# 14V 1.8W |
2 | ||
| 84999-10530 |
NCP1# 14V 1.8W |
2 | ||
| 55936D - BLUB, CENTER CLUSTER MODULE SWITCH | ||||
| 84999-10530 |
NCP1#..LHD 14V 1.8W |
2 | ||
| 84999-10530 |
NCP1# 14V 1.8W |
2 | ||
| 84999-10530 |
NCP1# 14V 1.8W |
2 | ||
| 55936D - BLUB, CENTER CLUSTER MODULE SWITCH | ||||
| 84999-10530 |
NCP1#..LHD 14V 1.8W |
2 | ||
| 84999-10530 |
NCP1# 14V 1.8W |
2 | ||
| 84999-10530 |
NCP1# 14V 1.8W |
2 | ||
| 55937H - KNOB, CENTER CLUSTER MODULE, NO.5 | ||||
| 55937-52020 |
NCP1#..LHD |
1 | ||
| 55937-52010 |
NCP1#..LHD W(AIR CONDITIONER) |
1 | ||
| 55937-52020 |
NCP1# |
1 | ||
| 55937-52010 |
NCP1# W(AIR CONDITIONER) |
1 | ||
| 55937J - KNOB, CENTER CLUSTER MODULE, NO.6 | ||||
| 55937-52050 |
NCP1#..GCC,GEN |
1 | ||
| 55937-52050 |
NCP1#..LHD |
1 | ||
| 55937-52030 |
NCP1# W(REAR WINDOW DEFOGGER) |
1 | ||
| 55937-52030 |
NCP1#..LHD W(REAR WINDOW DEFOGGER) |
1 | ||
| 55937K - KNOB, CENTER CLUSTER MODULE, NO.7 | ||||
| 55937-52060 |
NCP1# |
1 | ||
| 55937-52060 |
NCP1#..LHD |
1 | ||
| 81940D - LENS ASSY, HEATER CONTROL | ||||
| 81940-52020 |
NCP1#..LHD |
1 | ||
| 81940-52020 |
NCP1# |
1 | ||
| 81942A - SHEET, HEATER CONTROL NAME, NO.1 | ||||
| 81942-52010B0 |
NCP1# SHADOW GRAY,TRIM1# |
1 | ||
| 81942-52010B1 |
NCP1# AMETHYST,TRIM9# |
1 | ||
| 81942-52010B2 |
NCP1# DK.GRAY,TRIM1# |
1 | ||
| 81942-52010E0 |
NCP1# SANDAL WOOD,TRIM4# |
1 | ||
| 81942B - SHEET, HEATER CONTROL NAME, NO.2 | ||||
| 81942-52020B2 |
NCP1# DK.GRAY,TRIM1# |
1 | ||
| 81942-52020B0 |
NCP1# SHADOW GRAY,TRIM1# |
1 | ||
| 81942-52020B1 |
NCP1# AMETHYST,TRIM9# |
1 | ||
| 81942-52020E0 |
NCP1# SANDAL WOOD,TRIM4# |
1 | ||
| 81942H - SHEET, HEATER CONTROL NAME, NO.3 | ||||
| 81942-52080B1 |
NCP1#..LHD W(HEATER),AMETHYST,TRIM9# |
1 | ||
| 81942-52080B0 |
NCP1#..LHD W(HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 81942-52070B1 |
NCP1#..GCC,GEN AMETHYST,TRIM9# |
1 | ||
| 81942-52070B0 |
NCP1#..GCC,GEN SHADOW GRAY,TRIM1# |
1 | ||
| 81942-52080B1 |
NCP1# W(HEATER),AMETHYST,TRIM9# |
1 | ||
| 81942-52080B0 |
NCP1# W(HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 81942-52080B2 |
NCP1#..LHD..GEN W(HEATER),DK.GRAY,TRIM1# |
1 | ||
| 81942-52070B2 |
NCP1#..LHD DK.GRAY,TRIM1# |
1 | ||
| 81942-52080E0 |
NCP1#..LHD W(HEATER),SANDAL WOOD,TRIM4# |
1 | ||
| 81942-52070E0 |
NCP1#..LHD SANDAL WOOD,TRIM4# |
1 | ||
| 81942J - SHEET, HEATER CONTROL NAME, NO.4 | ||||
| 81942-52040E0 |
NCP1#..LHD SANDAL WOOD,TRIM4# |
1 | ||
| 81942-52040B1 |
NCP1# AMETHYST,TRIM9# |
1 | ||
| 81942-52040B2 |
NCP1#..LHD DK.GRAY,TRIM1# |
1 | ||
| 81942-52040B0 |
NCP1# SHADOW GRAY,TRIM1# |
1 | ||
| 81942K - SHEET, HEATER CONTROL NAME, NO.5 | ||||
| 81942-52050B0 |
NCP1# W(HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 81942-52060B0 |
NCP1#..GCC,GEN SHADOW GRAY,TRIM1# |
1 | ||
| 81942-52050B1 |
NCP1# W(HEATER),AMETHYST,TRIM9# |
1 | ||
| 81942-52060B2 |
NCP1#..LHD DK.GRAY,TRIM1# |
1 | ||
| 81942-52060B1 |
NCP1#..GCC,GEN AMETHYST,TRIM9# |
1 | ||
| 81942-52050E0 |
NCP1#..LHD W(HEATER),SANDAL WOOD,TRIM4# |
1 | ||
| 81942-52060E0 |
NCP1#..LHD SANDAL WOOD,TRIM4# |
1 | ||
| 81942-52050B2 |
NCP1#..LHD..GEN W(HEATER),DK.GRAY,TRIM1# |
1 | ||
| 81950C - LENS ASSY, CENTER CLUSTER MODULE INDICATOR | ||||
| 81950-52020 |
NCP1#..ARL,GEN W(ENGINE IMMOBILIZER SYSTEM) |
1 | ||
| 81950-52030 |
NCP1#..GEN |
1 | ||
| 81950-52020 |
NCP1#..LHD..GEN W(ENGINE IMMOBILIZER SYSTEM) |
1 | ||
| 81950-52030 |
NCP1#..LHD..GEN |
1 | ||
| 84660H - SWITCH ASSY, COOLER CONTROL | ||||
| 84660-52010 |
NCP1#..ARL,GEN |
1 | ||
| 84660-52020 |
NCP1#..LHD..GEN |
1 | ||
| 84660-52020 |
NCP1#..LHD..GEN |
1 | ||
| 84660-52010 |
NCP1#..LHD..GEN DEALER OPTION |
1 | ||
| 84660-52020 |
NCP1#..LHD..GEN |
1 | ||
| 84660H - SWITCH ASSY, COOLER CONTROL | ||||
| 84660-52010 |
NCP1#..ARL,GEN |
1 | ||
| 84660-52020 |
NCP1#..LHD..GEN |
1 | ||
| 84660-52020 |
NCP1#..LHD..GEN |
1 | ||
| 84660-52010 |
NCP1#..LHD..GEN DEALER OPTION |
1 | ||
| 84660-52020 |
NCP1#..LHD..GEN |
1 | ||
| 87284 - RESISTOR SUB-ASSY, VARIABLE | ||||
| 88032-52010 |
NCP1#..LHD |
1 | ||
| 88032-52010 |
NCP1#..LHD |
1 | ||
| 87284 - RESISTOR SUB-ASSY, VARIABLE | ||||
| 88032-52010 |
NCP1#..LHD |
1 | ||
| 88032-52010 |
NCP1#..LHD |
1 | ||
| Common parts | ||||
| 55933-52010 | ||||
| 55939-52010 | ||||
| 90099-00106 | ||||
| 93560-14014 | ||||
| 93568-54512 | ||||
| Linked diagrams | ||||
| 5501 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
