NCP12L-BEPRK (1999)

Toyota Yaris/Echo 4d

Production Aug 1999 - Dec 2005
Engine 1NZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9908- )

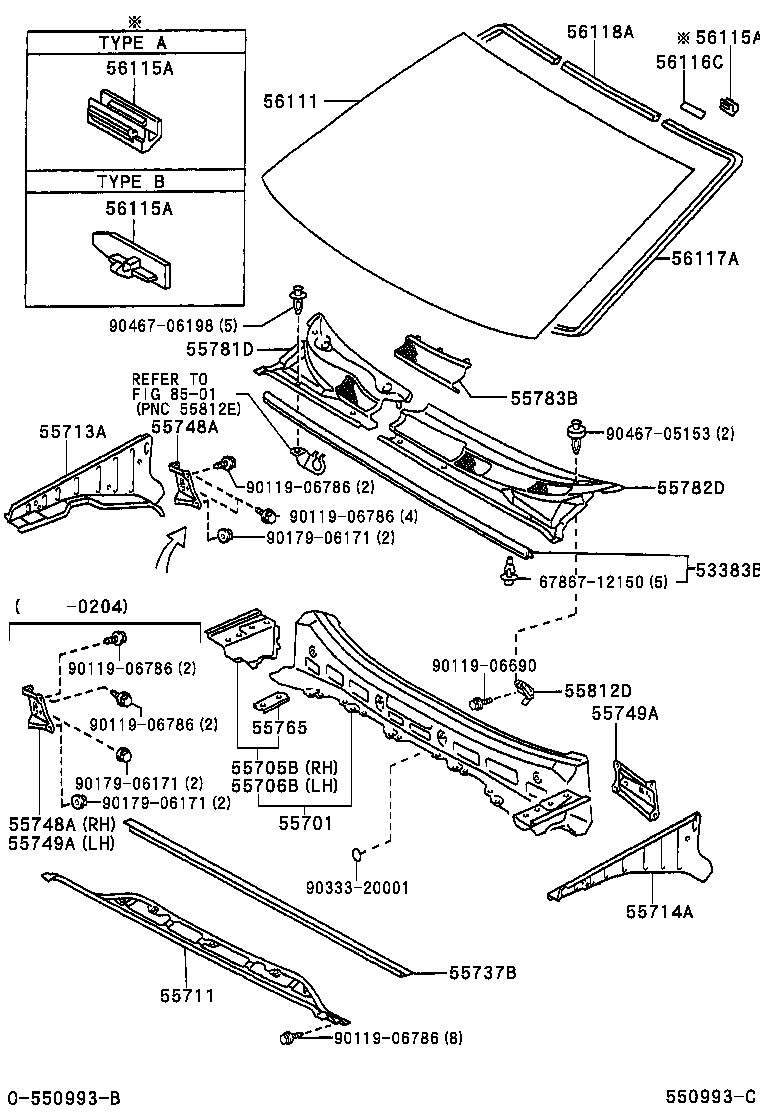

Click highlighted areas on diagram

diagram 53383B 55701 55705B 55706B 55711 55713A 55714A 55737B 55748A 55748A 55749A 55749A 55765 55781D 55782D 55783B 55812D 56111 56115A 56115A 56115A 56116C 56117A 56118A 6786712150 8501 8501 9011906690 9011906786 9011906786 9011906786 9011906786 9011906786 9017906171 9017906171 9017906171 9033320001 9046705153 9046706198
Part # Description Qty Price
53383B - SEAL, HOOD TO COWL TOP
53383-52010

NCP1#

 1
53383-52010

NCP1#

 1
55701 - PANEL SUB-ASSY, COWL
55700-52020

NCP1#..LHD..GEN

 1
55700-52020

NCP1#..LHD..GEN

 1
55705B - PANEL SUB-ASSY, COWL TOP SIDE, RH
55705-52010

NCP1#

 1
55705-52010

NCP1#

 1
55706B - PANEL SUB-ASSY, COWL TOP SIDE, LH
55706-52010

NCP1#

 1
55706-52010

NCP1#

 1
55711 - PANEL, COWL TOP, OUTER
55701-52021

NCP1#..LHD

 1
55701-52021

NCP1#..LHD

 1
55701-52020

NCP1#..LHD

 1
55713A - PANEL, COWL TOP SIDE, RH
55713-52011

NCP1#

 1
55713-52010

NCP1#

 1
55713-52011

NCP1#

 1
55714A - PANEL, COWL TOP SIDE, LH
55714-52011

NCP1#

 1
55714-52011

NCP1#

 1
55714-52010

NCP1#

 1
55737B - SEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1
55737-52010

NCP1#

 1
55737-52010

NCP1#

 1
55748A - BRACE, COWL TOP INNER TO PILLAR
55748-52060

NCP1#

 1
55748-52010

NCP1#

 1
55748-52060

NCP1#

 1
55748A - BRACE, COWL TOP INNER TO PILLAR
55748-52060

NCP1#

 1
55748-52010

NCP1#

 1
55748-52060

NCP1#

 1
55749A - BRACE, COWL TOP INNER TO PILLAR, LH
55749-52050

NCP1#

 1
55749-52050

NCP1#

 1
55749-52010

NCP1#

 1
55749A - BRACE, COWL TOP INNER TO PILLAR, LH
55749-52050

NCP1#

 1
55749-52050

NCP1#

 1
55749-52010

NCP1#

 1
55765 - BRACKET, HOOD DAMPER MOUNTING
55765-44010

NCP1#

 2
55765-44010

NCP1#

 2
55781D - LOUVER, COWL TOP VENTILATOR, RH
55781-52030

NCP1#..LHD

 1
55781-52030

NCP1#..LHD

 1
55782D - LOUVER, COWL TOP VENTILATOR, LH
55782-52030

NCP1#..LHD

 1
55782-52030

NCP1#..LHD

 1
55783B - LOUVER, COWL TOP VENTILATOR, CENTER NO.1
55783-52030

NCP1#..LHD

 1
55783-52030

NCP1#..LHD

 1
55812D - BRACKET, COWL VENTILATOR
55812-52020

NCP1#..LHD

 1
55812-52020

NCP1#..LHD

 1
56111 - GLASS, WINDSHIELD
56101-52011

NCP1#..GEN

*LAM,T=4.56,GREEN

 1
56101-52010

NCP1#..GEN

*LAM,T=4.56,GREEN

 1
56101-52011

NCP1#..GEN

*LAM,T=4.56,GREEN

 1
56115A - STOPPER, WINDSHIELD GLASS, NO.1
56115-30100

NCP1#

TYPE A:REFER TO ILLUSTRATION

 2
56115-33040

NCP1#

TYPE B:REFER TO ILLUSTRATION

 2
56115-30100

NCP1#

TYPE A:REFER TO ILLUSTRATION

 2
56115A - STOPPER, WINDSHIELD GLASS, NO.1
56115-30100

NCP1#

TYPE A:REFER TO ILLUSTRATION

 2
56115-33040

NCP1#

TYPE B:REFER TO ILLUSTRATION

 2
56115-30100

NCP1#

TYPE A:REFER TO ILLUSTRATION

 2
56115A - STOPPER, WINDSHIELD GLASS, NO.1
56115-30100

NCP1#

TYPE A:REFER TO ILLUSTRATION

 2
56115-33040

NCP1#

TYPE B:REFER TO ILLUSTRATION

 2
56115-30100

NCP1#

TYPE A:REFER TO ILLUSTRATION

 2
56116C - STOPPER, WINDSHIELD GLASS, NO.2
56116-22050

NCP1#

 2
56116-22050

NCP1#

 2
56117A - DAM, WINDOW GLASS ADHESIVE
56117-52010

NCP1#

 1
56117-52010

NCP1#

 1
56118A - DAM, WINDOW GLASS ADHESIVE, NO.2
56117-52040

NCP1#

*D,L=705

 1
56118-52010

NCP1#

 1
56117-52040

NCP1#

 1
Common parts
67867-12150
90119-06690
90119-06786
90179-06171
90333-20001
90467-05153
90467-06198
Linked diagrams
8501
