NCP12L-BEMRK (1999)

Toyota Yaris/Echo 4d

Production Aug 1999 - Dec 2005
Engine 1NZFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9908-0208)

Click highlighted areas on diagram

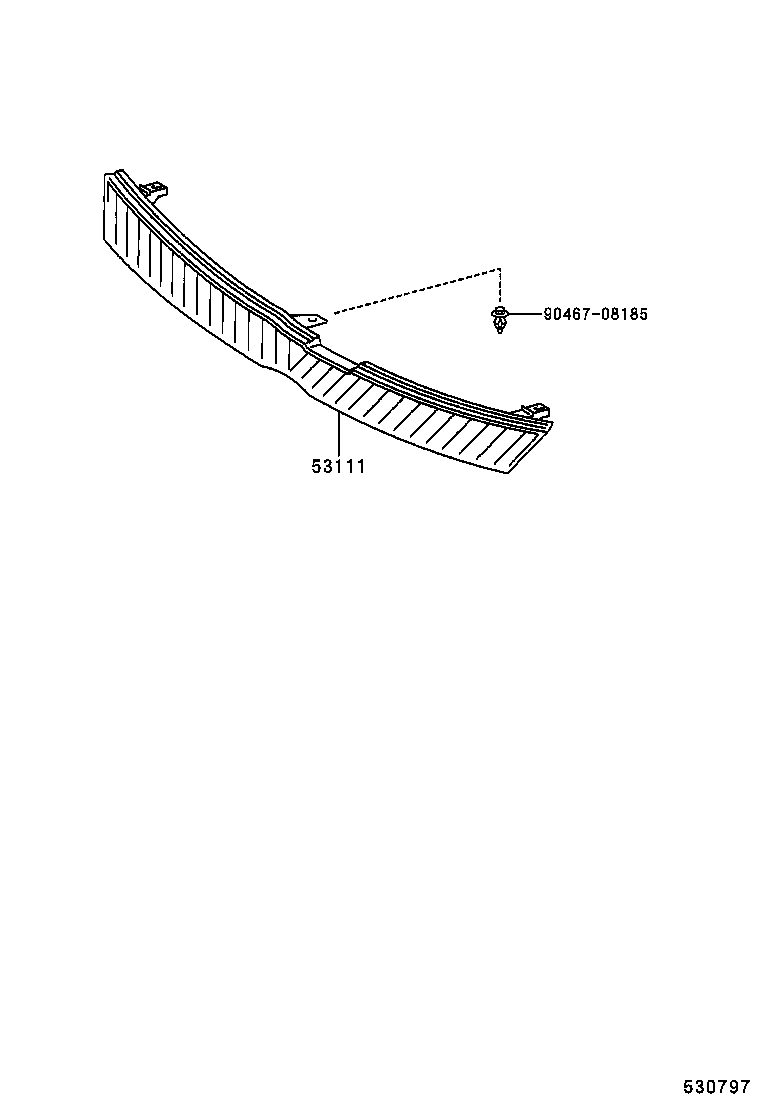

diagram 53111 9046708185
Part # Description Qty Price
53111 - GRILLE, RADIATOR
53111-52080

NCP1#

 1
53111-52210

NCP1#

 1
Common parts
90467-08185

(0208- )

Click highlighted areas on diagram

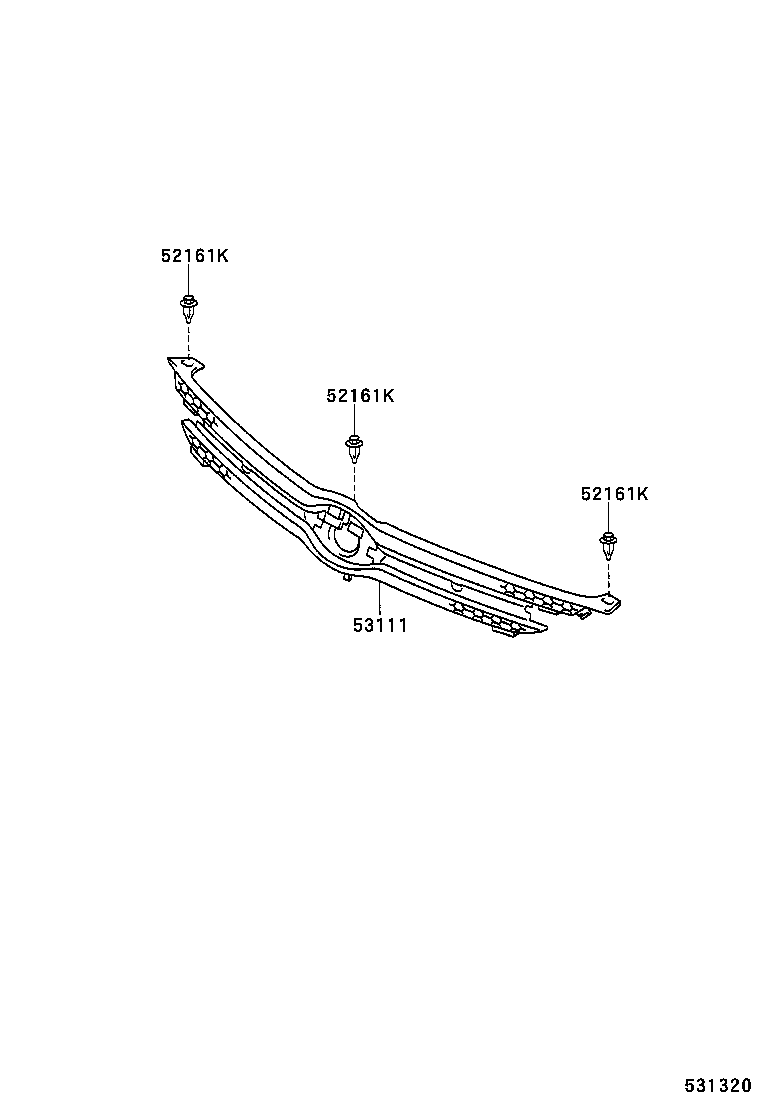

diagram 52161K 52161K 52161K 53111
Part # Description Qty Price
52161K - PIECE, FRONT BUMPER
52161-20010

NCP1#

 3
52161K - PIECE, FRONT BUMPER
52161-20010

NCP1#

 3
52161K - PIECE, FRONT BUMPER
52161-20010

NCP1#

 3
53111 - GRILLE, RADIATOR
53111-52080

NCP1#

 1
53111-52210

NCP1#

 1
