NCP12L-BEMRK (1999)

Toyota Yaris/Echo 4d

Production Aug 1999 - Dec 2005
Engine 1NZFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9908-0208)

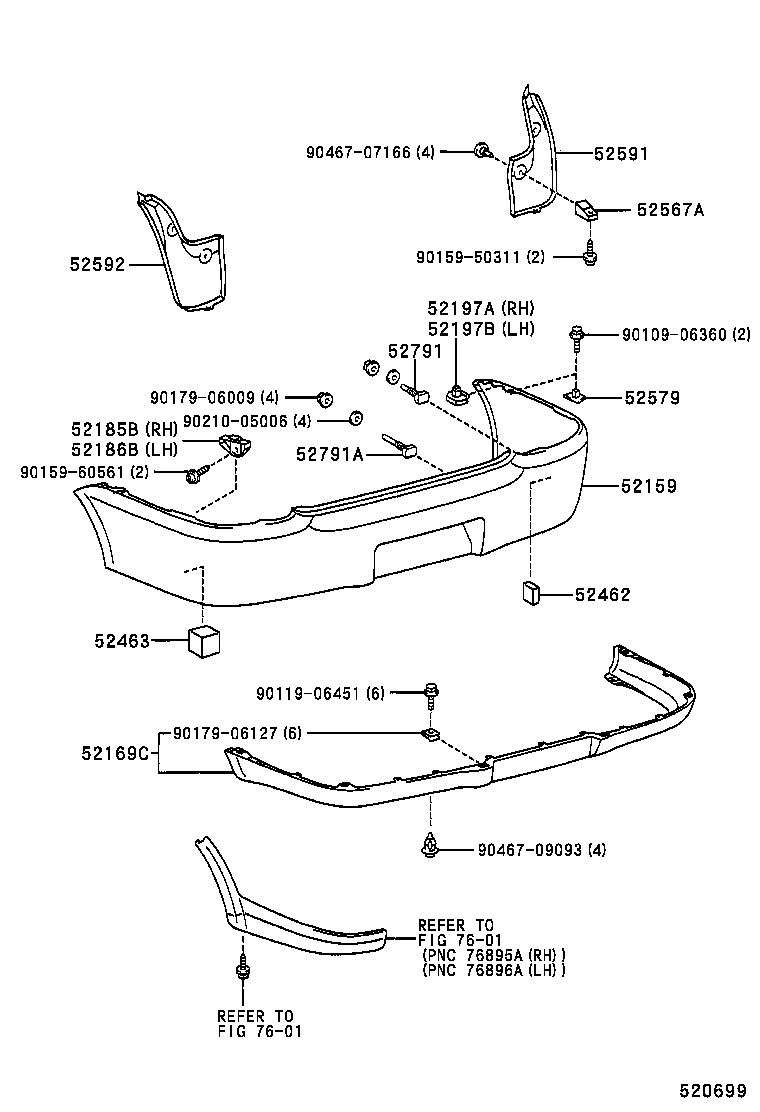

Click highlighted areas on diagram

diagram 52159 52169C 52185B 52186B 52197A 52197B 52462 52463 52567A 52579 52591 52592 52791 52791A 7601 7601 9010906360 9011906451 9015950311 9015960561 9017906009 9017906127 9021005006 9046707166 9046709093
Part # Description Qty Price
52159 - COVER, REAR BUMPER
52159-52090

NCP1#

 1
52159-52901

NCP1#..GEN

W(BUMPER SPOILER)

 1
52159-52200

NCP1#..GCC,GEN

W(BUMPER SPOILER)

 1
52169C - COVER, REAR BUMPER, LOWER
52169-52030

NCP1#..GCC,GEN

W(BUMPER SPOILER)

 1
52169-52010

NCP1#

 1
52185B - BRACKET, REAR BUMPER SIDE MOUNTING, RH
52185-52020

NCP1#

 1
52186B - BRACKET, REAR BUMPER SIDE MOUNTING, LH
52185-52020

NCP1#

 1
52197A - BRACKET, REAR BUMPER SEAL, RH
52197-52010

NCP1#

 1
52197B - BRACKET, REAR BUMPER SEAL, LH
52197-52010

NCP1#

 1
52462 - PAD, REAR BUMPER, RH
52462-52010

NCP1#

 1
52463 - PAD, REAR BUMPER, LH
52463-52010

NCP1#

 1
52567A - RETAINER, REAR BUMPER, LOWER SIDE
52567-52010

NCP1#

 2
52567-52020

NCP1#

 2
52579 - RETAINER, REAR BUMPER SIDE, NO.3
52579-52010

NCP1#

 2
52579-52010

NCP1#

 2
52591 - SEAL, REAR BUMPER SIDE, RH
52591-52040

NCP1#

 1
52592 - SEAL, REAR BUMPER SIDE, LH
52592-52040

NCP1#

 1
52791 - BOLT, BUMPER MOULDING SET, NO.1
90109-06354

NCP1#

 2
52791-12010

NCP1#

 2
52791-12040

NCP1#

 2
52791A - BOLT, BUMPER MOULDING SET, NO.2
52791-32010

NCP1#

 2
52791-12040

NCP1#

 2
Common parts
90109-06360
90119-06451
90159-50311
90159-60561
90179-06009
90179-06127
90210-05006
90467-07166
90467-09093
Linked diagrams
7601

(0208- )

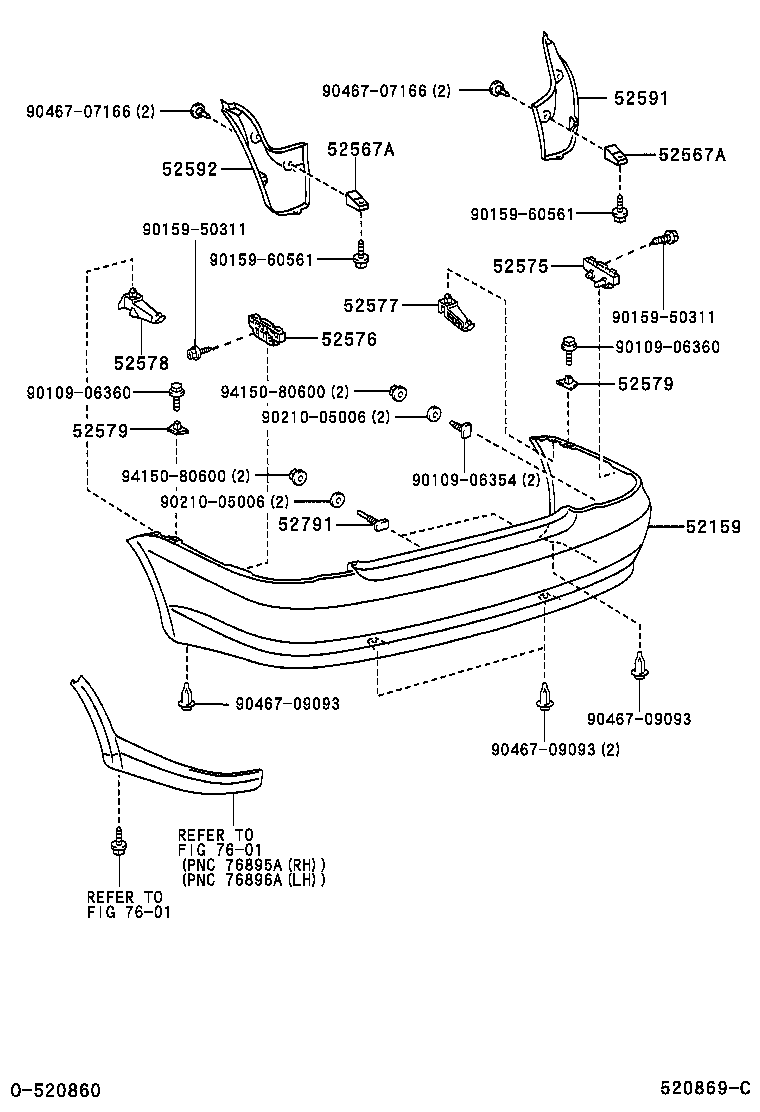

Click highlighted areas on diagram

diagram 52159 52567A 52567A 52575 52576 52577 52578 52579 52579 52591 52592 52791 7601 7601 9010906354 9010906360 9010906360 9015950311 9015950311 9015960561 9015960561 9021005006 9021005006 9046707166 9046707166 9046709093 9046709093 9046709093 9415080600 9415080600
Part # Description Qty Price
52159 - COVER, REAR BUMPER
52159-52090

NCP1#

 1
52159-52901

NCP1#..GEN

W(BUMPER SPOILER)

 1
52159-52200

NCP1#..GCC,GEN

W(BUMPER SPOILER)

 1
52567A - RETAINER, REAR BUMPER, LOWER SIDE
52567-52010

NCP1#

 2
52567-52020

NCP1#

 2
52567A - RETAINER, REAR BUMPER, LOWER SIDE
52567-52010

NCP1#

 2
52567-52020

NCP1#

 2
52575 - RETAINER, REAR BUMPER SIDE, RH
52575-52071

NCP1#

 1
52575-52070

NCP1#

 1
52576 - RETAINER, REAR BUMPER SIDE, LH
52575-52070

NCP1#

 1
52575-52071

NCP1#

 1
52577 - RETAINER, REAR BUMPER SIDE, NO.2 RH
52577-52010

NCP1#

 1
52578 - RETAINER, REAR BUMPER SIDE, NO.2 LH
52578-52010

NCP1#

 1
52579 - RETAINER, REAR BUMPER SIDE, NO.3
52579-52010

NCP1#

 2
52579-52010

NCP1#

 2
52579 - RETAINER, REAR BUMPER SIDE, NO.3
52579-52010

NCP1#

 2
52579-52010

NCP1#

 2
52591 - SEAL, REAR BUMPER SIDE, RH
52591-52040

NCP1#

 1
52592 - SEAL, REAR BUMPER SIDE, LH
52592-52040

NCP1#

 1
52791 - BOLT, BUMPER MOULDING SET, NO.1
90109-06354

NCP1#

 2
52791-12010

NCP1#

 2
52791-12040

NCP1#

 2
Common parts
90109-06354
90109-06360
90159-50311
90159-60561
90210-05006
90467-07166
90467-09093
94150-80600
Linked diagrams
7601
