NCP12L-BEMRK (1999)

Toyota Yaris/Echo 4d

Production Aug 1999 - Dec 2005
Engine 1NZFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0208- )

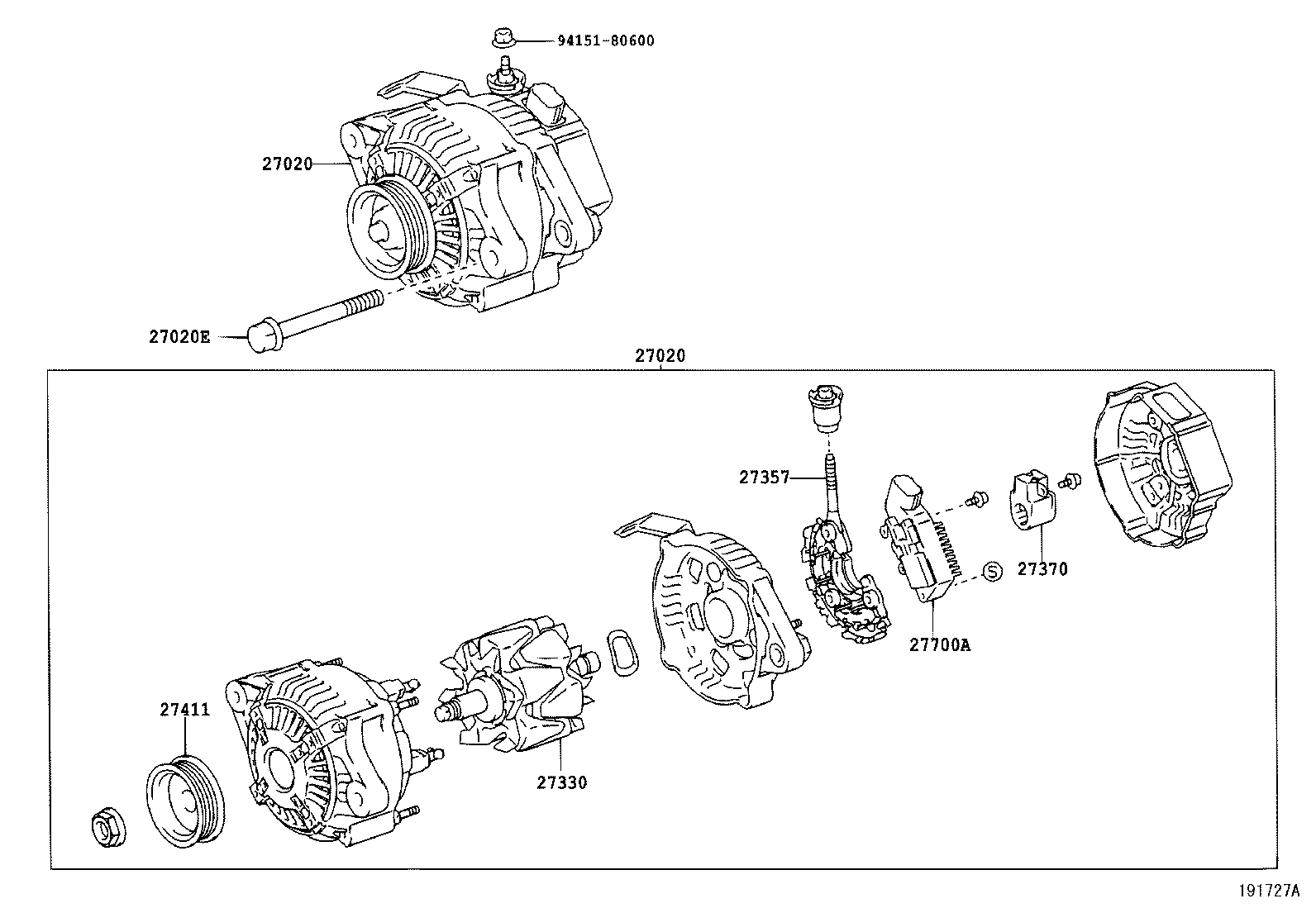

Click highlighted areas on diagram

12V 70A,80A

diagram 27020 27020 27020E 27330 27357 27370 27411 27700A 9415180600
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-21040

1NZFE,2NZFE..NCP1#

12V 70A

 1
27060-21040

1NZFE,2NZFE..NCP1#

12V 70A

 1
27060-21031

1NZFE,2NZFE..NCP1#

12V 80A

 1
27060-21030

1NZFE,2NZFE..NCP1#

12V 80A

 1
27020 - ALTERNATOR ASSY
27060-21040

1NZFE,2NZFE..NCP1#

12V 70A

 1
27060-21040

1NZFE,2NZFE..NCP1#

12V 70A

 1
27060-21031

1NZFE,2NZFE..NCP1#

12V 80A

 1
27060-21030

1NZFE,2NZFE..NCP1#

12V 80A

 1
27020E - BOLT(FOR ALTERNATOR)
90105-10075

1NZFE,2NZFE..NCP1#

 1
90105-10075

1NZFE,2NZFE..NCP1#

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-67100

1NZFE,2NZFE..NCP1#

 1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-21060

1NZFE,2NZFE..NCP1#

 1
27357-67100

1NZFE,2NZFE..NCP1#

 1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-35060

1NZFE,2NZFE..NCP1#

 1
27411 - PULLEY, ALTERNATOR
27411-65010

1NZFE,2NZFE..NCP1#

12V 70A

 1
27411-65010

1NZFE,2NZFE..NCP1#

12V 70A

 1
27411-11060

1NZFE,2NZFE..NCP1#

12V 80A

 1
27700A - REGULATOR ASSY, GENERATOR
27700-21020

1NZFE,2NZFE..NCP1#

 1
Common parts
94151-80600

(9908-0208)

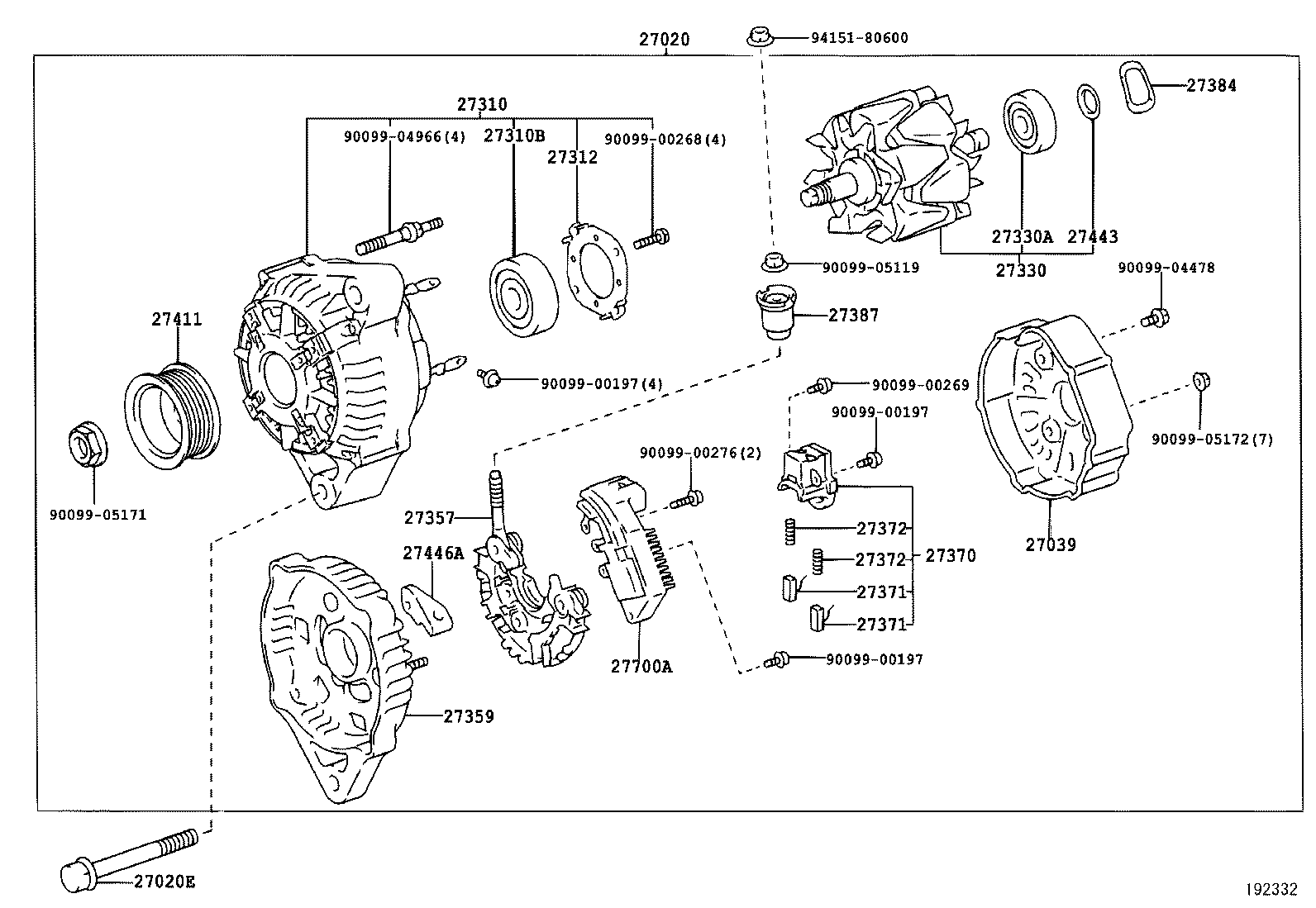

Click highlighted areas on diagram

12V 70A,80A

diagram 27020 27020E 27039 27310 27310B 27312 27330 27330A 27357 27359 27370 27371 27371 27372 27372 27384 27387 27411 27443 27446A 27700A 9009900197 9009900197 9009900197 9009900268 9009900269 9009900276 9009904478 9009904966 9009905119 9009905171 9009905172 9415180600
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-21040

1NZFE,2NZFE..NCP1#

12V 70A

 1
27060-21040

1NZFE,2NZFE..NCP1#

12V 70A

 1
27060-21031

1NZFE,2NZFE..NCP1#

12V 80A

 1
27060-21030

1NZFE,2NZFE..NCP1#

12V 80A

 1
27020E - BOLT(FOR ALTERNATOR)
90105-10075

1NZFE,2NZFE..NCP1#

 1
90105-10075

1NZFE,2NZFE..NCP1#

 1
27039 - COVER, ALTERNATOR REAR END
27039-21060

1NZFE,2NZFE..NCP1#

 1
27039-21020

1NZFE,2NZFE..NCP1#

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-21020

1NZFE,2NZFE..NCP1#

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10220

1NZFE,2NZFE..NCP1#

 1
27312 - PLATE, RETAINER
27312-72100

1NZFE,2NZFE..NCP1#

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-67100

1NZFE,2NZFE..NCP1#

 1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10216

1NZFE,2NZFE..NCP1#

 1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-21060

1NZFE,2NZFE..NCP1#

 1
27357-67100

1NZFE,2NZFE..NCP1#

 1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-21020

1NZFE,2NZFE..NCP1#

 1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-35060

1NZFE,2NZFE..NCP1#

 1
27371 - BRUSH, ALTERNATOR
27371-70300

1NZFE,2NZFE..NCP1#

 2
27371 - BRUSH, ALTERNATOR
27371-70300

1NZFE,2NZFE..NCP1#

 2
27372 - SPRING, ALTERNATOR BRUSH
27372-63020

1NZFE,2NZFE..NCP1#

 2
27372-87501

1NZFE,2NZFE..NCP1#

 2
27372 - SPRING, ALTERNATOR BRUSH
27372-63020

1NZFE,2NZFE..NCP1#

 2
27372-87501

1NZFE,2NZFE..NCP1#

 2
27384 - WASHER
27384-16380

1NZFE,2NZFE..NCP1#

 1
27387 - INSULATOR, TERMINAL
27387-70171

1NZFE,2NZFE..NCP1#

 1
27411 - PULLEY, ALTERNATOR
27411-65010

1NZFE,2NZFE..NCP1#

12V 70A

 1
27411-65010

1NZFE,2NZFE..NCP1#

12V 70A

 1
27411-11060

1NZFE,2NZFE..NCP1#

12V 80A

 1
27443 - COVER, ALTERNATOR BEARING
27443-63020

1NZFE,2NZFE..NCP1#

 1
27446A - CLAMP
27446-21020

1NZFE,2NZFE..NCP1#

 1
27700A - REGULATOR ASSY, GENERATOR
27700-21020

1NZFE,2NZFE..NCP1#

 1
Common parts
90099-00197
90099-00268
90099-00269
90099-00276
90099-04478
90099-04966
90099-05119
90099-05171
90099-05172
94151-80600
