NCP11R-BEPRK (1999)
Toyota Yaris/Echo 4d

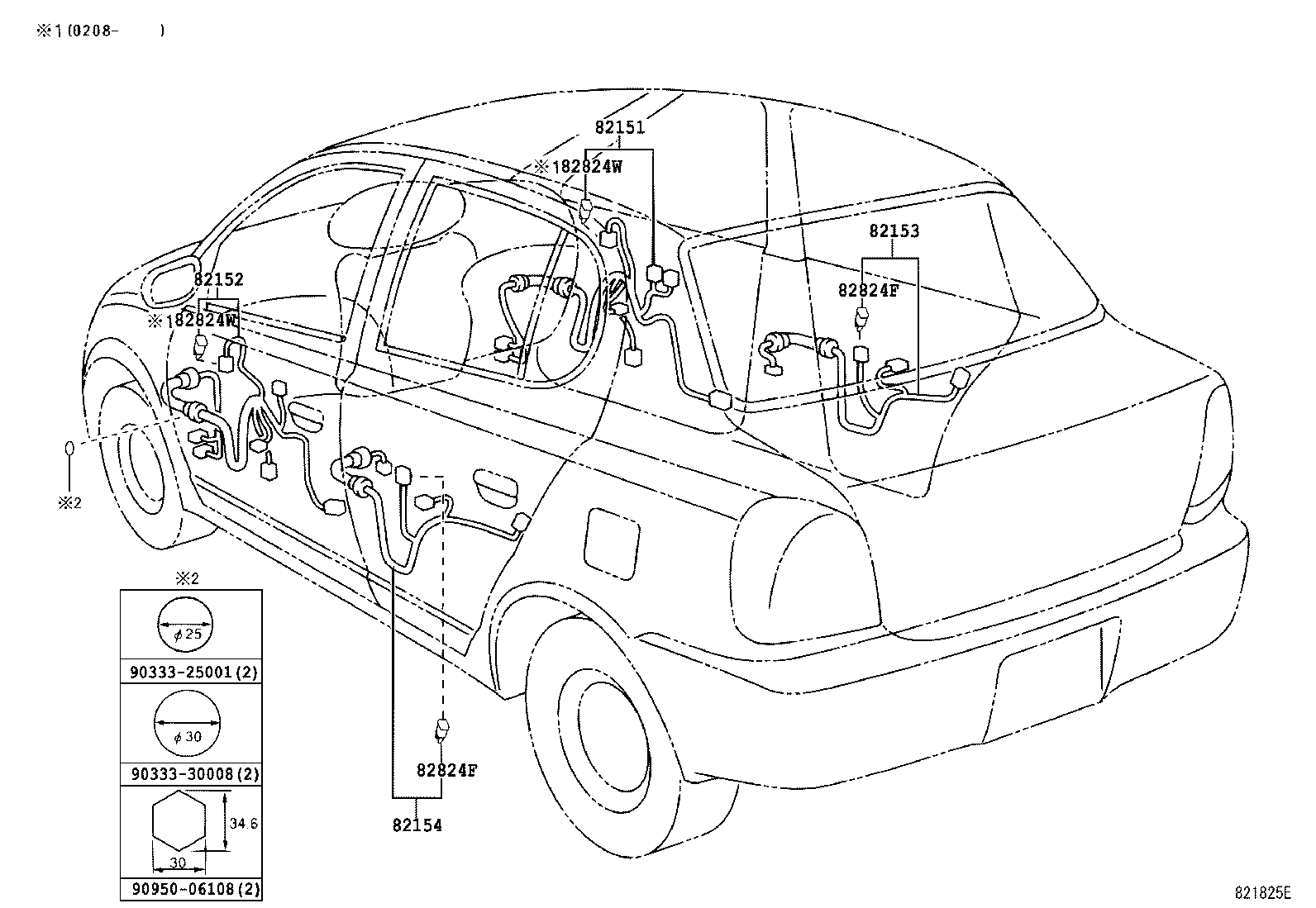

ILLUST NO. 4 OF 7(9908- )
DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-52091 |
NCP1#..RHD W(POWER DOOR LOCK = DRIVER & PASSENGER & POWER WINDOW = FRONT & REAR) |
1 | ||
| 82151-52011 |
NCP1# W(ELECTRIC REMOTE CONTOROL MIRROR) |
1 | ||
| 82151-52011 |
NCP1# W(ELECTRIC REMOTE CONTOROL MIRROR) |
1 | ||
| 82151-52091 |
NCP1#..RHD W(POWER DOOR LOCK = DRIVER & PASSENGER & POWER WINDOW = FRONT & REAR) |
1 | ||
| 82151-52071 |
NCP1#..RHD W(POWER DOOR LOCK = DRIVER & PASSENGER) |
1 | ||
| 82151-52071 |
NCP1#..RHD W(POWER DOOR LOCK = DRIVER & PASSENGER) |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-52011 |
NCP1# W(ELECTRIC REMOTE CONTOROL MIRROR) |
1 | ||
| 82152-52071 |
NCP1#..RHD W(POWER DOOR LOCK = DRIVER & PASSENGER) |
1 | ||
| 82152-52091 |
NCP1#..RHD W(POWER DOOR LOCK = DRIVER & PASSENGER & POWER WINDOW = FRONT & REAR) |
1 | ||
| 82152-52091 |
NCP1#..RHD W(POWER DOOR LOCK = DRIVER & PASSENGER & POWER WINDOW = FRONT & REAR) |
1 | ||
| 82152-52011 |
NCP1# W(ELECTRIC REMOTE CONTOROL MIRROR) |
1 | ||
| 82152-52071 |
NCP1#..RHD W(POWER DOOR LOCK = DRIVER & PASSENGER) |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-52020 |
NCP1# W(POWER WINDOW = FRONT & REAR) |
1 | ||
| 82153-52010 |
NCP1# |
1 | ||
| 82153-52020 |
NCP1# W(POWER WINDOW = FRONT & REAR) |
1 | ||
| 82153-52010 |
NCP1# |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82154-52020 |
NCP1# W(POWER WINDOW = FRONT & REAR) |
1 | ||
| 82154-52020 |
NCP1# W(POWER WINDOW = FRONT & REAR) |
1 | ||
| 82154-52010 |
NCP1# |
1 | ||
| 82154-52010 |
NCP1# |
1 | ||
| 82824F - CONNECTOR, WIRING HARNESS | ||||
| 82824-52050 |
NCP1# |
2 | ||
| 82824F - CONNECTOR, WIRING HARNESS | ||||
| 82824-52050 |
NCP1# |
2 | ||
| 82824W - CONNECTOR, WIRING HARNESS | ||||
| 82824-52050 |
NCP1# |
2 | ||
| 82824W - CONNECTOR, WIRING HARNESS | ||||
| 82824-52050 |
NCP1# |
2 | ||
| Common parts | ||||
| 90333-25001 | ||||
| 90333-30008 | ||||
| 90950-06108 | ||||

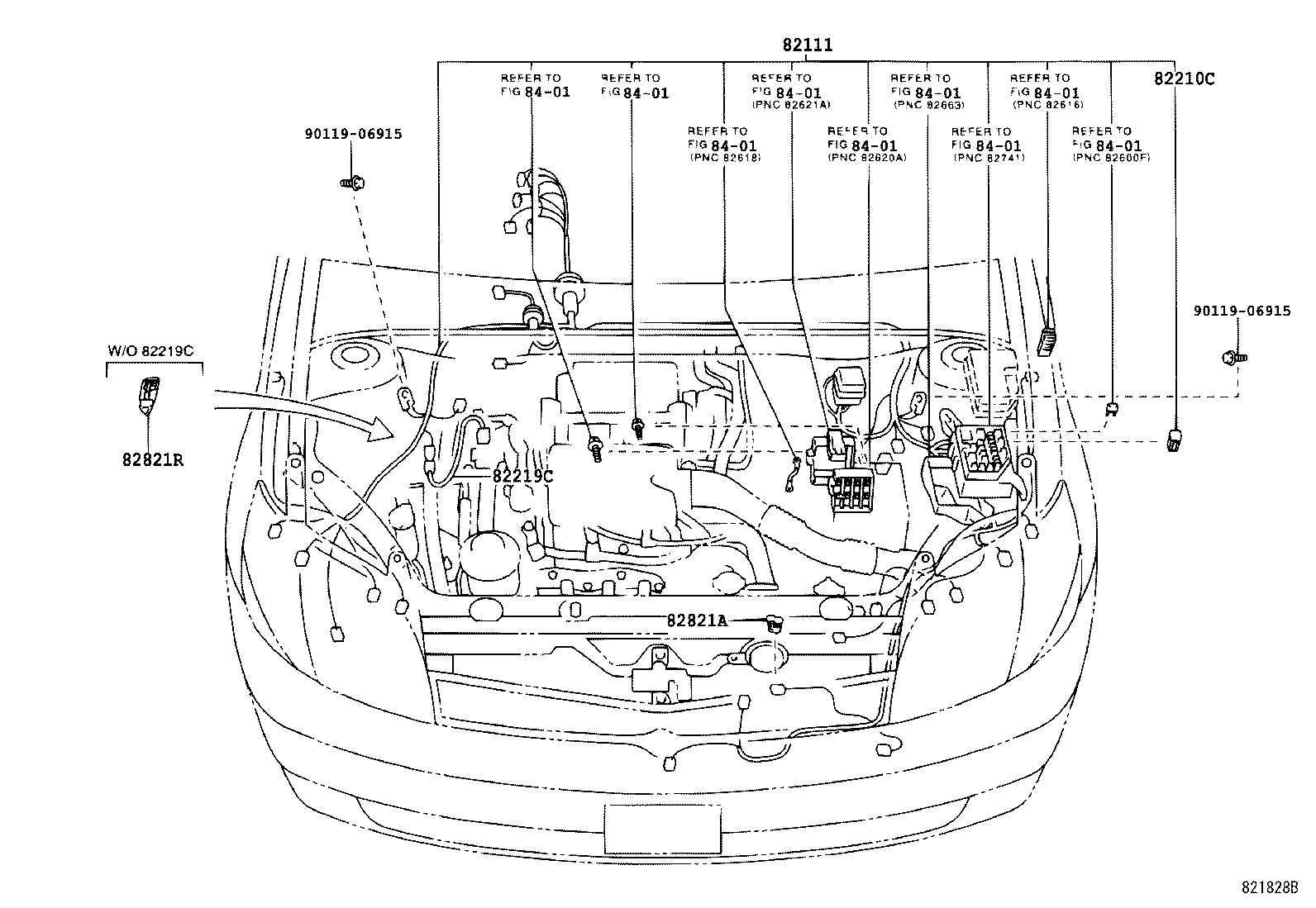

ILLUST NO. 1 OF 7(9908- )RHD
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-52690 |
NCP11..RHD W(ABS & ENGINE IMMOBILIZER) |
1 | ||
| 82111-52540 |
NCP11..RHD W(ABS) |
1 | ||
| 82111-52530 |
NCP11..RHD |
1 | ||
| 82111-52680 |
NCP11..RHD W(ENGINE IMMOBILIZER SYSTEM) |
1 | ||
| 82111-52681 |
NCP11..RHD W(ENGINE IMMOBILIZER SYSTEM) |
1 | ||
| 82111-52691 |
NCP11..RHD W(ABS & ENGINE IMMOBILIZER) |
1 | ||
| 82111-52531 |
NCP11..RHD |
1 | ||
| 82111-5C380 |
NCP11..RHD W(ENGINE IMMOBILIZER SYSTEM) |
1 | ||
| 82111-5C370 |
NCP11..RHD W(ABS) |
1 | ||
| 82111-5C360 |
NCP11..RHD |
1 | ||
| 82111-52541 |
NCP11..RHD W(ABS) |
1 | ||
| 82111-5C390 |
NCP11..RHD W(ABS & ENGINE IMMOBILIZER) |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08280 |
NCP1# 30A,TERM.:FEMALE,PNK,YAZAKI |
1 | ||
| 90982-08283 |
NCP1# 30A,TERM.:FEMALE,PNK,TAIHEIYO |
1 | ||
| 90982-08283 |
NCP1# 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08280 |
NCP1# 30A,TERM.:FEMALE,PNK,YAZAKI |
1 | ||
| 90982-08285 |
NCP11..RHD;NCP1#..ARL,GCC 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08284 |
NCP1# 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08285 |
NCP1# 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08284 |
NCP1#..GEN 40A,TERM.:FEMALE,GRN |
1 | ||
| 82219C - WIRE, SENSOR | ||||
| 82219-52020 |
NCP1# |
1 | ||
| 82821A - COVER, CONNECTOR | ||||
| 82821-10050 |
NCP1# |
1 | ||
| 82821-10050 |
NCP1# |
1 | ||
| 82821R - COVER, CONNECTOR | ||||
| 82821-22120 |
NCP1# |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| Linked diagrams | ||||
| 8401 | ||||

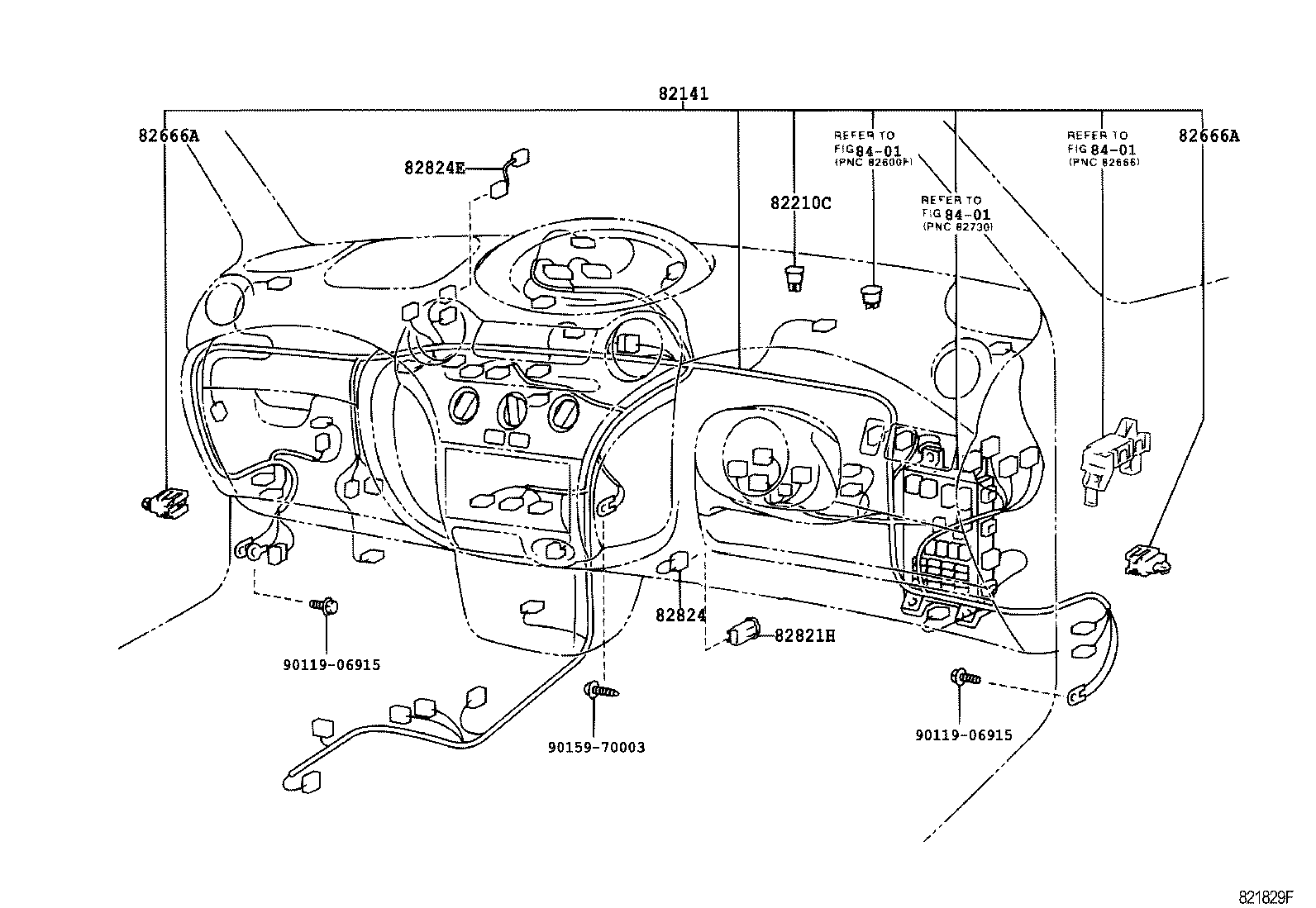

ILLUST NO. 3 OF 7(9908- )RHD
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-52360 |
NCP11..RHD W(DIGITAL METER W/TACHO,KM/H) |
1 | ||
| 82141-52350 |
NCP11..RHD |
1 | ||
| 82141-52400 |
NCP11..RHD W(DIGITAL METER W/TACHO,KM/H & POWER DOOR LOCK = DRIVER & PASSENGER) |
1 | ||
| 82141-52390 |
NCP11..RHD W(POWER DOOR LOCK = DRIVER & PASSENGER) OR W(SRS AIR BAG) |
1 | ||
| 82141-52361 |
NCP11..RHD W(DIGITAL METER W/TACHO,KM/H) |
1 | ||
| 82141-52401 |
NCP11..RHD W(DIGITAL METER W/TACHO,KM/H & SRS AIR BAG) |
1 | ||
| 82141-52351 |
NCP11..RHD |
1 | ||
| 82141-52391 |
NCP11..RHD W(POWER DOOR LOCK = DRIVER & PASSENGER) OR W(SRS AIR BAG) |
1 | ||
| 82141-52402 |
NCP11..RHD W(DIGITAL METER W/TACHO,KM/H & SRS AIR BAG) |
1 | ||
| 82141-52362 |
NCP11..RHD W(DIGITAL METER W/TACHO) |
1 | ||
| 82141-52392 |
NCP11..RHD W(SRS AIR BAG) |
1 | ||
| 82141-52352 |
NCP11..RHD |
1 | ||
| 82141-5C630 |
NCP11..RHD W(POWER DOOR LOCK & SRS AIR BAG) |
1 | ||
| 82141-5D230 |
NCP11..RHD UNLEADED GASOLINE SPEC & W(ANALOGUE METER) |
1 | ||
| 82141-5C640 |
NCP11..RHD W(DIGITAL METER W/TACHO & POWER DOOR LOCK & SRS AIR BAG |
1 | ||
| 82141-5D260 |
NCP11..RHD LEADED GASOLINE SPEC & W(DIGITAL METER) |
1 | ||
| 82141-5D240 |
NCP11..RHD UNLEADED GASOLINE SPEC & W(DIGITAL METER) |
1 | ||
| 82141-5C631 |
NCP11..RHD W(POWER DOOR LOCK & SRS AIR BAG) |
1 | ||
| 82141-5C620 |
NCP11..RHD W(DIGITAL METER W/TACHO) |
1 | ||
| 82141-5D250 |
NCP11..RHD LEADED GASOLINE SPEC & W(ANALOGUE METER) |
1 | ||
| 82141-5C641 |
NCP11..RHD W(DIGITAL METER W/TACHO & POWER DOOR LOCK & SRS AIR BAG |
1 | ||
| 82141-5C610 |
NCP11..RHD |
1 | ||
| 82141-5D261 |
NCP11..RHD LEADED GASOLINE SPEC & W(DIGITAL METER) |
1 | ||
| 82141-5D251 |
NCP11..RHD LEADED GASOLINE SPEC & W(ANALOGUE METER) |
1 | ||
| 82141-5D241 |
NCP11..RHD UNLEADED GASOLINE SPEC & W(DIGITAL METER) |
1 | ||
| 82141-5D231 |
NCP11..RHD UNLEADED GASOLINE SPEC & W(ANALOGUE METER) |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08280 |
NCP1# 30A,TERM.:FEMALE,PNK,YAZAKI |
1 | ||
| 90982-08283 |
NCP1# 30A,TERM.:FEMALE,PNK,TAIHEIYO |
1 | ||
| 90982-08283 |
NCP1# 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08280 |
NCP1# 30A,TERM.:FEMALE,PNK,YAZAKI |
1 | ||
| 90982-08285 |
NCP11..RHD;NCP1#..ARL,GCC 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08284 |
NCP1# 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08285 |
NCP1# 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08284 |
NCP1#..GEN 40A,TERM.:FEMALE,GRN |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-52030 |
NCP1# |
2 | ||
| 82666-52020 |
NCP1# |
2 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-52030 |
NCP1# |
2 | ||
| 82666-52020 |
NCP1# |
2 | ||
| 82821H - COVER, CONNECTOR | ||||
| 82821-12400 |
NCP1# |
1 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-52100 |
NCP1# |
1 | ||
| 82824-52100 |
NCP1# |
1 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-52110 |
NCP1# |
1 | ||
| 82824-52110 |
NCP1# |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90159-70003 | ||||
| Linked diagrams | ||||
| 8401 | ||||

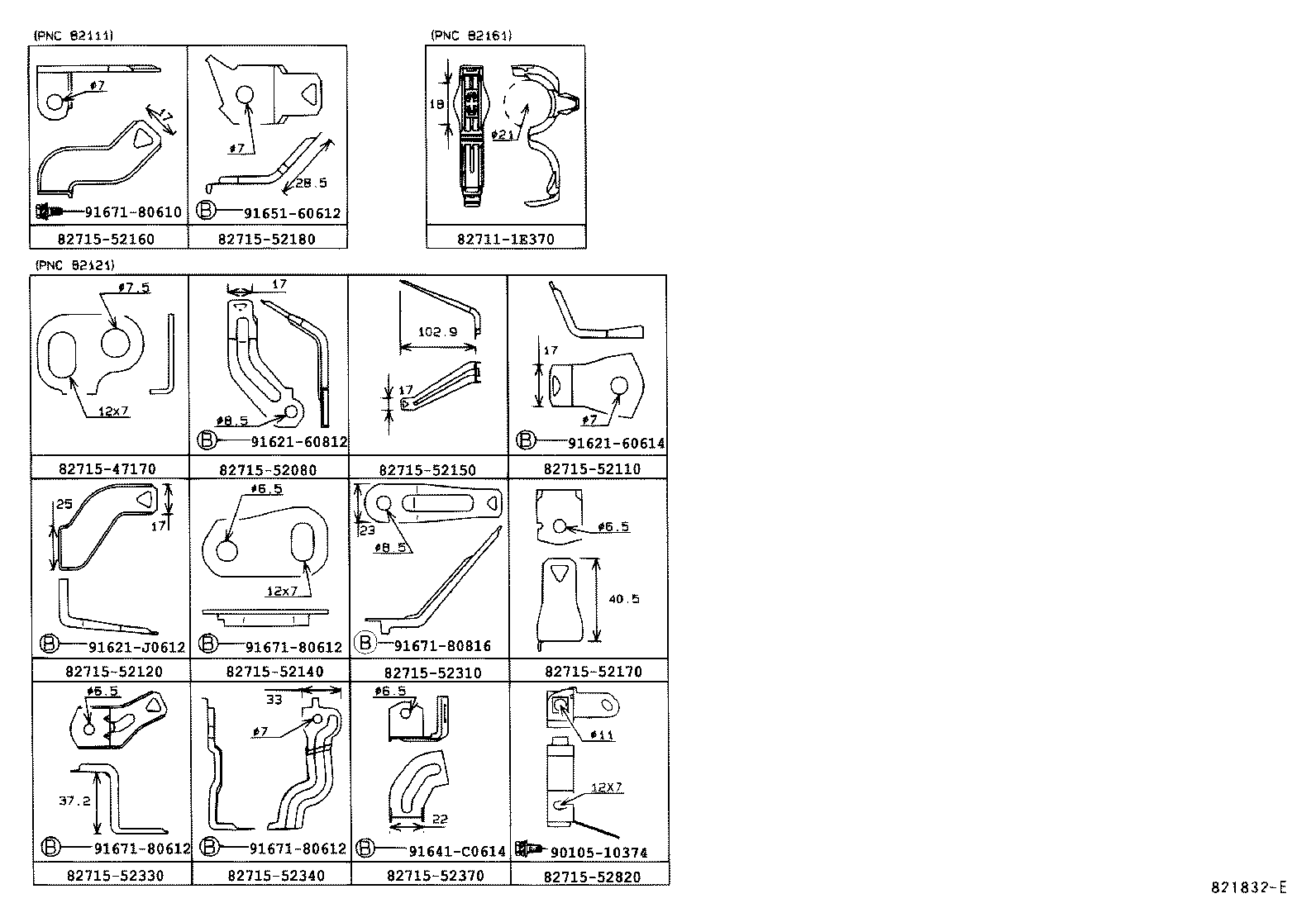

ILLUST NO. 6 OF 7(9908- )
CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-1E370 | ||||
| 82715-47170 | ||||
| 82715-52080 | ||||
| 82715-52110 | ||||
| 82715-52120 | ||||
| 82715-52140 | ||||
| 82715-52150 | ||||
| 82715-52160 | ||||
| 82715-52170 | ||||
| 82715-52180 | ||||
| 82715-52310 | ||||
| 82715-52330 | ||||
| 82715-52340 | ||||
| 82715-52370 | ||||
| 82715-52820 | ||||
| 90105-10374 | ||||
| 91621-60614 | ||||
| 91621-60812 | ||||
| 91621-J0612 | ||||
| 91641-C0614 | ||||
| 91651-60612 | ||||
| 91671-80610 | ||||
| 91671-80612 | ||||
| 91671-80816 | ||||

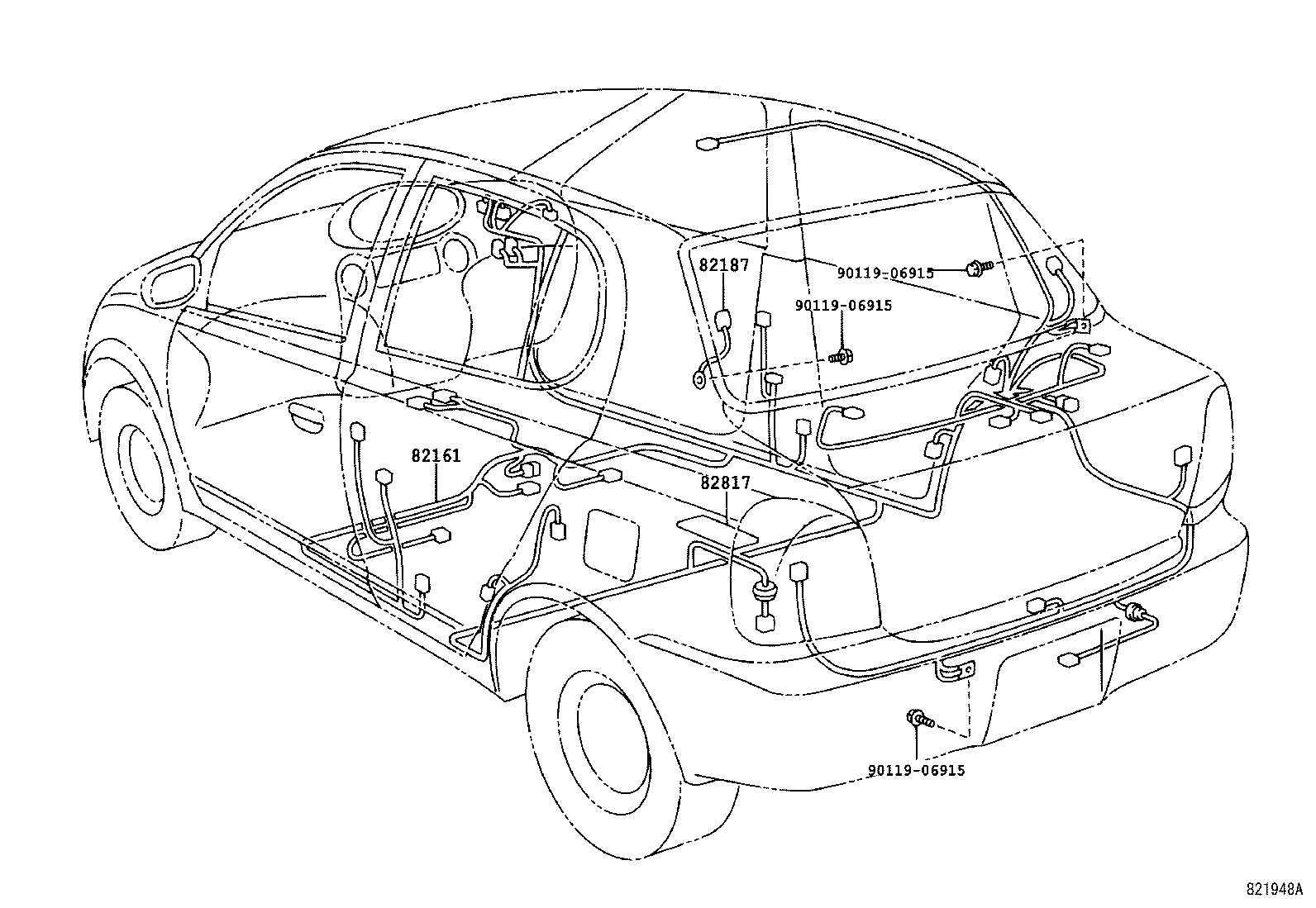

ILLUST NO. 5 OF 7(9908- )RHD
FLOOR & ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-52370 |
NCP1#..RHD W(POWER DOOR LOCK = DRIVER & PASSENGER) |
1 | ||
| 82161-5C061 |
NCP1#..RHD |
1 | ||
| 82161-52360 |
NCP1#..RHD |
1 | ||
| 82161-5C360 |
NCP1#..RHD |
1 | ||
| 82161-5C361 |
NCP1#..RHD |
1 | ||
| 82161-5C060 |
NCP1#..RHD |
1 | ||
| 82187 - WIRE, REAR WINDOW, NO.2 | ||||
| 82187-52030 |
NCP1# |
1 | ||
| 82187-52030 |
NCP1# |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-16100 |
NCP1# |
1 | ||
| 82817-16100 |
NCP1# |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||

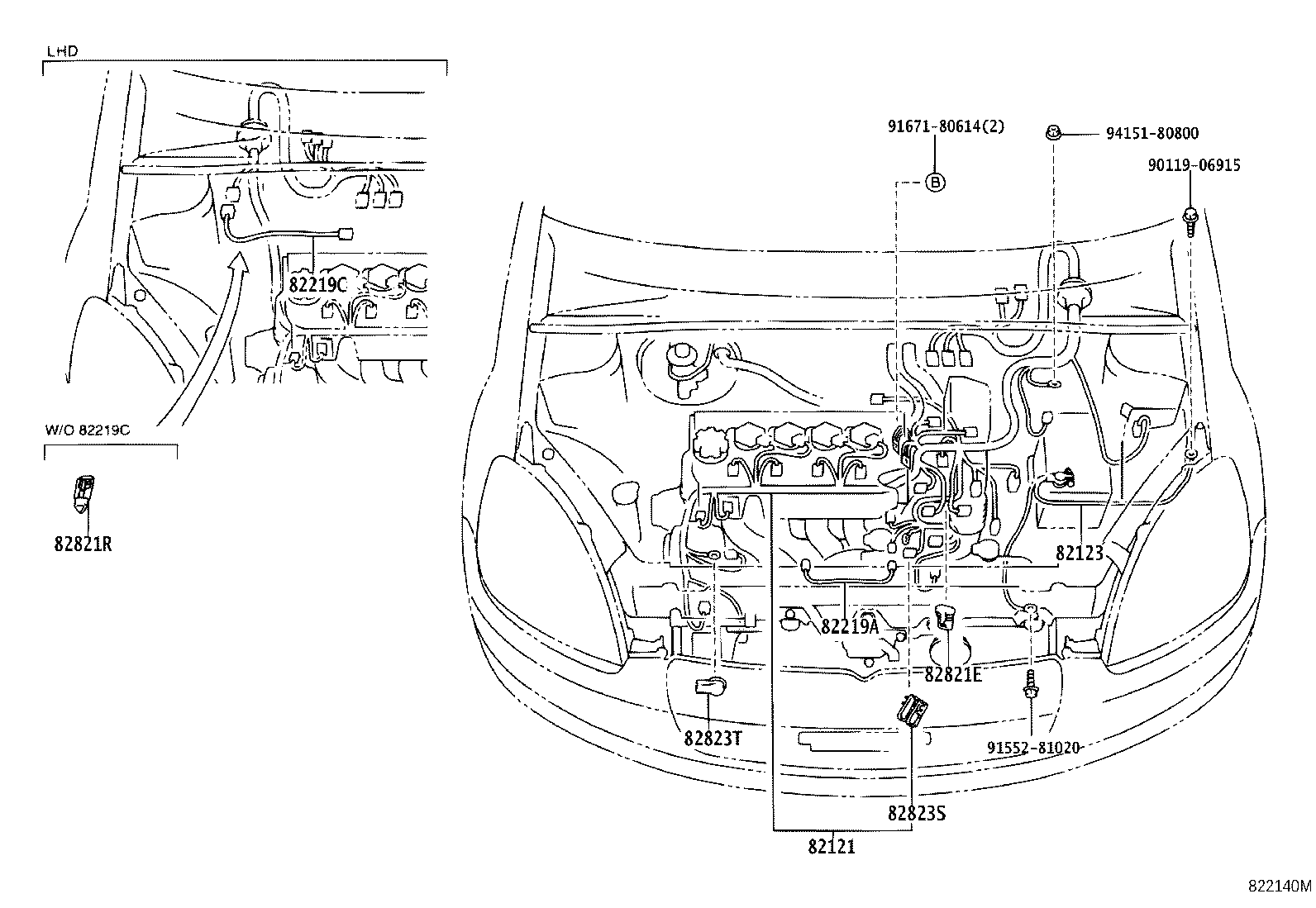

ILLUST NO. 2 OF 7(9908- )
ENGINE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-52870 |
NCP1#..RHD..ATM |
1 | ||
| 82121-52120 |
NCP1#..RHD..ATM |
1 | ||
| 82121-52890 |
NCP11..RHD..ATM LEADED GASOLINE SPEC |
1 | ||
| 82121-52200 |
NCP11..RHD..ATM LEADED GASOLINE SPEC |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-52050 |
NCP1#..ATM |
1 | ||
| 82123-52070 |
NCP1# |
1 | ||
| 82123-52071 |
NCP1# |
1 | ||
| 82123-52071 |
NCP1# |
1 | ||
| 82219A - WIRE, SENSOR | ||||
| 82219-52010 |
NCP1# |
1 | ||
| 82219-52010 |
NCP1# |
1 | ||
| 82219C - WIRE, SENSOR | ||||
| 82219-52020 |
NCP1# |
1 | ||
| 82821R - COVER, CONNECTOR | ||||
| 82821-22120 |
NCP1# |
1 | ||
| 82823S - CAP, STARTER TERMINAL | ||||
| 82823-20080 |
NCP1# |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-22050 |
NCP1# |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 91552-81020 | ||||
| 91671-80614 | ||||
| 94151-80800 | ||||

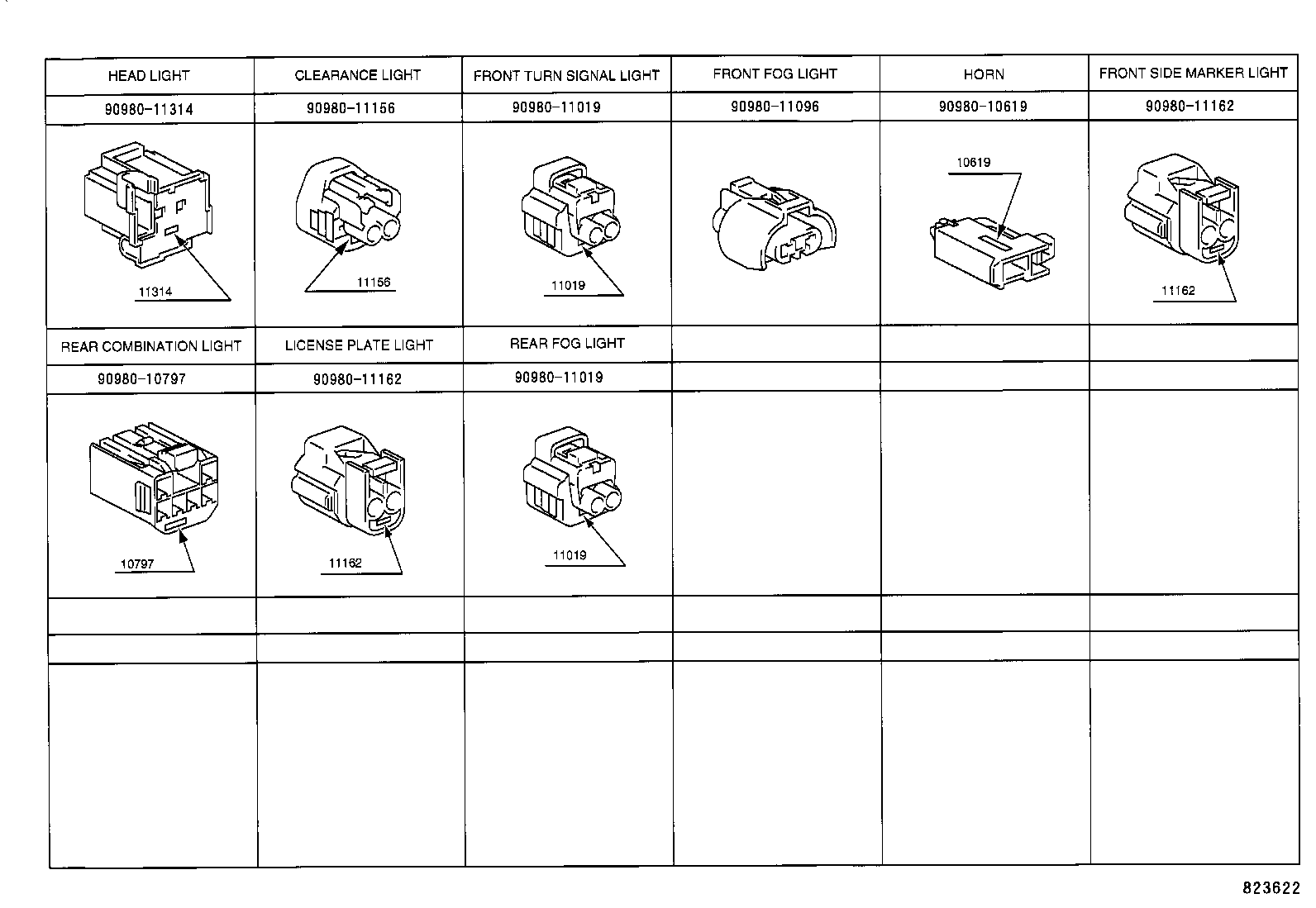

ILLUST NO. 7 OF 7(0208- )
CONNECTOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90980-10619 | ||||
| 90980-10797 | ||||
| 90980-11019 | ||||
| 90980-11096 | ||||
| 90980-11156 | ||||
| 90980-11162 | ||||
| 90980-11314 | ||||
