Toyota Yaris/echo 4d NCP11 BATTERY CARRIER

Home Blog About Contact Search

NCP11R-BEPRK (1999)

Toyota Yaris/Echo 4d

Production Aug 1999 - Dec 2005

Engine 2NZFE

Transmission ATM

Displacement 2500cc

Power 168 HP (125 kW)

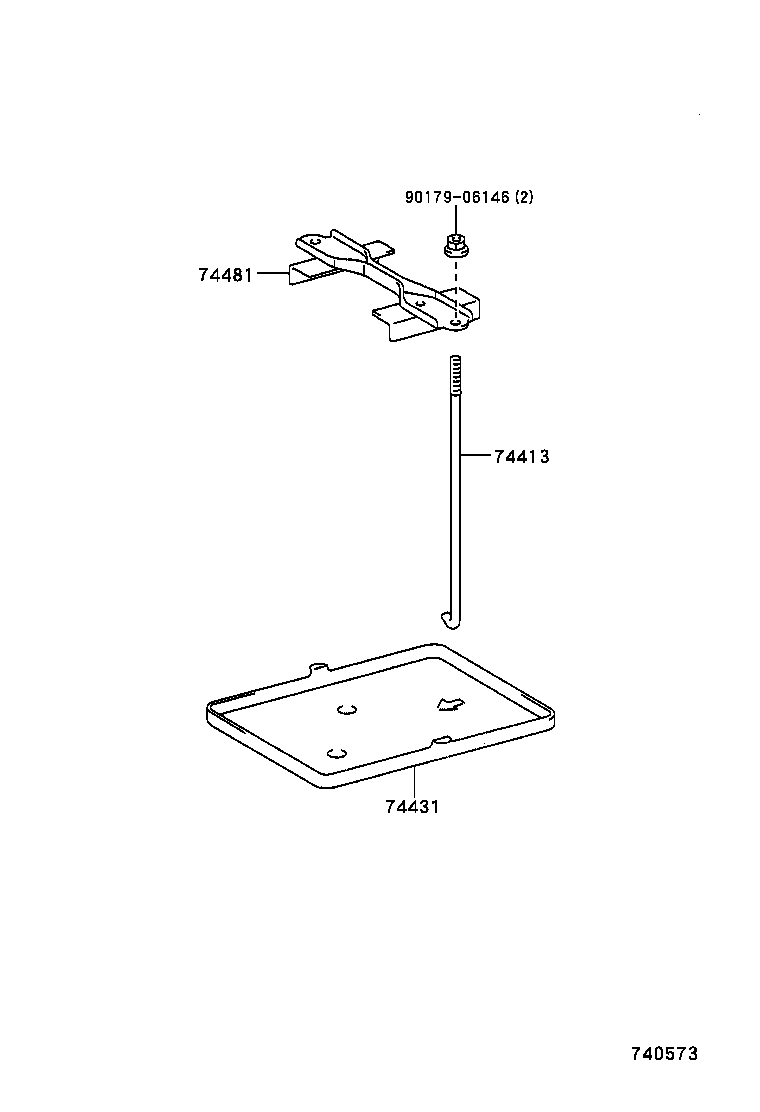

Click highlighted areas on diagram

Part #	Description	Period	Qty
74413 - BOLT, BATTERY CLAMP
74451-16030	NCP1#	08/2002 - 12/2999	2
74451-16030	NCP1#	08/1999 - 08/2002	2
74431 - TRAY, BATTERY
74431-52020	NCP1#	01/2000 - 08/2002	1
74431-52020	NCP1#	08/2002 - 12/2999	1
74431-52010	NCP1#	08/1999 - 01/2000	1
74481 - CLAMP, BATTERY HOLD DOWN
74404-52020	NCP1#	08/1999 - 08/2002	1
74404-52020	NCP1#	08/2002 - 12/2999	1
Common parts
90179-06146
