NCP11R-BEPRK (1999)
Toyota Yaris/Echo 4d

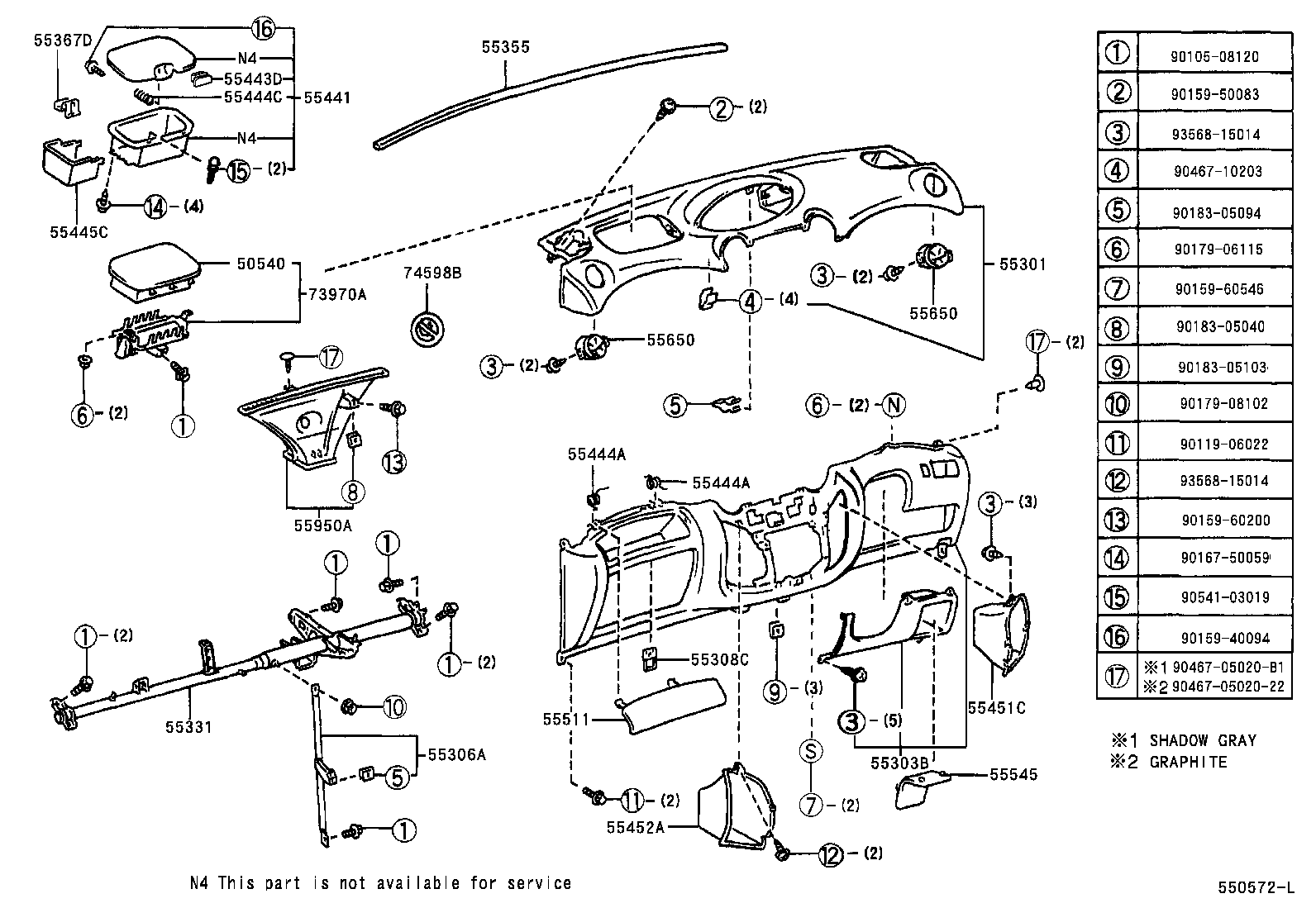

ILLUST NO. 1 OF 2(9908-0208)RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 50540 - DO0R ASSY, AIR BAG PASSENGER | ||||
| 50540-52020B0 |
NCP1#..RHD SHADOW GRAY,TRIM1# |
1 | ||
| 50540-52020B1 |
NCP1#..RHD AMETHYST,TRIM9# |
1 | ||
| 55301 - PANEL SUB-ASSY, INSTRUMENT | ||||
| 55301-52020B0 |
NCP1#..RHD SHADOW GRAY,TRIM1# |
1 | ||
| 55301-52020B1 |
NCP1#..RHD AMETHYST,TRIM9# |
1 | ||
| 55301-52140B0 |
NCP1#..RHD DK.GRAY,TRIM1# |
1 | ||
| 55301-52140E0 |
NCP1#..RHD SANDAL WOOD,TRIM4# |
1 | ||
| 55303B - PANEL SUB-ASSY, INSTRUMENT, LOWER | ||||
| 55303-52901B0 |
NCP1#..RHD SHADOW GRAY,TRIM1# |
1 | ||
| 55303-52901B3 |
NCP1#..RHD SHADOW GRAY,TRIM94 |
1 | ||
| 55303-52901B1 |
NCP1#..RHD AMETHYST,TRIM9# |
1 | ||
| 55303-52901E0 |
NCP1#..RHD M. NEUTRAL BONE,TRIM4# |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-52021 |
NCP1#..RHD |
1 | ||
| 55306-52021 |
NCP1#..RHD |
1 | ||
| 55308C - BRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55308-52010 |
NCP1# |
1 | ||
| 55308-52080 |
NCP1# |
1 | ||
| 55308-52080 |
NCP1# |
1 | ||
| 55331 - REINFORCEMENT, INSTRUMENT PANEL | ||||
| 55330-52041 |
NCP1#..RHD |
1 | ||
| 55330-52350 |
NCP1#..RHD |
1 | ||
| 55355 - CUSHION, INSTRUMENT PANEL, NO.1 | ||||
| 55355-52012 |
NCP1# |
1 | ||
| 55355-52012 |
NCP1# |
1 | ||
| 55355-52150 |
NCP1# |
1 | ||
| 55355-52011 |
NCP1# |
1 | ||
| 55441 - BOX, INSTRUMENT PANEL | ||||
| 55440-52040B1 |
NCP1#..RHD AMETHYST,TRIM9# |
1 | ||
| 55440-52040B0 |
NCP1#..RHD SHADOW GRAY,TRIM1# |
1 | ||
| 55443D - KNOB, INSTRUMENT PANEL BOX DOOR | ||||
| 55443-52010B1 |
NCP1# AMETHYST,TRIM9# |
1 | ||
| 55443-52010B0 |
NCP1# SHADOW GRAY,TRIM1# |
1 | ||
| 55444A - SPRING, INSTRUMENT PANEL BOX | ||||
| 55444-52040 |
NCP1#..RHD |
2 | ||
| 55444-52040 |
NCP1#..RHD |
2 | ||
| 55444A - SPRING, INSTRUMENT PANEL BOX | ||||
| 55444-52040 |
NCP1#..RHD |
2 | ||
| 55444-52040 |
NCP1#..RHD |
2 | ||
| 55444C - SPRING, INSTRUMENT PANEL BOX | ||||
| 55444-52080 |
NCP1# |
1 | ||
| 55445C - PLATE, INSTRUMENT PANEL BOX | ||||
| 55445-52040B1 |
NCP1#..RHD AMETHYST,TRIM9# |
1 | ||
| 55445-52040B0 |
NCP1#..RHD SHADOW GRAY,TRIM1# |
1 | ||
| 55451C - BOX, INSTRUMENT PANEL, NO.1 | ||||
| 55451-52020B0 |
NCP1#..RHD SHADOW GRAY,TRIM1# |
1 | ||
| 55451-52020B1 |
NCP1#..RHD AMETHYST,TRIM9# |
1 | ||
| 55451-52050E0 |
NCP1#..RHD SANDAL WOOD,TRIM4# |
1 | ||
| 55451-52050B1 |
NCP1#..RHD DK.GRAY,TRIM1# |
1 | ||
| 55452A - BOX, INSTRUMENT PANEL, NO.2 | ||||
| 55452-52020B0 |
NCP1#..RHD SHADOW GRAY,TRIM1# |
1 | ||
| 55452-52020B1 |
NCP1#..RHD AMETHYST,TRIM9# |
1 | ||
| 55452-52060B1 |
NCP1#..RHD DK.GRAY,TRIM1# |
1 | ||
| 55452-52060E0 |
NCP1#..RHD SANDAL WOOD,TRIM4# |
1 | ||
| 55511 - DOOR, GLOVE COMPARTMENT | ||||
| 55501-52020B0 |
NCP1#..RHD MD.GRAY,TRIM1# |
1 | ||
| 55501-52050E0 |
NCP1#..RHD MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 55501-52020B1 |
NCP1#..RHD LT.AMETHYST,TRIM9# |
1 | ||
| 55501-52050B0 |
NCP1#..RHD MD.GRAY,TRIM1# |
1 | ||
| 55545 - COVER, FUSE BOX OPENING | ||||
| 55545-52010B0 |
NCP1# MD.GRAY,TRIM1# |
1 | ||
| 55545-52010E0 |
NCP1# MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 55545-52010B1 |
NCP1# LT.AMETHYST,TRIM9# |
1 | ||
| 55545-52010B5 |
NCP1# MD.GRAY,TRIM1# |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-52080E0 |
NCP1#..RHD SANDAL WOOD,TRIM4# |
2 | ||
| 55650-52010B0 |
NCP1# SHADOW GRAY,TRIM1# |
2 | ||
| 55650-52080B0 |
NCP1#..RHD DK.GRAY,TRIM1# |
2 | ||
| 55650-52010B1 |
NCP1# AMETHYST,TRIM9# |
2 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-52080E0 |
NCP1#..RHD SANDAL WOOD,TRIM4# |
2 | ||
| 55650-52010B0 |
NCP1# SHADOW GRAY,TRIM1# |
2 | ||
| 55650-52080B0 |
NCP1#..RHD DK.GRAY,TRIM1# |
2 | ||
| 55650-52010B1 |
NCP1# AMETHYST,TRIM9# |
2 | ||
| 55950A - NOZZLE ASSY, DEFROSTER | ||||
| 55950-52020 |
NCP1#..RHD |
1 | ||
| 55950-52020 |
NCP1#..RHD |
1 | ||
| 73970A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER | ||||
| 73970-52020B1 |
NCP1#..RHD AMETHYST,TRIM9# |
1 | ||
| 73970-52080B1 |
NCP1#..RHD AMETHYST,TRIM9# |
1 | ||
| 73970-52130E0 |
NCP1#..RHD SANDAL WOOD,TRIM4# |
1 | ||
| 73970-52080B0 |
NCP1#..RHD SHADOW GRAY,TRIM1# |
1 | ||
| 73970-52130B0 |
NCP1#..RHD DK.GRAY,TRIM1# |
1 | ||
| 73970-52020B0 |
NCP1#..RHD SHADOW GRAY,TRIM1# |
1 | ||
| 74598B - LABEL, PASSENGER AIR BAG CAUTION | ||||
| 74598-20010 |
NCP1# |
1 | ||
| 74598-20010 |
NCP1# |
1 | ||
| Common parts | ||||
| 90105-08120 | None epc.PartDetail.None | |||
| 90119-06022 | None epc.PartDetail.None | |||
| 90159-40094 | None epc.PartDetail.None | |||
| 90159-50083 | None epc.PartDetail.None | |||
| 90159-60200 | None epc.PartDetail.None | |||
| 90159-60546 | None epc.PartDetail.None | |||
| 90167-50059 | None epc.PartDetail.None | |||
| 90179-06115 | None epc.PartDetail.None | |||
| 90179-08102 | None epc.PartDetail.None | |||
| 90183-05040 | None epc.PartDetail.None | |||
| 90183-05094 | None epc.PartDetail.None | |||
| 90183-05103 | None epc.PartDetail.None | |||
| 90467-0502022 | None epc.PartDetail.None | |||
| 90467-05020B1 | None epc.PartDetail.None | |||
| 90467-10203 | None epc.PartDetail.None | |||
| 90541-03019 | None epc.PartDetail.None | |||
| 93568-15014 | None epc.PartDetail.None | |||

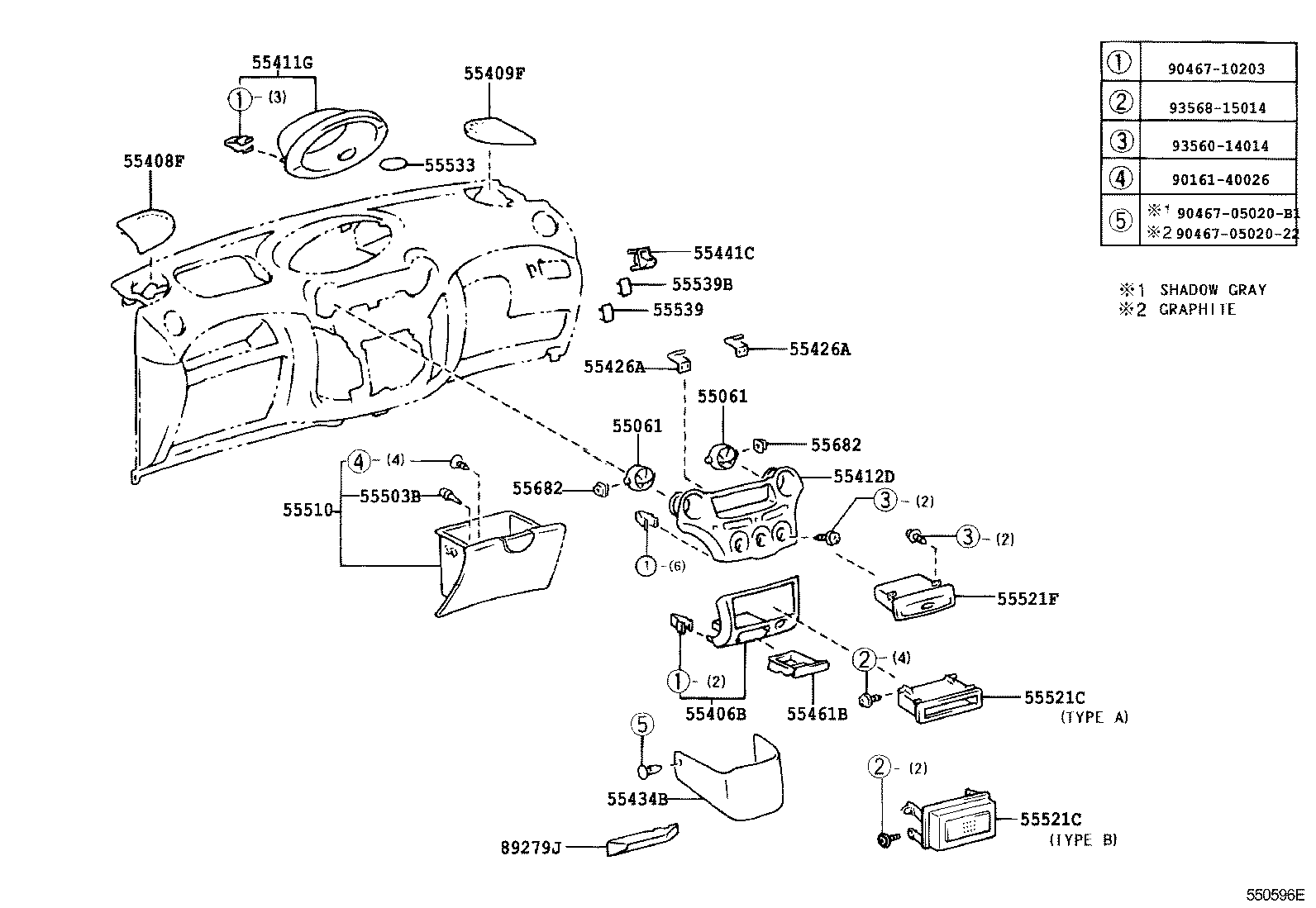

ILLUST NO. 2 OF 2(9908-0208)RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55061 - REGISTER SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55061-52010B1 |
NCP1# AMETHYST,TRIM9# |
2 | ||
| 55650-52080E0 |
NCP1#..RHD SANDAL WOOD,TRIM4# |
2 | ||
| 55650-52080B0 |
NCP1#..RHD DK.GRAY,TRIM1# |
2 | ||
| 55061-52010B0 |
NCP1# SHADOW GRAY,TRIM1# |
2 | ||
| 55061 - REGISTER SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55061-52010B1 |
NCP1# AMETHYST,TRIM9# |
2 | ||
| 55650-52080E0 |
NCP1#..RHD SANDAL WOOD,TRIM4# |
2 | ||
| 55650-52080B0 |
NCP1#..RHD DK.GRAY,TRIM1# |
2 | ||
| 55061-52010B0 |
NCP1# SHADOW GRAY,TRIM1# |
2 | ||
| 55406B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, LOWER CENTER | ||||
| 55406-52041B0 |
NCP1#..RHD DK.GRAY,TRIM1# |
1 | ||
| 55406-52040E0 |
NCP1#..RHD SANDAL WOOD,TRIM4# |
1 | ||
| 55406-52041E0 |
NCP1#..RHD SANDAL WOOD,TRIM4# |
1 | ||
| 55406-52010B1 |
NCP1# AMETHYST,TRIM9# |
1 | ||
| 55406-52010B0 |
NCP1# SHADOW GRAY,TRIM1# |
1 | ||
| 55408F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1 | ||||
| 55472-52050B1 |
NCP1#..RHD SHADOW GRAY,TRIM1# |
1 | ||
| 55472-52010B0 |
NCP1# SHADOW GRAY,TRIM1# |
1 | ||
| 55472-52050E0 |
NCP1#..RHD SANDAL WOOD,TRIM4# |
1 | ||
| 55472-52010B1 |
NCP1# AMETHYST,TRIM9# |
1 | ||
| 55472-52050B0 |
NCP1#..RHD DK.GRAY,TRIM1# |
1 | ||
| 55409F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2 | ||||
| 55473-52050E0 |
NCP1#..RHD SANDAL WOOD,TRIM4# |
1 | ||
| 55473-52010B1 |
NCP1# AMETHYST,TRIM9# |
1 | ||
| 55473-52010B0 |
NCP1# SHADOW GRAY,TRIM1# |
1 | ||
| 55473-52050B0 |
NCP1#..RHD DK.GRAY,TRIM1# |
1 | ||
| 55411G - PANEL, INSTRUMENT CLUSTER FINISH, NO.1 | ||||
| 55411-52020B1 |
NCP1#..RHD AMETHYST,TRIM9# |
1 | ||
| 55411-52020B0 |
NCP1#..RHD SHADOW GRAY,TRIM1# |
1 | ||
| 55411-52110E0 |
NCP1#..RHD SANDAL WOOD,TRIM4# |
1 | ||
| 55411-52110B0 |
NCP1#..RHD DK.GRAY,TRIM1# |
1 | ||
| 55412D - PANEL, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55412-52011B1 |
NCP1# AMETHYST,TRIM9# |
1 | ||
| 55412-52180E0 |
NCP1#..RHD SANDAL WOOD,TRIM4# |
1 | ||
| 55412-52010B0 |
NCP1# SHADOW GRAY,TRIM1# |
1 | ||
| 55412-52010B1 |
NCP1# AMETHYST,TRIM9# |
1 | ||
| 55412-52011B0 |
NCP1# SHADOW GRAY,TRIM1# |
1 | ||
| 55412-52180B0 |
NCP1#..RHD DK.GRAY,TRIM1# |
1 | ||
| 55426A - BRACKET, CLUSTER FINISH PANEL, NO.1 | ||||
| 55426-52010 |
NCP1# |
2 | ||
| 55426A - BRACKET, CLUSTER FINISH PANEL, NO.1 | ||||
| 55426-52010 |
NCP1# |
2 | ||
| 55434B - PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER | ||||
| 55434-52020B0 |
NCP1#..RHD MD.GRAY,TRIM1# |
1 | ||
| 55434-52090E0 |
NCP1#..RHD SANDAL WOOD,TRIM4# |
1 | ||
| 55434-52020B1 |
NCP1#..RHD LT.AMETHYST,TRIM9# |
1 | ||
| 55434-52090B3 |
NCP1#..RHD DK.GRAY,TRIM1# |
1 | ||
| 55441C - BOX, INSTRUMENT PANEL COIN | ||||
| 55441-20140B5 |
NCP1# LT.AMETHYST,TRIM9# |
1 | ||
| 55441-20140B4 |
NCP1# MD.GRAY,TRIM1# |
1 | ||
| 55441-20140P1 |
NCP1# MD.GRAY,TRIM1# |
1 | ||
| 55441-20140E2 |
NCP1# MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 55461B - BOX, INSTRUMENT PANEL, CENTER | ||||
| 55461-52010E0 |
NCP1# SANDAL WOOD,TRIM4# |
1 | ||
| 55461-52010B1 |
NCP1# AMETHYST,TRIM9# |
1 | ||
| 55461-52010B0 |
NCP1# SHADOW GRAY,TRIM1# |
1 | ||
| 55461-52010B2 |
NCP1# DK.GRAY,TRIM1# |
1 | ||
| 55503B - CUSHION(FOR GLOVE COMPARTMENT) | ||||
| 90541-05080 |
NCP1# |
2 | ||
| 90541-05020 |
NCP1# |
2 | ||
| 90541-05080 |
NCP1# |
2 | ||
| 55510 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-52130E0 |
NCP1# MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 55550-52010B1 |
NCP1# LT.AMETHYST,TRIM9# |
1 | ||
| 55550-52010B0 |
NCP1# MD.GRAY,TRIM1# |
1 | ||
| 55550-52130B1 |
NCP1# MD.GRAY,TRIM1# |
1 | ||
| 55550-52010E0 |
NCP1# MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55521-16030 |
NCP1# TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 55521-16030 |
NCP1# TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55521-16030 |
NCP1# TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 55521-16030 |
NCP1# TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 55521F - COVER, STEREO OPENING, NO.2 | ||||
| 55520-52060B0 |
NCP11..RHD DK.GRAY,TRIM1# |
1 | ||
| 55520-52060E0 |
NCP11..RHD SANDAL WOOD,TRIM4# |
1 | ||
| 55533 - COVER, AUTO CLOCK HOLE | ||||
| 55533-52010B1 |
NCP1# AMETHYST,TRIM9# |
1 | ||
| 55533-52040B0 |
NCP1#..RHD DK.GRAY,TRIM1# |
1 | ||
| 55533-52040E0 |
NCP1#..RHD SANDAL WOOD,TRIM4# |
1 | ||
| 55533-52010B0 |
NCP1# SHADOW GRAY,TRIM1# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-52010B0 |
NCP1# MD.GRAY,TRIM1# |
1 | ||
| 55539-52010B1 |
NCP1# LT.AMETHYST,TRIM9# |
1 | ||
| 55539-52010E0 |
NCP1# MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 55539-52010B3 |
NCP1# MD.GRAY,TRIM1# |
1 | ||
| 55539B - COVER, SPARE SWITCH HOLE, NO.2 | ||||
| 55539-32010B5 |
NCP1# LT. AMETHYST,TRIM9# |
1 | ||
| 55539-32010P5 |
NCP1# MD.GRAY,TRIM1# |
1 | ||
| 55539-32010B7 |
NCP1# MD.GRAY,TRIM1# |
1 | ||
| 55539-32010E8 |
NCP1# MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 55682 - SPRING, INSTRUMENT PANEL REGISTER SUPPORT | ||||
| 55682-52010 |
NCP1# |
2 | ||
| 55682 - SPRING, INSTRUMENT PANEL REGISTER SUPPORT | ||||
| 55682-52010 |
NCP1# |
2 | ||
| 89279J - COVER | ||||
| 89279-52020 |
NCP1#..RHD |
1 | ||
| 89279-52020 |
NCP1#..RHD |
1 | ||
| Common parts | ||||
| 90161-40026 | None epc.PartDetail.None | |||
| 90467-0502022 | None epc.PartDetail.None | |||
| 90467-05020B1 | None epc.PartDetail.None | |||
| 90467-10203 | None epc.PartDetail.None | |||
| 93560-14014 | None epc.PartDetail.None | |||
| 93568-15014 | None epc.PartDetail.None | |||
Part Price Details
Loading price information...
Part Number:
Price:
