NCP11R-BEPRK (1999)
Toyota Yaris/Echo 4d

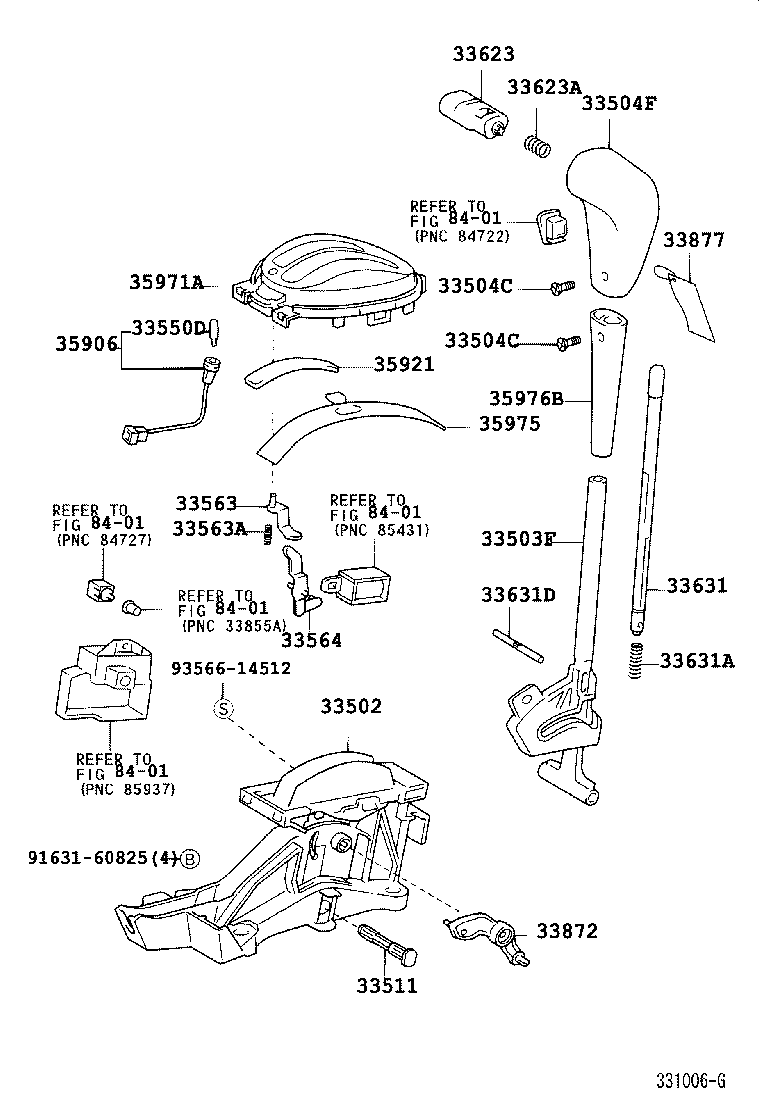

ILLUST NO. 1 OF 2(9908-0208)ATM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33502 - PLATE SUB-ASSY, SHIFT LEVER | ||||
| 33521-52011 |
NCP1#..RHD..ATM |
1 | ||
| 33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT) | ||||
| 33055-52010 |
NCP1#..ATM |
1 | ||
| 33504C - SCREW (FOR SHIFT LEVER KNOB SETTING) | ||||
| 90159-40221 |
NCP1#..ATM |
2 | ||
| 90159-40221 |
NCP1#..ATM |
2 | ||
| 33504C - SCREW (FOR SHIFT LEVER KNOB SETTING) | ||||
| 90159-40221 |
NCP1#..ATM |
2 | ||
| 90159-40221 |
NCP1#..ATM |
2 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33542-52010B1 |
NCP1#..RHD..ATM MD.CHARCOAL,TRIM9# |
1 | ||
| 33542-52010B4 |
NCP1#..RHD..ATM DK.GRAY,TRIM1# |
1 | ||
| 33542-52010E0 |
NCP1#..RHD..ATM SANDAL WOOD,TRIM4# |
1 | ||
| 33542-52010B0 |
NCP1#..RHD..ATM BLUE GRAY,TRIM1# |
1 | ||
| 33511 - SHAFT, CONTROL (FOR FLOOR SHIFT) | ||||
| 33511-16060 |
NCP1#..ATM |
1 | ||
| 33550D - BULB, POSITION INDICATOR LAMP | ||||
| 90981-11014 |
NCP1#..ATM 14V 1.4W |
1 | ||
| 33563 - BUTTON, SHIFT LOCK RELEASE | ||||
| 33563-52030 |
NCP1#..ATM |
1 | ||
| 33563-52030 |
NCP1#..ATM |
1 | ||
| 33563A - SPRING, COMPRESSION (FOR SHIFT LOCK RELEASE BUTTON) | ||||
| 90501-05055 |
NCP1#..ATM |
1 | ||
| 90501-05055 |
NCP1#..ATM |
1 | ||
| 33564 - LINK, SHIFT LOCK RELEASE, NO.1 | ||||
| 33564-52010 |
NCP1#..ATM |
1 | ||
| 33623 - BUTTON, SHIFT LEVER KNOB | ||||
| 33623-52010B1 |
NCP1#..RHD..ATM MD.CHARCOAL,TRIM9# |
1 | ||
| 33623-52040E0 |
NCP1#..RHD..ATM W(KNOB=CHROME PLATED),SANDAL WOOD,TRIM4# |
1 | ||
| 33623-52010B0 |
NCP1#..RHD..ATM BLUE GRAY,TRIM1# |
1 | ||
| 33623-52010E0 |
NCP1#..RHD..ATM SANDAL WOOD,TRIM4# |
1 | ||
| 33623-52040B1 |
NCP1#..RHD..ATM W(KNOB=CHROME PLATED),DK.GRAY,TRIM1# |
1 | ||
| 33623-52010B4 |
NCP1#..RHD..ATM DK.GRAY,TRIM1# |
1 | ||
| 33623A - SPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON) | ||||
| 90501-06082 |
NCP1#..ATM |
1 | ||
| 90501-06082 |
NCP1#..ATM |
1 | ||
| 33631 - ROD, DETENT | ||||
| 33631-52010 |
NCP1#..ATM |
1 | ||
| 33631A - SPRING, COMPRESSION (FOR DETENT ROD) | ||||
| 90501-09105 |
NCP1#..ATM |
1 | ||
| 33631D - PIN, GROOVED (FOR DETENT ROD) | ||||
| 33632-52010 |
NCP1#..ATM |
1 | ||
| 33872 - LINK, SHIFT LOCK RELEASE, NO.2 | ||||
| 33872-52010 |
NCP1#..ATM |
1 | ||
| 33877 - LABEL, SHIFT LOCK INFORMATION, NO.1 | ||||
| 33877-50030 |
NCP1#..ATM |
1 | ||
| 33877-50030 |
NCP1#..ATM |
1 | ||
| 35906 - WIRE SUB-ASSY, INDICATOR LAMP | ||||
| 35906-52010 |
NCP1#..RHD..ATM |
1 | ||
| 35906-52010 |
NCP1#..RHD..ATM |
1 | ||
| 35921 - PLATE, CONTROL POSITION INDICATOR | ||||
| 35921-52010 |
NCP1#..RHD..ATM |
1 | ||
| 35921-52010 |
NCP1#..RHD..ATM |
1 | ||
| 35971A - HOUSING, POSITION INDICATOR, UPPER | ||||
| 35971-52020 |
NCP1#..RHD..ATM |
1 | ||
| 35971-52110 |
NCP1#..RHD..ATM |
1 | ||
| 35975 - COVER, SLIDE (FOR POSITION INDICATOR) | ||||
| 35975-52030 |
NCP1#..ATM |
1 | ||
| 35975-52010 |
NCP1#..ATM |
1 | ||
| 35976B - COVER, SHIFT LEVER KNOB (FOR FLOOR SHIFT) | ||||
| 35976-52010E0 |
NCP1#..RHD..ATM SANDAL WOOD,TRIM4# |
1 | ||
| 35976-52010B0 |
NCP1#..RHD..ATM BLUE GRAY,TRIM1# |
1 | ||
| 35976-52010B1 |
NCP1#..RHD..ATM MD.CHARCOAL,TRIM9# |
1 | ||
| 35976-52010B4 |
NCP1#..RHD..ATM DK.GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 91631-60825 | ||||
| 93566-14512 | ||||
| Linked diagrams | ||||
| 8401 | ||||

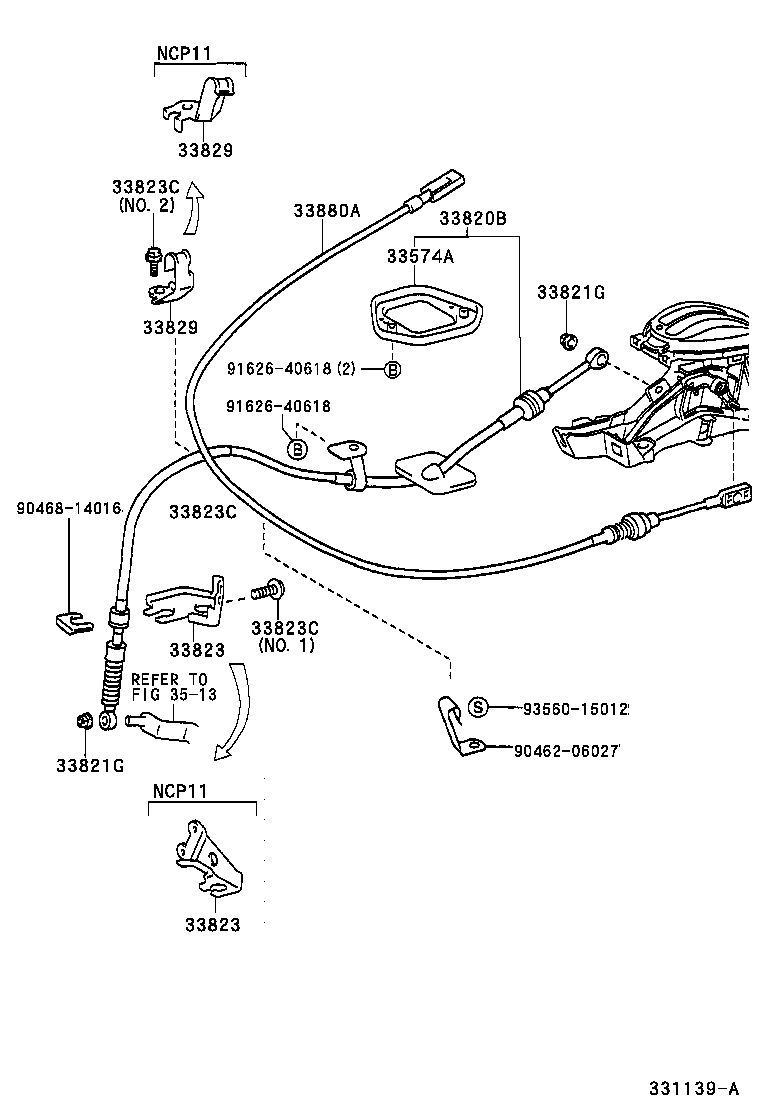

ILLUST NO. 2 OF 2(9908- )ATM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33574A - RETAINER, SHIFT CABLE GROMMET, NO.1 | ||||
| 33574-52010 |
NCP1# |
1 | ||
| 33574-52010 |
NCP1# |
1 | ||
| 33820B - CABLE ASSY, TRANSMISSION CONTROL | ||||
| 33820-52040 |
NCP11..ATM |
1 | ||
| 33820-52280 |
NCP11..ATM |
1 | ||
| 33820-52280 |
NCP11..ATM |
1 | ||
| 33821G - NUT (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90179-08061 |
NCP1#..ATM |
2 | ||
| 94151-80800 |
NCP1#..ATM |
2 | ||
| 90179-08061 |
NCP1#..ATM |
2 | ||
| 33821G - NUT (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90179-08061 |
NCP1#..ATM |
2 | ||
| 94151-80800 |
NCP1#..ATM |
2 | ||
| 90179-08061 |
NCP1#..ATM |
2 | ||
| 33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1 | ||||
| 33823-52020 |
NCP11..ATM |
1 | ||
| 33823-52020 |
NCP11..ATM |
1 | ||
| 33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1 | ||||
| 33823-52020 |
NCP11..ATM |
1 | ||
| 33823-52020 |
NCP11..ATM |
1 | ||
| 33823C - BOLT (FOR TRANSMISSION CONTROL CABLE BRACKET) | ||||
| 91611-60816 |
NCP11..ATM NO.1 |
2 | ||
| 91611-B0816 |
NCP11..ATM NO.1 & NO.2 |
3 | ||
| 91611-B0816 |
NCP11..ATM NO.1 |
2 | ||
| 91621-60814 |
NCP11..ATM NO.2 |
1 | ||
| 91621-60814 |
NCP11..ATM NO.2 |
1 | ||
| 33823C - BOLT (FOR TRANSMISSION CONTROL CABLE BRACKET) | ||||
| 91611-60816 |
NCP11..ATM NO.1 |
2 | ||
| 91611-B0816 |
NCP11..ATM NO.1 & NO.2 |
3 | ||
| 91611-B0816 |
NCP11..ATM NO.1 |
2 | ||
| 91621-60814 |
NCP11..ATM NO.2 |
1 | ||
| 91621-60814 |
NCP11..ATM NO.2 |
1 | ||
| 33823C - BOLT (FOR TRANSMISSION CONTROL CABLE BRACKET) | ||||
| 91611-60816 |
NCP11..ATM NO.1 |
2 | ||
| 91611-B0816 |
NCP11..ATM NO.1 & NO.2 |
3 | ||
| 91611-B0816 |
NCP11..ATM NO.1 |
2 | ||
| 91621-60814 |
NCP11..ATM NO.2 |
1 | ||
| 91621-60814 |
NCP11..ATM NO.2 |
1 | ||
| 33829 - SUPPORT, TRANSMISSION CONTROL CABLE | ||||
| 33829-52020 |
NCP11..ATM |
1 | ||
| 33829-52020 |
NCP11..ATM |
1 | ||
| 33829 - SUPPORT, TRANSMISSION CONTROL CABLE | ||||
| 33829-52020 |
NCP11..ATM |
1 | ||
| 33829-52020 |
NCP11..ATM |
1 | ||
| 33880A - CABLE ASSY, PARKING LOCK (FOR FLOOR SHIFT) | ||||
| 33880-52010 |
NCP1#..RHD..ATM |
1 | ||
| Common parts | ||||
| 90462-06027 | ||||
| 90468-14016 | ||||
| 91626-40618 | ||||
| 93560-15012 | ||||
| Linked diagrams | ||||
| 3513 | ||||

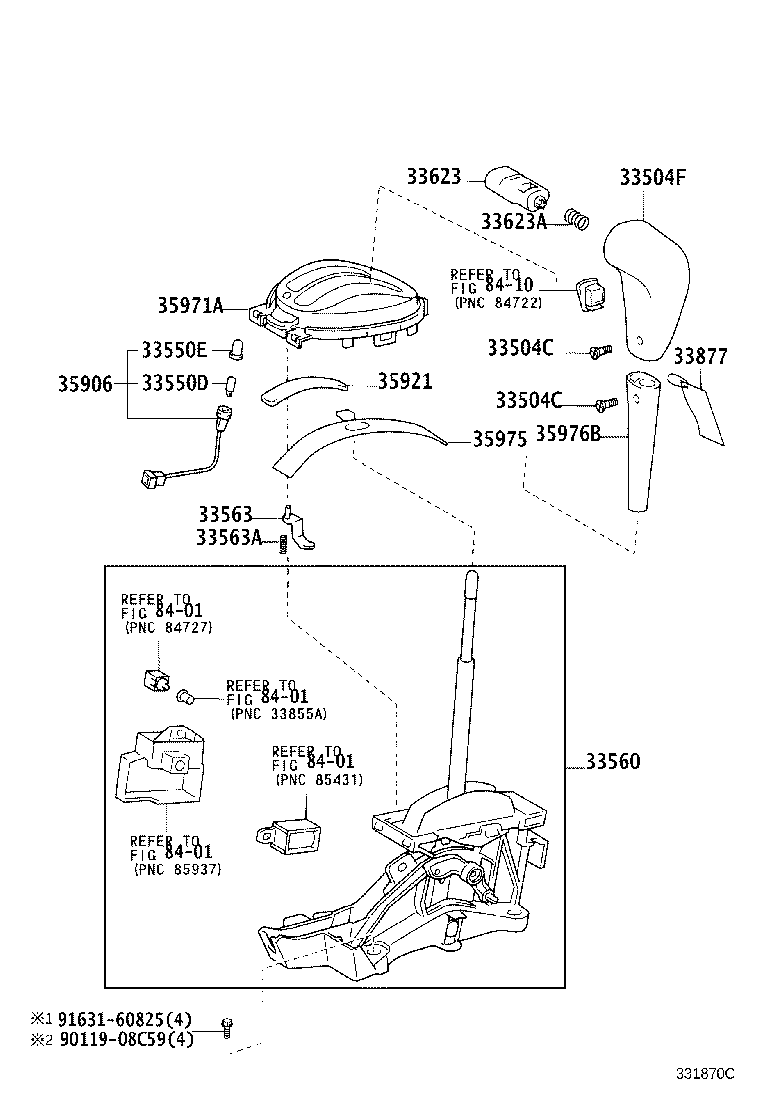

ILLUST NO. 1 OF 2(0208- )ATM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33504C - SCREW (FOR SHIFT LEVER KNOB SETTING) | ||||
| 90159-40221 |
NCP1#..ATM |
2 | ||
| 90159-40221 |
NCP1#..ATM |
2 | ||
| 33504C - SCREW (FOR SHIFT LEVER KNOB SETTING) | ||||
| 90159-40221 |
NCP1#..ATM |
2 | ||
| 90159-40221 |
NCP1#..ATM |
2 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33542-52010B1 |
NCP1#..RHD..ATM MD.CHARCOAL,TRIM9# |
1 | ||
| 33542-52010B4 |
NCP1#..RHD..ATM DK.GRAY,TRIM1# |
1 | ||
| 33542-52010E0 |
NCP1#..RHD..ATM SANDAL WOOD,TRIM4# |
1 | ||
| 33542-52010B0 |
NCP1#..RHD..ATM BLUE GRAY,TRIM1# |
1 | ||
| 33550D - BULB, POSITION INDICATOR LAMP | ||||
| 90981-11014 |
NCP1#..ATM 14V 1.4W |
1 | ||
| 33560 - UNIT ASSY, SHIFT LOCK CONTROL | ||||
| 33560-52090 |
NCP1#..RHD..ATM |
1 | ||
| 33563 - BUTTON, SHIFT LOCK RELEASE | ||||
| 33563-52030 |
NCP1#..ATM |
1 | ||
| 33563-52030 |
NCP1#..ATM |
1 | ||
| 33563A - SPRING, COMPRESSION (FOR SHIFT LOCK RELEASE BUTTON) | ||||
| 90501-05055 |
NCP1#..ATM |
1 | ||
| 90501-05055 |
NCP1#..ATM |
1 | ||
| 33623 - BUTTON, SHIFT LEVER KNOB | ||||
| 33623-52010B1 |
NCP1#..RHD..ATM MD.CHARCOAL,TRIM9# |
1 | ||
| 33623-52040E0 |
NCP1#..RHD..ATM W(KNOB=CHROME PLATED),SANDAL WOOD,TRIM4# |
1 | ||
| 33623-52010B0 |
NCP1#..RHD..ATM BLUE GRAY,TRIM1# |
1 | ||
| 33623-52010E0 |
NCP1#..RHD..ATM SANDAL WOOD,TRIM4# |
1 | ||
| 33623-52040B1 |
NCP1#..RHD..ATM W(KNOB=CHROME PLATED),DK.GRAY,TRIM1# |
1 | ||
| 33623-52010B4 |
NCP1#..RHD..ATM DK.GRAY,TRIM1# |
1 | ||
| 33623A - SPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON) | ||||
| 90501-06082 |
NCP1#..ATM |
1 | ||
| 90501-06082 |
NCP1#..ATM |
1 | ||
| 33877 - LABEL, SHIFT LOCK INFORMATION, NO.1 | ||||
| 33877-50030 |
NCP1#..ATM |
1 | ||
| 33877-50030 |
NCP1#..ATM |
1 | ||
| 35906 - WIRE SUB-ASSY, INDICATOR LAMP | ||||
| 35906-52010 |
NCP1#..RHD..ATM |
1 | ||
| 35906-52010 |
NCP1#..RHD..ATM |
1 | ||
| 35921 - PLATE, CONTROL POSITION INDICATOR | ||||
| 35921-52010 |
NCP1#..RHD..ATM |
1 | ||
| 35921-52010 |
NCP1#..RHD..ATM |
1 | ||
| 35971A - HOUSING, POSITION INDICATOR, UPPER | ||||
| 35971-52020 |
NCP1#..RHD..ATM |
1 | ||
| 35971-52110 |
NCP1#..RHD..ATM |
1 | ||
| 35975 - COVER, SLIDE (FOR POSITION INDICATOR) | ||||
| 35975-52030 |
NCP1#..ATM |
1 | ||
| 35975-52010 |
NCP1#..ATM |
1 | ||
| 35976B - COVER, SHIFT LEVER KNOB (FOR FLOOR SHIFT) | ||||
| 35976-52010E0 |
NCP1#..RHD..ATM SANDAL WOOD,TRIM4# |
1 | ||
| 35976-52010B0 |
NCP1#..RHD..ATM BLUE GRAY,TRIM1# |
1 | ||
| 35976-52010B1 |
NCP1#..RHD..ATM MD.CHARCOAL,TRIM9# |
1 | ||
| 35976-52010B4 |
NCP1#..RHD..ATM DK.GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90119-08C59 | ||||
| 91631-60825 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8410 | ||||
