NCP11R-BEMRK (1999)

Toyota Yaris/Echo 4d

Production Aug 1999 - Dec 2005
Engine 2NZFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9908- )RHD

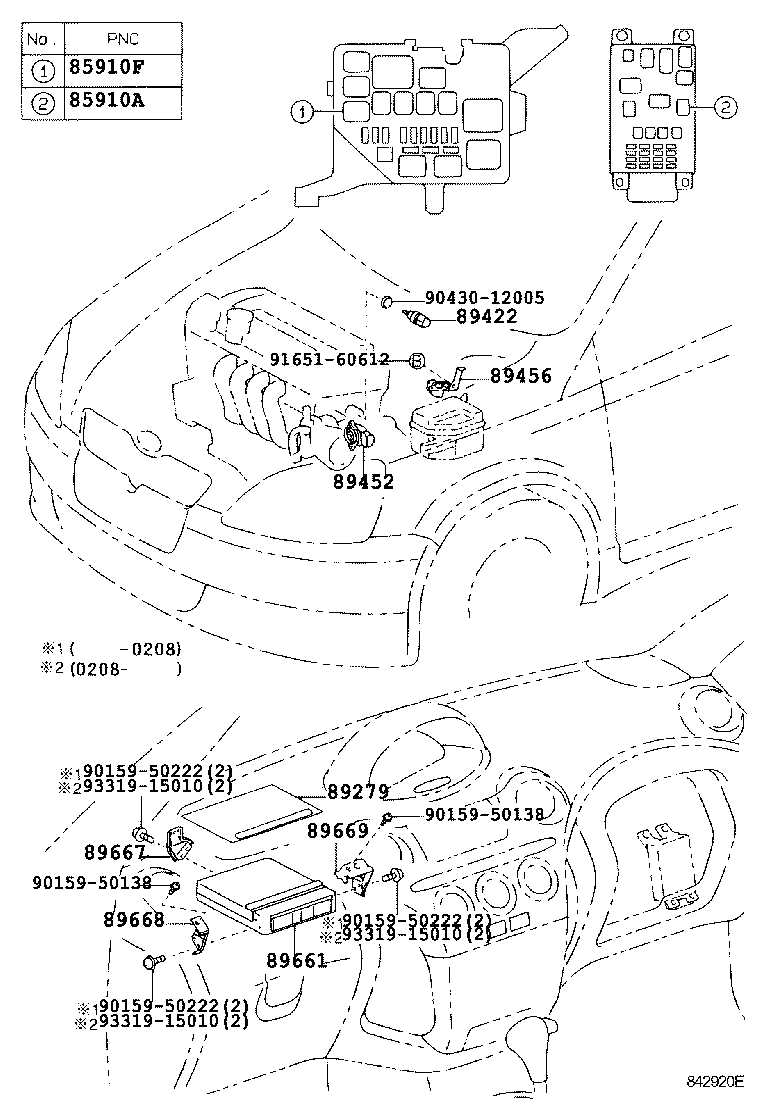

Click highlighted areas on diagram

diagram 85910A 85910F 89279 89422 89452 89456 89661 89667 89668 89669 9015950138 9015950138 9015950222 9015950222 9015950222 9043012005 9165160612 9331915010 9331915010 9331915010
Part # Description Qty Price
85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI)
90987-02027

NCP1#

 1
90987-02012

NCP1#

 1
90987-02012

NCP1#

 1
85910F - RELAY, COMPUTER (FOR EFI)
90987-02022

NCP1#

 1
90987-02012

NCP1#

 1
90987-02027

NCP1#

 1
90987-02022

NCP1#

 1
89279 - COVER, ENGINE CONTROL COMPUTER
89279-52040

NCP11

LEADED GASOLINE SPEC

 1
89279-52040

NCP11

LEADED GASOLINE SPEC

 1
89279-52100

NCP1#..RHD

 1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-22030

NCP1#

MARK 89422-22030*369

 1
89422-16010

NCP1#

MARK 89422-16010*369

 1
89452 - SENSOR, THROTTLE POSITION (FOR E.F.I.)
89452-20130

NCP1#

 1
89452-20130

NCP1#

 1
89456 - RESISTOR, VARIABLE
89450-52010

NCP11

 1
89450-52010

NCP11

 1
89661 - COMPUTER, ENGINE CONTROL
89661-52721

NCP11..MTM

LEADED GASOLINE SPEC

 1
89661-52680

NCP11..MTM..GEN

 1
89661-52681

NCP11..MTM..GEN

 1
89661-52720

NCP11..MTM..GEN

LEADED GASOLINE SPEC

 1
89661-52721

NCP11..MTM

LEADED GASOLINE SPEC

 1
89661-52682

NCP11..MTM..GEN

 1
89661-5C210

NCP11..MTM

 1
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-52010

NCP1#..RHD

 1
89667-52010

NCP1#..RHD

 1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-52010

NCP1#..RHD

 1
89668-52010

NCP11..RHD

LEADED GASOLINE SPEC

 1
89668-52120

NCP1#..RHD

 1
89669 - BRACKET, ENGINE CONTROL COMPUTER, NO.3
89669-52010

NCP11..RHD

LEADED GASOLINE SPEC

 1
89669-52010

NCP1#..RHD

 1
89669-52070

NCP1#..RHD

 1
Common parts
90159-50138
90159-50222
90430-12005
91651-60612
93319-15010
