NCP11L-BEPRKV (1999)

Toyota Yaris/Echo 4d

Production Aug 1999 - Jan 2006
Engine 2NZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(9908- )

Click highlighted areas on diagram

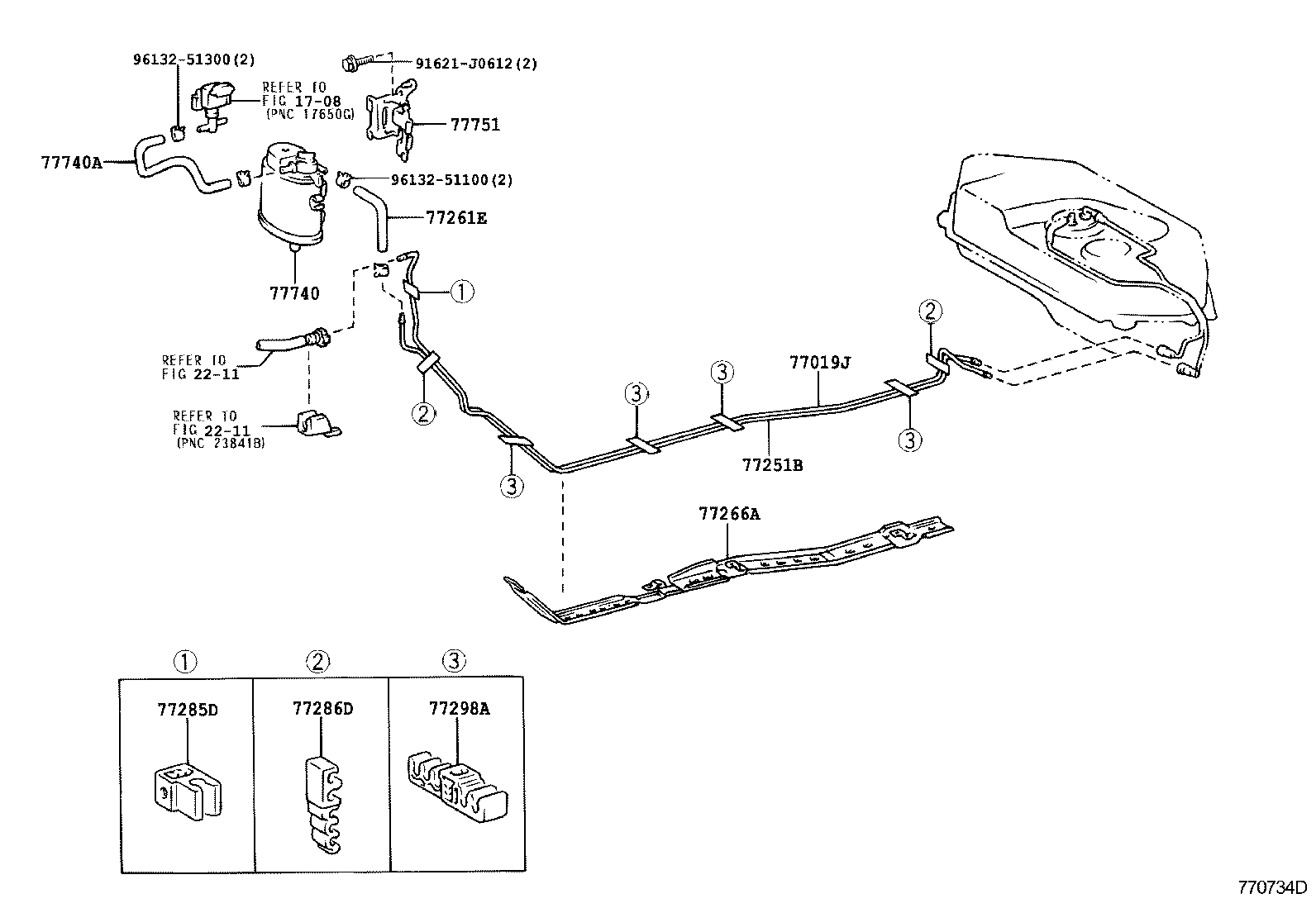

FUEL TUBE

diagram 1708 2211 2211 77019J 77251B 77261E 77266A 77285D 77286D 77298A 77740 77740A 77751 91621J0612 9613251100 9613251300
Part # Description Qty Price
77019J - TUBE SUB-ASSY, FUEL TANK TO CANISTER
77261-52010

NCP1#

 1
77261-52010

NCP1#

 1
77251B - TUBE, FUEL MAIN
77251-52020

NCP1#

 1
77251-52021

NCP1#

 1
77251-52021

NCP1#

 1
77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE)
95333-06020

NCP1#

*H,L=120

 1
95337-06020

NCP1#

*H,L=120

 1
77266A - PROTECTOR, FUEL TUBE, NO.1
77266-52030

NCP1#..GCC,GEN

 1
77266-52030

NCP1#..GCC,GEN

 1
77285D - CLAMP, FUEL TUBE, NO.1
77285-52010

NCP1#

W(CHARCOAL CANISTER)

 1
77285-52010

NCP1#

W(CHARCOAL CANISTER)

 1
77286D - CLAMP, FUEL TUBE, NO.2
77286-52010

NCP1#

 2
77286-52010

NCP1#

 2
77298A - CLAMP, FUEL TUBE, NO.4
77298-52010

NCP1#

 4
77298-52010

NCP1#

 4
77740 - CANISTER ASSY, CHARCOAL
77740-52041

NCP1#

 1
77740-52041

NCP1#

 1
77740-52040

NCP1#

 1
77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER)
23827-21010

NCP1#

 1
23827-21010

NCP1#

 1
77751 - BRACKET, CHARCOAL CANISTER BASE
77751-52020

NCP1#

 1
77751-52020

NCP1#

 1
Common parts
91621-J0612
96132-51100
96132-51300
Linked diagrams
1708
2211

ILLUST NO. 1 OF 2(9908- )

Click highlighted areas on diagram

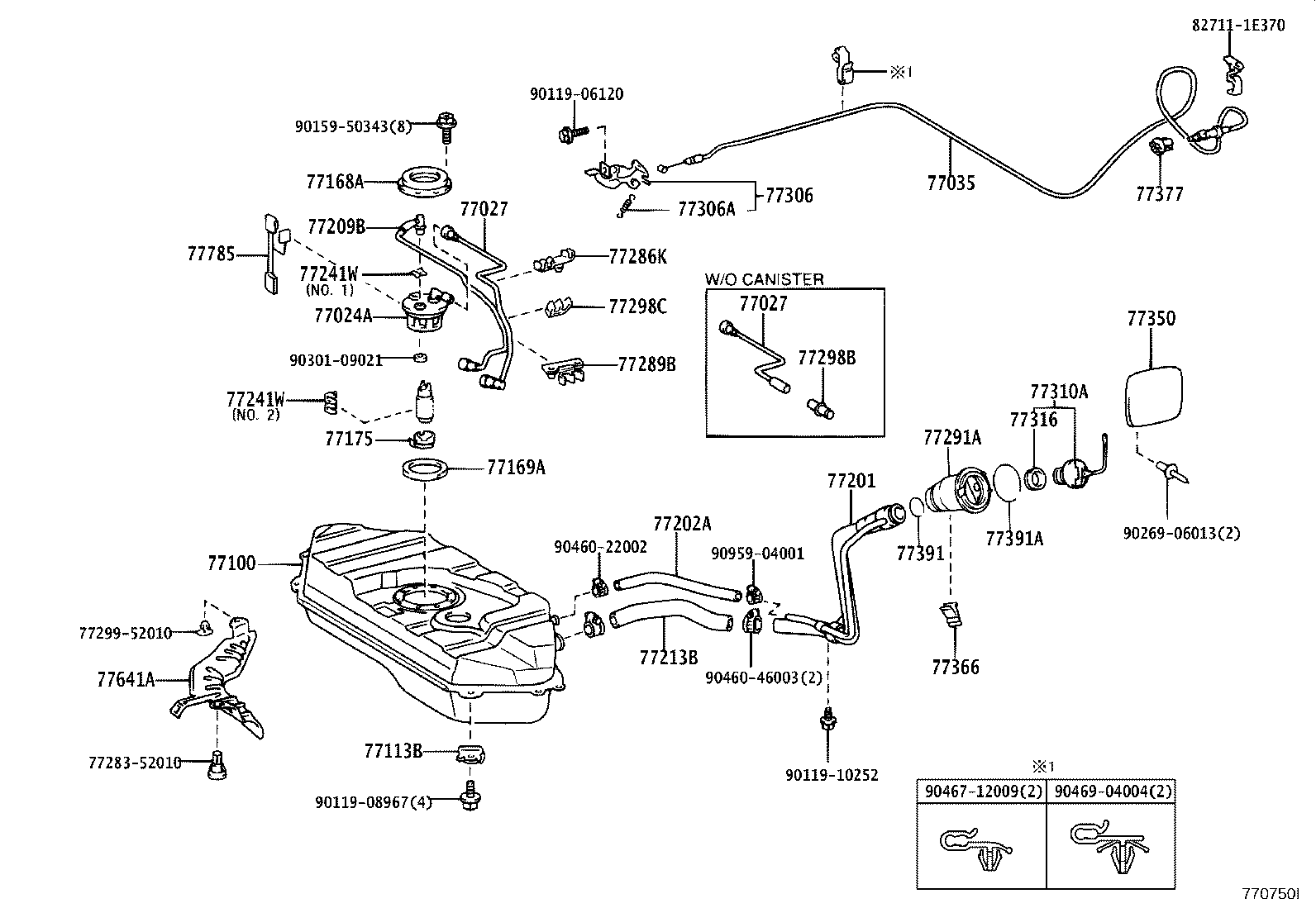

FUEL TANK

diagram 77024A 77027 77027 77035 77100 77113B 77168A 77169A 77175 77201 77202A 77209B 77213B 77241W 77241W 7728352010 77286K 77289B 77291A 77298B 77298C 7729952010 77306 77306A 77310A 77316 77350 77366 77377 77391 77391A 77641A 77785 827111E370 9011906120 9011908967 9011910252 9015950343 9026906013 9030109021 9046022002 9046046003 9046712009 9046904004 9095904001
Part # Description Qty Price
77024A - PLATE SUB-ASSY, FUEL SUCTION
77024-52020

NCP1#

 1
77024-52020

NCP1#

 1
77027 - TUBE SUB-ASSY, FUEL EVAPORATION, NO.2
77027-52020

NCP1#

W(CHARCOAL CANISTER)

 1
77027-52020

NCP1#

W(CHARCOAL CANISTER)

 1
77027 - TUBE SUB-ASSY, FUEL EVAPORATION, NO.2
77027-52020

NCP1#

W(CHARCOAL CANISTER)

 1
77027-52020

NCP1#

W(CHARCOAL CANISTER)

 1
77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77035-52060

NCP1#..LHD

 1
77035-52060

NCP1#..LHD

 1
77100 - TANK ASSY, FUEL
77001-46030

NCP1#

 1
77001-52030

NCP1#

 1
77001-52030

NCP1#

 1
77113B - PLATE, FUEL TANK SIDE
77113-52010

NCP1#

 4
77113-52010

NCP1#

 4
77168A - PLATE, FUEL TANK VENT TUBE SET
77168-52010

NCP1#

 1
77168-52010

NCP1#

 1
77169A - GASKET, FUEL SUCTION TUBE SET
77169-33020

NCP1#

 1
77169-33020

NCP1#

 1
77175 - SUPPORT, FUEL SUCTION, NO.2
77175-52020

NCP1#

 1
77175-52020

NCP1#

 1
77201 - PIPE SUB-ASSY, FUEL TANK INLET
77201-52020

NCP1#

 1
77201-52050

NCP11

COLD SPEC

 1
77201-52050

NCP11

COLD SPEC

 1
77201-52020

NCP1#

 1
77202A - HOSE, FUEL, NO.1 (FOR BREATHER TUBE)
95313-13036

NCP11

L=360,LEADED GASOLINE SPEC

 1
95312-13036

NCP1#

L=360

 1
95312-13036

NCP1#

L=360

 1
95313-13036

NCP11

L=360,LEADED GASOLINE SPEC

 1
77209B - TUBE SUB-ASSY, FUEL PUMP
77209-52020

NCP1#

 1
77209-52020

NCP1#

 1
77213B - HOSE, FUEL TANK TO FILLER PIPE
77213-52020

NCP11

LEADED GASOLINE SPEC

 1
77213-52020

NCP11

LEADED GASOLINE SPEC

 1
77213-52010

NCP1#

 1
77213-52010

NCP1#

 1
77241W - CLIP, TUBE JOINT
77241-32060

NCP1#

NO.1

 1
77241-32060

NCP1#

 1
77241-52010

NCP1#

NO.2

 1
77241-32060

NCP1#

NO.1

 1
77241-52010

NCP1#

NO.2

 1
77241W - CLIP, TUBE JOINT
77241-32060

NCP1#

NO.1

 1
77241-32060

NCP1#

 1
77241-52010

NCP1#

NO.2

 1
77241-32060

NCP1#

NO.1

 1
77241-52010

NCP1#

NO.2

 1
77286K - CLAMP, FUEL TUBE, NO.2
77286-52020

NCP1#

 1
77286-52020

NCP1#

 1
77289B - CLAMP, FUEL TUBE, NO.3
77289-52010

NCP1#

 1
77289-52010

NCP1#

 1
77291A - SHIELD, FUEL TANK FILLER PIPE
77291-52040

NCP1#

 1
77291-52040

NCP1#

 1
77298C - CLAMP, FUEL TUBE, NO.4
77298-52020

NCP1#

 1
77298-52020

NCP1#

 1
77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN
64606-12050

NCP1#..LHD

W(LUGGAGE COMPARTMENT DOOR OPENER)

 1
77306-13030

NCP1#..LHD

 1
64606-12050

NCP1#..LHD

W(LUGGAGE COMPARTMENT DOOR OPENER)

 1
77306-13030

NCP1#..LHD

 1
77306A - SPRING, FUEL LID OPEN LEVER
90506-09004

NCP1#

 1
90506-09034

NCP1#

W(LUGGAGE COMPARTMENT DOOR OPENER)

 2
90506-09034

NCP1#

W(LUGGAGE COMPARTMENT DOOR OPENER)

 2
90506-09004

NCP1#..GCC,GEN

 1
77310A - CAP ASSY, FUEL TANK
77300-28010

NCP1#

 1
77300-28010

NCP1#

 1
77300-52010

NCP1#

 1
77316 - GASKET, FUEL TANK CAP
77316-16010

NCP1#

 1
77316-16010

NCP1#

 1
77350 - LID ASSY, FUEL FILLER OPENING
77350-52050

NCP1#

 1
77350-52050

NCP1#

 1
77366 - SPRING, FUEL FILLER OPENING LID HINGE
77360-35010

NCP1#

 1
77360-35010

NCP1#

 1
77377 - RETAINER, FUEL FILLER OPENING LID LOCK
77377-12050

NCP1#

 1
77377-12050

NCP1#

 1
77391 - RING, FUEL INLET BOX
77391-12020

NCP1#

 1
77391-12020

NCP1#

 1
77391A - RING, FUEL INLET BOX
77391-52010

NCP1#

 1
77391-52010

NCP1#

 1
77641A - PROTECTOR, FUEL TANK, NO.1
77631-52010

NCP1#

 1
77631-52010

NCP1#

 1
77785 - HARNESS, FUEL PUMP
77785-32010

NCP1#

 1
77785-32010

NCP1#

 1
Common parts
77283-52010
77299-52010
82711-1E370
90119-06120
90119-08967
90119-10252
90159-50343
90269-06013
90301-09021
90460-22002
90460-46003
90467-12009
90469-04004
90959-04001
