NCP11L-BEPRKV (1999)

Toyota Yaris/Echo 4d

Production Aug 1999 - Jan 2006
Engine 2NZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9908- )

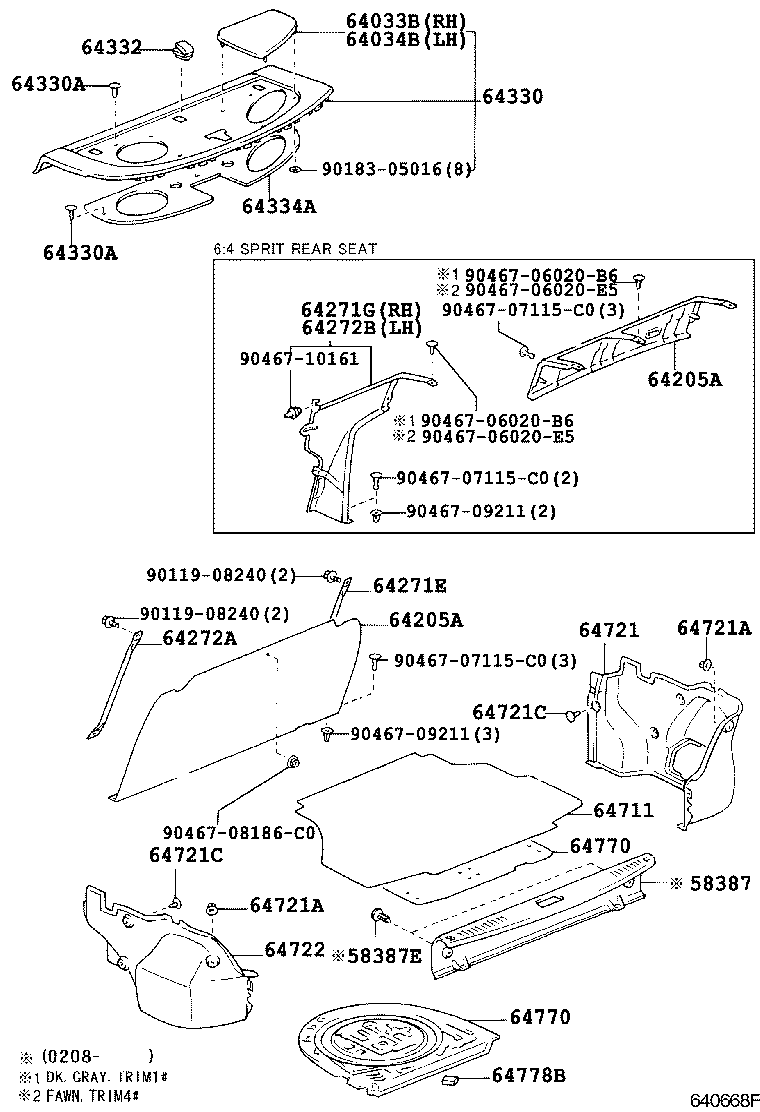

Click highlighted areas on diagram

diagram 58387 58387E 64033B 64034B 64205A 64205A 64271E 64271G 64272A 64272B 64330 64330A 64330A 64332 64334A 64711 64721 64721A 64721A 64721C 64721C 64722 64770 64770 64778B 9011908240 9011908240 9018305016 9046706020B6 9046706020B6 9046706020E5 9046706020E5 9046707115C0 9046707115C0 9046707115C0 9046708186C0 9046709211 9046709211 9046710161
Part # Description Qty Price
58387 - PLATE, REAR FLOOR FINISH
58387-52010B0

NCP1#..ARL,GCC

SHADOW GRAY,TRIM1#,4#

 1
58387-52010B1

NCP1#

DK.GRAY,TRIM1#,4#

 1
58387E - CLIP(FOR REAR FLOOR FINISH PLATE)
90467-08186B4

NCP1#

DK.GRAY

 2
90467-08186C0

NCP1#..ARL,GCC

BLACK,TRIM1#,4#

 2
64033B - GRILLE SUB-ASSY, REAR SPEAKER, RH
64383-52010E0

NCP11..GCC

FAWN,TRIM4#

 1
64383-52010B0

NCP1#

SHADOW GRAY,TRIM1#,9#

 1
64383-52010B0

NCP1#..ARL,GCC

SHADOW GRAY,TRIM1#

 1
64034B - GRILLE SUB-ASSY, REAR SPEAKER, LH
64384-52010B0

NCP1#

SHADOW GRAY,TRIM1#,9#

 1
64384-52010E0

NCP11..GCC

FAWN,TRIM4#

 1
64384-52010B0

NCP1#..ARL,GCC

SHADOW GRAY,TRIM1#

 1
64205A - COVER SUB-ASSY, ROOM PARTITION
64275-52020B0

NCP1#..ARL,GCC

SHADOW GRAY,TRIM1#,4#

 1
64275-52020B0

NCP1#

SHADOW GRAY,TRIM1#,9#

 1
64275-52011

NCP1#..GCC,GEN

 1
64275-52020B2

NCP1#

DK.GRAY,TRIM1#,4#

 1
64275-52011

NCP1#

 1
64275-52010

NCP1#

 1
64205A - COVER SUB-ASSY, ROOM PARTITION
64275-52020B0

NCP1#..ARL,GCC

SHADOW GRAY,TRIM1#,4#

 1
64275-52020B0

NCP1#

SHADOW GRAY,TRIM1#,9#

 1
64275-52011

NCP1#..GCC,GEN

 1
64275-52020B2

NCP1#

DK.GRAY,TRIM1#,4#

 1
64275-52011

NCP1#

 1
64275-52010

NCP1#

 1
64271E - PANEL, ROOM PARTITION
64241-52010

NCP1#..GCC,GEN

 1
64241-52010

NCP1#

 1
64271G - BOARD, ROOM PARTITION, RH
64271-52010B0

NCP1#..ARL,GCC

SHADOW GRAY,TRIM1#,4#

 1
64271-52010B0

NCP1#

SHADOW GRAY,TRIM1#,9#

 1
64271-52010B2

NCP1#

DK.GRAY,TRIM1#,4#

 1
64272A - PANEL, ROOM PARTITION, LH
64242-52010

NCP1#

 1
64242-52010

NCP1#..GCC,GEN

 1
64272B - BOARD, ROOM PARTITION, LH
64272-52010B0

NCP1#

SHADOW GRAY,TRIM1#,9#

 1
64272-52010B2

NCP1#

DK.GRAY,TRIM1#,40

 1
64272-52010B0

NCP1#..ARL,GCC

SHADOW GRAY,TRIM1#,4#

 1
64330 - PANEL ASSY, PACKAGE TRAY TRIM
64330-52050C0

NCP1#..GCC,GEN

BLACK,TRIM1#,9#

 1
64330-52040C0

NCP1#..GCC,GEN

W(HIGH MOUNT STOP LAMP),BLACK,TRIM1#,9#

 1
64330-52090C0

NCP1#..GCC,GEN

W(SPEAKER),BLACK,TRIM1#,9#

 1
64330-52080C0

NCP1#..GCC,GEN

W(HIGH MOUNT STOP LAMP & SPEAKER),BLACK,TRIM1#,9#

 1
64330-52150E0

NCP11..GCC

W(HIGH MOUNT STOP LAMP & SPEAKER),FAWN,TRIM4#

 1
64330-52160C0

NCP11..GCC

W(HIGH MOUNT STOP LAMP),BLACK,TRIM1#

 1
64330-52160E0

NCP1#..GCC,GEN

W(HIGH MOUNT STOP LAMP),FAWN,TRIM4#

 1
64330-52170C0

NCP11..GCC

W(SPEAKER),BLACK,TRIM1#

 1
64330-52150C0

NCP11..GCC

W(HIGH MOUNT STOP LAMP & SPEAKER),BLACK,TRIM1#

 1
64330-52180E0

NCP1#..GCC,GEN

FAWN,TRIM4#

 1
64330-52180C0

NCP11..GCC

BLACK,TRIM1#

 1
64330-52170E0

NCP11..GCC

W(SPEAKER),FAWN,TRIM4#

 1
64330A - CLIP(FOR PACKAGE TRAY TRIM PANEL)
90467-06020B6

NCP1#

DK.GRAY,TRIM1#

 5
90467-06020P0

NCP1#..ARL,GCC

SHADOW GRAY,TRIM1#

 5
90467-06020E5

NCP1#

FAWN,TRIM4#

 5
90467-06020P0

NCP1#

SHADOW GRAY,TRIM1#,9#

 5
64330A - CLIP(FOR PACKAGE TRAY TRIM PANEL)
90467-06020B6

NCP1#

DK.GRAY,TRIM1#

 5
90467-06020P0

NCP1#..ARL,GCC

SHADOW GRAY,TRIM1#

 5
90467-06020E5

NCP1#

FAWN,TRIM4#

 5
90467-06020P0

NCP1#

SHADOW GRAY,TRIM1#,9#

 5
64334A - PAD, PACKAGE TRAY TRIM
64334-52010

NCP1#

W(SPEAKER)

 1
64334-52010

NCP11..GCC

W(SPEAKER)

 1
64334-52020

NCP1#

 1
64334-52020

NCP1#..GCC,GEN

 1
64711 - MAT, LUGGAGE COMPARTMENT FLOOR
64711-52030C0

NCP1#..GCC,GEN

W(SPARE TIRE = GROUND TIRE),BLACK,TRIM1#,9#

 1
64711-52040C0

NCP1#

W(SPARE TIRE = GROUND TIRE & 6:4 SPRIT REAR SEAT),BLACK,TRIM1#,9#

 1
64711-52030C0

NCP11..GCC

W(SPARE TIRE = GROUND TIRE),BLACK,TRIM1#,4#

 1
64711-52041C0

NCP1#

W(SPARE TIRE = GROUND TIRE & 6:4 SPRIT REAR SEAT),BLACK,TRIM1#,9#

 1
64711-52041C0

NCP1#..ARL,GCC

W(SPARE TIRE = GROUND TIRE & 6:4 SPRIT REAR SEAT),BLACK,TRIM1#,4#

 1
64721 - COVER, LUGGAGE COMPARTMENT TRIM, INNER RH
64710-52011C0

NCP1#..ARL,GCC

BLACK,TRIM1#,4#

 1
64710-52011C0

NCP1#

BLACK,TRIM1#,9#

 1
64710-52010C0

NCP1#

BLACK,TRIM1#,9#

 1
64721A - CLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
90467-06155

NCP1#

 2
90467-06155

NCP1#

 2
64721A - CLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
90467-06155

NCP1#

 2
90467-06155

NCP1#

 2
64721C - CLIP(LUGGAGE COMPARTMENT)
90467-08186C0

NCP1#

BLACK,TRIM1#,9#

 10
90467-08186C0

NCP1#..ARL,GCC

BLACK,TRIM1#,4#

 10
90467-08186B4

NCP1#

DK.GRAY

 10
64721C - CLIP(LUGGAGE COMPARTMENT)
90467-08186C0

NCP1#

BLACK,TRIM1#,9#

 10
90467-08186C0

NCP1#..ARL,GCC

BLACK,TRIM1#,4#

 10
90467-08186B4

NCP1#

DK.GRAY

 10
64722 - COVER, LUGGAGE COMPARTMENT TRIM, INNER LH
64722-52010C0

NCP1#

BLACK,TRIM1#,9#

 1
64722-52011C0

NCP1#

BLACK,TRIM1#,9#

 1
64722-52011C0

NCP1#..ARL,GCC

BLACK,TRIM1#,4#

 1
64770 - COVER ASSY, SPARE WHEEL
64770-52030

NCP1#

W(SPARE TIRE = 13 INCH GROND TIRE)

 1
64770-52030

NCP1#

W(SPARE TIRE = 13 INCH GROND TIRE)

 1
64770-52040

NCP1#

W(SPARE TIRE = 14 INCH GROND TIRE)

 1
64770-52040

NCP1#

W(SPARE TIRE = 14 INCH GROND TIRE)

 1
64770 - COVER ASSY, SPARE WHEEL
64770-52030

NCP1#

W(SPARE TIRE = 13 INCH GROND TIRE)

 1
64770-52030

NCP1#

W(SPARE TIRE = 13 INCH GROND TIRE)

 1
64770-52040

NCP1#

W(SPARE TIRE = 14 INCH GROND TIRE)

 1
64770-52040

NCP1#

W(SPARE TIRE = 14 INCH GROND TIRE)

 1
Common parts
90119-08240
90183-05016
90467-06020B6
90467-06020E5
90467-07115C0
90467-08186C0
90467-09211
90467-10161
