NCP11L-BEPRKV (1999)
Toyota Yaris/Echo 4d
Production
Aug 1999
-
Jan 2006
Engine
2NZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9908- )

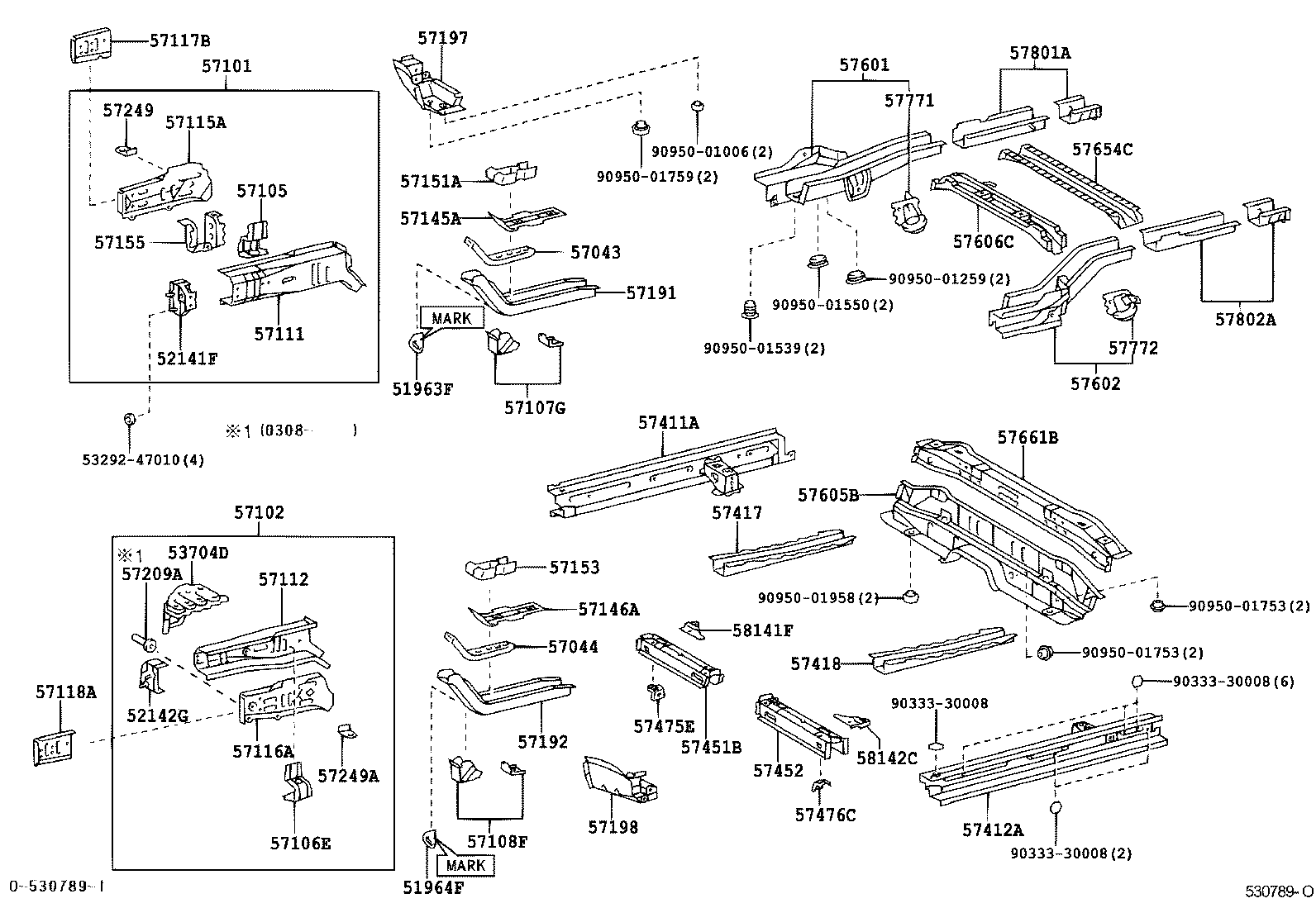

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51963F - HOOK, TRANSPORT | ||||
| 51963-52010 |
NCP1# |
1 | ||
| 51963-52020 |
NCP1# MARK = VR |
1 | ||
| 51963-52010 |
NCP1# NO MARK |
1 | ||
| 51964F - HOOK, TRANSPORT, LH | ||||
| 51963-52010 |
NCP1# |
1 | ||
| 51964-52020 |
NCP1# MARK = VL |
1 | ||
| 51963-52010 |
NCP1# |
1 | ||
| 51963-52010 |
NCP1# NO MARK |
1 | ||
| 52141F - ARM, FRONT BUMPER, RH | ||||
| 52141-52020 |
NCP1# |
1 | ||
| 52141-52020 |
NCP1# |
1 | ||
| 52142G - ARM, FRONT BUMPER, LH | ||||
| 52142-52010 |
NCP1# |
1 | ||
| 52142-52010 |
NCP1# |
1 | ||
| 53704D - SUPPORT SUB-ASSY, BATTERY, LH | ||||
| 53704-52010 |
NCP1# |
1 | ||
| 53704-52010 |
NCP1# |
1 | ||
| 57043 - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH | ||||
| 57044-52010 |
NCP1# FRAME NO.=0XXXXXX |
1 | ||
| 57043-52010 |
NCP1# FRAME NO.=5XXXXXX |
1 | ||
| 57044-52010 |
NCP1# |
1 | ||
| 57044 - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH | ||||
| 57044-52010 |
NCP1# FRAME NO.=0XXXXXX |
1 | ||
| 57044-52010 |
NCP1# |
1 | ||
| 57044-52020 |
NCP1# FRAME NO.=5XXXXXX |
1 | ||
| 57101 - MEMBER SUB-ASSY, FRONT SIDE, RH | ||||
| 57101-52918 |
NCP1# |
1 | ||
| 57101-52906 |
NCP1# |
1 | ||
| 57101-52906 |
NCP1# |
1 | ||
| 57101-52903 |
NCP1# |
1 | ||
| 57102 - MEMBER SUB-ASSY, FRONT SIDE, LH | ||||
| 57102-52902 |
NCP1# W(ABS) |
1 | ||
| 57102-52902 |
NCP1# W(ABS) |
1 | ||
| 57102-52903 |
NCP1# |
1 | ||
| 57102-52903 |
NCP1# |
1 | ||
| 57105 - BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRO | ||||
| 57105-52010 |
NCP1# |
1 | ||
| 57105-52010 |
NCP1# |
1 | ||
| 57106E - BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRO | ||||
| 57105-52010 |
NCP1# |
1 | ||
| 57105-52010 |
NCP1# |
1 | ||
| 57107G - BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, REA | ||||
| 57107-52010 |
NCP1# |
1 | ||
| 57107-52020 |
NCP1# |
1 | ||
| 57108F - BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, REA | ||||
| 57108-52020 |
NCP1# |
1 | ||
| 57108-52010 |
NCP1# |
1 | ||
| 57111 - MEMBER, FRONT SIDE, RH | ||||
| 57111-52010 |
NCP1# |
1 | ||
| 57111-52010 |
NCP1# |
1 | ||
| 57112 - MEMBER, FRONT SIDE, LH | ||||
| 57112-52010 |
NCP1# W(ABS) |
1 | ||
| 57112-52020 |
NCP1# |
1 | ||
| 57112-52020 |
NCP1# |
1 | ||
| 57112-52010 |
NCP1# W(ABS) |
1 | ||
| 57115A - PLATE, FRONT SIDE MEMBER, OUTER RH | ||||
| 57115-52010 |
NCP1# |
1 | ||
| 57115-52010 |
NCP1# |
1 | ||
| 57116A - PLATE, FRONT SIDE MEMBER, OUTER LH | ||||
| 57116-52010 |
NCP1# |
1 | ||
| 57116-52010 |
NCP1# |
1 | ||
| 57117B - REINFORCEMENT, FRONT BUMPER MOUNTING, RH | ||||
| 57117-52010 |
NCP1# |
1 | ||
| 57117-52020 |
NCP1# |
1 | ||
| 57117-52020 |
NCP1# |
1 | ||
| 57118A - REINFORCEMENT, FRONT BUMPER MOUNTING, LH | ||||
| 57202-52010 |
NCP1# |
1 | ||
| 57202-52010 |
NCP1# |
1 | ||
| 57145A - REINFORCEMENT, FRONT SIDE MEMBER, REAR RH | ||||
| 57145-52011 |
NCP1# |
1 | ||
| 57145-52010 |
NCP1# |
1 | ||
| 57145-52011 |
NCP1# |
1 | ||
| 57146A - REINFORCEMENT, FRONT SIDE MEMBER, REAR LH | ||||
| 57145-52011 |
NCP1# |
1 | ||
| 57145-52011 |
NCP1# |
1 | ||
| 57145-52010 |
NCP1# |
1 | ||
| 57151A - REINFORCEMENT, FRONT SIDE MEMBER, NO.1 RH | ||||
| 57151-52010 |
NCP1# |
1 | ||
| 57151-52010 |
NCP1# |
1 | ||
| 57153 - REINFORCEMENT, FRONT SIDE MEMBER, NO.2 RH | ||||
| 57153-52010 |
NCP1# |
1 | ||
| 57153-52010 |
NCP1# |
1 | ||
| 57155 - REINFORCEMENT, FRONT SIDE MEMBER, NO.3, RH | ||||
| 57155-52012 |
NCP1# |
1 | ||
| 57155-52011 |
NCP1# |
1 | ||
| 57155-52010 |
NCP1# |
1 | ||
| 57155-52011 |
NCP1# |
1 | ||
| 57191 - PLATE, FRONT SIDE MEMBER, OUTER REAR RH | ||||
| 57191-52900 |
NCP1# |
1 | ||
| 57191-52900 |
NCP1# |
1 | ||
| 57192 - PLATE, FRONT SIDE MEMBER, OUTER REAR LH | ||||
| 57192-52011 |
NCP1# |
1 | ||
| 57192-52010 |
NCP1# |
1 | ||
| 57192-52011 |
NCP1# |
1 | ||
| 57197 - BOX, TORQUE, FRONT RH | ||||
| 57077-52020 |
NCP1# |
1 | ||
| 57077-52020 |
NCP1# |
1 | ||
| 57198 - BOX, TORQUE, FRONT LH | ||||
| 57078-52020 |
NCP1# |
1 | ||
| 57078-52020 |
NCP1# |
1 | ||
| 57209A - MEMBER SUB-ASSY, ENGINE REAR MOUNTING | ||||
| 57209-16090 |
NCP1# |
1 | ||
| 57249 - BRACKET, FLEXIBLE HOSE, NO.1 | ||||
| 57249-10040 |
NCP1# |
1 | ||
| 57249-10040 |
NCP1# |
1 | ||
| 57249A - BRACKET, FREXIBLE HOUSE, NO.1, LH | ||||
| 57249-10040 |
NCP1# |
1 | ||
| 57249-10040 |
NCP1# |
1 | ||
| 57411A - MEMBER, FLOOR SIDE, INNER RH | ||||
| 57401-52020 |
NCP1# |
1 | ||
| 57401-52011 |
NCP1# |
1 | ||
| 57401-52020 |
NCP1# |
1 | ||
| 57412A - MEMBER, FLOOR SIDE, INNER LH | ||||
| 57402-52020 |
NCP1# |
1 | ||
| 57402-52020 |
NCP1# |
1 | ||
| 57402-52011 |
NCP1# |
1 | ||
| 57417 - REINFORCEMENT, FRONT FLOOR UNDER, RH | ||||
| 57417-52011 |
NCP1# |
1 | ||
| 57417-52010 |
NCP1# |
1 | ||
| 57417-52011 |
NCP1# |
1 | ||
| 57418 - REINFORCEMENT, FRONT FLOOR UNDER, LH | ||||
| 57417-52010 |
NCP1# |
1 | ||
| 57417-52011 |
NCP1# |
1 | ||
| 57417-52011 |
NCP1# |
1 | ||
| 57451B - MEMBER, FRONT FLOOR CROSS, RH | ||||
| 57451-52011 |
NCP1# |
1 | ||
| 57451-52010 |
NCP1# |
1 | ||
| 57451-52011 |
NCP1# |
1 | ||
| 57451-52070 |
NCP1# W(NAVIGATION SYSTEM) |
1 | ||
| 57452 - MEMBER, FRONT FLOOR CROSS, LH | ||||
| 57452-52012 |
NCP1# |
1 | ||
| 57452-52011 |
NCP1# |
1 | ||
| 57452-52012 |
NCP1# |
1 | ||
| 57452-52081 |
NCP1# |
1 | ||
| 57452-52080 |
NCP1# |
1 | ||
| 57452-52010 |
NCP1# |
1 | ||
| 57475E - PLATE, FRONT FLOOR CROSSMEMBER, RH | ||||
| 57475-52010 |
NCP1# |
1 | ||
| 57476C - PLATE, FRONT FLOOR CROSSMEMBER, LH | ||||
| 57476-52010 |
NCP1# |
1 | ||
| 57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH | ||||
| 57601-52907 |
NCP1# |
1 | ||
| 57601-52907 |
NCP1# |
1 | ||
| 57601-52904 |
NCP1# |
1 | ||
| 57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH | ||||
| 57602-52908 |
NCP1# |
1 | ||
| 57602-52904 |
NCP1# |
1 | ||
| 57602-52908 |
NCP1# |
1 | ||
| 57605B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1 | ||||
| 57605-52010 |
NCP1# |
1 | ||
| 57605-52010 |
NCP1# |
1 | ||
| 57606C - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2 | ||||
| 57606-52050 |
NCP1#..GCC,GEN |
1 | ||
| 57606-52060 |
NCP1# W(SPLIT TYPE REAR SEAT) |
1 | ||
| 57606-52050 |
NCP1# |
1 | ||
| 57606-52060 |
NCP1# W(SPLIT TYPE REAR SEAT) |
1 | ||
| 57654C - MEMBER, REAR FLOOR CROSS, NO.3 | ||||
| 57654-52021 |
NCP1# |
1 | ||
| 57654-52021 |
NCP1# |
1 | ||
| 57661B - MEMBER, REAR FLOOR CROSS, FRONT | ||||
| 57661-52010 |
NCP1# |
1 | ||
| 57661-52010 |
NCP1# |
1 | ||
| 57771 - PLATE, REAR SPRING, RH | ||||
| 51301-52020 |
NCP1# |
1 | ||
| 51301-52020 |
NCP1# |
1 | ||
| 51301-52010 |
NCP1# |
1 | ||
| 57772 - PLATE, REAR SPRING, LH | ||||
| 51302-52020 |
NCP1# |
1 | ||
| 51302-52010 |
NCP1# |
1 | ||
| 51302-52020 |
NCP1# |
1 | ||
| 57801A - REINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, RH | ||||
| 57801-52030 |
NCP1# |
1 | ||
| 57801-52030 |
NCP1# |
1 | ||
| 57802A - REINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, LH | ||||
| 57802-52030 |
NCP1# |
1 | ||
| 57802-52030 |
NCP1# |
1 | ||
| 58141F - REINFORCEMENT, FLOOR SIDE MEMBER TO FLOOR PAN, RH | ||||
| 58141-52010 |
NCP1# |
1 | ||
| 58142C - REINFORCEMENT, FLOOR SIDE MEMBER TO FLOOR PAN, LH | ||||
| 58142-52010 |
NCP1# |
1 | ||
| Common parts | ||||
| 53292-47010 | ||||
| 90333-30008 | ||||
| 90950-01006 | ||||
| 90950-01259 | ||||
| 90950-01539 | ||||
| 90950-01550 | ||||
| 90950-01753 | ||||
| 90950-01759 | ||||
| 90950-01958 | ||||
