NCP11L-BEPRK (1999)
Toyota Yaris/Echo 4d
Production
Aug 1999
-
Dec 2005
Engine
2NZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9908- )

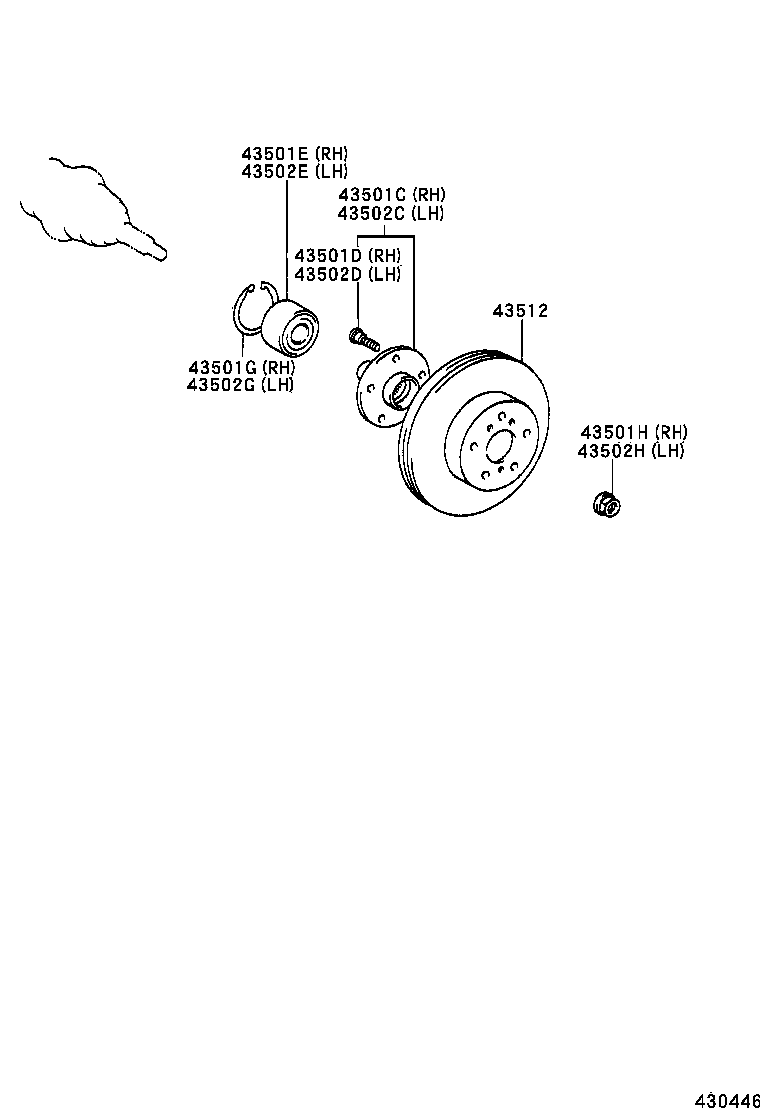

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 43501C - HUB SUB-ASSY, FRONT AXLE, RH | ||||
| 43502-52010 |
NCP1# |
1 | ||
| 43502-52010 |
NCP1# |
1 | ||
| 43501D - BOLT, HUB (FOR FRONT AXLE RH) | ||||
| 90942-02049 |
NCP1# |
4 | ||
| 90942-02049 |
NCP1# |
4 | ||
| 43501E - BEARING (FOR FRONT AXLE HUB RH) | ||||
| 90369-38021 |
NCP1# |
1 | ||
| 90369-38021 |
NCP1# |
1 | ||
| 43501G - RING, HOLE SNAP (FOR FRONT AXLE HUB RH) | ||||
| 90521-77001 |
NCP1# |
1 | ||
| 90521-77001 |
NCP1# |
1 | ||
| 43501H - NUT (FOR FRONT AXLE SHAFT RH) | ||||
| 90177-22001 |
NCP1# |
1 | ||
| 90177-22001 |
NCP1# |
1 | ||
| 43502C - HUB SUB-ASSY, FRONT AXLE, LH | ||||
| 43502-52010 |
NCP1# |
1 | ||
| 43502-52010 |
NCP1# |
1 | ||
| 43502D - BOLT, HUB (FOR FRONT AXLE LH) | ||||
| 90942-02049 |
NCP1# |
4 | ||
| 90942-02049 |
NCP1# |
4 | ||
| 43502E - BEARING (FOR FRONT AXLE HUB LH) | ||||
| 90369-38021 |
NCP1# |
1 | ||
| 90369-38021 |
NCP1# |
1 | ||
| 43502G - RING, HOLE SNAP (FOR FRONT AXLE HUB LH) | ||||
| 90521-77001 |
NCP1# |
1 | ||
| 90521-77001 |
NCP1# |
1 | ||
| 43502H - NUT (FOR FRONT AXLE SHAFT LH) | ||||
| 90177-22001 |
NCP1# |
1 | ||
| 90177-22001 |
NCP1# |
1 | ||
| 43512 - DISC, FRONT | ||||
| 43512-52050 |
NCP1# |
2 | ||
| 43512-52020 |
NCP1# W(ABS) |
2 | ||
| 43512-52050 |
NCP1# W/O(ABS) |
2 | ||
| 43512-52050 |
NCP1# |
2 | ||
| 43512-52020 |
NCP1# |
2 | ||
