NCP11L-BEPRK (1999)
Toyota Yaris/Echo 4d
Production
Aug 1999
-
Dec 2005
Engine
2NZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9908- )

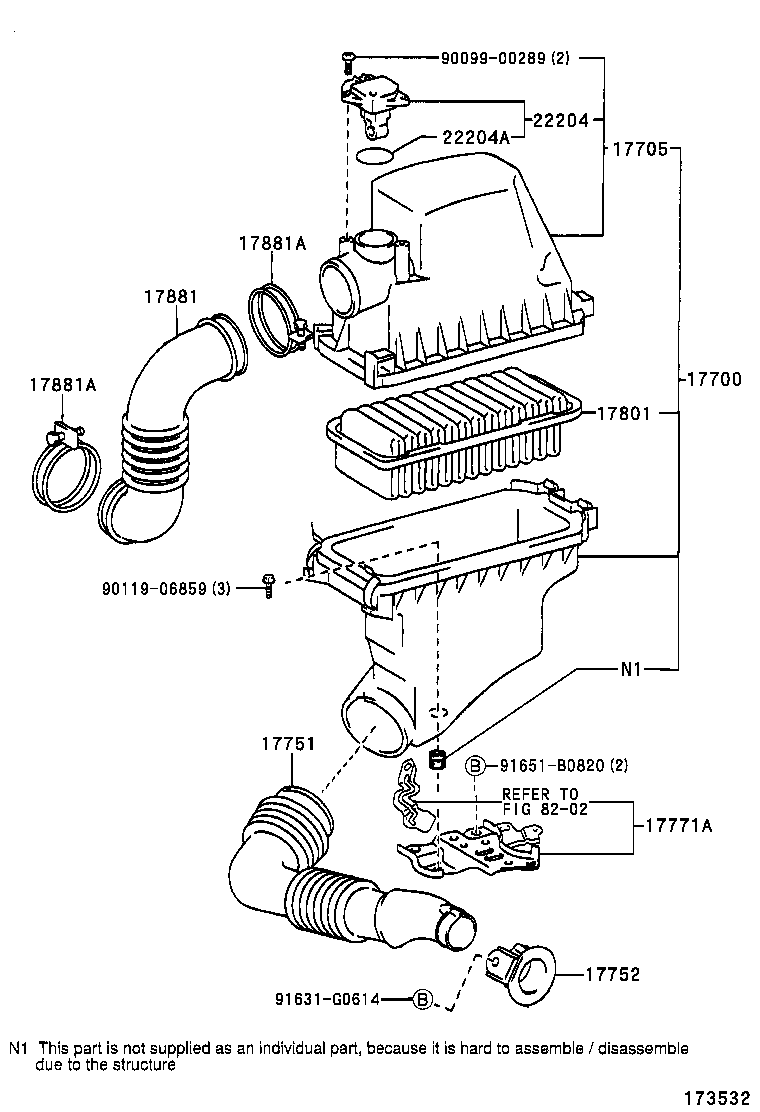

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-21050 |
1NZFE,2NZFE..NCP1# |
1 | ||
| 17700-21050 |
1NZFE,2NZFE..NCP1# |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-21031 |
1NZFE,2NZFE..NCP1# |
1 | ||
| 17705-21030 |
1NZFE,2NZFE..NCP1# |
1 | ||
| 17705-21030 |
1NZFE,2NZFE..NCP1# |
1 | ||
| 17751 - INLET, AIR CLEANER, NO.1 | ||||
| 17751-21030 |
1NZFE,2NZFE..NCP1# |
1 | ||
| 17751-21030 |
1NZFE,2NZFE..NCP1# |
1 | ||
| 17752 - INLET, AIR CLEANER, NO.2 | ||||
| 17752-23010 |
1NZFE,2NZFE..NCP1# |
1 | ||
| 17752-23010 |
1NZFE,2NZFE..NCP1# |
1 | ||
| 17771A - BRACKET, AIR CLEANER | ||||
| 17771-21010 |
1NZFE,2NZFE..NCP1# |
1 | ||
| 17771-21010 |
1NZFE,2NZFE..NCP1# |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-21030 |
1NZFE,2NZFE..NCP1# |
1 | ||
| 17801-21030 |
1NZFE,2NZFE..NCP1# |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17880-21050 |
2NZFE..NCP11 |
1 | ||
| 17880-21010 |
1NZFE,2NZFE..NCP1# |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10690 |
1NZFE,2NZFE..NCP1# |
2 | ||
| 96111-10690 |
1NZFE,2NZFE..NCP1# |
2 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10690 |
1NZFE,2NZFE..NCP1# |
2 | ||
| 96111-10690 |
1NZFE,2NZFE..NCP1# |
2 | ||
| 22204 - METER SUB-ASSY, INTAKE AIR FLOW | ||||
| 22204-22010 |
1NZFE,2NZFE..NCP1# |
1 | ||
| 22204-22010 |
1NZFE,2NZFE..NCP1# |
1 | ||
| 22204A - RING, O(FOR INTAKE AIR FLOW METER) | ||||
| 90099-14141 |
1NZFE,2NZFE..NCP1# |
1 | ||
| 90099-14141 |
1NZFE,2NZFE..NCP1# |
1 | ||
| Common parts | ||||
| 90099-00289 | ||||
| 90119-06859 | ||||
| 91631-G0614 | ||||
| 91651-B0820 | ||||
| Linked diagrams | ||||
| 8202 | ||||
