NCP11L-BEMRKV (1999)

Toyota Yaris/Echo 4d

Production Aug 1999 - Jan 2006
Engine 2NZFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9908- )

Click highlighted areas on diagram

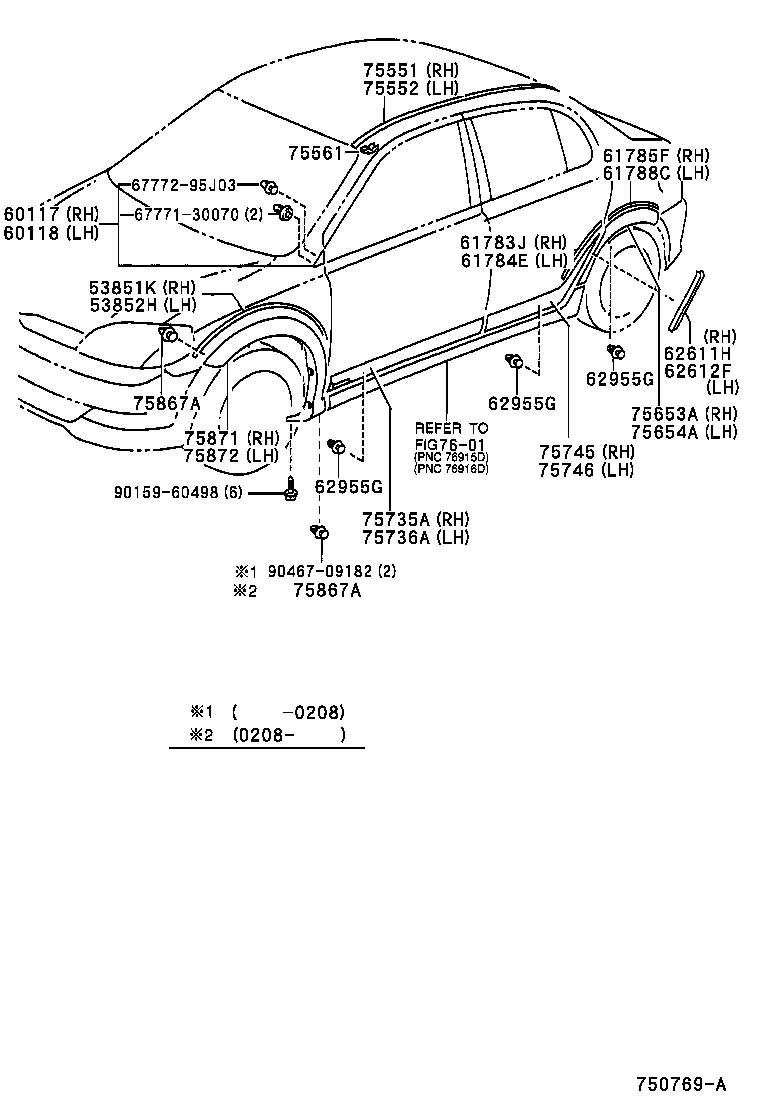

diagram 53851K 53852H 60117 60118 61783J 61784E 61785F 61788C 62611H 62612F 62955G 62955G 62955G 6777130070 6777295J03 75551 75552 75561 75653A 75654A 75735A 75736A 75745 75746 75867A 75867A 75871 75872 7601 9015960498 9046709182
Part # Description Qty Price
53851K - PAD, FRONT WHEEL OPENING EXTENSION, RH
53851-52030

NCP11..GCC

 1
53851-52060

NCP1#

 1
53851-52030

NCP1#..GCC,GEN

 1
53852H - PAD, FRONT WHEEL OPENING EXTENSION, LH
53852-52030

NCP11..GCC

 1
53852-52030

NCP1#..GCC,GEN

 1
53852-52060

NCP1#

 1
60117 - COVER SUB-ASSY, FRONT PILLAR, UPR RH
60117-52010

NCP1#

 1
60117-52010

NCP1#

 1
60118 - COVER SUB-ASSY, FRONT PILLAR, UPR LH
60118-52010

NCP1#

 1
60118-52010

NCP1#

 1
61783J - PAD, REAR WHEEL OPENING EXTENSION, NO.2
61783-52010

NCP11..GCC

 1
61783-52010

NCP1#

 1
61783-52010

NCP1#..GCC,GEN

 1
61784E - PAD, REAR WHEEL OPENING EXTENSION, NO.2
61784-52010

NCP11..GCC

 1
61784-52010

NCP1#

 1
61784-52010

NCP1#..GCC,GEN

 1
61785F - PAD, REAR WHEEL OPENING EXTENSION, NO.3
61785-52020

NCP11..GCC

 1
61785-52020

NCP1#

 1
61785-52020

NCP1#..GCC,GEN

 1
61788C - PAD, REAR WHEEL OPENING EXTENSION, NO.4
61788-52030

NCP11..GCC

 1
61788-52030

NCP1#..GCC,GEN

 1
61788-52030

NCP1#

 1
62611H - PAD, QUARTER WHEEL HOUSE, RH
62611-52010

NCP1#..GCC,GEN

 1
62611-52010

NCP11..GCC

 1
62611-52010

NCP1#

 1
62612F - PAD, QUARTER WHEEL HOUSE, LH
62612-52010

NCP1#

 1
62612-52010

NCP1#..GCC,GEN

 1
62612-52010

NCP11..GCC

 1
62955G - RETAINER, QUARTER VENT LOUVER
62955-12010

NCP1#..GCC,GEN

QUARTER MOULDING

 4
62955-12010

NCP1#..GCC,GEN

DOOR MOULDING

 20
62955-12010

NCP11..GCC

DOOR MOULDING

 20
62955-12010

NCP11..GCC

QUARTER MOULDING

 4
62955-12010

NCP1#

QUARTER MOULDING

 4
62955-12010

NCP1#

DOOR MOULDING

 20
62955G - RETAINER, QUARTER VENT LOUVER
62955-12010

NCP1#..GCC,GEN

QUARTER MOULDING

 4
62955-12010

NCP1#..GCC,GEN

DOOR MOULDING

 20
62955-12010

NCP11..GCC

DOOR MOULDING

 20
62955-12010

NCP11..GCC

QUARTER MOULDING

 4
62955-12010

NCP1#

QUARTER MOULDING

 4
62955-12010

NCP1#

DOOR MOULDING

 20
62955G - RETAINER, QUARTER VENT LOUVER
62955-12010

NCP1#..GCC,GEN

QUARTER MOULDING

 4
62955-12010

NCP1#..GCC,GEN

DOOR MOULDING

 20
62955-12010

NCP11..GCC

DOOR MOULDING

 20
62955-12010

NCP11..GCC

QUARTER MOULDING

 4
62955-12010

NCP1#

QUARTER MOULDING

 4
62955-12010

NCP1#

DOOR MOULDING

 20
75551 - MOULDING, ROOF DRIP SIDE FINISH, RH
75551-52040

NCP1#

 1
75551-52040

NCP1#

 1
75552 - MOULDING, ROOF DRIP SIDE FINISH, LH
75552-52020

NCP1#

 1
75552-52020

NCP1#

 1
75561 - CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1
75561-52020

NCP1#

 4
75561-52010

NCP1#

 4
75561-52020

NCP1#

 4
75653A - MOULDING, QUARTER, OUTSIDE REAR RH
75653-52020

NCP11..GCC

 1
75653-52020

NCP1#

 1
75653-52020

NCP1#..GCC,GEN

 1
75654A - MOULDING, QUARTER, OUTSIDE REAR LH
75654-52020

NCP11..GCC

 1
75654-52020

NCP1#

 1
75654-52020

NCP1#..GCC,GEN

 1
75735A - MOULDING, FRONT DOOR OUTSIDE, LOWER RH
75735-52020

NCP11..GCC

 1
75735-52020

NCP1#

 1
75735-52020

NCP1#..GCC,GEN

 1
75736A - MOULDING, FRONT DOOR OUTSIDE, LOWER LH
75736-52020

NCP1#

 1
75736-52020

NCP11..GCC

 1
75736-52020

NCP1#..GCC,GEN

 1
75745 - MOULDING, REAR DOOR OUTSIDE, LOWER RH
75745-52030

NCP11..GCC

 1
75745-52030

NCP1#

 1
75745-52030

NCP1#..GCC,GEN

 1
75746 - MOULDING, REAR DOOR OUTSIDE, LOWER LH
75746-52030

NCP11..GCC

 1
75746-52030

NCP1#

 1
75746-52030

NCP1#..GCC,GEN

 1
75867A - CLIP, ROCKER PANEL MOULDING
75881-52010

NCP1#

 10
75867-21010

NCP11..GCC

 8
75867-21010

NCP1#..GCC,GEN

 8
75867A - CLIP, ROCKER PANEL MOULDING
75881-52010

NCP1#

 10
75867-21010

NCP11..GCC

 8
75867-21010

NCP1#..GCC,GEN

 8
75871 - MOULDING, FRONT FENDER WHEEL OPENING, RH
75871-52020

NCP1#

 1
75871-52010

NCP11..GCC

 1
75871-52010

NCP1#..GCC,GEN

 1
75872 - MOULDING, FRONT FENDER WHEEL OPENING, LH
75872-52010

NCP11..GCC

 1
75872-52020

NCP1#

 1
75872-52010

NCP1#..GCC,GEN

 1
Common parts
67771-30070
67772-95J03
90159-60498
90467-09182
Linked diagrams
7601
