NCP11L-BEMRKV (1999)
Toyota Yaris/Echo 4d
(9908- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

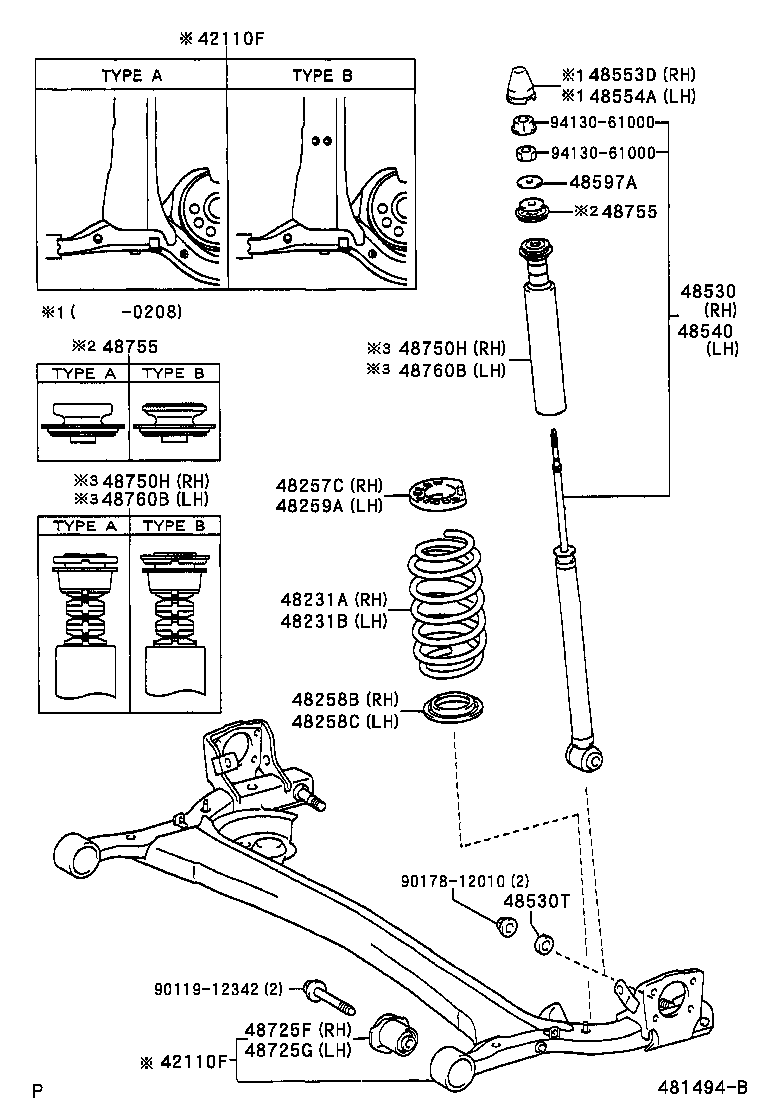

| 42110F - BEAM ASSY, REAR AXLE | ||||
| 42110-52042 |
NCP1# TYPE A:REFER TO ILLUSTRATION & ROUGH ROAD PACKAGE |
1 | ||
| 42110-52130 |
NCP1# TYPE A:REFER TO ILLUSTRATION & ROUGH ROAD PACKAGE |
1 | ||
| 42110-52130 |
NCP1# TYPE A:REFER TO ILLUSTRATION & ROUGH ROAD PACKAGE |
1 | ||
| 42110-52041 |
NCP1# TYPE A:REFER TO ILLUSTRATION & ROUGH ROAD PACKAGE |
1 | ||
| 42110F - BEAM ASSY, REAR AXLE | ||||
| 42110-52042 |
NCP1# TYPE A:REFER TO ILLUSTRATION & ROUGH ROAD PACKAGE |
1 | ||
| 42110-52130 |
NCP1# TYPE A:REFER TO ILLUSTRATION & ROUGH ROAD PACKAGE |
1 | ||
| 42110-52130 |
NCP1# TYPE A:REFER TO ILLUSTRATION & ROUGH ROAD PACKAGE |
1 | ||
| 42110-52041 |
NCP1# TYPE A:REFER TO ILLUSTRATION & ROUGH ROAD PACKAGE |
1 | ||
| 48231A - SPRING, COIL, REAR RH | ||||
| 48231-52080 |
NCP1#..GCC,GEN GREEN PAINTED |
1 | ||
| 48231-52060 |
NCP1# ORANGE PAINTED |
1 | ||
| 48231-52120 |
NCP11..GCC YELLOW PAINTED |
1 | ||
| 48231-52690 |
NCP11..GCC YELLOW PAINTED |
1 | ||
| 48231-52080 |
NCP1#..GCC,GEN GREEN PAINTED |
1 | ||
| 48231-52120 |
NCP11..GCC YELLOW PAINTED |
1 | ||
| 48231-52430 |
NCP1# ORANGE PAINTED |
1 | ||
| 48231-52060 |
NCP1# ORANGE PAINTED |
1 | ||
| 48231B - SPRING, COIL, REAR LH | ||||
| 48231-52120 |
NCP11..GCC YELLOW PAINTED |
1 | ||
| 48231-52430 |
NCP1# ORANGE PAINTED |
1 | ||
| 48231-52080 |
NCP1#..GCC,GEN GREEN PAINTED |
1 | ||
| 48231-52120 |
NCP11..GCC YELLOW PAINTED |
1 | ||
| 48231-52080 |
NCP1#..GCC,GEN GREEN PAINTED |
1 | ||
| 48231-52060 |
NCP1# ORANGE PAINTED |
1 | ||
| 48231-52060 |
NCP1# ORANGE PAINTED |
1 | ||
| 48231-52690 |
NCP11..GCC YELLOW PAINTED |
1 | ||
| 48257C - INSULATOR, REAR COIL SPRING, UPPER RH | ||||
| 48257-52010 |
NCP1# |
1 | ||
| 48257-52010 |
NCP1# |
1 | ||
| 48258B - INSULATOR, REAR COIL SPRING, LOWER RH | ||||
| 48258-52010 |
NCP1# |
1 | ||
| 48258-52010 |
NCP1# |
1 | ||
| 48258C - INSULATOR, REAR COIL SPRING, LOWER LH | ||||
| 48258-52010 |
NCP1# |
1 | ||
| 48258-52010 |
NCP1# |
1 | ||
| 48259A - INSULATOR, REAR COIL SPRING, UPPER LH | ||||
| 48257-52010 |
NCP1# |
1 | ||
| 48257-52010 |
NCP1# |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48530-59325 |
NCP1#..GCC,GEN MARK 48530-52230 |
1 | ||
| 48530-59335 |
NCP1#..ARL,GCC MARK 48530-52240 |
1 | ||
| 48530-59326 |
NCP1#..GCC,GEN MARK 48530-52231 |
1 | ||
| 48530-59327 |
NCP1#..GCC,GEN MARK 48530-52231 |
1 | ||
| 48530-59385 |
NCP1#..ARL,GCC MARK 48530-52350 |
1 | ||
| 48530-59386 |
NCP1#..ARL,GCC MARK 48530-52350 |
1 | ||
| 48530-59386 |
NCP1#..ARL,GCC MARK 48530-52350 |
1 | ||
| 48530-59327 |
NCP1#..GCC,GEN MARK 48530-52231 |
1 | ||
| 48530-59835 |
NCP1#..ARL,GCC MARK 48530-52790 |
1 | ||
| 48530-80227 |
NCP1#..GCC,GEN MARK 48530-52231 |
1 | ||
| 48530-80228 |
NCP1#..ARL,GCC MARK 48530-52790 |
1 | ||
| 48530T - SPACER(FOR REAR SHOCK ABSORBER) | ||||
| 90560-12065 |
NCP1# |
2 | ||
| 90560-12065 |
NCP1# |
2 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48530-59327 |
NCP1#..GCC,GEN MARK 48530-52231 |
1 | ||
| 48530-59385 |
NCP1#..ARL,GCC MARK 48530-52350,PART NUMBER LABEL=48530-52350 |
1 | ||
| 48530-59327 |
NCP1#..GCC,GEN MARK 48530-52231 |
1 | ||
| 48530-80227 |
NCP1#..GCC,GEN MARK 48530-52231 |
1 | ||
| 48530-59325 |
NCP1#..GCC,GEN PART NUMBER LABEL=48530-52230 |
1 | ||
| 48530-59835 |
NCP1#..ARL,GCC MARK 48530-52790 |
1 | ||
| 48530-59386 |
NCP1#..ARL,GCC MARK 48530-52350 |
1 | ||
| 48530-59326 |
NCP1#..GCC,GEN MARK 48530-52231,PART NUMBER LABEL=48530-52231 |
1 | ||
| 48530-59335 |
NCP1#..ARL,GCC PART NUMBER LABEL=48530-52240 |
1 | ||
| 48530-59386 |
NCP1#..ARL,GCC MARK 48530-52350 |
1 | ||
| 48530-80228 |
NCP1#..ARL,GCC MARK 48530-52790 |
1 | ||
| 48553D - CAP, REAR SHOCK ABSORBER, RH | ||||
| 48553-52010 |
NCP1# |
1 | ||
| 48554A - CAP, REAR SHOCK ABSORBER, LH | ||||
| 48553-52010 |
NCP1# |
1 | ||
| 48597A - RETAINER, REAR SHOCK ABSORBER CUSHION | ||||
| 90201-10320 |
NCP1# |
2 | ||
| 90201-10320 |
NCP1# |
2 | ||
| 48725F - BUSH, REAR AXLE CARRIER, RH | ||||
| 48725-52020 |
NCP1# ROUGH ROAD PACKAGE |
1 | ||
| 48725-52020 |
NCP1# ROUGH ROAD PACKAGE |
1 | ||
| 48725-52021 |
NCP1#..ARL,GCC |
1 | ||
| 48725G - BUSH, REAR AXLE CARRIER, LH | ||||
| 48725-52020 |
NCP1# ROUGH ROAD PACKAGE |
1 | ||
| 48725-52020 |
NCP1# ROUGH ROAD PACKAGE |
1 | ||
| 48725-52021 |
NCP1#..ARL,GCC |
1 | ||
| 48750H - SUPPORT ASSY, REAR SUSPENSION, RH | ||||
| 48750-52010 |
NCP1# |
1 | ||
| 48750-52010 |
NCP1# |
1 | ||
| 48750-52090 |
NCP1# TYPE B:REFER ILLUST. |
1 | ||
| 48750-52010 |
NCP1# TYPE A:REFER ILLUST. |
1 | ||
| 48750H - SUPPORT ASSY, REAR SUSPENSION, RH | ||||
| 48750-52010 |
NCP1# |
1 | ||
| 48750-52010 |
NCP1# |
1 | ||
| 48750-52090 |
NCP1# TYPE B:REFER ILLUST. |
1 | ||
| 48750-52010 |
NCP1# TYPE A:REFER ILLUST. |
1 | ||
| 48755 - SUPPORT, REAR SUSPENSION | ||||
| 48755-52010 |
NCP1# TYPE A:REFER ILLUST. |
2 | ||
| 48755-52070 |
NCP1# TYPE B:REFER ILLUST. |
2 | ||
| 48755-52010 |
NCP1# |
2 | ||
| 48755 - SUPPORT, REAR SUSPENSION | ||||
| 48755-52010 |
NCP1# TYPE A:REFER ILLUST. |
2 | ||
| 48755-52070 |
NCP1# TYPE B:REFER ILLUST. |
2 | ||
| 48755-52010 |
NCP1# |
2 | ||
| 48760B - SUPPORT ASSY REAR SUSPENSION, LH | ||||
| 48750-52090 |
NCP1# TYPE B:REFER ILLUST. |
1 | ||
| 48750-52010 |
NCP1# |
1 | ||
| 48750-52010 |
NCP1# |
1 | ||
| 48750-52010 |
NCP1# TYPE A:REFER ILLUST. |
1 | ||
| 48760B - SUPPORT ASSY REAR SUSPENSION, LH | ||||
| 48750-52090 |
NCP1# TYPE B:REFER ILLUST. |
1 | ||
| 48750-52010 |
NCP1# |
1 | ||
| 48750-52010 |
NCP1# |
1 | ||
| 48750-52010 |
NCP1# TYPE A:REFER ILLUST. |
1 | ||
| Common parts | ||||
| 90119-12342 | ||||
| 90178-12010 | ||||
| 94130-61000 | ||||
