NCP11L-BEMRK (1999)
Toyota Yaris/Echo 4d
(9908-0208)

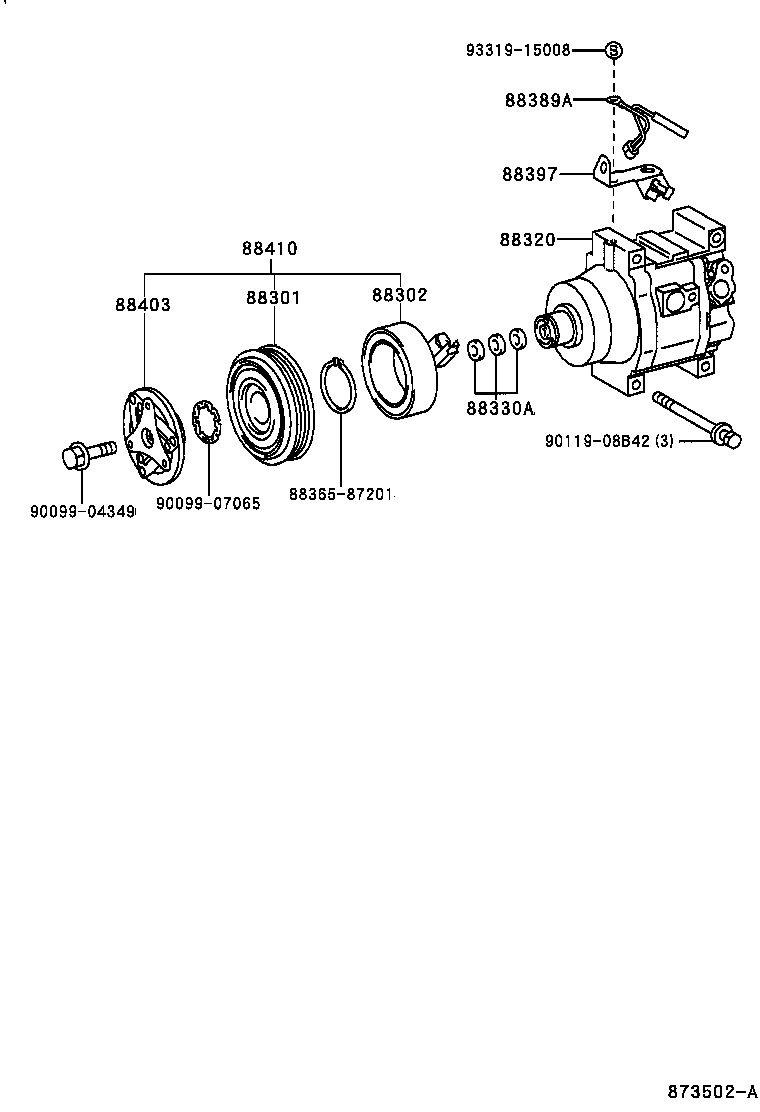

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88301 - ROTOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88412-52040 |
NCP1# |
1 | ||
| 88412-1A160 |
NCP1#..ARL,GEN |
1 | ||
| 88302 - STATOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88411-1A050 |
NCP1#..ARL,GEN |
1 | ||
| 88411-16070 |
NCP1# |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-52010 |
NCP1#..GEN DEALER OPTION & W(MANUAL AIR CONDITIONER---DIAL TYPE) |
1 | ||
| 88320-52040 |
NCP1#..ARL,GEN |
1 | ||
| 88320-52120 |
NCP1#..ARL,GEN |
1 | ||
| 88320-52400 |
NCP1#..ARL,GEN |
1 | ||
| 88330A - WASHER (FOR MAGNET CLUTCH) | ||||
| 88335-14020 |
NCP1# |
1 | ||
| 88389A - WIRE, COMPRESSOR | ||||
| 88389-10020 |
NCP1#..ARL,GEN MAKER OPTION |
1 | ||
| 88397 - CLIP, SENSOR | ||||
| 88397-52020 |
NCP1#..ARL,GEN |
1 | ||
| 88403 - HUB SUB-ASSY, MAGNET CLUTCH | ||||
| 88403-16020 |
NCP1# |
1 | ||
| 88403-1A020 |
NCP1#..ARL,GEN |
1 | ||
| 88410 - CLUTCH ASSY, MAGNET | ||||
| 88410-1A210 |
NCP1#..ARL,GEN W(MANUAL AIR CONDITIONER---DIAL TYPE) |
1 | ||
| 88410-2B260 |
NCP1#..ARL,GEN OD=105 |
1 | ||
| 88410-52140 |
NCP1#..LHD..GEN |
1 | ||
| 88410-52141 |
NCP1#..LHD..GEN |
1 | ||
| 88410-52050 |
NCP1# |
1 | ||
| 88410-52230 |
NCP1#..LHD..GEN |
1 | ||
| 88410-52140 |
NCP1#..ARL,GEN OD=115 |
1 | ||
| 88410-52230 |
NCP1#..LHD..GEN DEALER OPTION |
1 | ||
| 88410-52140 |
NCP1#..GEN DEALER OPTION |
1 | ||
| Common parts | ||||
| 88365-87201 | ||||
| 90099-04349 | ||||
| 90099-07065 | ||||
| 90119-08B42 | ||||
| 93319-15008 | ||||

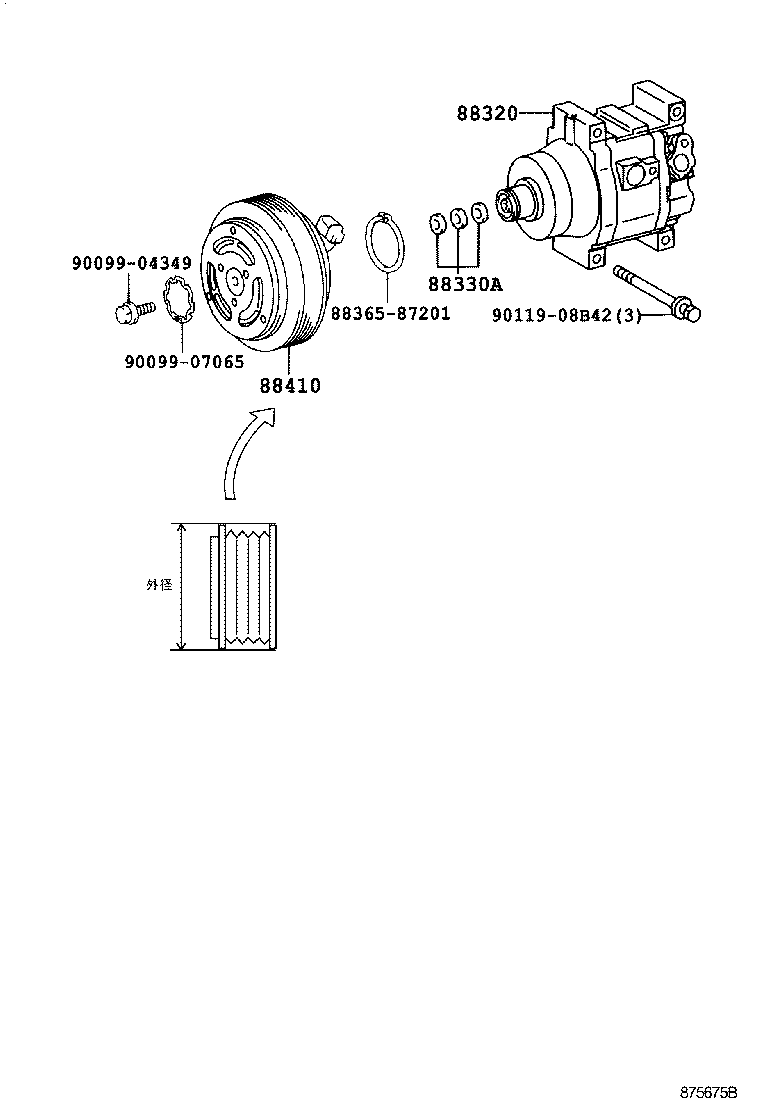

(0208- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-52010 |
NCP1#..GEN DEALER OPTION & W(MANUAL AIR CONDITIONER---DIAL TYPE) |
1 | ||
| 88320-52040 |
NCP1#..ARL,GEN |
1 | ||
| 88320-52120 |
NCP1#..ARL,GEN |
1 | ||
| 88320-52400 |
NCP1#..ARL,GEN |
1 | ||
| 88330A - WASHER (FOR MAGNET CLUTCH) | ||||
| 88335-14020 |
NCP1# |
1 | ||
| 88410 - CLUTCH ASSY, MAGNET | ||||
| 88410-1A210 |
NCP1#..ARL,GEN W(MANUAL AIR CONDITIONER---DIAL TYPE) |
1 | ||
| 88410-2B260 |
NCP1#..ARL,GEN OD=105 |
1 | ||
| 88410-52140 |
NCP1#..LHD..GEN |
1 | ||
| 88410-52141 |
NCP1#..LHD..GEN |
1 | ||
| 88410-52050 |
NCP1# |
1 | ||
| 88410-52230 |
NCP1#..LHD..GEN |
1 | ||
| 88410-52140 |
NCP1#..ARL,GEN OD=115 |
1 | ||
| 88410-52230 |
NCP1#..LHD..GEN DEALER OPTION |
1 | ||
| 88410-52140 |
NCP1#..GEN DEALER OPTION |
1 | ||
| Common parts | ||||
| 88365-87201 | ||||
| 90099-04349 | ||||
| 90099-07065 | ||||
| 90119-08B42 | ||||
